MS135-ATPQF (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )7MGE

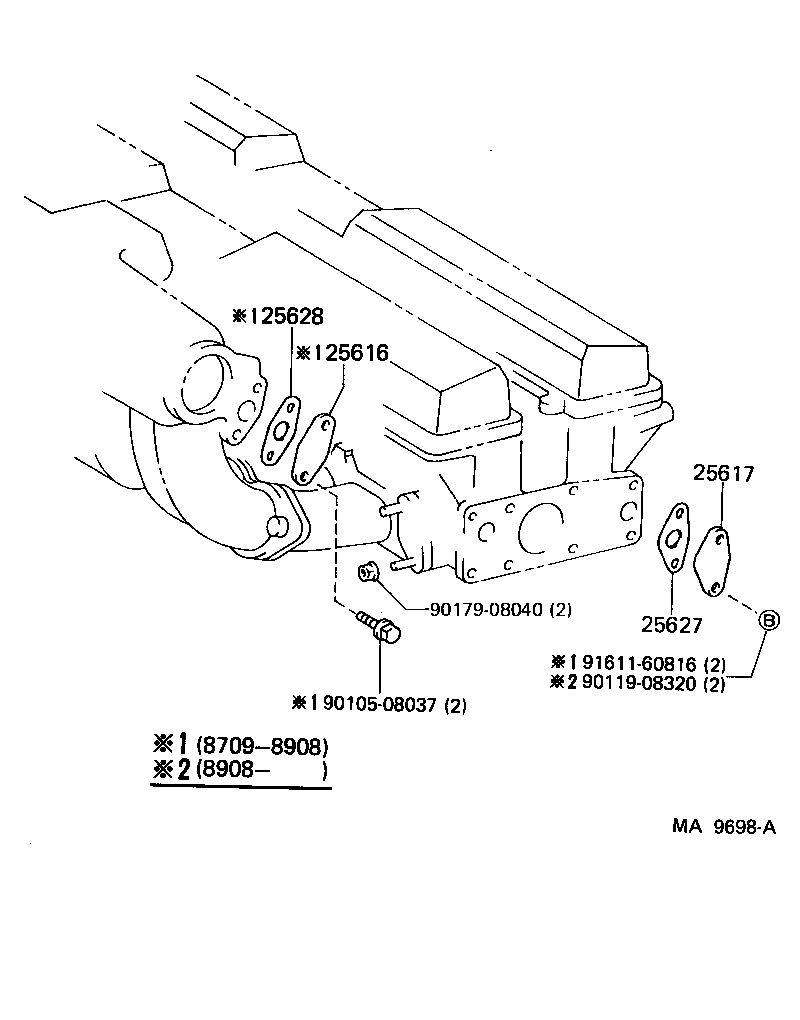

Click highlighted areas on diagram

diagram 25616 25617 25627 25628 9010508037 9011908320 9017908040 9161160816
Part # Description Qty Price
25616 - PLATE, HOLE COVER(FOR EGR PIPE)
25617-42010

7MGE..MS135,137

 1
25617 - PLATE, EGR HOLE COVER
25615-43020

7MGE..MS135,137

 1
25627 - GASKET, EGR VALVE
25627-43030

7MGE..MS135,137

 1
25627-43030

7MGE..MS13#

 1
25627-43030

7MGE..MS13#

 1
25627-42040

7MGE..MS13#

 1
25628 - GASKET, EGR INLET
25628-42010

7MGE..MS135,137

 1
Common parts
90105-08037
90119-08320
90179-08040
91611-60816
