MS135-ATPJF (1989)

Toyota Crown

Production Aug 1989 - Oct 1991
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )MS13#

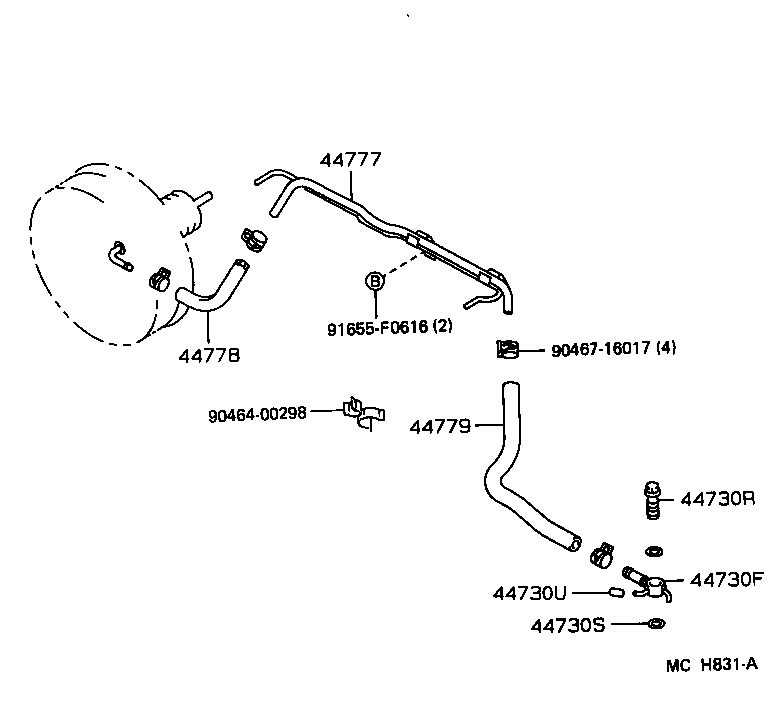

Click highlighted areas on diagram

diagram 44730F 44730R 44730S 44730U 44777 44778 44779 9046400298 9046716017 91655F0616
Part # Description Qty Price
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09126

MS135,137

 1
44730R - BOLT, UNION(FOR VACUUM HOSE UNION)
90401-12012

MS135,137,UZS131

 1
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12005

MS135,137,UZS131

 2
44730U - PLUG(FOR VACUUM HOSE UNION)
90339-03005

MS135..SALEX

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-30120

MS135,137

 1
44777-30121

GS130,JZS131,MS135..SALEX;GS131..(ROY,SAL,SALEX)..(HTWC,TWC)

ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ)

 1
44777-30141

GS13#..HTWC,TWC,TWLPG;JZS131,MS135..SALEX,SSL

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-30130

GS130,131,JZS13#,MS135,137,UZS131..HTWC,SPC,TWC

 1
44779 - HOSE, UNION TO CONNECTOR
44779-30210

MS135,137

 1
Common parts
90464-00298
90467-16017
91655-F0616

(8908- )MS135..ROY ; (8908- )GS131..ROY..SPC ; (8908- )GS131,JZS13#,MS137,

Click highlighted areas on diagram

diagram 04443 44605 44608 44609D 44610 44624J 44633 44637A 44645 44649B 44673A 44696 44730 44758 44785 9017908121
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-30580

GS131,MS135,137..SPC,TWC

AISIN

 1
04443-30500

GS131,MS135,137..SPC,TWC

JKC

 1
04443-30630

JZS13#,MS135;GS130,131..SPC

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-30350

GS131,MS135,137..SPC,TWC

 1
44605-30350

GS131,JZS131,MS135

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-17090

GS131,MS135,137..SPC,TWC

 1
44608-2B460

GS131,JZS131,MS135

 1
44609D - PLATE & RETAINER SUB-ASSY, BOOSTER
44609-26380

GS131,MS135,137..SPC,TWC

 1
44609-2B640

GS131,JZS131,MS135

 1
44610 - BOOSTER ASSY, BRAKE
44610-30660

GS131,MS135,137..SPC,TWC

AISIN

 1
44610-30670

GS131,MS135,137..SPC,TWC

JKC

 1
44610-30721

JZS13#,MS135;GS130,131..SPC

 1
44624J - PLATE, BOOSTER CENTER
44624-28300

GS131,MS135,137..SPC,TWC

 1
44624-2B640

GS131,JZS131,MS135

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-2B460

GS131,JZS131,MS135

 1
44633-20811

GS131,MS135,137..SPC,TWC

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-2B460

GS131,JZS131,MS135

 1
44637-28300

GS131,MS135,137..SPC,TWC

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-10080

YS130..MTM..STD;GS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SSL,STD)

 1
44645-10080

YS130..MTM..STD;GS131,JZS131,MS135

 1
44649B - RETAINER, BOOSTER SPRING
44649-2B460

GS131,JZS131,MS135

 1
44673A - BODY, BOOSTER VALVE
44673-20810

GS131,MS135,137..SPC,TWC

 1
44673-2B560

GS131..SPC;JZS131,MS135

 1
44696 - GROMMET, CHECK VALVE
90480-24439

GS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SSL)

AISIN BOOSTER

 1
90480-24517

GS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SSL)

JKC BOOSTER

 1
90480-24517

GS131..SPC;JZS131,MS13#,UZS131

JKC BOOSTER

 1
90480-24517

GS131,JZS131,MS13#,UZS131

JKC BOOSTER

 1
90480-24439

GS131,JZS131,MS13#,UZS131

AISIN BOOSTER

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14050

GS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SSL)

AISIN BOOSTER

 1
44730-14060

GS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SSL)

JKC BOOSTER

 1
44730-14050

GS131,JZS131,MS13#,UZS131

AISIN BOOSTER

 1
44730-14060

GS131..SPC;JZS131,MS13#,UZS131

JKC BOOSTER

 1
44730-14060

GS131,JZS131,MS13#,UZS131

JKC BOOSTER

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-30100

GS130,131,JZS13#,MS135,137,UZS131..HTWC,SPC,TWC

 1
44785 - GASKET, BRAKE BOOSTER
44785-30020

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 1
Common parts
90179-08121
