Toyota Crown MS135 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
CROWN
MS135-AESQF (1987)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

MS135-AESQF (1987)

Toyota Crown

Production Sep 1987 - Oct 1991

Engine 7MGE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

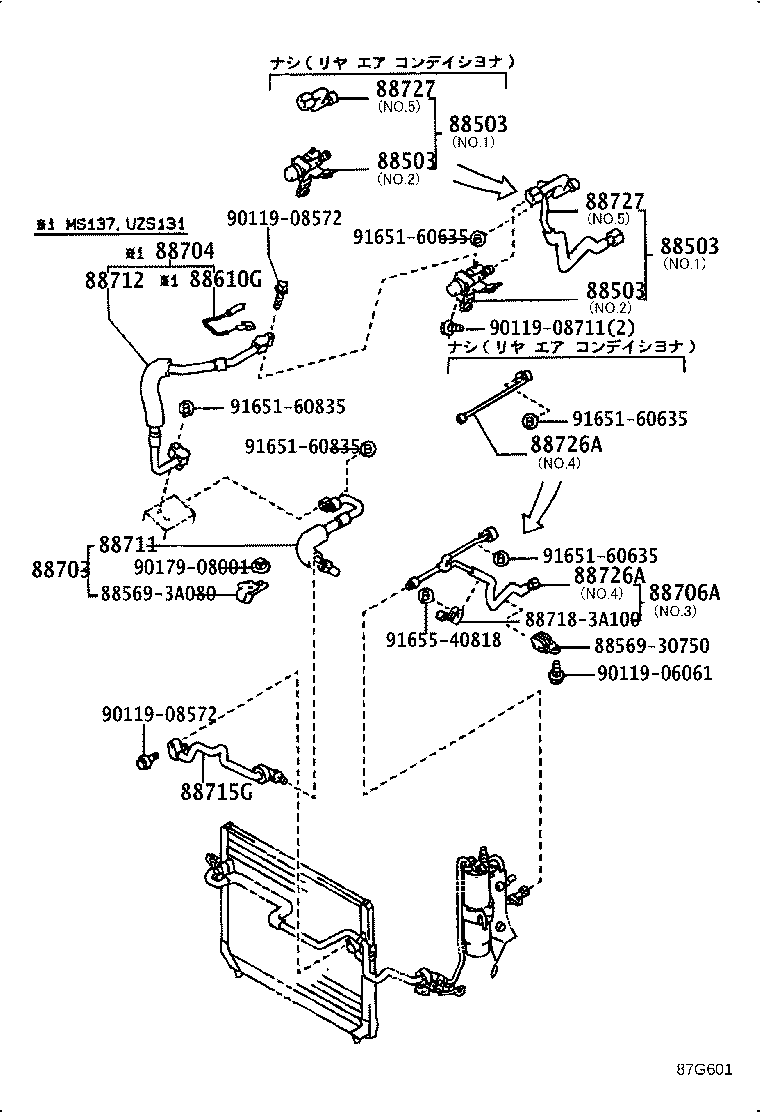

ILLUST NO. 2 OF 3(8709- )MS135,137,UZS131

Click highlighted areas on diagram

Part #	Description	Period	Qty
88503 - REGULATOR ASSY, PRESSURE
88503-30470	GS130,131,MS135,137..ROY,ROYG NO.2	09/1987 - 08/1989	1
88503-30470	GS130..SPC;GS130,131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) ｱﾘ(ﾘﾔｴｱｺﾝ),NO.2	08/1989 - 08/1990	1
88503-30451	GS130,JZS13#,MS135..ROY NO.1	08/1990 - 11/1990	1
88503-30471	JZS13#,LS131,MS13#,UZS131 NO.2	08/1990 - 10/1991	1
88503-30500	GS130,JZS13#,MS135..ROY NO.1	11/1990 - 10/1991	1
88503 - REGULATOR ASSY, PRESSURE
88503-30470	GS130,131,MS135,137..ROY,ROYG NO.2	09/1987 - 08/1989	1
88503-30470	GS130..SPC;GS130,131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) ｱﾘ(ﾘﾔｴｱｺﾝ),NO.2	08/1989 - 08/1990	1
88503-30451	GS130,JZS13#,MS135..ROY NO.1	08/1990 - 11/1990	1
88503-30471	JZS13#,LS131,MS13#,UZS131 NO.2	08/1990 - 10/1991	1
88503-30500	GS130,JZS13#,MS135..ROY NO.1	11/1990 - 10/1991	1
88503 - REGULATOR ASSY, PRESSURE
88503-30470	GS130,131,MS135,137..ROY,ROYG NO.2	09/1987 - 08/1989	1
88503-30470	GS130..SPC;GS130,131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) ｱﾘ(ﾘﾔｴｱｺﾝ),NO.2	08/1989 - 08/1990	1
88503-30451	GS130,JZS13#,MS135..ROY NO.1	08/1990 - 11/1990	1
88503-30471	JZS13#,LS131,MS13#,UZS131 NO.2	08/1990 - 10/1991	1
88503-30500	GS130,JZS13#,MS135..ROY NO.1	11/1990 - 10/1991	1
88503 - REGULATOR ASSY, PRESSURE
88503-30470	GS130,131,MS135,137..ROY,ROYG NO.2	09/1987 - 08/1989	1
88503-30470	GS130..SPC;GS130,131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) ｱﾘ(ﾘﾔｴｱｺﾝ),NO.2	08/1989 - 08/1990	1
88503-30451	GS130,JZS13#,MS135..ROY NO.1	08/1990 - 11/1990	1
88503-30471	JZS13#,LS131,MS13#,UZS131 NO.2	08/1990 - 10/1991	1
88503-30500	GS130,JZS13#,MS135..ROY NO.1	11/1990 - 10/1991	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-30250	MS135,137	09/1987 - 10/1991	1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-30250	GS130,131,MS135,137..ROY,ROYG NO.1	09/1987 - 08/1989	1
88706-30310	GS130,131,MS135,137..ROY,ROYG NO.2,PLANT NO.M22	09/1987 - 08/1989	1
88706-30320	GS131..ROY..SPC;GS130,MS135,137..SPC,TWC NO.3	09/1987 - 08/1989	1
88706-30260	GS130,131,MS135,137..ROY,ROYG NO.2,PLANT NO.A21-26	09/1987 - 08/1989	1
88706-30250	GS130,LS131..ROY,SPE,SSL;GS130,131,LS130,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.1	08/1989 - 09/1989	1
88706-30310	GS130..SPC;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.2,PLANT NO.M22	08/1989 - 10/1991	1
88706-30320	GS131..ROY..SPC;GS130,JZS131,MS13#,UZS131..ROY,ROYG NO.3	08/1989 - 10/1991	1
88706-30260	GS130..SPC;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.2,PLANT NO.A21-26	08/1989 - 10/1991	1
88706-30250	GS130..SPC;GS131,JZS13#,MS13#,UZS131;GS130,LS130,131..(HT,SED)..(SDX,SPE,SSL) NO.1	09/1989 - 10/1991	1
88706-30250	GS130..SPC;GS131,JZS13#,MS13#,UZS131;GS130,LS130,131..(HT,SED)..(SDX,SPE,SSL) NO.1	09/1989 - 10/1991	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-30630	MS135,137	09/1987 - 10/1991	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-30870	MS135	09/1987 - 10/1991	1
88715G - TUBE, DISCHARGE, G
88715-30350	GS131,MS135,137..TWC	09/1987 - 08/1989	1
88715-30350	JZS13#,MS13#,UZS131	08/1989 - 10/1991	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-3A050	GS131..ROY..SPC;GS130,MS135,137..SPC,TWC ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	09/1987 - 08/1989	1
88726-3A090	GS131,MS135,137..TWC NO.1	09/1987 - 08/1989	1
88726-3A100	LS130..DLX,SDX;GS13#,LS136,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2	09/1987 - 08/1989	1
88726-3A110	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.A21-26	09/1987 - 08/1989	1
88726-3A250	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.M22	09/1987 - 08/1989	1
88726-3A110	GS130..SPC;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.3,PLANT NO.A21-26	08/1989 - 09/1989	1
88726-3A100	GS13#,LS136,MS13#,UZS131,YS130;LS130,131..DLX,SDX,SPE,SSL,STD NO.2	08/1989 - 10/1989	1
88726-3A090	GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.1	08/1989 - 09/1989	1
88726-3A250	GS130,131..ROY..SPC..NOB;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.3,PLANT NO.M22	08/1989 - 09/1989	1
88726-3A020	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.6	09/1987 - 10/1991	1
88726-3A040	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.5	09/1987 - 10/1991	1
88726-3A110	GS130..SPC;GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131 NO.3,PLANT NO.A21-26	09/1989 - 10/1991	1
88726-3A090	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.1	09/1989 - 10/1991	1
88726-3A100	LS130,131..DLX,SDX,SPE,SSL,STD;GS13#,JZS13#,LS136,MS13#,UZS131,YS130 NO.2	10/1989 - 10/1991	1
88726-3A250	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.3,PLANT NO.M22	09/1989 - 10/1991	1
88726-3A050	GS131..ROY..SPC;GS130,JZS131,MS13#,UZS131..ROY,ROYG ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	10/1989 - 10/1991	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-3A050	GS131..ROY..SPC;GS130,MS135,137..SPC,TWC ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	09/1987 - 08/1989	1
88726-3A090	GS131,MS135,137..TWC NO.1	09/1987 - 08/1989	1
88726-3A100	LS130..DLX,SDX;GS13#,LS136,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2	09/1987 - 08/1989	1
88726-3A110	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.A21-26	09/1987 - 08/1989	1
88726-3A250	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.M22	09/1987 - 08/1989	1
88726-3A110	GS130..SPC;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.3,PLANT NO.A21-26	08/1989 - 09/1989	1
88726-3A100	GS13#,LS136,MS13#,UZS131,YS130;LS130,131..DLX,SDX,SPE,SSL,STD NO.2	08/1989 - 10/1989	1
88726-3A090	GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.1	08/1989 - 09/1989	1
88726-3A250	GS130,131..ROY..SPC..NOB;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.3,PLANT NO.M22	08/1989 - 09/1989	1
88726-3A020	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.6	09/1987 - 10/1991	1
88726-3A040	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.5	09/1987 - 10/1991	1
88726-3A110	GS130..SPC;GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131 NO.3,PLANT NO.A21-26	09/1989 - 10/1991	1
88726-3A090	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.1	09/1989 - 10/1991	1
88726-3A100	LS130,131..DLX,SDX,SPE,SSL,STD;GS13#,JZS13#,LS136,MS13#,UZS131,YS130 NO.2	10/1989 - 10/1991	1
88726-3A250	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.3,PLANT NO.M22	09/1989 - 10/1991	1
88726-3A050	GS131..ROY..SPC;GS130,JZS131,MS13#,UZS131..ROY,ROYG ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	10/1989 - 10/1991	1
88727 - TUBE, SUCTION, NO.2
88727-30720	GS131,MS135,137 NO.1	09/1987 - 08/1989	1
88727-30750	GS131..ROY..SPC;GS130,JZS131,MS135,137,UZS131..ROY,ROYG NO.3	09/1987 - 11/1990	1
88727-30740	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.2	09/1987 - 10/1991	1
88727-30720	GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG NO.1	10/1989 - 10/1991	1
88727-3A030	GS131..ROY..SPC;GS130,JZS131,MS13#,UZS131..ROY,ROYG NO.5	11/1990 - 10/1991	1
88727 - TUBE, SUCTION, NO.2
88727-30720	GS131,MS135,137 NO.1	09/1987 - 08/1989	1
88727-30750	GS131..ROY..SPC;GS130,JZS131,MS135,137,UZS131..ROY,ROYG NO.3	09/1987 - 11/1990	1
88727-30740	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.2	09/1987 - 10/1991	1
88727-30720	GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG NO.1	10/1989 - 10/1991	1
88727-3A030	GS131..ROY..SPC;GS130,JZS131,MS13#,UZS131..ROY,ROYG NO.5	11/1990 - 10/1991	1
Common parts
88569-30750
88569-3A080
88718-3A100
90119-06061
90119-08572
90119-08711
90179-08001
91651-60635
91651-60835
91655-40818

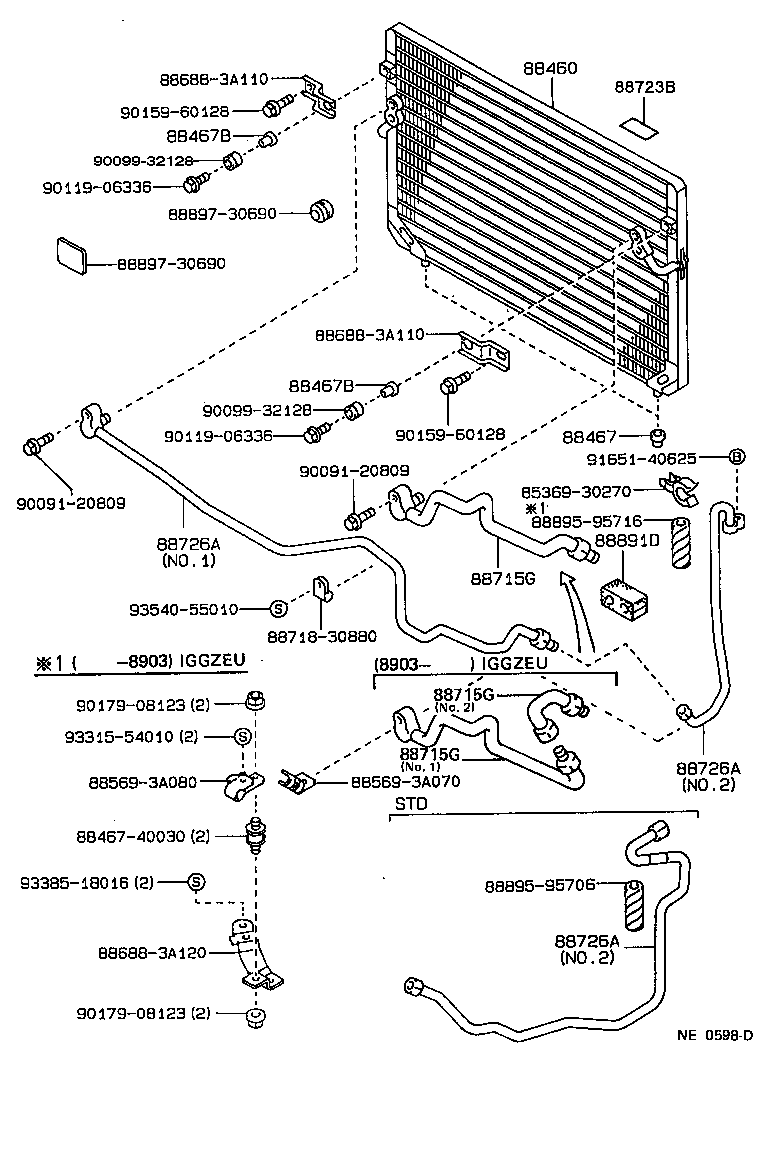

ILLUST NO. 1 OF 3(8709- )GS130,131,JZS13#,MS135,137,UZS131..HTWC,TWC,TWLPG

Click highlighted areas on diagram

Part #	Description	Period	Qty
88375B - CAP, SERVICE VALVE, NO.1
88375-20010	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS13#,UZS131	08/1989 - 10/1991	1
88375-20010	GS130,131,MS135,137..ROY,ROYG	09/1987 - 08/1989	1
88460 - CONDENSER ASSY, COOLER
88460-30580	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS13#,UZS131	08/1989 - 10/1991	1
88460-30540	GS130,131,MS135,137..ROY,ROYG	09/1987 - 08/1989	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-30490	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS13#,UZS131	08/1989 - 10/1991	1
88470-30490	GS130,131,MS135,137..ROY,ROYG	09/1987 - 08/1989	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-30350	MS135,137	09/1987 - 08/1989	1
88471-30350	JZS13#,LS131,MS13#,UZS131	08/1989 - 10/1991	1
88645H - SWITCH, PRESSURE NO.1
88645-30280	MS135,137 NO.1	09/1987 - 11/1988	1
88645-30300	GS131..ROY..NOB;GS130,MS135,137..ROY,ROYG	11/1988 - 09/1989	1
88645-30280	GS131,MS13#,UZS131 NO.1	08/1989 - 09/1989	1
88645-30281	GS131,MS13#,UZS131 NO.1	09/1989 - 10/1991	1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-30250	GS130,131,MS135,137..ROY,ROYG NO.1	09/1987 - 08/1989	1
88706-30310	GS130,131,MS135,137..ROY,ROYG NO.2,PLANT NO.M22	09/1987 - 08/1989	1
88706-30320	GS131..ROY..SPC;GS130,MS135,137..SPC,TWC NO.3	09/1987 - 08/1989	1
88706-30260	GS130,131,MS135,137..ROY,ROYG NO.2,PLANT NO.A21-26	09/1987 - 08/1989	1
88706-30250	GS130,LS131..ROY,SPE,SSL;GS130,131,LS130,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.1	08/1989 - 09/1989	1
88706-30310	GS130..SPC;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.2,PLANT NO.M22	08/1989 - 10/1991	1
88706-30320	GS131..ROY..SPC;GS130,JZS131,MS13#,UZS131..ROY,ROYG NO.3	08/1989 - 10/1991	1
88706-30260	GS130..SPC;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.2,PLANT NO.A21-26	08/1989 - 10/1991	1
88706-30250	GS130..SPC;GS131,JZS13#,MS13#,UZS131;GS130,LS130,131..(HT,SED)..(SDX,SPE,SSL) NO.1	09/1989 - 10/1991	1
88706-30250	GS130..SPC;GS131,JZS13#,MS13#,UZS131;GS130,LS130,131..(HT,SED)..(SDX,SPE,SSL) NO.1	09/1989 - 10/1991	1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-30250	GS130,131,MS135,137..ROY,ROYG NO.1	09/1987 - 08/1989	1
88706-30310	GS130,131,MS135,137..ROY,ROYG NO.2,PLANT NO.M22	09/1987 - 08/1989	1
88706-30320	GS131..ROY..SPC;GS130,MS135,137..SPC,TWC NO.3	09/1987 - 08/1989	1
88706-30260	GS130,131,MS135,137..ROY,ROYG NO.2,PLANT NO.A21-26	09/1987 - 08/1989	1
88706-30250	GS130,LS131..ROY,SPE,SSL;GS130,131,LS130,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.1	08/1989 - 09/1989	1
88706-30310	GS130..SPC;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.2,PLANT NO.M22	08/1989 - 10/1991	1
88706-30320	GS131..ROY..SPC;GS130,JZS131,MS13#,UZS131..ROY,ROYG NO.3	08/1989 - 10/1991	1
88706-30260	GS130..SPC;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.2,PLANT NO.A21-26	08/1989 - 10/1991	1
88706-30250	GS130..SPC;GS131,JZS13#,MS13#,UZS131;GS130,LS130,131..(HT,SED)..(SDX,SPE,SSL) NO.1	09/1989 - 10/1991	1
88706-30250	GS130..SPC;GS131,JZS13#,MS13#,UZS131;GS130,LS130,131..(HT,SED)..(SDX,SPE,SSL) NO.1	09/1989 - 10/1991	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-3A050	GS131..ROY..SPC;GS130,MS135,137..SPC,TWC ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	09/1987 - 08/1989	1
88726-3A090	GS131,MS135,137..TWC NO.1	09/1987 - 08/1989	1
88726-3A100	LS130..DLX,SDX;GS13#,LS136,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2	09/1987 - 08/1989	1
88726-3A110	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.A21-26	09/1987 - 08/1989	1
88726-3A250	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.M22	09/1987 - 08/1989	1
88726-3A110	GS130..SPC;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.3,PLANT NO.A21-26	08/1989 - 09/1989	1
88726-3A100	GS13#,LS136,MS13#,UZS131,YS130;LS130,131..DLX,SDX,SPE,SSL,STD NO.2	08/1989 - 10/1989	1
88726-3A090	GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.1	08/1989 - 09/1989	1
88726-3A250	GS130,131..ROY..SPC..NOB;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.3,PLANT NO.M22	08/1989 - 09/1989	1
88726-3A020	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.6	09/1987 - 10/1991	1
88726-3A040	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.5	09/1987 - 10/1991	1
88726-3A110	GS130..SPC;GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131 NO.3,PLANT NO.A21-26	09/1989 - 10/1991	1
88726-3A090	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.1	09/1989 - 10/1991	1
88726-3A100	LS130,131..DLX,SDX,SPE,SSL,STD;GS13#,JZS13#,LS136,MS13#,UZS131,YS130 NO.2	10/1989 - 10/1991	1
88726-3A250	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.3,PLANT NO.M22	09/1989 - 10/1991	1
88726-3A050	GS131..ROY..SPC;GS130,JZS131,MS13#,UZS131..ROY,ROYG ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	10/1989 - 10/1991	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-3A050	GS131..ROY..SPC;GS130,MS135,137..SPC,TWC ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	09/1987 - 08/1989	1
88726-3A090	GS131,MS135,137..TWC NO.1	09/1987 - 08/1989	1
88726-3A100	LS130..DLX,SDX;GS13#,LS136,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2	09/1987 - 08/1989	1
88726-3A110	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.A21-26	09/1987 - 08/1989	1
88726-3A250	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.M22	09/1987 - 08/1989	1
88726-3A110	GS130..SPC;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.3,PLANT NO.A21-26	08/1989 - 09/1989	1
88726-3A100	GS13#,LS136,MS13#,UZS131,YS130;LS130,131..DLX,SDX,SPE,SSL,STD NO.2	08/1989 - 10/1989	1
88726-3A090	GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.1	08/1989 - 09/1989	1
88726-3A250	GS130,131..ROY..SPC..NOB;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.3,PLANT NO.M22	08/1989 - 09/1989	1
88726-3A020	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.6	09/1987 - 10/1991	1
88726-3A040	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.5	09/1987 - 10/1991	1
88726-3A110	GS130..SPC;GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131 NO.3,PLANT NO.A21-26	09/1989 - 10/1991	1
88726-3A090	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.1	09/1989 - 10/1991	1
88726-3A100	LS130,131..DLX,SDX,SPE,SSL,STD;GS13#,JZS13#,LS136,MS13#,UZS131,YS130 NO.2	10/1989 - 10/1991	1
88726-3A250	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.3,PLANT NO.M22	09/1989 - 10/1991	1
88726-3A050	GS131..ROY..SPC;GS130,JZS131,MS13#,UZS131..ROY,ROYG ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	10/1989 - 10/1991	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-3A050	GS131..ROY..SPC;GS130,MS135,137..SPC,TWC ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	09/1987 - 08/1989	1
88726-3A090	GS131,MS135,137..TWC NO.1	09/1987 - 08/1989	1
88726-3A100	LS130..DLX,SDX;GS13#,LS136,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2	09/1987 - 08/1989	1
88726-3A110	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.A21-26	09/1987 - 08/1989	1
88726-3A250	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.M22	09/1987 - 08/1989	1
88726-3A110	GS130..SPC;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.3,PLANT NO.A21-26	08/1989 - 09/1989	1
88726-3A100	GS13#,LS136,MS13#,UZS131,YS130;LS130,131..DLX,SDX,SPE,SSL,STD NO.2	08/1989 - 10/1989	1
88726-3A090	GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.1	08/1989 - 09/1989	1
88726-3A250	GS130,131..ROY..SPC..NOB;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.3,PLANT NO.M22	08/1989 - 09/1989	1
88726-3A020	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.6	09/1987 - 10/1991	1
88726-3A040	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.5	09/1987 - 10/1991	1
88726-3A110	GS130..SPC;GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131 NO.3,PLANT NO.A21-26	09/1989 - 10/1991	1
88726-3A090	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.1	09/1989 - 10/1991	1
88726-3A100	LS130,131..DLX,SDX,SPE,SSL,STD;GS13#,JZS13#,LS136,MS13#,UZS131,YS130 NO.2	10/1989 - 10/1991	1
88726-3A250	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.3,PLANT NO.M22	09/1989 - 10/1991	1
88726-3A050	GS131..ROY..SPC;GS130,JZS131,MS13#,UZS131..ROY,ROYG ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	10/1989 - 10/1991	1
Common parts
88467-40030
88569-3A070
88569-3A110
88688-3A100
88688-3A110
88688-3A120
88688-3A140
88718-30880
88895-89102
88897-30690
90099-32100
90099-32128
90119-06013
90119-06336
90119-06553
90119-08572
90179-08001
90179-08123
91655-40816
91656-40816
93540-55010

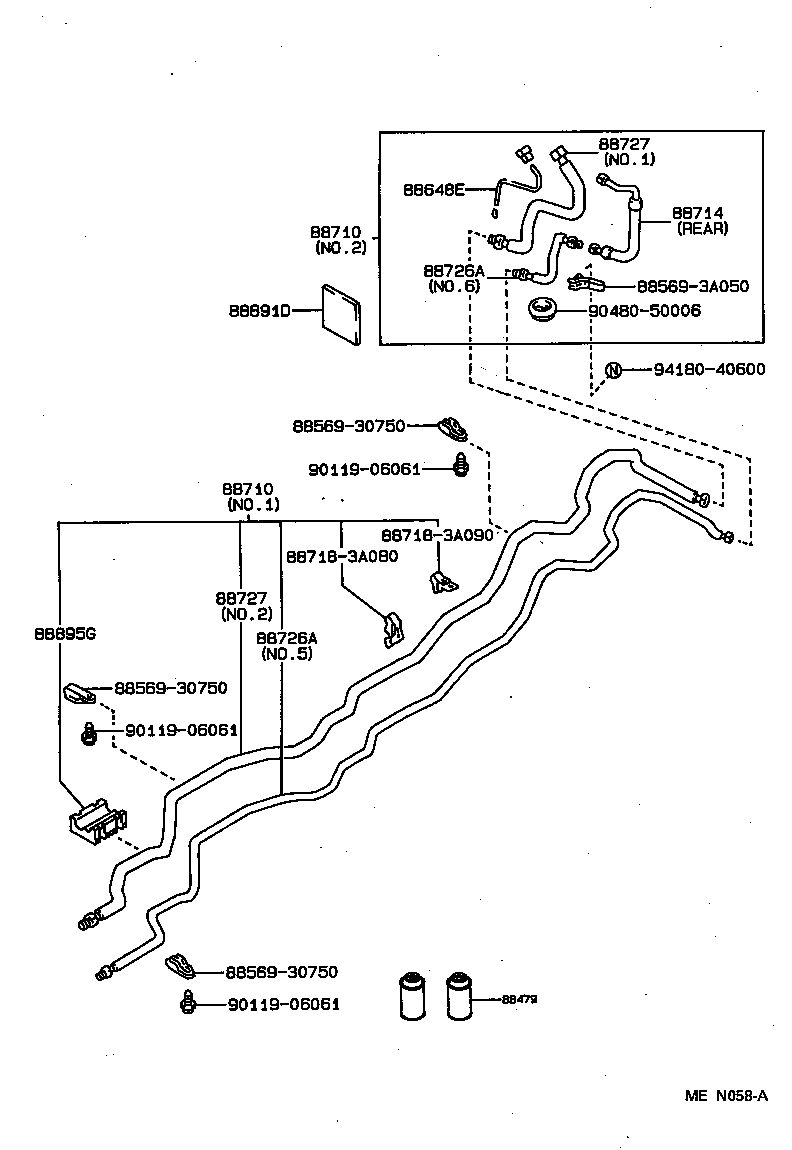

ILLUST NO. 3 OF 3(8709- )GS131..ROY..SPC ; (8709- )JZS131,MS135,137,UZS131

Click highlighted areas on diagram

Part #	Description	Period	Qty
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	MS135..4HC..NOB 400G	02/1988 - 10/1991	2
90986-02002	MS135..4HC..NOB 300G	11/1988 - 10/1991	2
88648E - WIRING, COOLER
88648-30550	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..4FC..ROY;GS131..SED..(4HC,5F);GS130..4HC..SDX..HTWC;GS131..HT..ATM..(ROY,SALEX);JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SALEX,SDX,SPE,SSL)	01/1991 - 10/1991	1
88648-30550	GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)	09/1987 - 01/1991	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-30430	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.1	09/1987 - 10/1991	1
88710-30460	GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG NO.2	08/1989 - 10/1991	1
88710-30410	MS135,137;GS131..ROY..SPC NO.2	09/1987 - 08/1989	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-30430	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.1	09/1987 - 10/1991	1
88710-30460	GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG NO.2	08/1989 - 10/1991	1
88710-30410	MS135,137;GS131..ROY..SPC NO.2	09/1987 - 08/1989	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-30290	GS131,MS135,137	09/1987 - 08/1989	1
88721-30310	GS131,JZS131,LS131,MS13#,UZS131	08/1989 - 01/1991	1
88721-30310	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..4FC..ROY;GS131..SED..(4HC,5F);JZS131,LS131,MS13#,UZS131;GS131..HT..ATM..(ROY,SALEX)	01/1991 - 10/1991	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-3A050	GS131..ROY..SPC;GS130,MS135,137..SPC,TWC ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	09/1987 - 08/1989	1
88726-3A090	GS131,MS135,137..TWC NO.1	09/1987 - 08/1989	1
88726-3A100	LS130..DLX,SDX;GS13#,LS136,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2	09/1987 - 08/1989	1
88726-3A110	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.A21-26	09/1987 - 08/1989	1
88726-3A250	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.M22	09/1987 - 08/1989	1
88726-3A110	GS130..SPC;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.3,PLANT NO.A21-26	08/1989 - 09/1989	1
88726-3A100	GS13#,LS136,MS13#,UZS131,YS130;LS130,131..DLX,SDX,SPE,SSL,STD NO.2	08/1989 - 10/1989	1
88726-3A090	GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.1	08/1989 - 09/1989	1
88726-3A250	GS130,131..ROY..SPC..NOB;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.3,PLANT NO.M22	08/1989 - 09/1989	1
88726-3A020	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.6	09/1987 - 10/1991	1
88726-3A040	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.5	09/1987 - 10/1991	1
88726-3A110	GS130..SPC;GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131 NO.3,PLANT NO.A21-26	09/1989 - 10/1991	1
88726-3A090	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.1	09/1989 - 10/1991	1
88726-3A100	LS130,131..DLX,SDX,SPE,SSL,STD;GS13#,JZS13#,LS136,MS13#,UZS131,YS130 NO.2	10/1989 - 10/1991	1
88726-3A250	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.3,PLANT NO.M22	09/1989 - 10/1991	1
88726-3A050	GS131..ROY..SPC;GS130,JZS131,MS13#,UZS131..ROY,ROYG ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	10/1989 - 10/1991	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-3A050	GS131..ROY..SPC;GS130,MS135,137..SPC,TWC ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	09/1987 - 08/1989	1
88726-3A090	GS131,MS135,137..TWC NO.1	09/1987 - 08/1989	1
88726-3A100	LS130..DLX,SDX;GS13#,LS136,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2	09/1987 - 08/1989	1
88726-3A110	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.A21-26	09/1987 - 08/1989	1
88726-3A250	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.M22	09/1987 - 08/1989	1
88726-3A110	GS130..SPC;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.3,PLANT NO.A21-26	08/1989 - 09/1989	1
88726-3A100	GS13#,LS136,MS13#,UZS131,YS130;LS130,131..DLX,SDX,SPE,SSL,STD NO.2	08/1989 - 10/1989	1
88726-3A090	GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.1	08/1989 - 09/1989	1
88726-3A250	GS130,131..ROY..SPC..NOB;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.3,PLANT NO.M22	08/1989 - 09/1989	1
88726-3A020	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.6	09/1987 - 10/1991	1
88726-3A040	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.5	09/1987 - 10/1991	1
88726-3A110	GS130..SPC;GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131 NO.3,PLANT NO.A21-26	09/1989 - 10/1991	1
88726-3A090	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.1	09/1989 - 10/1991	1
88726-3A100	LS130,131..DLX,SDX,SPE,SSL,STD;GS13#,JZS13#,LS136,MS13#,UZS131,YS130 NO.2	10/1989 - 10/1991	1
88726-3A250	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.3,PLANT NO.M22	09/1989 - 10/1991	1
88726-3A050	GS131..ROY..SPC;GS130,JZS131,MS13#,UZS131..ROY,ROYG ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	10/1989 - 10/1991	1
88727 - TUBE, SUCTION, NO.2
88727-30720	GS131,MS135,137 NO.1	09/1987 - 08/1989	1
88727-30750	GS131..ROY..SPC;GS130,JZS131,MS135,137,UZS131..ROY,ROYG NO.3	09/1987 - 11/1990	1
88727-30740	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.2	09/1987 - 10/1991	1
88727-30720	GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG NO.1	10/1989 - 10/1991	1
88727-3A030	GS131..ROY..SPC;GS130,JZS131,MS13#,UZS131..ROY,ROYG NO.5	11/1990 - 10/1991	1
88727 - TUBE, SUCTION, NO.2
88727-30720	GS131,MS135,137 NO.1	09/1987 - 08/1989	1
88727-30750	GS131..ROY..SPC;GS130,JZS131,MS135,137,UZS131..ROY,ROYG NO.3	09/1987 - 11/1990	1
88727-30740	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.2	09/1987 - 10/1991	1
88727-30720	GS131..ROY..SPC;JZS131,MS13#,UZS131..ROY,ROYG NO.1	10/1989 - 10/1991	1
88727-3A030	GS131..ROY..SPC;GS130,JZS131,MS13#,UZS131..ROY,ROYG NO.5	11/1990 - 10/1991	1
88891D - PACKING D (FOR COOLER)
88578-30410	GS130..SPC;GS131,JZS13#,LS131,MS13#,UZS131;GS130,LS130..SED..SDX..(DSL,HTWC,TD,TDE) REAR	08/1989 - 01/1991	1
88578-30410	GS131..ROY..SPC;GS130,MS135,137..SPC,TWC REAR	09/1987 - 08/1989	1
88578-30410	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..(4HC,5F);GS130..4HC..SDX..HTWC;JZS13#,LS131,MS13#,UZS131;GS131..HT..ATM..(ROY,SALEX);GS130,131,LS130..(SED,WG)..(4FC,5F)..(ROY,SDX)..(DSL,SPC,TD,TDE,TWC) REAR	01/1991 - 10/1991	1
88895G - BUSH
88895-30640	GS131..ROY..SPC;GS130,JZS13#,MS135,137,UZS131..ROY,ROYG	10/1988 - 10/1991	1
Common parts
88569-30750
88569-3A050
88718-3A080
88718-3A090
90119-06061
90480-50006
94180-40600

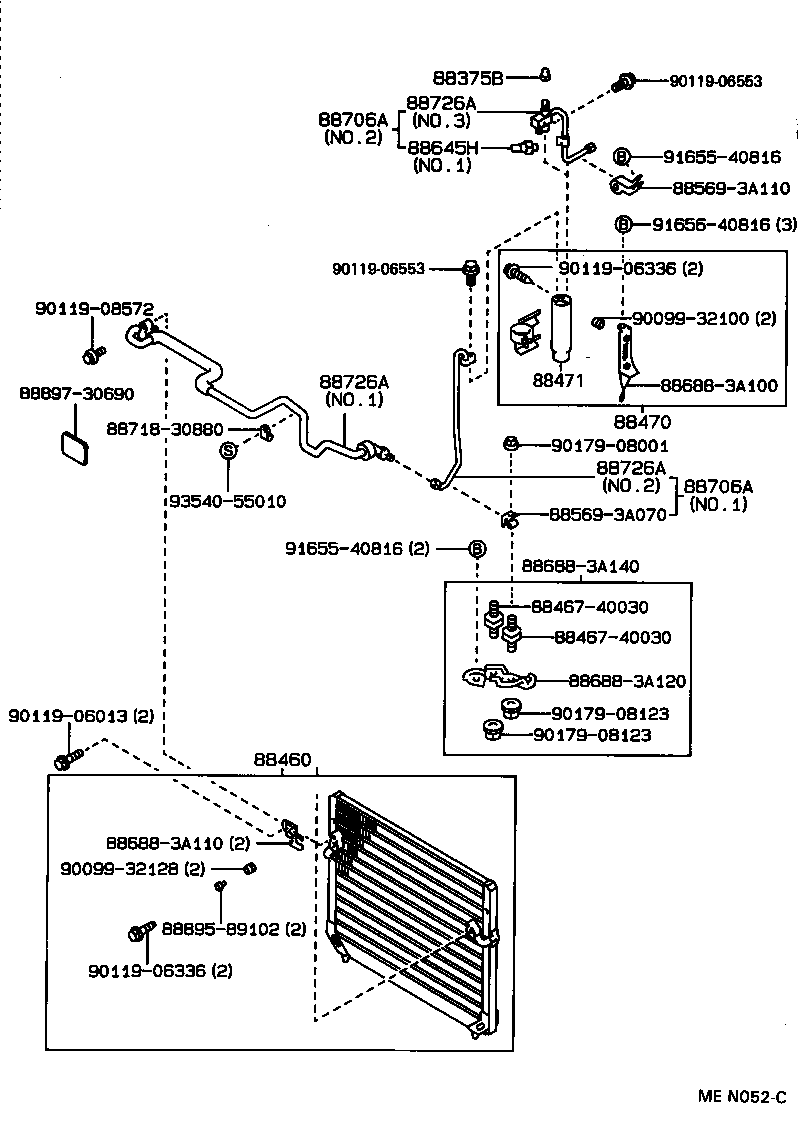

ILLUST NO. 1 OF 3(8709- )GS13#,MS13#

Click highlighted areas on diagram

DEALER OPT

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-30580	GS130..SPC;GS130,LS130..SED..SDX;GS131,JZS13#,LS131,MS13#,UZS131	08/1989 - 10/1991	1
88460-30540	GS130,131,MS135,137..ROY,ROYG	09/1987 - 08/1989	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32020	MS135,137	09/1987 - 08/1989	2
88715G - TUBE, DISCHARGE, G
88715-30350	GS131,MS135,137..TWC	09/1987 - 08/1989	1
88715-30350	JZS13#,MS13#,UZS131	08/1989 - 10/1991	1
88715G - TUBE, DISCHARGE, G
88715-30350	GS131,MS135,137..TWC	09/1987 - 08/1989	1
88715-30350	JZS13#,MS13#,UZS131	08/1989 - 10/1991	1
88715G - TUBE, DISCHARGE, G
88715-30350	GS131,MS135,137..TWC	09/1987 - 08/1989	1
88715-30350	JZS13#,MS13#,UZS131	08/1989 - 10/1991	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-3A050	GS131..ROY..SPC;GS130,MS135,137..SPC,TWC ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	09/1987 - 08/1989	1
88726-3A090	GS131,MS135,137..TWC NO.1	09/1987 - 08/1989	1
88726-3A100	LS130..DLX,SDX;GS13#,LS136,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2	09/1987 - 08/1989	1
88726-3A110	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.A21-26	09/1987 - 08/1989	1
88726-3A250	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.M22	09/1987 - 08/1989	1
88726-3A110	GS130..SPC;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.3,PLANT NO.A21-26	08/1989 - 09/1989	1
88726-3A100	GS13#,LS136,MS13#,UZS131,YS130;LS130,131..DLX,SDX,SPE,SSL,STD NO.2	08/1989 - 10/1989	1
88726-3A090	GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.1	08/1989 - 09/1989	1
88726-3A250	GS130,131..ROY..SPC..NOB;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.3,PLANT NO.M22	08/1989 - 09/1989	1
88726-3A020	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.6	09/1987 - 10/1991	1
88726-3A040	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.5	09/1987 - 10/1991	1
88726-3A110	GS130..SPC;GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131 NO.3,PLANT NO.A21-26	09/1989 - 10/1991	1
88726-3A090	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.1	09/1989 - 10/1991	1
88726-3A100	LS130,131..DLX,SDX,SPE,SSL,STD;GS13#,JZS13#,LS136,MS13#,UZS131,YS130 NO.2	10/1989 - 10/1991	1
88726-3A250	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.3,PLANT NO.M22	09/1989 - 10/1991	1
88726-3A050	GS131..ROY..SPC;GS130,JZS131,MS13#,UZS131..ROY,ROYG ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	10/1989 - 10/1991	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-3A050	GS131..ROY..SPC;GS130,MS135,137..SPC,TWC ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	09/1987 - 08/1989	1
88726-3A090	GS131,MS135,137..TWC NO.1	09/1987 - 08/1989	1
88726-3A100	LS130..DLX,SDX;GS13#,LS136,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2	09/1987 - 08/1989	1
88726-3A110	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.A21-26	09/1987 - 08/1989	1
88726-3A250	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.M22	09/1987 - 08/1989	1
88726-3A110	GS130..SPC;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.3,PLANT NO.A21-26	08/1989 - 09/1989	1
88726-3A100	GS13#,LS136,MS13#,UZS131,YS130;LS130,131..DLX,SDX,SPE,SSL,STD NO.2	08/1989 - 10/1989	1
88726-3A090	GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.1	08/1989 - 09/1989	1
88726-3A250	GS130,131..ROY..SPC..NOB;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.3,PLANT NO.M22	08/1989 - 09/1989	1
88726-3A020	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.6	09/1987 - 10/1991	1
88726-3A040	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.5	09/1987 - 10/1991	1
88726-3A110	GS130..SPC;GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131 NO.3,PLANT NO.A21-26	09/1989 - 10/1991	1
88726-3A090	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.1	09/1989 - 10/1991	1
88726-3A100	LS130,131..DLX,SDX,SPE,SSL,STD;GS13#,JZS13#,LS136,MS13#,UZS131,YS130 NO.2	10/1989 - 10/1991	1
88726-3A250	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.3,PLANT NO.M22	09/1989 - 10/1991	1
88726-3A050	GS131..ROY..SPC;GS130,JZS131,MS13#,UZS131..ROY,ROYG ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	10/1989 - 10/1991	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-3A050	GS131..ROY..SPC;GS130,MS135,137..SPC,TWC ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	09/1987 - 08/1989	1
88726-3A090	GS131,MS135,137..TWC NO.1	09/1987 - 08/1989	1
88726-3A100	LS130..DLX,SDX;GS13#,LS136,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2	09/1987 - 08/1989	1
88726-3A110	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.A21-26	09/1987 - 08/1989	1
88726-3A250	GS130,131,MS135,137..ROY,ROYG NO.3,PLANT NO.M22	09/1987 - 08/1989	1
88726-3A110	GS130..SPC;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) NO.3,PLANT NO.A21-26	08/1989 - 09/1989	1
88726-3A100	GS13#,LS136,MS13#,UZS131,YS130;LS130,131..DLX,SDX,SPE,SSL,STD NO.2	08/1989 - 10/1989	1
88726-3A090	GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.1	08/1989 - 09/1989	1
88726-3A250	GS130,131..ROY..SPC..NOB;GS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC,TWLPG) NO.3,PLANT NO.M22	08/1989 - 09/1989	1
88726-3A020	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.6	09/1987 - 10/1991	1
88726-3A040	GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG NO.5	09/1987 - 10/1991	1
88726-3A110	GS130..SPC;GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131 NO.3,PLANT NO.A21-26	09/1989 - 10/1991	1
88726-3A090	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.1	09/1989 - 10/1991	1
88726-3A100	LS130,131..DLX,SDX,SPE,SSL,STD;GS13#,JZS13#,LS136,MS13#,UZS131,YS130 NO.2	10/1989 - 10/1991	1
88726-3A250	GS130..SED..SDX;GS131,JZS13#,MS13#,UZS131..HTWC,TWC NO.3,PLANT NO.M22	09/1989 - 10/1991	1
88726-3A050	GS131..ROY..SPC;GS130,JZS131,MS13#,UZS131..ROY,ROYG ｱﾘ(ﾘﾔｴｱｺﾝﾃﾞｲｼﾖﾅ),NO.4	10/1989 - 10/1991	1
88891D - PACKING D (FOR COOLER)
88578-30410	GS130..SPC;GS131,JZS13#,LS131,MS13#,UZS131;GS130,LS130..SED..SDX..(DSL,HTWC,TD,TDE) REAR	08/1989 - 01/1991	1
88578-30410	GS131..ROY..SPC;GS130,MS135,137..SPC,TWC REAR	09/1987 - 08/1989	1
88578-30410	GS131..5F..TWC;GS131..SSL..SPC;GS131..SED..(4HC,5F);GS130..4HC..SDX..HTWC;JZS13#,LS131,MS13#,UZS131;GS131..HT..ATM..(ROY,SALEX);GS130,131,LS130..(SED,WG)..(4FC,5F)..(ROY,SDX)..(DSL,SPC,TD,TDE,TWC) REAR	01/1991 - 10/1991	1
Common parts
85369-30270
88467-40030
88569-3A070
88569-3A080
88688-3A110
88688-3A120
88718-30880
88895-95706
88895-95716
88897-30690
90091-20809
90099-32128
90119-06336
90159-60128
90179-08123
91651-40625
93315-54010
93385-18016
93540-55010

MS135-AESQF (1987)

ILLUST NO. 2 OF 3(8709- )MS135,137,UZS131

ILLUST NO. 1 OF 3(8709- )GS130,131,JZS13#,MS135,137,UZS131..HTWC,TWC,TWLPG

ILLUST NO. 3 OF 3(8709- )GS131..ROY..SPC ; (8709- )JZS131,MS135,137,UZS131

ILLUST NO. 1 OF 3(8709- )GS13#,MS13#

Part Price Details
