MS135-AESQF (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 7MGE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )SED,V,WG

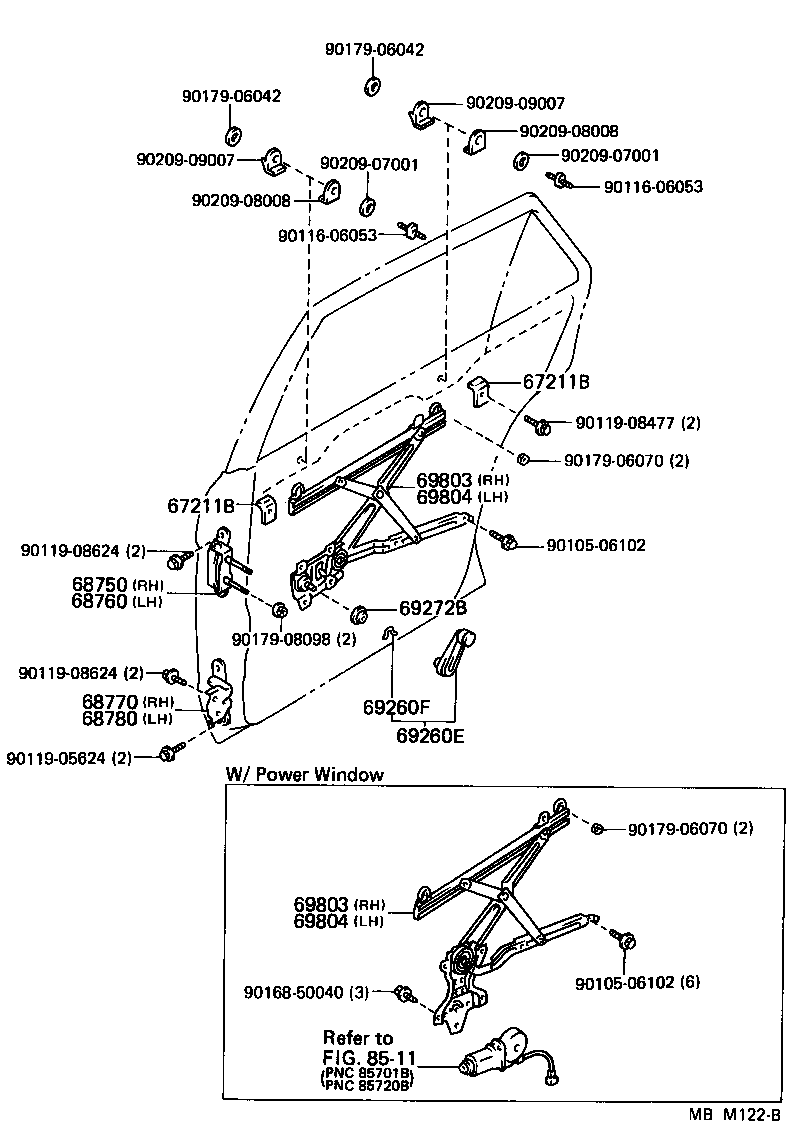

Click highlighted areas on diagram

diagram 67211B 67211B 68750 68760 68770 68780 69260E 69260F 69272B 69803 69803 69804 69804 8511 9010506102 9010506102 9011606053 9011606053 9011905624 9011908477 9011908624 9011908624 9016850040 9017906042 9017906042 9017906070 9017906070 9017908098 9020907001 9020907001 9020908008 9020908008 9020909007 9020909007
Part # Description Qty Price
67211B - STOP, REAR DOOR WINDOW, UPPER
67211-30080

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG

 2
67211B - STOP, REAR DOOR WINDOW, UPPER
67211-30080

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG

 2
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-30060

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..NOB

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-30060

GS136,LS136;GS130,131,JZS13#,LS130,131,MS13#,UZS131..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..NOB

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-30030

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-30040

GS136,LS136;GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-30171

GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)

 1
69803-30170

GS130,131,LS130,MS13#..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-30171

GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)

 1
69803-30170

GS130,131,LS130,MS13#..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-30170

GS130,131,LS130,MS13#..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)

 1
69804-30171

GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-30170

GS130,131,LS130,MS13#..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)

 1
69804-30171

GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)

 1
Common parts
90105-06102
90116-06053
90119-05624
90119-08477
90119-08624
90168-50040
90179-06042
90179-06070
90179-08098
90209-07001
90209-08008
90209-09007
Linked diagrams
8511
