MS135-AEPQF (1987)
Toyota Crown

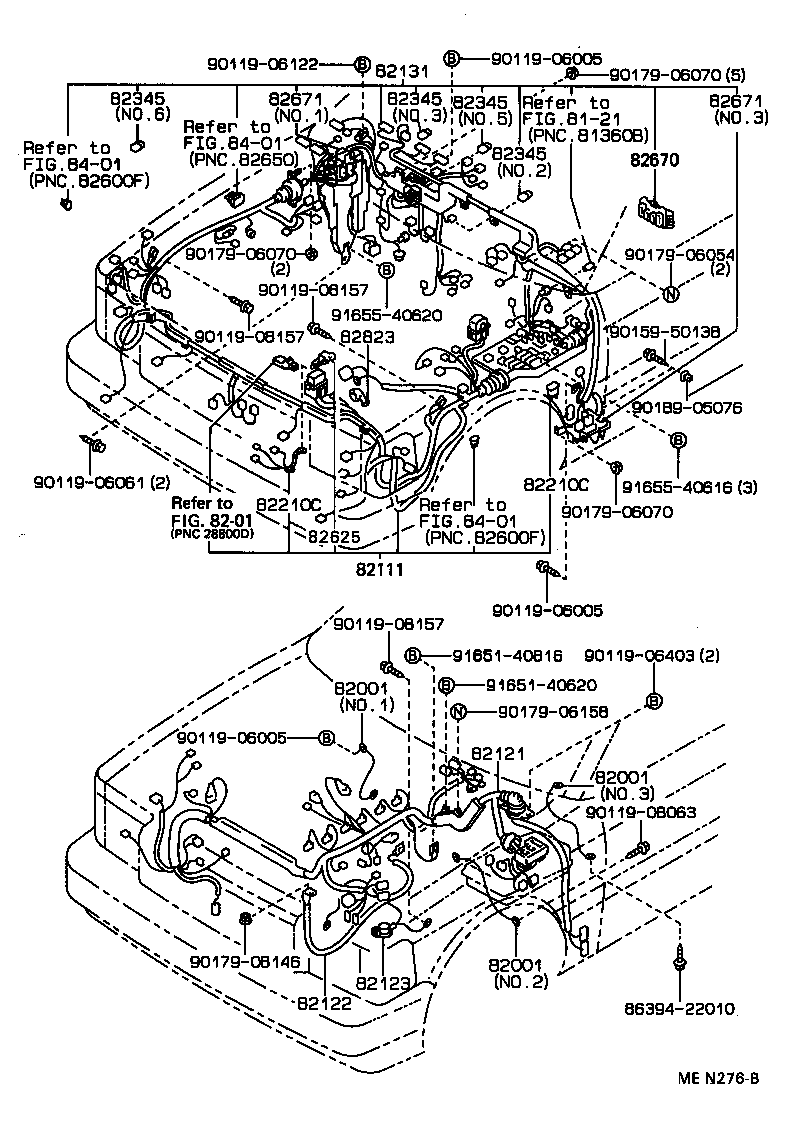

ILLUST NO. 1 OF11(8709- )MS135,137
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07200 |
GS130,131,MS135,137,YS130..LPG,SPC,TWC NO.1 |
1 | ||
| 90980-07308 |
MS135,137 NO.1 |
1 | ||
| 90980-07308 |
MS135;GS130,131,MS137..(DLX,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC) NO.1 |
1 | ||
| 90980-07219 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.2 |
1 | ||
| 90980-07343 |
GS13#,MS13#,UZS131,YS130 NO.2,NO.3 |
2 | ||
| 90980-07308 |
GS13#,JZS13#,MS13#,UZS131 NO.1 |
1 | ||
| 90980-07238 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.3 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07200 |
GS130,131,MS135,137,YS130..LPG,SPC,TWC NO.1 |
1 | ||
| 90980-07308 |
MS135,137 NO.1 |
1 | ||
| 90980-07308 |
MS135;GS130,131,MS137..(DLX,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC) NO.1 |
1 | ||
| 90980-07219 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.2 |
1 | ||
| 90980-07343 |
GS13#,MS13#,UZS131,YS130 NO.2,NO.3 |
2 | ||
| 90980-07308 |
GS13#,JZS13#,MS13#,UZS131 NO.1 |
1 | ||
| 90980-07238 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.3 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07200 |
GS130,131,MS135,137,YS130..LPG,SPC,TWC NO.1 |
1 | ||
| 90980-07308 |
MS135,137 NO.1 |
1 | ||
| 90980-07308 |
MS135;GS130,131,MS137..(DLX,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,TWC) NO.1 |
1 | ||
| 90980-07219 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.2 |
1 | ||
| 90980-07343 |
GS13#,MS13#,UZS131,YS130 NO.2,NO.3 |
2 | ||
| 90980-07308 |
GS13#,JZS13#,MS13#,UZS131 NO.1 |
1 | ||
| 90980-07238 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.3 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-30710 |
MS135..NOB ｱﾘ(*66) |
1 | ||
| 82111-3A140 |
MS135..NOB |
1 | ||
| 82111-30711 |
MS135..NOB ｱﾘ(*66) |
1 | ||
| 82111-3A141 |
MS135..NOB |
1 | ||
| 82111-3A121 |
MS135..NOB ﾅｼ(*AL) |
1 | ||
| 82111-3A131 |
MS135..NOB ｱﾘ(*66) & ﾅｼ(*AL) |
1 | ||
| 82111-30712 |
MS135..NOB ｱﾘ(*66) |
1 | ||
| 82111-3A142 |
MS135..NOB |
1 | ||
| 82111-3A122 |
MS135..NOB ﾅｼ(*AL) |
1 | ||
| 82111-3A320 |
MS135..NOB ｱﾘ(*66) & ﾅｼ(*AL) & ｱﾘ(*TRC) |
1 | ||
| 82111-3A132 |
MS135..NOB ｱﾘ(*66) & ﾅｼ(*AL) |
1 | ||
| 82111-3A330 |
MS135..NOB ｱﾘ(*66 & *TRC) |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-30361 |
MS135,137 |
1 | ||
| 82121-30360 |
MS135,137 |
1 | ||
| 82121-30362 |
MS13# |
1 | ||
| 82121-30452 |
MS13#..ROY,ROYG ｱﾘ(*TRC) |
1 | ||
| 82121-30453 |
MS13#..ROY,ROYG ｱﾘ(*TRC) |
1 | ||
| 82121-30363 |
MS13# |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-30240 |
MS135,137 |
1 | ||
| 82122-30241 |
MS13# |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-30150 |
MS13# |
1 | ||

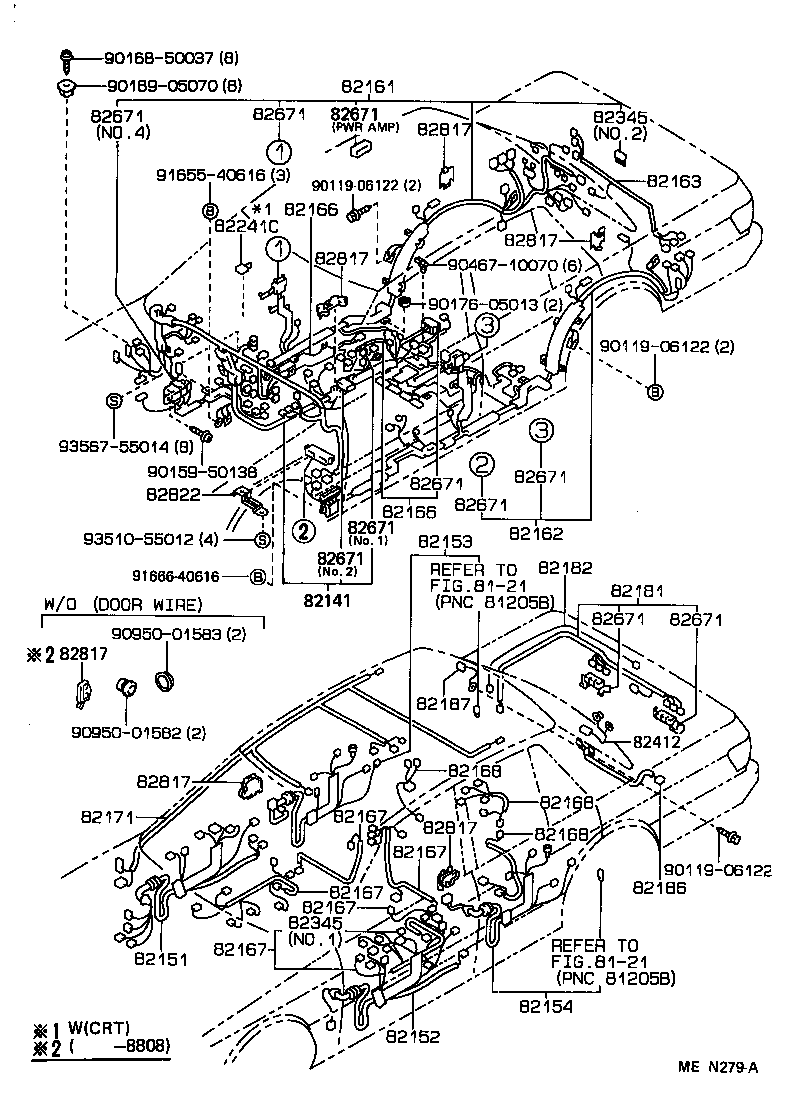

| 82131 - WIRE, COWL | ||||
| 82131-3F010 |
MS135..NOB ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) OR ｱﾘ(TEMS) OR ｱﾘ(*DRC) |
1 | ||
| 82131-3F390 |
MS135..NOB |
1 | ||
| 82131-3F780 |
MS135..4FC..NOB ｱﾘ(CRT) |
1 | ||
| 82131-3F011 |
MS135..NOB ｱﾘ(*66) OR ｱﾘ(*AL) OR ｱﾘ(*FRC) OR ｱﾘ(*WDL) |
1 | ||
| 82131-3F391 |
MS135..NOB |
1 | ||
| 82131-3F620 |
MS135..4FC..NOB ｱﾘ(*TTS) OR ｱﾘ(*66 & *TTS) OR ｱﾘ(TEMS & *TTS) OR ｱﾘ(*TTS & *DRC) OR ｱﾘ(*TTS & *WDL) |
1 | ||
| 82131-3F392 |
MS135..4FC..NOB |
1 | ||
| 82131-3F621 |
MS135..4FC..NOB ｱﾘ(*TTS) OR ｱﾘ(*66 & *TTS) OR ｱﾘ(TEMS & *TTS) OR ｱﾘ(*TTS & *DRC) OR ｱﾘ(*TTS & *WDL) |
1 | ||
| 82131-3F790 |
MS135..4FC..NOB ｱﾘ(CRT & ﾃﾚｽｺ ﾃﾞﾝﾄﾞｳ ｼｷ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 82131-3F012 |
MS135..4FC..NOB ｱﾘ(*66) OR ｱﾘ(*AL) OR ｱﾘ(*FRC) OR ｱﾘ(*WDL) |
1 | ||
| 82131-3F012 |
MS135..4HC;MS135..4FC..NOB |
1 | ||
| 82131-3F621 |
MS135..4FC..NOB ｱﾘ(ﾃﾚｽｺ ﾃﾞﾝﾄﾞｳ ｼｷ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 82131-3F780 |
MS135..4FC..NOB ｱﾘ(CRT) |
1 | ||
| 82131-3F790 |
MS135..4FC..NOB ｱﾘ(CRT & ﾃﾚｽｺ ﾃﾞﾝﾄﾞｳ ｼｷ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
GS13#,LS13#,MS13#,YS130 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08246 |
GS130,131,MS135,137 100A,ｵｽ端子,青 |
1 | ||
| 90982-08169 |
GS13#,LS13#,MS13#,UZS131,YS130 長さ=110,1.0Y |
1 | ||
| 90982-08223 |
GS13#,MS13#,UZS131,YS130 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08189 |
GS13#,LS13#,MS13#,UZS131,YS130 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08188 |
GS13#,LS13#,MS13#,YS130 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08169 |
GS13#,LS13#,MS13#,YS130 長さ=110,1.0Y |
1 | ||
| 90982-08227 |
GS13#,LS13#,MS13#,UZS131,YS130 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08169 |
GS130,131..ROY,SAL,SALEX,STD;GS136,LS13#,MS13#,UZS131,YS130;GS130,131..(DLX,SDX,SSL)..(SPC,TWLPG) 長さ=110,1.0Y |
1 | ||
| 90982-08188 |
GS13#,LS13#,MS13#,UZS131,YS130 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08227 |
GS130,131..ROY,SAL,SALEX,STD;GS136,LS13#,MS13#,UZS131,YS130;GS130,131..(DLX,SDX,SSL)..(SPC,TWLPG) 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08223 |
GS130..ROY,SALEX,STD;GS130,131..(DLX,SDX,SSL)..(SPC,TWLPG);GS131,136,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,STD 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08246 |
LS13#,MS13#,UZS131;GS130,131..ROY,SAL,SALEX,STD;GS130,131..(DLX,SDX,SSL)..(SPC,TWLPG) 100A,ｵｽ端子,青 |
1 | ||
| 90982-08188 |
GS130,131..ROY,SAL,SALEX,STD;GS136,LS13#,MS13#,UZS131,YS130;GS130,131..(DLX,SDX,SSL)..(SPC,TWLPG) 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08169 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 長さ=110,1.0Y |
1 | ||
| 90982-08223 |
GS13#,MS13#,UZS131,YS130 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08189 |
GS130,131..ROY,SAL,SALEX,STD;GS136,LS13#,MS13#,UZS131,YS130;GS130,131..(DLX,SDX,SSL)..(SPC,TWLPG) 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08246 |
GS130,131,LS13#,MS13#,UZS131 100A,ｵｽ端子,青 |
1 | ||
| 90982-08227 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08223 |
GS13#,JZS13#,MS13#,UZS131,YS130 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08188 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08202 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08246 |
GS130,131,JZS13#,LS13#,MS13#,UZS131 100A,ｵｽ端子,青 |
1 | ||
| 90982-08189 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 40A,ﾒｽ端子,緑 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
GS13#,LS13#,MS13#,YS130 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08246 |
GS130,131,MS135,137 100A,ｵｽ端子,青 |
1 | ||
| 90982-08169 |
GS13#,LS13#,MS13#,UZS131,YS130 長さ=110,1.0Y |
1 | ||
| 90982-08223 |
GS13#,MS13#,UZS131,YS130 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08189 |
GS13#,LS13#,MS13#,UZS131,YS130 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08188 |
GS13#,LS13#,MS13#,YS130 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08169 |
GS13#,LS13#,MS13#,YS130 長さ=110,1.0Y |
1 | ||
| 90982-08227 |
GS13#,LS13#,MS13#,UZS131,YS130 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08169 |
GS130,131..ROY,SAL,SALEX,STD;GS136,LS13#,MS13#,UZS131,YS130;GS130,131..(DLX,SDX,SSL)..(SPC,TWLPG) 長さ=110,1.0Y |
1 | ||
| 90982-08188 |
GS13#,LS13#,MS13#,UZS131,YS130 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08227 |
GS130,131..ROY,SAL,SALEX,STD;GS136,LS13#,MS13#,UZS131,YS130;GS130,131..(DLX,SDX,SSL)..(SPC,TWLPG) 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08223 |
GS130..ROY,SALEX,STD;GS130,131..(DLX,SDX,SSL)..(SPC,TWLPG);GS131,136,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,STD 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08246 |
LS13#,MS13#,UZS131;GS130,131..ROY,SAL,SALEX,STD;GS130,131..(DLX,SDX,SSL)..(SPC,TWLPG) 100A,ｵｽ端子,青 |
1 | ||
| 90982-08188 |
GS130,131..ROY,SAL,SALEX,STD;GS136,LS13#,MS13#,UZS131,YS130;GS130,131..(DLX,SDX,SSL)..(SPC,TWLPG) 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08169 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 長さ=110,1.0Y |
1 | ||
| 90982-08223 |
GS13#,MS13#,UZS131,YS130 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08189 |
GS130,131..ROY,SAL,SALEX,STD;GS136,LS13#,MS13#,UZS131,YS130;GS130,131..(DLX,SDX,SSL)..(SPC,TWLPG) 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08246 |
GS130,131,LS13#,MS13#,UZS131 100A,ｵｽ端子,青 |
1 | ||
| 90982-08227 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08223 |
GS13#,JZS13#,MS13#,UZS131,YS130 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08188 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08202 |
GS131..ROY..SPC;JZS131,MS135,137,UZS131..ROY,ROYG 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08246 |
GS130,131,JZS13#,LS13#,MS13#,UZS131 100A,ｵｽ端子,青 |
1 | ||
| 90982-08189 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 40A,ﾒｽ端子,緑 |
1 | ||

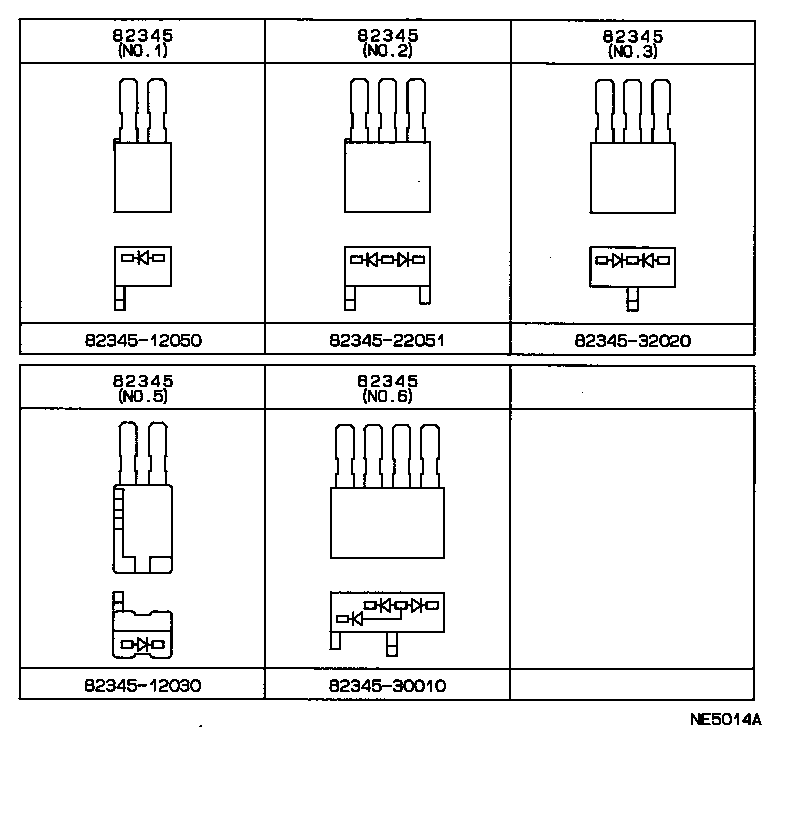

| 82345 - DIODE | ||||
| 82345-22051 |
MS135,137 COWL,NO.2 |
1 | ||
| 82345-32020 |
MS135..4FC;GS131..SED..SPC;MS135..4HC..NOB;GS131..HT..4FC..SPC;GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
MS135,137;GS131..ROY..SPC FLOOR WIRE,NO.2 |
1 | ||
| 82345-30010 |
GS131..4FC;GS130..ROY,SPE;GS130..(SED,WG)..HTWC;GS131..(4HC,5F)..(ROY,SSL);LS130,MS135,137..TD,TDE,TWC;GS131..(4HC,5F)..SALEX..HTWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135;GS130,131..SPC;MS137..4FC..WIB COWL,NO.3 |
2 | ||
| 82345-32020 |
MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,MS135..(4FC,4H,5F)..(ROY,STD)..(HTWC,TWC);GS130,131,LS130,131..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,TD,TDE,TWC,TWLPG) COWL,NO.3 |
1 | ||
| 82345-32020 |
MS137..WIB;GS131..ROY..SPC;MS137..4HC..NOB;GS130,MS135..ROY COWL,NO.3 |
3 | ||
| 82345-22051 |
JZS13#,MS13#,UZS131;GS131..4FC..ROY..SPC COWL,NO.2 |
1 | ||
| 82345-30010 |
LS130..DLX,SALEX,SDX;GS130,131,JZS13#,LS131,MS13#,UZS131..HTWC,SPC,TD,TDE,TWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135..4FC;MS135..4HC..NOB;MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,131..SED..(ROY,STD)..(HTWC,SPC);GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
JZS131,MS135;GS131..ATM..ROY;MS137,UZS131..4FC FLOOR WIRE,NO.2 |
1 | ||
| 82345-12030 |
GS130..STD..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL COWL,NO.5 |
1 | ||
| 82345-32020 |
GS130,JZS13#,MS13#..SPC,TWC;GS131,UZS131..(ROY,ROYG)..(HTWC,SPC) COWL,NO.3 |
3 | ||
| 82345 - DIODE | ||||
| 82345-22051 |
MS135,137 COWL,NO.2 |
1 | ||
| 82345-32020 |
MS135..4FC;GS131..SED..SPC;MS135..4HC..NOB;GS131..HT..4FC..SPC;GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
MS135,137;GS131..ROY..SPC FLOOR WIRE,NO.2 |
1 | ||
| 82345-30010 |
GS131..4FC;GS130..ROY,SPE;GS130..(SED,WG)..HTWC;GS131..(4HC,5F)..(ROY,SSL);LS130,MS135,137..TD,TDE,TWC;GS131..(4HC,5F)..SALEX..HTWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135;GS130,131..SPC;MS137..4FC..WIB COWL,NO.3 |
2 | ||
| 82345-32020 |
MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,MS135..(4FC,4H,5F)..(ROY,STD)..(HTWC,TWC);GS130,131,LS130,131..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,TD,TDE,TWC,TWLPG) COWL,NO.3 |
1 | ||
| 82345-32020 |
MS137..WIB;GS131..ROY..SPC;MS137..4HC..NOB;GS130,MS135..ROY COWL,NO.3 |
3 | ||
| 82345-22051 |
JZS13#,MS13#,UZS131;GS131..4FC..ROY..SPC COWL,NO.2 |
1 | ||
| 82345-30010 |
LS130..DLX,SALEX,SDX;GS130,131,JZS13#,LS131,MS13#,UZS131..HTWC,SPC,TD,TDE,TWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135..4FC;MS135..4HC..NOB;MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,131..SED..(ROY,STD)..(HTWC,SPC);GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
JZS131,MS135;GS131..ATM..ROY;MS137,UZS131..4FC FLOOR WIRE,NO.2 |
1 | ||
| 82345-12030 |
GS130..STD..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL COWL,NO.5 |
1 | ||
| 82345-32020 |
GS130,JZS13#,MS13#..SPC,TWC;GS131,UZS131..(ROY,ROYG)..(HTWC,SPC) COWL,NO.3 |
3 | ||
| 82345 - DIODE | ||||
| 82345-22051 |
MS135,137 COWL,NO.2 |
1 | ||
| 82345-32020 |
MS135..4FC;GS131..SED..SPC;MS135..4HC..NOB;GS131..HT..4FC..SPC;GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
MS135,137;GS131..ROY..SPC FLOOR WIRE,NO.2 |
1 | ||
| 82345-30010 |
GS131..4FC;GS130..ROY,SPE;GS130..(SED,WG)..HTWC;GS131..(4HC,5F)..(ROY,SSL);LS130,MS135,137..TD,TDE,TWC;GS131..(4HC,5F)..SALEX..HTWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135;GS130,131..SPC;MS137..4FC..WIB COWL,NO.3 |
2 | ||
| 82345-32020 |
MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,MS135..(4FC,4H,5F)..(ROY,STD)..(HTWC,TWC);GS130,131,LS130,131..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,TD,TDE,TWC,TWLPG) COWL,NO.3 |
1 | ||
| 82345-32020 |
MS137..WIB;GS131..ROY..SPC;MS137..4HC..NOB;GS130,MS135..ROY COWL,NO.3 |
3 | ||
| 82345-22051 |
JZS13#,MS13#,UZS131;GS131..4FC..ROY..SPC COWL,NO.2 |
1 | ||
| 82345-30010 |
LS130..DLX,SALEX,SDX;GS130,131,JZS13#,LS131,MS13#,UZS131..HTWC,SPC,TD,TDE,TWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135..4FC;MS135..4HC..NOB;MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,131..SED..(ROY,STD)..(HTWC,SPC);GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
JZS131,MS135;GS131..ATM..ROY;MS137,UZS131..4FC FLOOR WIRE,NO.2 |
1 | ||
| 82345-12030 |
GS130..STD..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL COWL,NO.5 |
1 | ||
| 82345-32020 |
GS130,JZS13#,MS13#..SPC,TWC;GS131,UZS131..(ROY,ROYG)..(HTWC,SPC) COWL,NO.3 |
3 | ||
| 82345 - DIODE | ||||
| 82345-22051 |
MS135,137 COWL,NO.2 |
1 | ||
| 82345-32020 |
MS135..4FC;GS131..SED..SPC;MS135..4HC..NOB;GS131..HT..4FC..SPC;GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
MS135,137;GS131..ROY..SPC FLOOR WIRE,NO.2 |
1 | ||
| 82345-30010 |
GS131..4FC;GS130..ROY,SPE;GS130..(SED,WG)..HTWC;GS131..(4HC,5F)..(ROY,SSL);LS130,MS135,137..TD,TDE,TWC;GS131..(4HC,5F)..SALEX..HTWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135;GS130,131..SPC;MS137..4FC..WIB COWL,NO.3 |
2 | ||
| 82345-32020 |
MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,MS135..(4FC,4H,5F)..(ROY,STD)..(HTWC,TWC);GS130,131,LS130,131..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,TD,TDE,TWC,TWLPG) COWL,NO.3 |
1 | ||
| 82345-32020 |
MS137..WIB;GS131..ROY..SPC;MS137..4HC..NOB;GS130,MS135..ROY COWL,NO.3 |
3 | ||
| 82345-22051 |
JZS13#,MS13#,UZS131;GS131..4FC..ROY..SPC COWL,NO.2 |
1 | ||
| 82345-30010 |
LS130..DLX,SALEX,SDX;GS130,131,JZS13#,LS131,MS13#,UZS131..HTWC,SPC,TD,TDE,TWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135..4FC;MS135..4HC..NOB;MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,131..SED..(ROY,STD)..(HTWC,SPC);GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
JZS131,MS135;GS131..ATM..ROY;MS137,UZS131..4FC FLOOR WIRE,NO.2 |
1 | ||
| 82345-12030 |
GS130..STD..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL COWL,NO.5 |
1 | ||
| 82345-32020 |
GS130,JZS13#,MS13#..SPC,TWC;GS131,UZS131..(ROY,ROYG)..(HTWC,SPC) COWL,NO.3 |
3 | ||
| 82625 - TERMINAL, FUSIBLE LINK | ||||
| 82625-12030 |
GS13#,JZS13#,MS135..HTWC,SPC,TWC |
1 | ||
| 82625-12030 |
GS136;GS131..SSL..SPC;GS130,131,MS135..ROY,SAL,SALEX,STD |
1 | ||
| 82625-12030 |
GS13#,MS135..HTWC,SPC,TWC |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS130,MS135..ROY,SPE;GS131,MS137..(4HC,5F)..(ROY,ROYG,SSL) RH,COWL SIDE NO.1 |
1 | ||
| 82671-30150 |
GS131,MS135,137..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS131..(4HC,5F)..(ROY,SSL);GS130,MS135,137..ROY,ROYG,SPE RH,COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30150 |
MS137..4FC..NOB;GS131,MS135..4FC..ROY CRT COMPUTER,NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30100 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) BLOWER MOTOR |
1 | ||
| 82671-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.1 |
1 | ||
| 82671-30200 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.4 |
1 | ||
| 82671-30160 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｾﾝﾀﾋﾟﾗｰ,ﾗｲﾄ |
1 | ||
| 82671-30180 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 LH,COWL SIDE NO.3 |
1 | ||
| 82671-30170 |
GS131;GS130,136,JZS131,LS13#,MS13#,UZS131,YS130..DSL,HTWC,LPEFI,TD,TDE,TWC,TWLPG ｾﾝﾀﾋﾟﾗｰ,ﾚﾌﾄ |
1 | ||
| 82671-30110 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED RH,LOWER BACK |
1 | ||
| 82671-30230 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.2 |
1 | ||
| 82671-30260 |
GS131,JZS131,MS135..ROY POWER AMP(10P) |
1 | ||
| 82671-30150 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) TO FLOOR WIRE,NO.3 |
1 | ||
| 82671-30140 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,LOWER BACK |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY TO FLOOR WIER,NO.3 |
1 | ||
| 82671-30290 |
GS131,JZS131,MS135..ROY POWER AMP |
1 | ||
| 82671-30240 |
GS131..HT..4FC..ROY;GS131..SED..4FC..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CONSOLE REAR,NO.2 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS130,MS135..ROY,SPE;GS131,MS137..(4HC,5F)..(ROY,ROYG,SSL) RH,COWL SIDE NO.1 |
1 | ||
| 82671-30150 |
GS131,MS135,137..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS131..(4HC,5F)..(ROY,SSL);GS130,MS135,137..ROY,ROYG,SPE RH,COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30150 |
MS137..4FC..NOB;GS131,MS135..4FC..ROY CRT COMPUTER,NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30100 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) BLOWER MOTOR |
1 | ||
| 82671-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.1 |
1 | ||
| 82671-30200 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.4 |
1 | ||
| 82671-30160 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｾﾝﾀﾋﾟﾗｰ,ﾗｲﾄ |
1 | ||
| 82671-30180 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 LH,COWL SIDE NO.3 |
1 | ||
| 82671-30170 |
GS131;GS130,136,JZS131,LS13#,MS13#,UZS131,YS130..DSL,HTWC,LPEFI,TD,TDE,TWC,TWLPG ｾﾝﾀﾋﾟﾗｰ,ﾚﾌﾄ |
1 | ||
| 82671-30110 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED RH,LOWER BACK |
1 | ||
| 82671-30230 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.2 |
1 | ||
| 82671-30260 |
GS131,JZS131,MS135..ROY POWER AMP(10P) |
1 | ||
| 82671-30150 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) TO FLOOR WIRE,NO.3 |
1 | ||
| 82671-30140 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,LOWER BACK |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY TO FLOOR WIER,NO.3 |
1 | ||
| 82671-30290 |
GS131,JZS131,MS135..ROY POWER AMP |
1 | ||
| 82671-30240 |
GS131..HT..4FC..ROY;GS131..SED..4FC..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CONSOLE REAR,NO.2 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
GS13#,MS13#..HTWC,SPC,TWC |
1 | ||
| 82823-22050 |
GS136;GS131..SSL..SPC;GS130,131,MS13#..ROY,ROYG,SAL,SALEX,STD |
1 | ||
| 82823-22050 |
GS13#,MS135,137..EFI,HTWC,SPC,TWC |
1 | ||
| 82823-24020 |
GS130,131,MS135,137..SPC,TWC |
1 | ||
| Common parts | ||||
| 86394-22010 | ||||
| 90119-06005 | ||||
| 90119-06061 | ||||
| 90119-06122 | ||||
| 90119-06403 | ||||
| 90119-08063 | ||||
| 90119-08157 | ||||
| 90159-50138 | ||||
| 90179-06054 | ||||
| 90179-06070 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90189-05076 | ||||
| 91651-40620 | ||||
| 91651-40816 | ||||
| 91655-40616 | ||||
| 91655-40620 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8201 | ||||
| 8401 | ||||
ILLUST NO. 2 OF11(8709- )GS130,131,LS130,131,MS13#,UZS131,YS130..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-30480 |
GS131,MS135..SED..4FC |
1 | ||
| 82141-30350 |
MS135..4FC..NOB;GS131..SED..4FC..SPC ｱﾘ(CD ﾂｷ ﾗｼﾞｵ) OR ｱﾘ(ﾃﾞﾝﾜ ﾄﾘﾂｹ ﾀｲｵｳ) |
1 | ||
| 82141-30351 |
MS135..4FC..NOB;GS131..SED..4FC..SPC ｱﾘ(CD ﾂｷ ﾗｼﾞｵ) OR ｱﾘ(ﾃﾞﾝﾜ ﾄﾘﾂｹ ﾀｲｵｳ) |
1 | ||
| 82141-30352 |
MS135..4FC..NOB ｱﾘ(*TRC) OR ｱﾘ(CD ﾂｷ ﾗｼﾞｵ) OR ｱﾘ(ﾃﾞﾝﾜ ﾄﾘﾂｹ ﾀｲｵｳ)---ﾉｿﾞｸ(CRT) |
1 | ||
| 82141-30481 |
GS131,MS135..SED..4FC |
1 | ||
| 82141-30600 |
MS135..4FC..NOB ｱﾘ(CRT) |
1 | ||
| 82141-30482 |
GS131,JZS131,MS135..SED..4FC..ROY |
1 | ||
| 82141-30600 |
GS131..SED..4FC..SPC;JZS131,MS135..4FC..NOB ｱﾘ(CRT) |
1 | ||
| 82141-30352 |
GS131..SED..4FC..SPC;JZS131,MS135..4FC..NOB ｱﾘ(*TRC) OR ｱﾘ(CD ﾂｷ ﾗｼﾞｵ) OR ｱﾘ(ﾃﾞﾝﾜ ﾄﾘﾂｹ ﾀｲｵｳ)---ﾉｿﾞｸ(CRT) |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-30420 |
GS130,131,LS130,MS135,137..SED..(ROY,ROYG,SAL,SALEX,SDX) |
1 | ||
| 82151-30510 |
GS130,131,LS130,MS135,137..SED..(ROY,ROYG,SAL,SALEX,SDX) ｱﾘ(ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82151-30511 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)..(DSL,HTWC,SPC,TD,TDE,TWC) ｱﾘ(ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82151-30421 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)..(DSL,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-30270 |
GS130..WG..SDX;GS130,131,LS130,MS135,137..SED..(ROY,ROYG,SAL,SALEX,SDX) ｱﾘ(ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82152-30260 |
GS130..WG..SDX;GS130,131,LS130,MS13#..SED..(ROY,ROYG,SAL,SALEX,SDX) |
1 | ||
| 82152-30261 |
GS131,LS131..SED;GS130,JZS131,LS130,MS13#,UZS131..(ROY,ROYG,SDX)..(DSL,HTWC,TD,TDE,TWC,TWLPG)..NOB |
1 | ||
| 82152-30271 |
GS130..SDX..HTWC;GS131,JZS131,LS130,131,MS13#,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX) ｱﾘ(ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-30280 |
MS137..4FC..NOB;GS131,MS135..SED |
1 | ||
| 82153-30281 |
MS137..4FC..NOB;GS131,JZS131,MS135..SED..ROY |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-30170 |
MS137..4FC..NOB;GS131,MS135..SED |
1 | ||
| 82154-30171 |
MS137..4FC..NOB;GS131,JZS131,MS135..SED..ROY |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-30770 |
MS135..NOB |
1 | ||
| 82161-30730 |
MS135;GS131..ROY..SPC ｱﾘ(TEMS) |
1 | ||
| 82161-30731 |
MS135;GS131..HT..ROY..SPC;GS131..SED..4FC..SPC ｱﾘ(TEMS) |
1 | ||
| 82161-30771 |
MS135..NOB |
1 | ||
| 82161-30761 |
MS135..NOB ﾅｼ(ｵ-ﾄ ﾚﾍﾞﾗ) |
1 | ||
| 82161-30802 |
MS135..4FC..ROY ｱﾘ(TEMS & CD ﾂｷ ﾗｼﾞｵ) OR ｱﾘ(TEMS & ﾃﾞﾝﾜ ﾄﾘﾂｹ ﾀｲｵｳ) OR ｱﾘ(TEMS & *TRC) |
1 | ||
| 82161-30850 |
MS135..4FC..NOB ﾅｼ(*AL) & ｱﾘ(*WDL) |
1 | ||
| 82161-30890 |
MS135..4FC..ROY ｱﾘ(TEMS & CD ﾂｷ ﾗｼﾞｵ & CRT) |
1 | ||
| 82161-30772 |
MS135..NOB |
1 | ||
| 82161-30851 |
MS135..NOB ﾅｼ(ｵ-ﾄ ﾚﾍﾞﾗ) |
1 | ||
| 82161-30782 |
MS135..4FC..NOB ﾅｼ(*AL) & ｱﾘ(CD ﾂｷ ﾗｼﾞｵ) OR ﾅｼ(*AL) & ｱﾘ(*TRC) OR ﾅｼ(*AL) & ｱﾘ(ﾃﾞﾝﾜ ﾄﾘﾂｹ ﾀｲｵｳ) |
1 | ||
| 82161-30732 |
MS135..ROY;JZS131..NOB;GS131..SED..SPC ｱﾘ(TEMS) |
1 | ||
| 82161-30792 |
MS135..4FC..NOB ｱﾘ(*TRC) OR ｱﾘ(CD ﾂｷ ﾗｼﾞｵ) OR ｱﾘ(ﾃﾞﾝﾜ ﾄﾘﾂｹ ﾀｲｵｳ) |
1 | ||
| 82161-30880 |
MS135..4FC..NOB ｱﾘ(CD ﾂｷ ﾗｼﾞｵ & CRT) |
1 | ||
| 82161-30870 |
MS135..4FC..NOB ｱﾘ(CRT) & ﾅｼ(*AL) OR ﾅｼ(*AL) & ｱﾘ(CD ﾂｷ ﾗｼﾞｵ & CRT) |
1 | ||
| 82161-30802 |
MS135..4FC..ROY;JZS131..4FC..NOB;GS131..SED..4FC..SPC ｱﾘ(TEMS & CD ﾂｷ ﾗｼﾞｵ) OR ｱﾘ(TEMS & ﾃﾞﾝﾜ ﾄﾘﾂｹ ﾀｲｵｳ) OR ｱﾘ(TEMS & *TRC) |
1 | ||
| 82161-30890 |
MS135..4FC..ROY;JZS131..4FC..NOB;GS131..SED..4FC..SPC ｱﾘ(TEMS & CD ﾂｷ ﾗｼﾞｵ & CRT) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-30240 |
MS135..4FC;GS131..4FC..ROY..SPC ｱﾘ(CD ﾂｷ ﾗｼﾞｵ ) OR ｱﾘ(ﾃﾞﾝﾜ ﾄﾘﾂｹ ﾀｲｵｳ) |
1 | ||
| 82162-30350 |
MS135..4FC..NOB |
1 | ||
| 82162-30241 |
MS135..4FC;GS131..4FC..ROY..SPC ｱﾘ(CD ﾂｷ ﾗｼﾞｵ ) OR ｱﾘ(ﾃﾞﾝﾜ ﾄﾘﾂｹ ﾀｲｵｳ) |
1 | ||
| 82162-30460 |
MS135..4FC..ROY ｱﾘ(*TRC) |
1 | ||
| 82162-30351 |
MS135..4FC..NOB |
1 | ||
| 82162-30470 |
MS135..4FC..ROY ｱﾘ(CRT & *TRC) |
1 | ||
| 82162-30352 |
MS135..4FC..ROY;JZS131..4FC..NOB;GS131..SED..4FC..SPC ｱﾘ(CD ﾂｷ ﾗｼﾞｵ ) OR ｱﾘ(ﾃﾞﾝﾜ ﾄﾘﾂｹ ﾀｲｵｳ) |
1 | ||
| 82162-30450 |
MS135..4FC..ROY;GS131..SED..4FC..SPC ｱﾘ(CRT) |
1 | ||
| 82162-30500 |
MS135..4FC..ROY;JZS131..4FC..NOB;GS131..SED..4FC..SPC |
1 | ||
| 82162-30460 |
MS135..4FC..ROY;JZS131..4FC..NOB;GS131..SED..4FC..SPC ｱﾘ(*TRC) |
1 | ||
| 82162-30471 |
MS135..4FC..ROY;GS131..SED..4FC..SPC ｱﾘ(CRT & *TRC) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-30011 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-30120 |
GS130,131,MS135,137..4FC..(SPC,TWC) |
1 | ||
| 82166-30101 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) AUDIO ECU |
1 | ||
| 82166-30121 |
GS131..HT..4FC..ROY;GS131..SED..4FC..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CONSOLE BOX |
1 | ||
| 82166-30121 |
GS130,131,JZS13#,MS135..4FC..(SPC,TWC) CONSOLE BOX |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-30120 |
GS130,131,MS135,137..4FC..(SPC,TWC) |
1 | ||
| 82166-30101 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) AUDIO ECU |
1 | ||
| 82166-30121 |
GS131..HT..4FC..ROY;GS131..SED..4FC..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CONSOLE BOX |
1 | ||
| 82166-30121 |
GS130,131,JZS13#,MS135..4FC..(SPC,TWC) CONSOLE BOX |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30310 |
GS131..SED..4FC..SPC;GS131,MS135,137..(4FC,5F)..TWC..NOB SEAT BELT BACKLE SW. |
2 | ||
| 82167-30310 |
MS135..SALEX;GS131..SED..4FC..SPC;GS130,131,LS130,131,MS135,137..(4FC,5F)..(ROY,ROYG,SALEX)..(EFI,HTWC,TDE,TWC)..NOB SEAT BELT BACKLE SW. |
2 | ||
| 82167-30310 |
JZS131,MS135..SALEX;GS131..SED..4FC..SPC;GS130,131,JZS131,LS130,131,MS13#..(4FC,5F)..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC)..NOB SEAT BELT BACKLE SW. |
2 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30310 |
GS131..SED..4FC..SPC;GS131,MS135,137..(4FC,5F)..TWC..NOB SEAT BELT BACKLE SW. |
2 | ||
| 82167-30310 |
MS135..SALEX;GS131..SED..4FC..SPC;GS130,131,LS130,131,MS135,137..(4FC,5F)..(ROY,ROYG,SALEX)..(EFI,HTWC,TDE,TWC)..NOB SEAT BELT BACKLE SW. |
2 | ||
| 82167-30310 |
JZS131,MS135..SALEX;GS131..SED..4FC..SPC;GS130,131,JZS131,LS130,131,MS13#..(4FC,5F)..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC)..NOB SEAT BELT BACKLE SW. |
2 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30310 |
GS131..SED..4FC..SPC;GS131,MS135,137..(4FC,5F)..TWC..NOB SEAT BELT BACKLE SW. |
2 | ||
| 82167-30310 |
MS135..SALEX;GS131..SED..4FC..SPC;GS130,131,LS130,131,MS135,137..(4FC,5F)..(ROY,ROYG,SALEX)..(EFI,HTWC,TDE,TWC)..NOB SEAT BELT BACKLE SW. |
2 | ||
| 82167-30310 |
JZS131,MS135..SALEX;GS131..SED..4FC..SPC;GS130,131,JZS131,LS130,131,MS13#..(4FC,5F)..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC)..NOB SEAT BELT BACKLE SW. |
2 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30310 |
GS131..SED..4FC..SPC;GS131,MS135,137..(4FC,5F)..TWC..NOB SEAT BELT BACKLE SW. |
2 | ||
| 82167-30310 |
MS135..SALEX;GS131..SED..4FC..SPC;GS130,131,LS130,131,MS135,137..(4FC,5F)..(ROY,ROYG,SALEX)..(EFI,HTWC,TDE,TWC)..NOB SEAT BELT BACKLE SW. |
2 | ||
| 82167-30310 |
JZS131,MS135..SALEX;GS131..SED..4FC..SPC;GS130,131,JZS131,LS130,131,MS13#..(4FC,5F)..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC)..NOB SEAT BELT BACKLE SW. |
2 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30310 |
GS131..SED..4FC..SPC;GS131,MS135,137..(4FC,5F)..TWC..NOB SEAT BELT BACKLE SW. |
2 | ||
| 82167-30310 |
MS135..SALEX;GS131..SED..4FC..SPC;GS130,131,LS130,131,MS135,137..(4FC,5F)..(ROY,ROYG,SALEX)..(EFI,HTWC,TDE,TWC)..NOB SEAT BELT BACKLE SW. |
2 | ||
| 82167-30310 |
JZS131,MS135..SALEX;GS131..SED..4FC..SPC;GS130,131,JZS131,LS130,131,MS13#..(4FC,5F)..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC)..NOB SEAT BELT BACKLE SW. |
2 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-30080 |
GS131,MS135..SED 左側 |
1 | ||
| 82168-30081 |
GS131,JZS131,MS135..SED..ROY 左側 |
1 | ||
| 82168-30190 |
MS137..WIB;GS131,MS135..ROY ARM REST |
1 | ||
| 82168-30191 |
MS137,UZS131..WIB;GS131,JZS131,MS135..ROY ARM REST |
1 | ||
| 82168-30120 |
MS137..4FC..NOB;GS131,JZS131,MS135..SED..ROY 右側 |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-30080 |
GS131,MS135..SED 左側 |
1 | ||
| 82168-30081 |
GS131,JZS131,MS135..SED..ROY 左側 |
1 | ||
| 82168-30190 |
MS137..WIB;GS131,MS135..ROY ARM REST |
1 | ||
| 82168-30191 |
MS137,UZS131..WIB;GS131,JZS131,MS135..ROY ARM REST |
1 | ||
| 82168-30120 |
MS137..4FC..NOB;GS131,JZS131,MS135..SED..ROY 右側 |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-30080 |
GS131,MS135..SED 左側 |
1 | ||
| 82168-30081 |
GS131,JZS131,MS135..SED..ROY 左側 |
1 | ||
| 82168-30190 |
MS137..WIB;GS131,MS135..ROY ARM REST |
1 | ||
| 82168-30191 |
MS137,UZS131..WIB;GS131,JZS131,MS135..ROY ARM REST |
1 | ||
| 82168-30120 |
MS137..4FC..NOB;GS131,JZS131,MS135..SED..ROY 右側 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-30260 |
GS130,131,JZS131,LS130,131,MS135..SED..(ROY,SAL,SALEX) |
1 | ||
| 82171-30340 |
GS131..SED..4FC..SPC;JZS131,MS135..4FC..NOB ｱﾘ(CRT) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-30010 |
GS130,131,LS130,MS13#,YS130..SED |
1 | ||
| 82181-30011 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-30020 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-30050 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX) |
1 | ||
| 82345 - DIODE | ||||
| 82345-22051 |
MS135,137 COWL,NO.2 |
1 | ||
| 82345-32020 |
MS135..4FC;GS131..SED..SPC;MS135..4HC..NOB;GS131..HT..4FC..SPC;GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
MS135,137;GS131..ROY..SPC FLOOR WIRE,NO.2 |
1 | ||
| 82345-30010 |
GS131..4FC;GS130..ROY,SPE;GS130..(SED,WG)..HTWC;GS131..(4HC,5F)..(ROY,SSL);LS130,MS135,137..TD,TDE,TWC;GS131..(4HC,5F)..SALEX..HTWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135;GS130,131..SPC;MS137..4FC..WIB COWL,NO.3 |
2 | ||
| 82345-32020 |
MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,MS135..(4FC,4H,5F)..(ROY,STD)..(HTWC,TWC);GS130,131,LS130,131..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,TD,TDE,TWC,TWLPG) COWL,NO.3 |
1 | ||
| 82345-32020 |
MS137..WIB;GS131..ROY..SPC;MS137..4HC..NOB;GS130,MS135..ROY COWL,NO.3 |
3 | ||
| 82345-22051 |
JZS13#,MS13#,UZS131;GS131..4FC..ROY..SPC COWL,NO.2 |
1 | ||
| 82345-30010 |
LS130..DLX,SALEX,SDX;GS130,131,JZS13#,LS131,MS13#,UZS131..HTWC,SPC,TD,TDE,TWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135..4FC;MS135..4HC..NOB;MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,131..SED..(ROY,STD)..(HTWC,SPC);GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
JZS131,MS135;GS131..ATM..ROY;MS137,UZS131..4FC FLOOR WIRE,NO.2 |
1 | ||
| 82345-12030 |
GS130..STD..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL COWL,NO.5 |
1 | ||
| 82345-32020 |
GS130,JZS13#,MS13#..SPC,TWC;GS131,UZS131..(ROY,ROYG)..(HTWC,SPC) COWL,NO.3 |
3 | ||
| 82345 - DIODE | ||||
| 82345-22051 |
MS135,137 COWL,NO.2 |
1 | ||
| 82345-32020 |
MS135..4FC;GS131..SED..SPC;MS135..4HC..NOB;GS131..HT..4FC..SPC;GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
MS135,137;GS131..ROY..SPC FLOOR WIRE,NO.2 |
1 | ||
| 82345-30010 |
GS131..4FC;GS130..ROY,SPE;GS130..(SED,WG)..HTWC;GS131..(4HC,5F)..(ROY,SSL);LS130,MS135,137..TD,TDE,TWC;GS131..(4HC,5F)..SALEX..HTWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135;GS130,131..SPC;MS137..4FC..WIB COWL,NO.3 |
2 | ||
| 82345-32020 |
MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,MS135..(4FC,4H,5F)..(ROY,STD)..(HTWC,TWC);GS130,131,LS130,131..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,TD,TDE,TWC,TWLPG) COWL,NO.3 |
1 | ||
| 82345-32020 |
MS137..WIB;GS131..ROY..SPC;MS137..4HC..NOB;GS130,MS135..ROY COWL,NO.3 |
3 | ||
| 82345-22051 |
JZS13#,MS13#,UZS131;GS131..4FC..ROY..SPC COWL,NO.2 |
1 | ||
| 82345-30010 |
LS130..DLX,SALEX,SDX;GS130,131,JZS13#,LS131,MS13#,UZS131..HTWC,SPC,TD,TDE,TWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135..4FC;MS135..4HC..NOB;MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,131..SED..(ROY,STD)..(HTWC,SPC);GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
JZS131,MS135;GS131..ATM..ROY;MS137,UZS131..4FC FLOOR WIRE,NO.2 |
1 | ||
| 82345-12030 |
GS130..STD..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL COWL,NO.5 |
1 | ||
| 82345-32020 |
GS130,JZS13#,MS13#..SPC,TWC;GS131,UZS131..(ROY,ROYG)..(HTWC,SPC) COWL,NO.3 |
3 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS130,MS135..ROY,SPE;GS131,MS137..(4HC,5F)..(ROY,ROYG,SSL) RH,COWL SIDE NO.1 |
1 | ||
| 82671-30150 |
GS131,MS135,137..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS131..(4HC,5F)..(ROY,SSL);GS130,MS135,137..ROY,ROYG,SPE RH,COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30150 |
MS137..4FC..NOB;GS131,MS135..4FC..ROY CRT COMPUTER,NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30100 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) BLOWER MOTOR |
1 | ||
| 82671-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.1 |
1 | ||
| 82671-30200 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.4 |
1 | ||
| 82671-30160 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｾﾝﾀﾋﾟﾗｰ,ﾗｲﾄ |
1 | ||
| 82671-30180 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 LH,COWL SIDE NO.3 |
1 | ||
| 82671-30170 |
GS131;GS130,136,JZS131,LS13#,MS13#,UZS131,YS130..DSL,HTWC,LPEFI,TD,TDE,TWC,TWLPG ｾﾝﾀﾋﾟﾗｰ,ﾚﾌﾄ |
1 | ||
| 82671-30110 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED RH,LOWER BACK |
1 | ||
| 82671-30230 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.2 |
1 | ||
| 82671-30260 |
GS131,JZS131,MS135..ROY POWER AMP(10P) |
1 | ||
| 82671-30150 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) TO FLOOR WIRE,NO.3 |
1 | ||
| 82671-30140 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,LOWER BACK |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY TO FLOOR WIER,NO.3 |
1 | ||
| 82671-30290 |
GS131,JZS131,MS135..ROY POWER AMP |
1 | ||
| 82671-30240 |
GS131..HT..4FC..ROY;GS131..SED..4FC..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CONSOLE REAR,NO.2 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS130,MS135..ROY,SPE;GS131,MS137..(4HC,5F)..(ROY,ROYG,SSL) RH,COWL SIDE NO.1 |
1 | ||
| 82671-30150 |
GS131,MS135,137..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS131..(4HC,5F)..(ROY,SSL);GS130,MS135,137..ROY,ROYG,SPE RH,COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30150 |
MS137..4FC..NOB;GS131,MS135..4FC..ROY CRT COMPUTER,NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30100 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) BLOWER MOTOR |
1 | ||
| 82671-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.1 |
1 | ||
| 82671-30200 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.4 |
1 | ||
| 82671-30160 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｾﾝﾀﾋﾟﾗｰ,ﾗｲﾄ |
1 | ||
| 82671-30180 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 LH,COWL SIDE NO.3 |
1 | ||
| 82671-30170 |
GS131;GS130,136,JZS131,LS13#,MS13#,UZS131,YS130..DSL,HTWC,LPEFI,TD,TDE,TWC,TWLPG ｾﾝﾀﾋﾟﾗｰ,ﾚﾌﾄ |
1 | ||
| 82671-30110 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED RH,LOWER BACK |
1 | ||
| 82671-30230 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.2 |
1 | ||
| 82671-30260 |
GS131,JZS131,MS135..ROY POWER AMP(10P) |
1 | ||
| 82671-30150 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) TO FLOOR WIRE,NO.3 |
1 | ||
| 82671-30140 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,LOWER BACK |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY TO FLOOR WIER,NO.3 |
1 | ||
| 82671-30290 |
GS131,JZS131,MS135..ROY POWER AMP |
1 | ||
| 82671-30240 |
GS131..HT..4FC..ROY;GS131..SED..4FC..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CONSOLE REAR,NO.2 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS130,MS135..ROY,SPE;GS131,MS137..(4HC,5F)..(ROY,ROYG,SSL) RH,COWL SIDE NO.1 |
1 | ||
| 82671-30150 |
GS131,MS135,137..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS131..(4HC,5F)..(ROY,SSL);GS130,MS135,137..ROY,ROYG,SPE RH,COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30150 |
MS137..4FC..NOB;GS131,MS135..4FC..ROY CRT COMPUTER,NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30100 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) BLOWER MOTOR |
1 | ||
| 82671-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.1 |
1 | ||
| 82671-30200 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.4 |
1 | ||
| 82671-30160 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｾﾝﾀﾋﾟﾗｰ,ﾗｲﾄ |
1 | ||
| 82671-30180 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 LH,COWL SIDE NO.3 |
1 | ||
| 82671-30170 |
GS131;GS130,136,JZS131,LS13#,MS13#,UZS131,YS130..DSL,HTWC,LPEFI,TD,TDE,TWC,TWLPG ｾﾝﾀﾋﾟﾗｰ,ﾚﾌﾄ |
1 | ||
| 82671-30110 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED RH,LOWER BACK |
1 | ||
| 82671-30230 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.2 |
1 | ||
| 82671-30260 |
GS131,JZS131,MS135..ROY POWER AMP(10P) |
1 | ||
| 82671-30150 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) TO FLOOR WIRE,NO.3 |
1 | ||
| 82671-30140 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,LOWER BACK |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY TO FLOOR WIER,NO.3 |
1 | ||
| 82671-30290 |
GS131,JZS131,MS135..ROY POWER AMP |
1 | ||
| 82671-30240 |
GS131..HT..4FC..ROY;GS131..SED..4FC..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CONSOLE REAR,NO.2 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS130,MS135..ROY,SPE;GS131,MS137..(4HC,5F)..(ROY,ROYG,SSL) RH,COWL SIDE NO.1 |
1 | ||
| 82671-30150 |
GS131,MS135,137..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS131..(4HC,5F)..(ROY,SSL);GS130,MS135,137..ROY,ROYG,SPE RH,COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30150 |
MS137..4FC..NOB;GS131,MS135..4FC..ROY CRT COMPUTER,NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30100 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) BLOWER MOTOR |
1 | ||
| 82671-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.1 |
1 | ||
| 82671-30200 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.4 |
1 | ||
| 82671-30160 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｾﾝﾀﾋﾟﾗｰ,ﾗｲﾄ |
1 | ||
| 82671-30180 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 LH,COWL SIDE NO.3 |
1 | ||
| 82671-30170 |
GS131;GS130,136,JZS131,LS13#,MS13#,UZS131,YS130..DSL,HTWC,LPEFI,TD,TDE,TWC,TWLPG ｾﾝﾀﾋﾟﾗｰ,ﾚﾌﾄ |
1 | ||
| 82671-30110 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED RH,LOWER BACK |
1 | ||
| 82671-30230 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.2 |
1 | ||
| 82671-30260 |
GS131,JZS131,MS135..ROY POWER AMP(10P) |
1 | ||
| 82671-30150 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) TO FLOOR WIRE,NO.3 |
1 | ||
| 82671-30140 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,LOWER BACK |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY TO FLOOR WIER,NO.3 |
1 | ||
| 82671-30290 |
GS131,JZS131,MS135..ROY POWER AMP |
1 | ||
| 82671-30240 |
GS131..HT..4FC..ROY;GS131..SED..4FC..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CONSOLE REAR,NO.2 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS130,MS135..ROY,SPE;GS131,MS137..(4HC,5F)..(ROY,ROYG,SSL) RH,COWL SIDE NO.1 |
1 | ||
| 82671-30150 |
GS131,MS135,137..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS131..(4HC,5F)..(ROY,SSL);GS130,MS135,137..ROY,ROYG,SPE RH,COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30150 |
MS137..4FC..NOB;GS131,MS135..4FC..ROY CRT COMPUTER,NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30100 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) BLOWER MOTOR |
1 | ||
| 82671-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.1 |
1 | ||
| 82671-30200 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.4 |
1 | ||
| 82671-30160 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｾﾝﾀﾋﾟﾗｰ,ﾗｲﾄ |
1 | ||
| 82671-30180 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 LH,COWL SIDE NO.3 |
1 | ||
| 82671-30170 |
GS131;GS130,136,JZS131,LS13#,MS13#,UZS131,YS130..DSL,HTWC,LPEFI,TD,TDE,TWC,TWLPG ｾﾝﾀﾋﾟﾗｰ,ﾚﾌﾄ |
1 | ||
| 82671-30110 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED RH,LOWER BACK |
1 | ||
| 82671-30230 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.2 |
1 | ||
| 82671-30260 |
GS131,JZS131,MS135..ROY POWER AMP(10P) |
1 | ||
| 82671-30150 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) TO FLOOR WIRE,NO.3 |
1 | ||
| 82671-30140 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,LOWER BACK |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY TO FLOOR WIER,NO.3 |
1 | ||
| 82671-30290 |
GS131,JZS131,MS135..ROY POWER AMP |
1 | ||
| 82671-30240 |
GS131..HT..4FC..ROY;GS131..SED..4FC..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CONSOLE REAR,NO.2 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS130,MS135..ROY,SPE;GS131,MS137..(4HC,5F)..(ROY,ROYG,SSL) RH,COWL SIDE NO.1 |
1 | ||
| 82671-30150 |
GS131,MS135,137..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS131..(4HC,5F)..(ROY,SSL);GS130,MS135,137..ROY,ROYG,SPE RH,COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30150 |
MS137..4FC..NOB;GS131,MS135..4FC..ROY CRT COMPUTER,NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30100 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) BLOWER MOTOR |
1 | ||
| 82671-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.1 |
1 | ||
| 82671-30200 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.4 |
1 | ||
| 82671-30160 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｾﾝﾀﾋﾟﾗｰ,ﾗｲﾄ |
1 | ||
| 82671-30180 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 LH,COWL SIDE NO.3 |
1 | ||
| 82671-30170 |
GS131;GS130,136,JZS131,LS13#,MS13#,UZS131,YS130..DSL,HTWC,LPEFI,TD,TDE,TWC,TWLPG ｾﾝﾀﾋﾟﾗｰ,ﾚﾌﾄ |
1 | ||
| 82671-30110 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED RH,LOWER BACK |
1 | ||
| 82671-30230 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.2 |
1 | ||
| 82671-30260 |
GS131,JZS131,MS135..ROY POWER AMP(10P) |
1 | ||
| 82671-30150 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) TO FLOOR WIRE,NO.3 |
1 | ||
| 82671-30140 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,LOWER BACK |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY TO FLOOR WIER,NO.3 |
1 | ||
| 82671-30290 |
GS131,JZS131,MS135..ROY POWER AMP |
1 | ||
| 82671-30240 |
GS131..HT..4FC..ROY;GS131..SED..4FC..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CONSOLE REAR,NO.2 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS130,MS135..ROY,SPE;GS131,MS137..(4HC,5F)..(ROY,ROYG,SSL) RH,COWL SIDE NO.1 |
1 | ||
| 82671-30150 |
GS131,MS135,137..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS131..(4HC,5F)..(ROY,SSL);GS130,MS135,137..ROY,ROYG,SPE RH,COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30150 |
MS137..4FC..NOB;GS131,MS135..4FC..ROY CRT COMPUTER,NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30100 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) BLOWER MOTOR |
1 | ||
| 82671-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.1 |
1 | ||
| 82671-30200 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.4 |
1 | ||
| 82671-30160 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｾﾝﾀﾋﾟﾗｰ,ﾗｲﾄ |
1 | ||
| 82671-30180 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 LH,COWL SIDE NO.3 |
1 | ||
| 82671-30170 |
GS131;GS130,136,JZS131,LS13#,MS13#,UZS131,YS130..DSL,HTWC,LPEFI,TD,TDE,TWC,TWLPG ｾﾝﾀﾋﾟﾗｰ,ﾚﾌﾄ |
1 | ||
| 82671-30110 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED RH,LOWER BACK |
1 | ||
| 82671-30230 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.2 |
1 | ||
| 82671-30260 |
GS131,JZS131,MS135..ROY POWER AMP(10P) |
1 | ||
| 82671-30150 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) TO FLOOR WIRE,NO.3 |
1 | ||
| 82671-30140 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,LOWER BACK |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY TO FLOOR WIER,NO.3 |
1 | ||
| 82671-30290 |
GS131,JZS131,MS135..ROY POWER AMP |
1 | ||
| 82671-30240 |
GS131..HT..4FC..ROY;GS131..SED..4FC..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CONSOLE REAR,NO.2 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS130,MS135..ROY,SPE;GS131,MS137..(4HC,5F)..(ROY,ROYG,SSL) RH,COWL SIDE NO.1 |
1 | ||
| 82671-30150 |
GS131,MS135,137..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS131..(4HC,5F)..(ROY,SSL);GS130,MS135,137..ROY,ROYG,SPE RH,COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30150 |
MS137..4FC..NOB;GS131,MS135..4FC..ROY CRT COMPUTER,NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30100 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) BLOWER MOTOR |
1 | ||
| 82671-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.1 |
1 | ||
| 82671-30200 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.4 |
1 | ||
| 82671-30160 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｾﾝﾀﾋﾟﾗｰ,ﾗｲﾄ |
1 | ||
| 82671-30180 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 LH,COWL SIDE NO.3 |
1 | ||
| 82671-30170 |
GS131;GS130,136,JZS131,LS13#,MS13#,UZS131,YS130..DSL,HTWC,LPEFI,TD,TDE,TWC,TWLPG ｾﾝﾀﾋﾟﾗｰ,ﾚﾌﾄ |
1 | ||
| 82671-30110 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED RH,LOWER BACK |
1 | ||
| 82671-30230 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.2 |
1 | ||
| 82671-30260 |
GS131,JZS131,MS135..ROY POWER AMP(10P) |
1 | ||
| 82671-30150 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) TO FLOOR WIRE,NO.3 |
1 | ||
| 82671-30140 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,LOWER BACK |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY TO FLOOR WIER,NO.3 |
1 | ||
| 82671-30290 |
GS131,JZS131,MS135..ROY POWER AMP |
1 | ||
| 82671-30240 |
GS131..HT..4FC..ROY;GS131..SED..4FC..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CONSOLE REAR,NO.2 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS130,MS135..ROY,SPE;GS131,MS137..(4HC,5F)..(ROY,ROYG,SSL) RH,COWL SIDE NO.1 |
1 | ||
| 82671-30150 |
GS131,MS135,137..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS131..(4HC,5F)..(ROY,SSL);GS130,MS135,137..ROY,ROYG,SPE RH,COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30150 |
MS137..4FC..NOB;GS131,MS135..4FC..ROY CRT COMPUTER,NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30100 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) BLOWER MOTOR |
1 | ||
| 82671-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.1 |
1 | ||
| 82671-30200 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.4 |
1 | ||
| 82671-30160 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｾﾝﾀﾋﾟﾗｰ,ﾗｲﾄ |
1 | ||
| 82671-30180 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 LH,COWL SIDE NO.3 |
1 | ||
| 82671-30170 |
GS131;GS130,136,JZS131,LS13#,MS13#,UZS131,YS130..DSL,HTWC,LPEFI,TD,TDE,TWC,TWLPG ｾﾝﾀﾋﾟﾗｰ,ﾚﾌﾄ |
1 | ||
| 82671-30110 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED RH,LOWER BACK |
1 | ||
| 82671-30230 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.2 |
1 | ||
| 82671-30260 |
GS131,JZS131,MS135..ROY POWER AMP(10P) |
1 | ||
| 82671-30150 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) TO FLOOR WIRE,NO.3 |
1 | ||
| 82671-30140 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,LOWER BACK |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY TO FLOOR WIER,NO.3 |
1 | ||
| 82671-30290 |
GS131,JZS131,MS135..ROY POWER AMP |
1 | ||
| 82671-30240 |
GS131..HT..4FC..ROY;GS131..SED..4FC..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CONSOLE REAR,NO.2 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130..DSL,EFI,LPG,SPC,TD,TWC LH COWL SIDE NO.3 |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS130,MS135..ROY,SPE;GS131,MS137..(4HC,5F)..(ROY,ROYG,SSL) RH,COWL SIDE NO.1 |
1 | ||
| 82671-30150 |
GS131,MS135,137..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30200 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE NO.4 |
1 | ||
| 82671-30110 |
GS130,131,LS130,MS13#,YS130..HT,SED RH LOWER BACK |
1 | ||
| 82671-30170 |
GS136,LS136..STD;GS130,131,LS130,MS13#,YS130 LH CENTER PILLAR |
1 | ||
| 82671-30090 |
GS131..4FC;LS130..TD,TDE;GS131..(4HC,5F)..(ROY,SSL);GS130,MS135,137..ROY,ROYG,SPE RH,COWL SIDE NO.1 |
1 | ||
| 82671-30140 |
GS130,131,LS130,MS13#,YS130..HT,SED LH LOWER BACK |
1 | ||
| 82671-30180 |
GS13#,LS13#,MS13#,YS130 LH COWL SIDE NO.3 |
1 | ||
| 82671-30150 |
MS137..4FC..NOB;GS131,MS135..4FC..ROY CRT COMPUTER,NO.1 |
1 | ||
| 82671-30160 |
GS13#,LS13#,MS13#,YS130 RH CENTER PILLAR |
1 | ||
| 82671-30100 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) BLOWER MOTOR |
1 | ||
| 82671-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.1 |
1 | ||
| 82671-30200 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH,COWL SIDE NO.4 |
1 | ||
| 82671-30160 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｾﾝﾀﾋﾟﾗｰ,ﾗｲﾄ |
1 | ||
| 82671-30180 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 LH,COWL SIDE NO.3 |
1 | ||
| 82671-30170 |
GS131;GS130,136,JZS131,LS13#,MS13#,UZS131,YS130..DSL,HTWC,LPEFI,TD,TDE,TWC,TWLPG ｾﾝﾀﾋﾟﾗｰ,ﾚﾌﾄ |
1 | ||
| 82671-30110 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED RH,LOWER BACK |
1 | ||
| 82671-30230 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.2 |
1 | ||
| 82671-30260 |
GS131,JZS131,MS135..ROY POWER AMP(10P) |
1 | ||
| 82671-30150 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CRT COMPUTER,NO.1 |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) TO FLOOR WIRE,NO.3 |
1 | ||
| 82671-30140 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,LOWER BACK |
1 | ||
| 82671-30280 |
GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY TO FLOOR WIER,NO.3 |
1 | ||
| 82671-30290 |
GS131,JZS131,MS135..ROY POWER AMP |
1 | ||
| 82671-30240 |
GS131..HT..4FC..ROY;GS131..SED..4FC..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG) CONSOLE REAR,NO.2 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-3A230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG LH,REAR DOOR |
1 | ||
| 82817-3A220 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG RH,REAR DOOR |
1 | ||
| 82817-3A440 |
UZS131..4FC;GS130,131,JZS13#,MS135,137..4FC..(SPC,TWC) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A260 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,REAR WHEEL HOUSE |
1 | ||
| 82817-3A260 |
GS131..HTWC,SPC;GS131..4FC..TWC;GS130,JZS131,LS130,131,MS135,YS130..HT,SED RH,REAR WHEEL HOUSE |
1 | ||
| 82817-30830 |
GS131,JZS131,MS135..ATM..ROY FLOOR,RH |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-3A230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG LH,REAR DOOR |
1 | ||
| 82817-3A220 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG RH,REAR DOOR |
1 | ||
| 82817-3A440 |
UZS131..4FC;GS130,131,JZS13#,MS135,137..4FC..(SPC,TWC) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A260 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,REAR WHEEL HOUSE |
1 | ||
| 82817-3A260 |
GS131..HTWC,SPC;GS131..4FC..TWC;GS130,JZS131,LS130,131,MS135,YS130..HT,SED RH,REAR WHEEL HOUSE |
1 | ||
| 82817-30830 |
GS131,JZS131,MS135..ATM..ROY FLOOR,RH |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-3A230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG LH,REAR DOOR |
1 | ||
| 82817-3A220 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG RH,REAR DOOR |
1 | ||
| 82817-3A440 |
UZS131..4FC;GS130,131,JZS13#,MS135,137..4FC..(SPC,TWC) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A260 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,REAR WHEEL HOUSE |
1 | ||
| 82817-3A260 |
GS131..HTWC,SPC;GS131..4FC..TWC;GS130,JZS131,LS130,131,MS135,YS130..HT,SED RH,REAR WHEEL HOUSE |
1 | ||
| 82817-30830 |
GS131,JZS131,MS135..ATM..ROY FLOOR,RH |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-3A230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG LH,REAR DOOR |
1 | ||
| 82817-3A220 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG RH,REAR DOOR |
1 | ||
| 82817-3A440 |
UZS131..4FC;GS130,131,JZS13#,MS135,137..4FC..(SPC,TWC) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A260 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,REAR WHEEL HOUSE |
1 | ||
| 82817-3A260 |
GS131..HTWC,SPC;GS131..4FC..TWC;GS130,JZS131,LS130,131,MS135,YS130..HT,SED RH,REAR WHEEL HOUSE |
1 | ||
| 82817-30830 |
GS131,JZS131,MS135..ATM..ROY FLOOR,RH |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-3A230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG LH,REAR DOOR |
1 | ||
| 82817-3A220 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG RH,REAR DOOR |
1 | ||
| 82817-3A440 |
UZS131..4FC;GS130,131,JZS13#,MS135,137..4FC..(SPC,TWC) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A260 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,REAR WHEEL HOUSE |
1 | ||
| 82817-3A260 |
GS131..HTWC,SPC;GS131..4FC..TWC;GS130,JZS131,LS130,131,MS135,YS130..HT,SED RH,REAR WHEEL HOUSE |
1 | ||
| 82817-30830 |
GS131,JZS131,MS135..ATM..ROY FLOOR,RH |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-3A230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG LH,REAR DOOR |
1 | ||
| 82817-3A220 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG RH,REAR DOOR |
1 | ||
| 82817-3A440 |
UZS131..4FC;GS130,131,JZS13#,MS135,137..4FC..(SPC,TWC) CONSOLE BOX BRACKET |
1 | ||
| 82817-3A260 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED LH,REAR WHEEL HOUSE |
1 | ||
| 82817-3A260 |
GS131..HTWC,SPC;GS131..4FC..TWC;GS130,JZS131,LS130,131,MS135,YS130..HT,SED RH,REAR WHEEL HOUSE |
1 | ||
| 82817-30830 |
GS131,JZS131,MS135..ATM..ROY FLOOR,RH |
1 | ||
| 82822 - BRACKET,CONNECTOR BLOCK | ||||
| 82822-30010 |
GS13#,JZS13#,LS13#,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| Common parts | ||||
| 90119-06122 | ||||
| 90159-50138 | ||||
| 90168-50037 | ||||
| 90176-05013 | ||||
| 90189-05070 | ||||
| 90467-10070 | ||||
| 90950-01582 | ||||
| 90950-01583 | ||||
| 91655-40616 | ||||
| 91666-40616 | ||||
| 93510-55012 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 8 OF11(8809- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-30320 | ||||
| 82715-30340 | ||||
| 82715-30360 | ||||
| 82715-30380 | ||||
| 82715-30390 | ||||
| 82715-30400 | ||||
| 82715-30410 | ||||
| 82715-30450 | ||||
| 82715-30500 | ||||
| 82715-30530 | ||||
| 82715-50020 | ||||
| 82715-50070 | ||||
| 82715-50080 | ||||
| 82715-50100 | ||||
| 82715-50110 | ||||
| 82715-50120 | ||||
| 90119-06311 | ||||
| 90119-08601 | ||||
| 90179-08071 | ||||
| 91611-60814 | ||||
| 91611-61016 | ||||
ILLUST NO. 9 OF11(8809- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-50130 | ||||
| 82715-50140 | ||||
| 82819-30250 | ||||
| 90119-08684 | ||||
| 90119-08749 | ||||
| 90168-60010 | ||||
| 90461-06303 | ||||
| 90461-06804 | ||||
| 90461-08183 | ||||
| 90461-08200 | ||||
| 90461-08483 | ||||
| 90463-12014 | ||||
| 90464-00073 | ||||
| 90464-00137 | ||||
| 90464-00159 | ||||
| 90480-10005 | ||||
| 90480-23006 | ||||
ILLUST NO. 3 OF11(8709- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 69749-12010 | ||||
| 82710-22020 | ||||
| 82710-30040 | ||||
| 82710-30080 | ||||
| 82710-30220 | ||||
| 82710-30230 | ||||
| 82710-30240 | ||||
| 82710-30250 | ||||
| 82710-30360 | ||||
| 82711-12120 | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 82711-1A210 | ||||
| 82711-22220 | ||||
| 82711-22490 | ||||
| 82711-95J26 | ||||
| 90119-08012 | ||||
| 90119-08683 | ||||
| 90119-08714 | ||||
| 90119-08760 | ||||
| 91611-60814 | ||||
| 91655-40816 | ||||
| 91661-60616 | ||||
ILLUST NO. 4 OF11(8709- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-24010 | ||||
| 82711-24220 | ||||
| 82711-24240 | ||||
| 82711-24330 | ||||
| 82711-24400 | ||||
| 82711-2A140 | ||||
| 82711-2A190 | ||||
| 82711-30020 | ||||
| 82711-30070 | ||||
| 82711-30130 | ||||
| 82711-30260 | ||||
| 82711-30390 | ||||
| 82711-30520 | ||||
| 82711-30540 | ||||
| 82711-30550 | ||||
| 82711-30580 | ||||
| 90119-06200 | ||||
| 90119-08683 | ||||
| 90119-08684 | ||||
| 91651-60614 | ||||
| 91651-60820 | ||||
| 91655-40816 | ||||
ILLUST NO. 5 OF11(8709- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-30600 | ||||
| 82711-30700 | ||||
| 82711-30830 | ||||
| 82711-30860 | ||||
| 82711-30870 | ||||
| 82711-32650 | ||||
| 82711-3A180 | ||||
| 82711-3A200 | ||||
| 82711-3A230 | ||||
| 82711-3A270 | ||||
| 82711-50540 | ||||
| 82711-91703 | ||||
| 82711-95015 | ||||
| 82715-22040 | ||||
| 82715-22080 | ||||
| 82715-22120 | ||||
| 90119-06200 | ||||
| 90179-06158 | ||||
| 91651-40814 | ||||
| 91651-A0614 | ||||
| 91655-40816 | ||||
| 93230-16016 | ||||
| 93510-55012 | ||||
(8709- )
DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-22051 |
MS135,137 COWL,NO.2 |
1 | ||
| 82345-32020 |
MS135..4FC;GS131..SED..SPC;MS135..4HC..NOB;GS131..HT..4FC..SPC;GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
MS135,137;GS131..ROY..SPC FLOOR WIRE,NO.2 |
1 | ||
| 82345-30010 |
GS131..4FC;GS130..ROY,SPE;GS130..(SED,WG)..HTWC;GS131..(4HC,5F)..(ROY,SSL);LS130,MS135,137..TD,TDE,TWC;GS131..(4HC,5F)..SALEX..HTWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135;GS130,131..SPC;MS137..4FC..WIB COWL,NO.3 |
2 | ||
| 82345-32020 |
MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,MS135..(4FC,4H,5F)..(ROY,STD)..(HTWC,TWC);GS130,131,LS130,131..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,TD,TDE,TWC,TWLPG) COWL,NO.3 |
1 | ||
| 82345-32020 |
MS137..WIB;GS131..ROY..SPC;MS137..4HC..NOB;GS130,MS135..ROY COWL,NO.3 |
3 | ||
| 82345-22051 |
JZS13#,MS13#,UZS131;GS131..4FC..ROY..SPC COWL,NO.2 |
1 | ||
| 82345-30010 |
LS130..DLX,SALEX,SDX;GS130,131,JZS13#,LS131,MS13#,UZS131..HTWC,SPC,TD,TDE,TWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135..4FC;MS135..4HC..NOB;MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,131..SED..(ROY,STD)..(HTWC,SPC);GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
JZS131,MS135;GS131..ATM..ROY;MS137,UZS131..4FC FLOOR WIRE,NO.2 |
1 | ||
| 82345-12030 |
GS130..STD..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL COWL,NO.5 |
1 | ||
| 82345-32020 |
GS130,JZS13#,MS13#..SPC,TWC;GS131,UZS131..(ROY,ROYG)..(HTWC,SPC) COWL,NO.3 |
3 | ||
| 82345 - DIODE | ||||
| 82345-22051 |
MS135,137 COWL,NO.2 |
1 | ||
| 82345-32020 |
MS135..4FC;GS131..SED..SPC;MS135..4HC..NOB;GS131..HT..4FC..SPC;GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
MS135,137;GS131..ROY..SPC FLOOR WIRE,NO.2 |
1 | ||
| 82345-30010 |
GS131..4FC;GS130..ROY,SPE;GS130..(SED,WG)..HTWC;GS131..(4HC,5F)..(ROY,SSL);LS130,MS135,137..TD,TDE,TWC;GS131..(4HC,5F)..SALEX..HTWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135;GS130,131..SPC;MS137..4FC..WIB COWL,NO.3 |
2 | ||
| 82345-32020 |
MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,MS135..(4FC,4H,5F)..(ROY,STD)..(HTWC,TWC);GS130,131,LS130,131..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,TD,TDE,TWC,TWLPG) COWL,NO.3 |
1 | ||
| 82345-32020 |
MS137..WIB;GS131..ROY..SPC;MS137..4HC..NOB;GS130,MS135..ROY COWL,NO.3 |
3 | ||
| 82345-22051 |
JZS13#,MS13#,UZS131;GS131..4FC..ROY..SPC COWL,NO.2 |
1 | ||
| 82345-30010 |
LS130..DLX,SALEX,SDX;GS130,131,JZS13#,LS131,MS13#,UZS131..HTWC,SPC,TD,TDE,TWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135..4FC;MS135..4HC..NOB;MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,131..SED..(ROY,STD)..(HTWC,SPC);GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
JZS131,MS135;GS131..ATM..ROY;MS137,UZS131..4FC FLOOR WIRE,NO.2 |
1 | ||
| 82345-12030 |
GS130..STD..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL COWL,NO.5 |
1 | ||
| 82345-32020 |
GS130,JZS13#,MS13#..SPC,TWC;GS131,UZS131..(ROY,ROYG)..(HTWC,SPC) COWL,NO.3 |
3 | ||
| 82345 - DIODE | ||||
| 82345-22051 |
MS135,137 COWL,NO.2 |
1 | ||
| 82345-32020 |
MS135..4FC;GS131..SED..SPC;MS135..4HC..NOB;GS131..HT..4FC..SPC;GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
MS135,137;GS131..ROY..SPC FLOOR WIRE,NO.2 |
1 | ||
| 82345-30010 |
GS131..4FC;GS130..ROY,SPE;GS130..(SED,WG)..HTWC;GS131..(4HC,5F)..(ROY,SSL);LS130,MS135,137..TD,TDE,TWC;GS131..(4HC,5F)..SALEX..HTWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135;GS130,131..SPC;MS137..4FC..WIB COWL,NO.3 |
2 | ||
| 82345-32020 |
MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,MS135..(4FC,4H,5F)..(ROY,STD)..(HTWC,TWC);GS130,131,LS130,131..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,TD,TDE,TWC,TWLPG) COWL,NO.3 |
1 | ||
| 82345-32020 |
MS137..WIB;GS131..ROY..SPC;MS137..4HC..NOB;GS130,MS135..ROY COWL,NO.3 |
3 | ||
| 82345-22051 |
JZS13#,MS13#,UZS131;GS131..4FC..ROY..SPC COWL,NO.2 |
1 | ||
| 82345-30010 |
LS130..DLX,SALEX,SDX;GS130,131,JZS13#,LS131,MS13#,UZS131..HTWC,SPC,TD,TDE,TWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135..4FC;MS135..4HC..NOB;MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,131..SED..(ROY,STD)..(HTWC,SPC);GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
JZS131,MS135;GS131..ATM..ROY;MS137,UZS131..4FC FLOOR WIRE,NO.2 |
1 | ||
| 82345-12030 |
GS130..STD..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL COWL,NO.5 |
1 | ||
| 82345-32020 |
GS130,JZS13#,MS13#..SPC,TWC;GS131,UZS131..(ROY,ROYG)..(HTWC,SPC) COWL,NO.3 |
3 | ||
| 82345 - DIODE | ||||
| 82345-22051 |
MS135,137 COWL,NO.2 |
1 | ||
| 82345-32020 |
MS135..4FC;GS131..SED..SPC;MS135..4HC..NOB;GS131..HT..4FC..SPC;GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
MS135,137;GS131..ROY..SPC FLOOR WIRE,NO.2 |
1 | ||
| 82345-30010 |
GS131..4FC;GS130..ROY,SPE;GS130..(SED,WG)..HTWC;GS131..(4HC,5F)..(ROY,SSL);LS130,MS135,137..TD,TDE,TWC;GS131..(4HC,5F)..SALEX..HTWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135;GS130,131..SPC;MS137..4FC..WIB COWL,NO.3 |
2 | ||
| 82345-32020 |
MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,MS135..(4FC,4H,5F)..(ROY,STD)..(HTWC,TWC);GS130,131,LS130,131..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,TD,TDE,TWC,TWLPG) COWL,NO.3 |
1 | ||
| 82345-32020 |
MS137..WIB;GS131..ROY..SPC;MS137..4HC..NOB;GS130,MS135..ROY COWL,NO.3 |
3 | ||
| 82345-22051 |
JZS13#,MS13#,UZS131;GS131..4FC..ROY..SPC COWL,NO.2 |
1 | ||
| 82345-30010 |
LS130..DLX,SALEX,SDX;GS130,131,JZS13#,LS131,MS13#,UZS131..HTWC,SPC,TD,TDE,TWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135..4FC;MS135..4HC..NOB;MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,131..SED..(ROY,STD)..(HTWC,SPC);GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
JZS131,MS135;GS131..ATM..ROY;MS137,UZS131..4FC FLOOR WIRE,NO.2 |
1 | ||
| 82345-12030 |
GS130..STD..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL COWL,NO.5 |
1 | ||
| 82345-32020 |
GS130,JZS13#,MS13#..SPC,TWC;GS131,UZS131..(ROY,ROYG)..(HTWC,SPC) COWL,NO.3 |
3 | ||
| 82345 - DIODE | ||||
| 82345-22051 |
MS135,137 COWL,NO.2 |
1 | ||
| 82345-32020 |
MS135..4FC;GS131..SED..SPC;MS135..4HC..NOB;GS131..HT..4FC..SPC;GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
MS135,137;GS131..ROY..SPC FLOOR WIRE,NO.2 |
1 | ||
| 82345-30010 |
GS131..4FC;GS130..ROY,SPE;GS130..(SED,WG)..HTWC;GS131..(4HC,5F)..(ROY,SSL);LS130,MS135,137..TD,TDE,TWC;GS131..(4HC,5F)..SALEX..HTWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135;GS130,131..SPC;MS137..4FC..WIB COWL,NO.3 |
2 | ||
| 82345-32020 |
MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,MS135..(4FC,4H,5F)..(ROY,STD)..(HTWC,TWC);GS130,131,LS130,131..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,TD,TDE,TWC,TWLPG) COWL,NO.3 |
1 | ||
| 82345-32020 |
MS137..WIB;GS131..ROY..SPC;MS137..4HC..NOB;GS130,MS135..ROY COWL,NO.3 |
3 | ||
| 82345-22051 |
JZS13#,MS13#,UZS131;GS131..4FC..ROY..SPC COWL,NO.2 |
1 | ||
| 82345-30010 |
LS130..DLX,SALEX,SDX;GS130,131,JZS13#,LS131,MS13#,UZS131..HTWC,SPC,TD,TDE,TWC COWL,NO.6 |
1 | ||
| 82345-32020 |
MS135..4FC;MS135..4HC..NOB;MS137..4FC..NOB;GS131..HT..4FC..SPC;GS130,131..SED..(ROY,STD)..(HTWC,SPC);GS130,131,LS130,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC) COWL,NO.3 |
1 | ||
| 82345-22051 |
JZS131,MS135;GS131..ATM..ROY;MS137,UZS131..4FC FLOOR WIRE,NO.2 |
1 | ||
| 82345-12030 |
GS130..STD..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL COWL,NO.5 |
1 | ||
| 82345-32020 |
GS130,JZS13#,MS13#..SPC,TWC;GS131,UZS131..(ROY,ROYG)..(HTWC,SPC) COWL,NO.3 |
3 | ||
| Common parts | ||||
| 82345-12030 | ||||
| 82345-12050 | ||||
| 82345-22051 | ||||
| 82345-30010 | ||||
| 82345-32020 | ||||
(8709- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-16010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-20020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-10020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-30010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 82988 - WIRE, AIR BAG REPAIR | ||||
| 82988-50010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| Common parts | ||||
| 82981-16010 | ||||
| 82982-20020 | ||||
| 82983-10020 | ||||
| 82984-20010 | ||||
| 82987-30010 | ||||
| 82988-50010 | ||||
ILLUST NO. 6 OF11(8709- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-22180 | ||||
| 82715-22280 | ||||
| 82715-22390 | ||||
| 82715-30010 | ||||
| 82715-30020 | ||||
| 82715-30030 | ||||
| 82715-30040 | ||||
| 82715-30060 | ||||
| 82715-30070 | ||||
| 82715-30071 | ||||
| 82715-30080 | ||||
| 82715-30081 | ||||
| 82715-30090 | ||||
| 82715-30100 | ||||
| 82715-30110 | ||||
| 82715-30120 | ||||
| 90119-06200 | ||||
| 90119-08035 | ||||
| 90119-08684 | ||||
| 90179-06158 | ||||
| 90179-06199 | ||||
| 91651-40614 | ||||
| 91651-A0614 | ||||
| 91651-F0612 | ||||
| 91655-40816 | ||||
ILLUST NO. 7 OF11(8809- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-30130 | ||||
| 82715-30140 | ||||
| 82715-30150 | ||||
| 82715-30160 | ||||
| 82715-30170 | ||||
| 82715-30180 | ||||
| 82715-30190 | ||||
| 82715-30200 | ||||
| 82715-30210 | ||||
| 82715-30220 | ||||
| 82715-30230 | ||||
| 82715-30240 | ||||
| 82715-30250 | ||||
| 82715-30260 | ||||
| 82715-30270 | ||||
| 82715-30310 | ||||
| 90119-06200 | ||||
| 90119-06474 | ||||
| 90119-08164 | ||||
| 91651-40814 | ||||
| 91651-60614 | ||||
| 91651-G0614 | ||||
| 91655-40816 | ||||
| 93385-16012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
