MS135-AEPQF (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

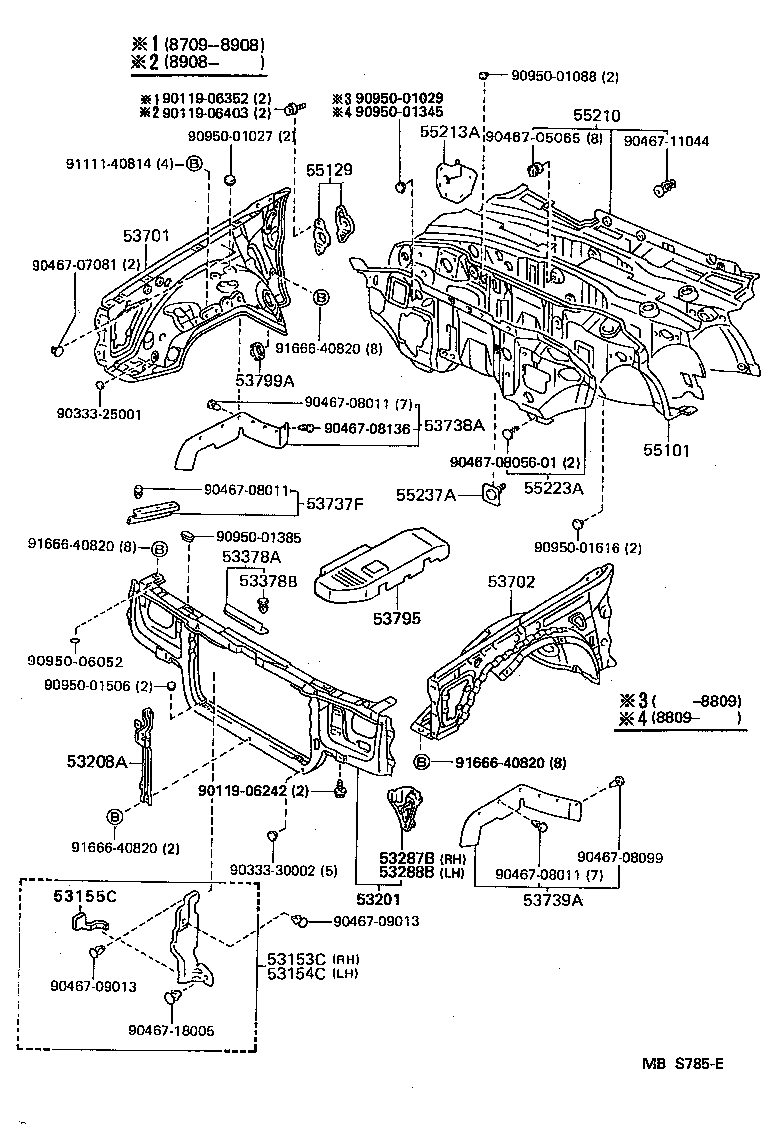

Click highlighted areas on diagram

diagram 53153C 53154C 53155C 53201 53208A 53287B 53288B 53378A 53378B 53701 53702 53737F 53738A 53739A 53795 53799A 55101 55129 55210 55213A 55223A 55237A 9011906242 9011906352 9011906403 9033325001 9033330002 9046705065 9046707081 9046708011 9046708011 9046708011 904670805601 9046708099 9046708136 9046709013 9046709013 9046711044 9046718005 9095001027 9095001029 9095001088 9095001345 9095001385 9095001506 9095001616 9095006052 9111140814 9166640820 9166640820 9166640820 9166640820
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-30911

GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53209-30080

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..NOB

 1
53378A - SEAL, HOOD AIR INTAKE DUCT
53378-30030

GS13#,JZS13#,LS13#,MS135,137,UZS131,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC

 1
53378B - CLIP(FOR HOOD AIR INTAKE DUCT SEAL)
90467-08008

GS13#,LS13#,MS135,137,YS130

 3
90467-08072

GS13#,JZS13#,LS13#,MS135,137,UZS131,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC

 3
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-3A030

GS13#,JZS13#,LS13#,MS135,YS130..NOB

 1
53701-3A010

JZS131,MS135..NOB;GS131..ROY..SPC..NOB

ｱﾘ(ABS)

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-30620

GS13#,JZS13#,LS13#,MS13#,UZS131..NOB

 1
53738A - SEAL, FRONT FENDER APRON, REAR RH
53738-30060

GS13#,LS13#,MS13#,UZS131,YS130

 1
53738-30060

GS13#,JZS13#,MS13#,UZS131

 1
53739A - SEAL, FRONT FENDER APRON, REAR LH
53739-30040

GS13#,JZS13#,MS13#,UZS131

 1
53739-30040

GS13#,LS13#,MS13#,UZS131,YS130

 1
53799A - COVER, STEERING GEAR BOX SERVICE HOLE
53799-30021

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 1
55101 - PANEL SUB-ASSY, DASH
55101-30751

GS131..ROY..SPC;GS130,MS135,137..SPC,TWC

 1
55101-30751

GS130,131,JZS13#,MS135,137,UZS131..ATM..(EFI,HTWC,SPC,TWC)

 1
55210 - INSULATOR ASSY, DASH PANEL
55211-30450

GS130..SPC;GS130..SED..SDX;GS131,JZS13#,MS13#

 1
55211-30450

GS130,131,MS135,137..ROY,ROYG

 1
55213A - PAD, DASH PANEL SILENCER
55213-30270

GS13#,JZS13#,MS13#,YS130..4FC,5F

 1
55213-30270

GS13#,LS13#,MS13#,YS130..4FC,5F

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-30070

JZS13#,LS13#,MS135,137,UZS131;GS130,131..(ROY,SAL,SALEX,SSL)..(HTWC,SPC,TWC)

 1
55237A - PLATE, DASH PANEL INSULATOR, NO.1
55237-30010

JZS13#,LS13#,MS135,137,UZS131;GS130,131..(ROY,SAL,SALEX,SSL)..(HTWC,SPC,TWC)

 1
Common parts
90119-06242
90119-06352
90119-06403
90333-25001
90333-30002
90467-05065
90467-07081
90467-08011
90467-0805601
90467-08099
90467-08136
90467-09013
90467-11044
90467-18005
90950-01027
90950-01029
90950-01088
90950-01345
90950-01385
90950-01506
90950-01616
90950-06052
91111-40814
91666-40820
