Toyota Crown MS130 HEADLAMP - JDM Part Detective

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81120-30780	GS130,131,LS130,MS13#,YS130..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX)	09/1987 - 09/1987	1
81120-30781	GS130..WG..(ROY,SALEX);LS130..(SED,WG)..(DLX,SALEX,SDX);GS130,131,MS13#,YS130..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX)	09/1987 - 08/1989	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015	GS130..WG..(ROY,SALEX);GS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE);GS131,JZS13#,LS130,131,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 12V 60/55W,HAL WH	09/1987 - 10/1991	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-30780	GS130,131,LS130,MS13#,YS130..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX)	09/1987 - 09/1987	1
81130-30781	GS130..WG..(ROY,SALEX);LS130..(SED,WG)..(DLX,SALEX,SDX);GS130,131,MS13#,YS130..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX)	09/1987 - 08/1989	1
81144 - COVER, HEADLAMP, NO.1
81139-20730	MS130,YS130..DLX,SDX 左側	09/1987 - 10/1991	1
81139-30590	MS130,YS130..DLX,SDX 右側	09/1987 - 10/1991	1
81150 - HEADLAMP ASSY, LH
81160-30840	MS130,YS130..DLX,SDX	09/1987 - 09/1987	1
81160-30841	MS130,YS130..DLX,SDX	09/1987 - 08/1989	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-30780	GS130,131,LS130,MS13#,YS130..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX)	09/1987 - 09/1987	1
81170-30781	GS130..WG..(ROY,SALEX);LS130..(SED,WG)..(DLX,SALEX,SDX);GS130,131,MS13#,YS130..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX)	09/1987 - 08/1989	1
Common parts
81137-22420
90075-10001
90075-10004
90075-10005
90075-11454
90119-06395
90163-50008
90179-06115
90189-05037
93540-74010

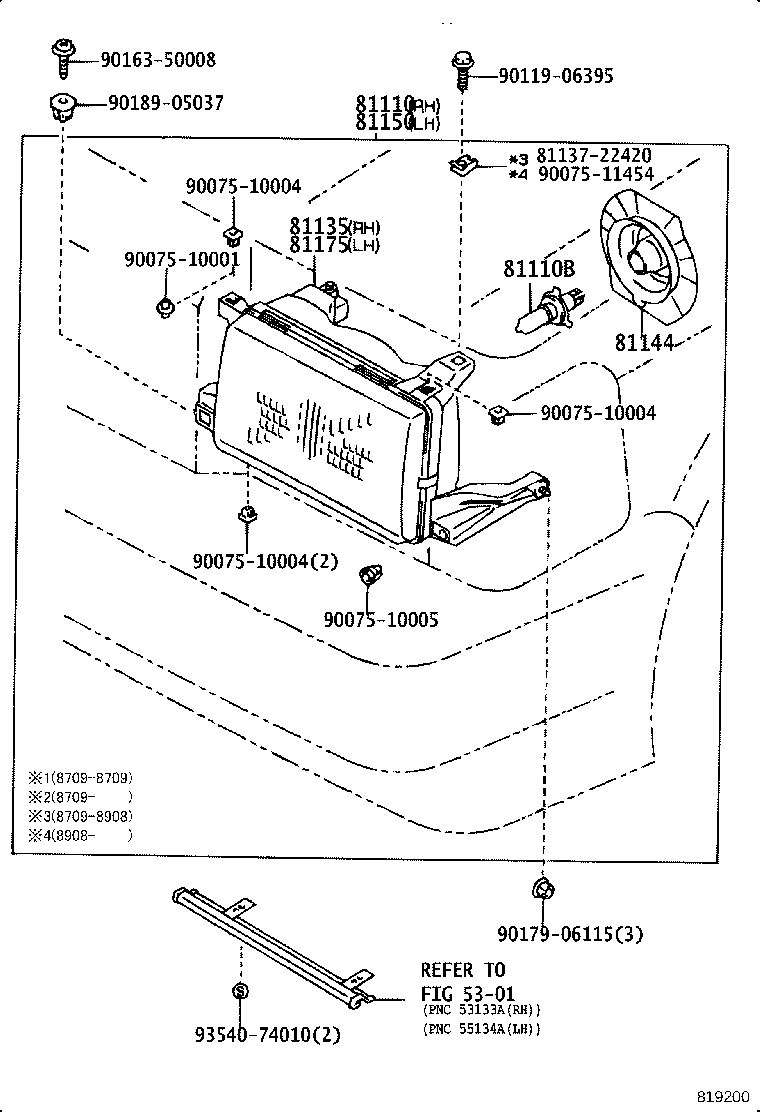

Linked diagrams
5301

MS130-AESFP (1987)
