MS130-AESFP (1987)
Toyota Crown

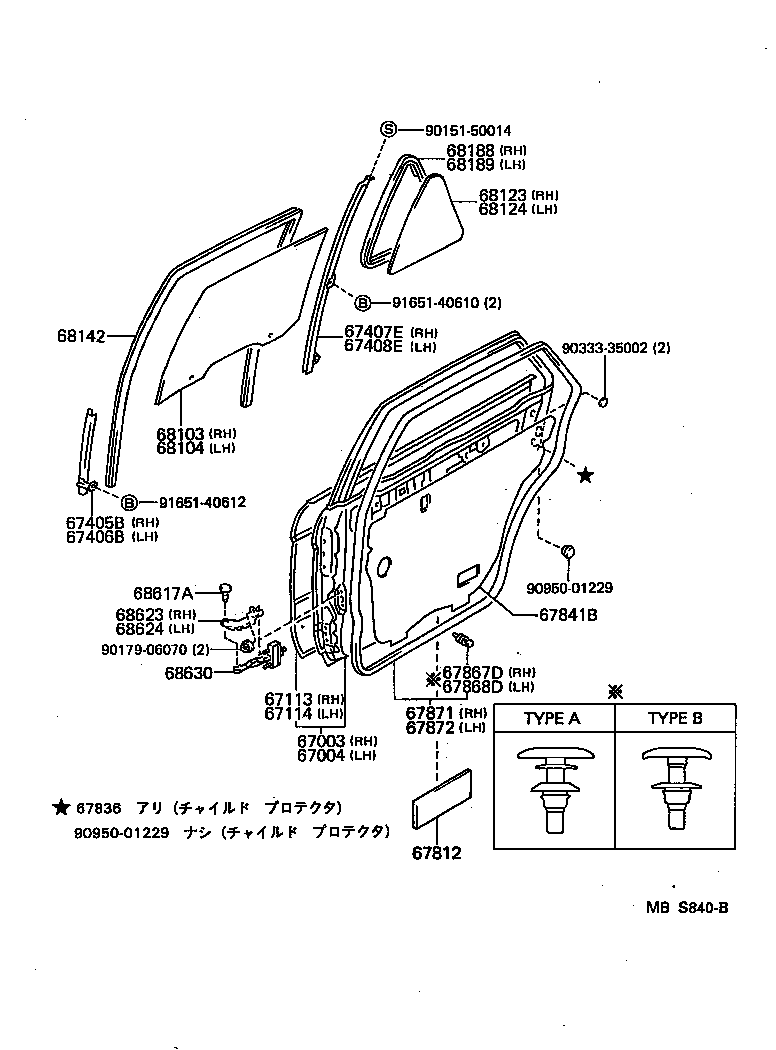

ILLUST NO. 1 OF 3(8709- )SED,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-30370 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX) |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-30370 |
GS130,131,JZS131,LS130,131,MS13#,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX) |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-30220 |
GS130,131,LS130,131,MS13#,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX) |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-30230 |
GS130,131,LS130,131,MS13#,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX) |
1 | ||
| 67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH | ||||
| 67405-30080 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG |
1 | ||
| 67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH | ||||
| 67406-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-30100 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-30090 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67811-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-30240 |
GS130,MS130..SED..4H..SDX ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ Bｶｽﾀﾑ,右側 |
1 | ||
| 67841-30250 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) 右側 |
1 | ||
| 67842-30120 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) 左側 |
1 | ||
| 67842-30110 |
GS130,MS130..SED..4H..SDX ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ Bｶｽﾀﾑ,左側 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-30050 |
GS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG TYPE B |
20 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-30050 |
GS13#,LS13#,MS13#,YS130..SED,V,WG TYPE B |
20 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-30130 |
GS130,131,LS130,MS13#,YS130..SED |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-30160 |
MS130,YS130 |
1 | ||
| 67872-30130 |
GS130,131,LS130,MS13#,YS130..SED |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-30280 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX) *TT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-30200 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX) *TEM,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-30220 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX) *TT,厚さ=3.5 |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-30160 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX) *TT,厚さ=3.5 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68152-30020 |
GS13#,LS13#,MS13#,YS130..SED,V,WG 左側 |
1 | ||
| 68142-30120 |
GS13#,LS13#,MS13#,YS130..SED,V,WG 右側 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-30080 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-30060 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-30030 |
GS13#,JZS130,LS13#,MS130,YS130..NOB |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-30070 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG |
2 | ||
| Common parts | ||||
| 90151-50014 | ||||
| 90179-06070 | ||||
| 90333-35002 | ||||
| 90950-01229 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||

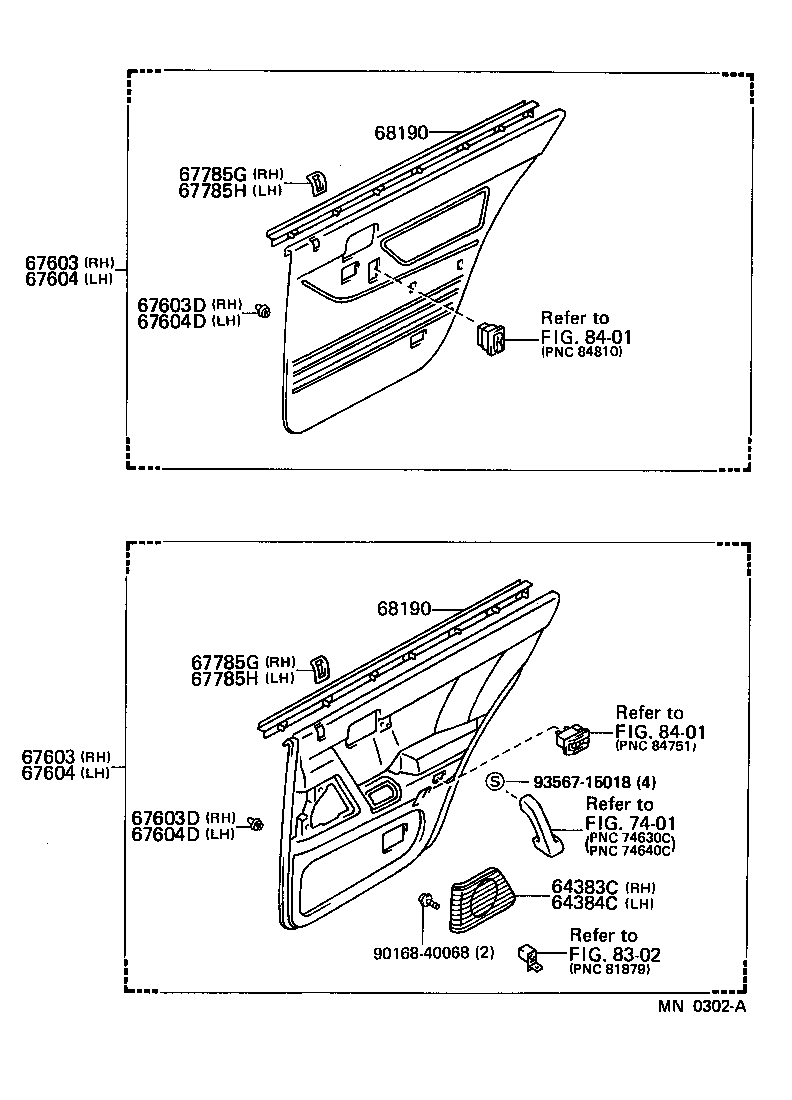

ILLUST NO. 2 OF 3(8709- )SED,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64383C - GRILLE, REAR DOOR SPEAKER, RH | ||||
| 64383-3006002 |
MS130..SDX Gﾊﾟﾂｹ-ｼﾞ OR Qﾊﾟﾂｹ-ｼﾞ;G ﾊﾟﾂｹ-ｼﾞ OR Q ﾊﾟﾂｹ-ｼﾞ,MAROON,TRIM3# |
1 | ||
| 64383-3005002 |
GS130,131,LS130,131,MS130..(SED,WG)..(SAL,SALEX,SDX) MAROON,TRIM3# |
1 | ||
| 64383-3006004 |
GS130,MS130..SDX..(LPG,TWLPG) Gﾊﾟﾂｹ-ｼﾞ OR Qﾊﾟﾂｹ-ｼﾞ;G ﾊﾟﾂｹ-ｼﾞ OR Q ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 64383-3005004 |
GS130,131,LS130,131,MS130..(SED,WG)..(SAL,SALEX,SDX) BLUE,TRIM8# |
1 | ||
| 64384C - GRILLE, REAR DOOR SPEAKER, LH | ||||
| 64384-3004002 |
MS130..SDX Q ﾊﾟﾂｹ-ｼﾞ;Qﾊﾟﾂｹ-ｼﾞ,MAROON,TRIM3# |
1 | ||
| 64384-3003004 |
GS130,131,LS130,131,MS130..(SED,WG)..(SAL,SALEX,SDX) BLUE,TRIM8# |
1 | ||
| 64384-3003002 |
GS130,131,LS130,131,MS130..(SED,WG)..(SAL,SALEX,SDX) MAROON,TRIM3# |
1 | ||
| 64384-3004004 |
GS130,MS130..SDX..(LPG,TWLPG) Q ﾊﾟﾂｹ-ｼﾞ;Qﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3A29004 |
MS130..SDX Q ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67630-3A20004 |
GS130,MS130..SED..4H..SDX ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8# |
1 | ||
| 67630-3A22004 |
GS130,MS130..SDX..(LPG,TWLPG) G ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67630-3A27002 |
GS130,MS130..SDX..(LPG,TWLPG) MAROON,TRIM3# |
1 | ||
| 67630-3A27004 |
GS130,MS130..SDX..(LPG,TWLPG) BLUE,TRIM8# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3A29004 |
MS130..SDX Q ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67630-3A20004 |
GS130,MS130..SED..4H..SDX ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8# |
1 | ||
| 67630-3A22004 |
GS130,MS130..SDX..(LPG,TWLPG) G ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67630-3A27002 |
GS130,MS130..SDX..(LPG,TWLPG) MAROON,TRIM3# |
1 | ||
| 67630-3A27004 |
GS130,MS130..SDX..(LPG,TWLPG) BLUE,TRIM8# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12040 |
GS130,MS130..SED..4H..SDX ﾌﾞﾗｲﾀﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ |
9 | ||
| 67771-12050 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
10 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12040 |
GS130,MS130..SED..4H..SDX ﾌﾞﾗｲﾀﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ |
9 | ||
| 67771-12050 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
10 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3A29004 |
MS130..SDX Q ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67640-3A22004 |
GS130,MS130..SDX..(LPG,TWLPG) G ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67640-3A20004 |
GS130,MS130..SED..4H..SDX ﾌﾞﾗｲﾀﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8# |
1 | ||
| 67640-3A27002 |
GS130,MS130..SDX..(LPG,TWLPG) MAROON,TRIM3# |
1 | ||
| 67640-3A27004 |
GS130,MS130..SDX..(LPG,TWLPG) BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3A29004 |
MS130..SDX Q ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67640-3A22004 |
GS130,MS130..SDX..(LPG,TWLPG) G ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67640-3A20004 |
GS130,MS130..SED..4H..SDX ﾌﾞﾗｲﾀﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8# |
1 | ||
| 67640-3A27002 |
GS130,MS130..SDX..(LPG,TWLPG) MAROON,TRIM3# |
1 | ||
| 67640-3A27004 |
GS130,MS130..SDX..(LPG,TWLPG) BLUE,TRIM8# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
10 | ||
| 67771-12040 |
GS130,MS130..SED..4H..SDX ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ |
9 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
10 | ||
| 67771-12040 |
GS130,MS130..SED..4H..SDX ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ |
9 | ||
| 67785G - HOLDER, REAR DOOR LOCK CONTROL KNOB, RH | ||||
| 67785-3007002 |
GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX)..HTWC;GS13#,LS13#,MS13#,YS130..(SED,V,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,LPG,SPC,TD,TDE,TWC) MAROON,TRIM3# |
1 | ||
| 67785-3007004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG BLUE,TRIM8# |
1 | ||
| 67785G - HOLDER, REAR DOOR LOCK CONTROL KNOB, RH | ||||
| 67785-3007002 |
GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX)..HTWC;GS13#,LS13#,MS13#,YS130..(SED,V,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,LPG,SPC,TD,TDE,TWC) MAROON,TRIM3# |
1 | ||
| 67785-3007004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG BLUE,TRIM8# |
1 | ||
| 67785H - HOLDER, REAR DOOR LOCK CONTROL KNOB, LH | ||||
| 67785-3007004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG BLUE,TRIM8# |
1 | ||
| 67785-3007002 |
GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX)..HTWC;GS13#,LS13#,MS13#,YS130..(SED,V,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,LPG,SPC,TD,TDE,TWC) MAROON,TRIM3# |
1 | ||
| 67785H - HOLDER, REAR DOOR LOCK CONTROL KNOB, LH | ||||
| 67785-3007004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG BLUE,TRIM8# |
1 | ||
| 67785-3007002 |
GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX)..HTWC;GS13#,LS13#,MS13#,YS130..(SED,V,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,LPG,SPC,TD,TDE,TWC) MAROON,TRIM3# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-30120 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG 右側 |
1 | ||
| 68240-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG 左側 |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-30120 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG 右側 |
1 | ||
| 68240-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG 左側 |
1 | ||
| Common parts | ||||
| 90168-40068 | ||||
| 93567-15018 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8302 | ||||
| 8401 | ||||
ILLUST NO. 4 OF 4(8709-8908)SED
