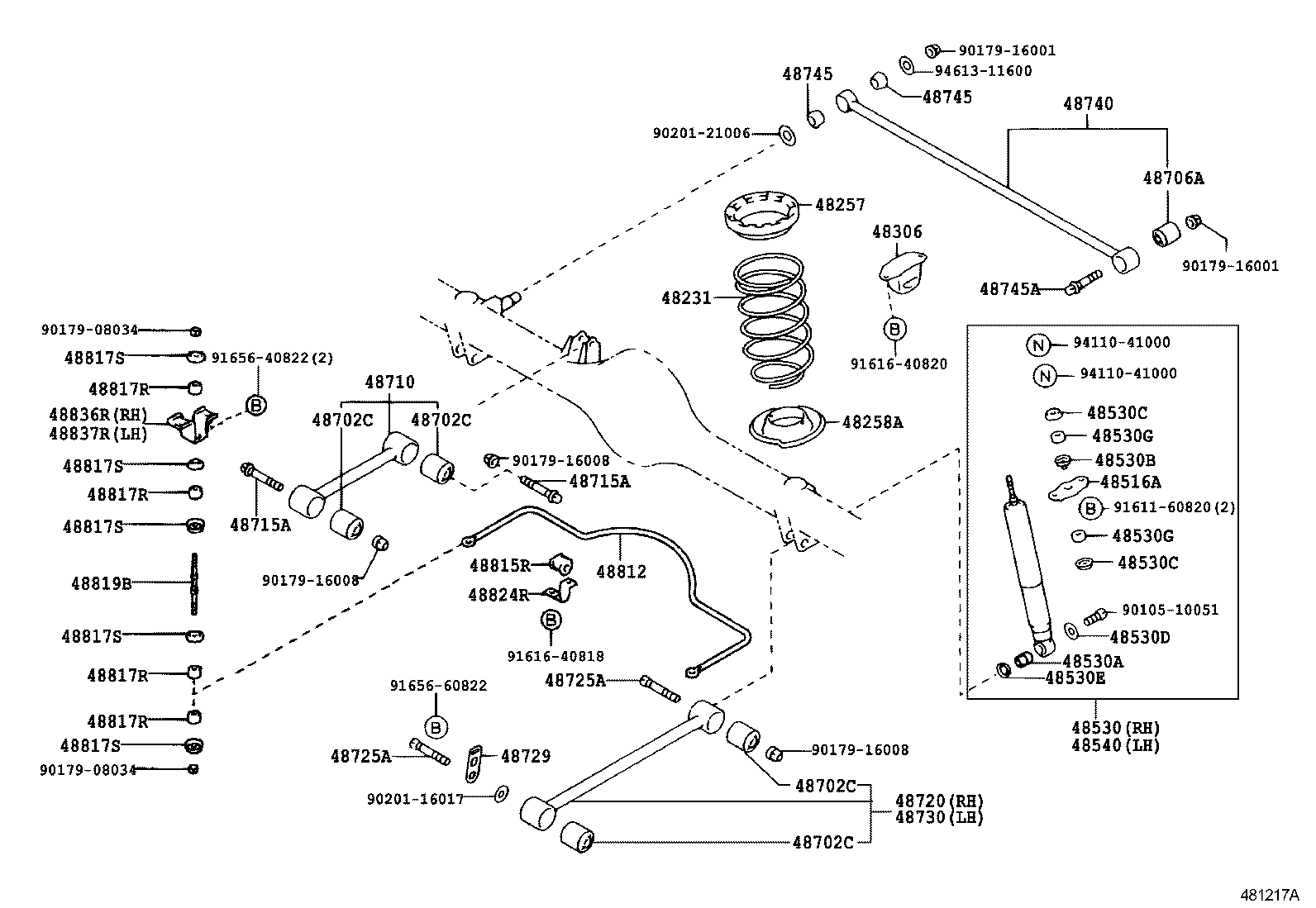

MS130-AESFP (1987)
Toyota Crown
(8709- )GS130,JZS130,LS130,MS130,YS130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231 - SPRING, COIL, REAR | ||||
| 48231-30570 |
MS130,YS130 |
2 | ||
| 48257 - INSULATOR, REAR COIL SPRING | ||||
| 48257-30020 |
GS130,JZS130,LS130,MS130,YS130 |
2 | ||
| 48258A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-30010 |
GS130,JZS130,LS130,MS130,YS130 |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-30120 |
GS130,JZS130,LS130..WG;GS130,MS130,YS130..LPEFI,LPG,TWLPG |
2 | ||
| 48516A - BRACKET, REAR SHOCK ABSORBER, UPPER | ||||
| 48516-30030 |
GS130,JZS130,LS130,MS130,YS130 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39845 |
GS130,MS130,YS130..LPEFI,LPG,TWLPG |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02007 |
GS130,136,JZS130,LS130,136,MS130,YS130 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
GS130,136,JZS130,LS130,136,MS130,YS130 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
GS130,136,JZS130,LS130,136,MS130,YS130 |
4 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03018 |
MS130,135,YS130;GS131..ROY..SPC |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03017 |
MS135..NOB;GS130,JZS131,MS130,135,YS130..(DLX,SALEX,SDX,STD)..(LPEFI,LPG,TWC,TWLPG) |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01003 |
GS130,JZS130,MS130,YS130 |
4 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01003 |
GS130,JZS130,MS130,YS130 |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39845 |
GS130,MS130,YS130..LPEFI,LPG,TWLPG |
1 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48702-30130 |
GS130,LS130,MS130,YS130..DSL,LPEFI,LPG,TWLPG |
4 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48702-30130 |
GS130,LS130,MS130,YS130..DSL,LPEFI,LPG,TWLPG |
4 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48702-30130 |
GS130,LS130,MS130,YS130..DSL,LPEFI,LPG,TWLPG |
4 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48702-30130 |
GS130,LS130,MS130,YS130..DSL,LPEFI,LPG,TWLPG |
4 | ||
| 48706A - BUSH SUB-ASSY, REAR LATERAL CONTROL ROD | ||||
| 48706-22010 |
GS130,JZS130,LS130,MS130,YS130 |
1 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-30120 |
GS130,LS130,MS130,YS130..DSL,LPEFI,LPG,TWLPG |
1 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90105-16030 |
GS130,JZS130,LS130,MS130,YS130 |
2 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90105-16030 |
GS130,JZS130,LS130,MS130,YS130 |
2 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-30190 |
GS130,LS130,MS130,YS130..DSL,LPEFI,LPG,TWLPG |
1 | ||
| 48725A - BOLT(FOR LOWER CONTROL ARM) | ||||
| 90101-16023 |
GS130,JZS130,LS130,MS130,YS130 FRAME SIDE |
2 | ||
| 90105-16030 |
GS130,JZS130,LS130,MS130,YS130 HOUSING SIDE |
2 | ||
| 48725A - BOLT(FOR LOWER CONTROL ARM) | ||||
| 90101-16023 |
GS130,JZS130,LS130,MS130,YS130 FRAME SIDE |
2 | ||
| 90105-16030 |
GS130,JZS130,LS130,MS130,YS130 HOUSING SIDE |
2 | ||
| 48729 - PLATE, LOWER CONTROL ARM BOLT LOCK | ||||
| 48729-30020 |
GS130,JZS130,LS130,MS130,YS130 |
2 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48730-30010 |
GS130,LS130,MS130,YS130..DSL,LPEFI,LPG,TWLPG |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-30050 |
GS130,LS130,MS130,YS130 |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90385-20048 |
GS130,JZS130,LS130,MS130,YS130 |
2 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90385-20048 |
GS130,JZS130,LS130,MS130,YS130 |
2 | ||
| 48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD) | ||||
| 90105-16017 |
GS130,JZS130,LS130,MS130,YS130 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-30090 |
GS130,LS130,MS130..(HT,SED)..(DLX,SALEX,SDX,SPE,SSL)..(DSL,LPG,TD,TDE,TWLPG) |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-30070 |
GS130,LS130,MS130..(HT,SED)..(DLX,SALEX,SDX,SPE,SSL)..(DSL,LPG,TD,TDE,TWLPG) |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-10010 |
GS130,JZS130,LS130,MS130..DSL,LPG,SPC,TD,TDE,TWC,TWLPG |
8 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-10010 |
GS130,JZS130,LS130,MS130..DSL,LPG,SPC,TD,TDE,TWC,TWLPG |
8 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-10010 |
GS130,JZS130,LS130,MS130..DSL,LPG,SPC,TD,TDE,TWC,TWLPG |
8 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-10010 |
GS130,JZS130,LS130,MS130..DSL,LPG,SPC,TD,TDE,TWC,TWLPG |
8 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02024 |
GS130,JZS130,LS130,MS130..DSL,LPG,SPC,TD,TDE,TWC,TWLPG NO.1,T=1.2 |
8 | ||
| 90948-02025 |
GS130,JZS130,LS130,MS130..DSL,LPG,SPC,TD,TDE,TWC,TWLPG NO.2,T=1.0 |
2 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02024 |
GS130,JZS130,LS130,MS130..DSL,LPG,SPC,TD,TDE,TWC,TWLPG NO.1,T=1.2 |
8 | ||
| 90948-02025 |
GS130,JZS130,LS130,MS130..DSL,LPG,SPC,TD,TDE,TWC,TWLPG NO.2,T=1.0 |
2 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02024 |
GS130,JZS130,LS130,MS130..DSL,LPG,SPC,TD,TDE,TWC,TWLPG NO.1,T=1.2 |
8 | ||
| 90948-02025 |
GS130,JZS130,LS130,MS130..DSL,LPG,SPC,TD,TDE,TWC,TWLPG NO.2,T=1.0 |
2 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02024 |
GS130,JZS130,LS130,MS130..DSL,LPG,SPC,TD,TDE,TWC,TWLPG NO.1,T=1.2 |
8 | ||
| 90948-02025 |
GS130,JZS130,LS130,MS130..DSL,LPG,SPC,TD,TDE,TWC,TWLPG NO.2,T=1.0 |
2 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02024 |
GS130,JZS130,LS130,MS130..DSL,LPG,SPC,TD,TDE,TWC,TWLPG NO.1,T=1.2 |
8 | ||
| 90948-02025 |
GS130,JZS130,LS130,MS130..DSL,LPG,SPC,TD,TDE,TWC,TWLPG NO.2,T=1.0 |
2 | ||
| 48819B - BOLT, REAR STABILIZER | ||||
| 48819-12010 |
GS130,JZS130,LS130,MS130..DSL,LPG,SPC,TD,TDE,TWC,TWLPG |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-22010 |
GS130,JZS130,LS130,MS130..DSL,LPG,SPC,TD,TDE,TWC,TWLPG |
2 | ||
| 48836R - BRACKET, REAR STABILIZER END, RH | ||||
| 48836-30020 |
GS130,JZS130,LS130,MS130..DSL,LPG,SPC,TD,TDE,TWC,TWLPG |
1 | ||
| 48837R - BRACKET, REAR STABILIZER END, LH | ||||
| 48837-30020 |
GS130,JZS130,LS130,MS130..DSL,LPG,SPC,TD,TDE,TWC,TWLPG |
1 | ||
| Common parts | ||||
| 90105-10051 | ||||
| 90179-08034 | ||||
| 90179-16001 | ||||
| 90179-16008 | ||||
| 90201-16017 | ||||
| 90201-21006 | ||||
| 91611-60820 | ||||
| 91616-40818 | ||||
| 91616-40820 | ||||
| 91656-40822 | ||||
| 91656-60822 | ||||
| 94110-41000 | ||||
| 94613-11600 | ||||
