MS130-AESFP (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine MP
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )GS130,131,JZS13#,LS130,131,MS13#,UZS131..ATM

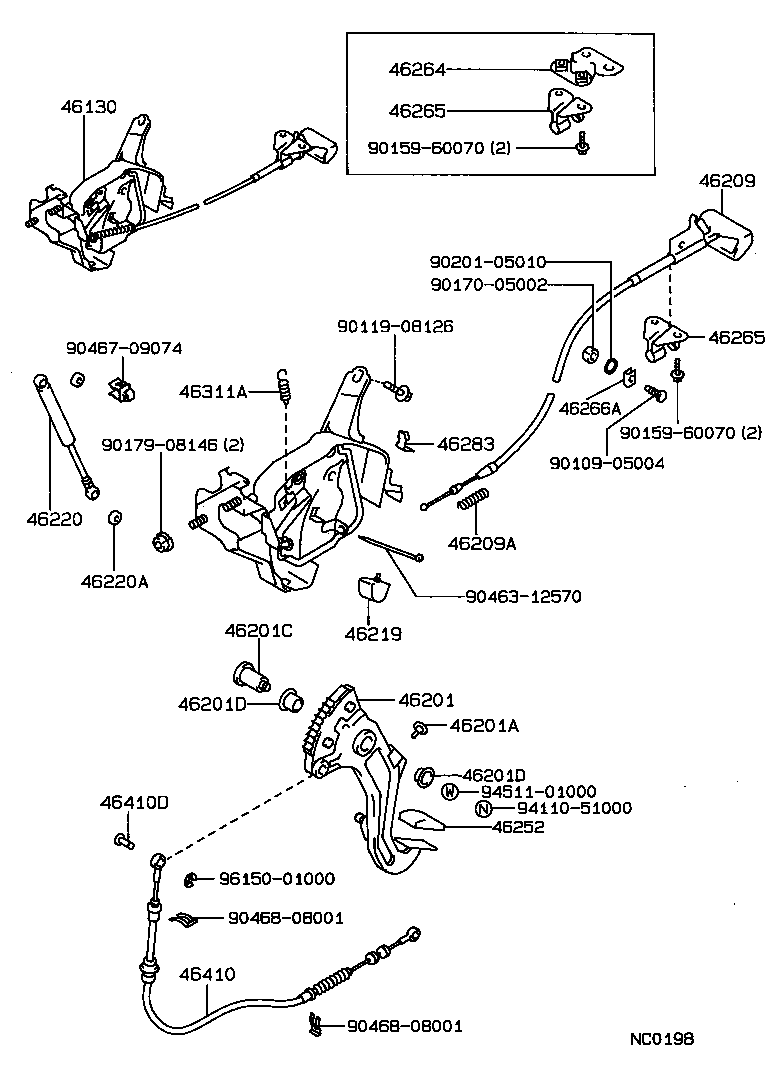

Click highlighted areas on diagram

diagram 46130 46201 46201A 46201C 46201D 46201D 46209 46209A 46219 46220 46220A 46252 46264 46265 46265 46266A 46283 46311A 46410 46410D 9010905004 9011908126 9015960070 9015960070 9017005002 9017908146 9020105010 9046312570 9046709074 9046808001 9046808001 9411051000 9451101000 9615001000
Part # Description Qty Price
46130 - BRACKET ASSY, PARKING BRAKE PEDAL
46130-30040

MS130..ATM;GS130..ATM..DLX

 1
46201 - PEDAL SUB-ASSY, PARKING BRAKE
46201-30090

GS130,131,LS130,MS13#..ATM

 1
46201A - CUSHION(FOR PARKING BRAKE PEDAL)
90541-01001

GS130,131,JZS13#,LS130,131,MS13#,UZS131..ATM

 1
46201C - SHAFT, PEDAL
90109-10033

GS130,131,JZS13#,LS130,131,MS13#,UZS131..ATM

 1
46201D - BUSH(FOR PARKING BRAKE PEDAL)
90386-16022

GS130,131,JZS13#,LS130,131,MS13#,UZS131..ATM

 2
46201D - BUSH(FOR PARKING BRAKE PEDAL)
90386-16022

GS130,131,JZS13#,LS130,131,MS13#,UZS131..ATM

 2
46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE
46209-30030

MS130..ATM;GS130..ATM..DLX

 1
46209A - SPRING, COMPRESSION(FOR PARKING BRAKE RELEASE CABLE)
90501-08030

GS131,LS130,MS130..ATM

 1
46219 - STOPPER, PARKING PEDAL
90541-07008

GS130,131,JZS13#,LS130,131,MS13#,UZS131..ATM

 1
46220 - ABSORBER ASSY, PARKING BRAKE PEDAL RETURN
46220-30010

GS130,131,JZS13#,LS130,131,MS13#,UZS131..ATM

 1
46220A - CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER)
90540-07010

GS130,131,JZS13#,LS130,131,MS13#,UZS131..ATM

 2
46252 - PAD, PARKING PEDAL
46252-20010

GS130,131,LS130,MS13#..ATM

 1
46264 - ATTACHMENT, PARKING BRAKE RELEASE CABLE
46264-30020

MS130..ATM;GS130..ATM..DLX;GS130..ATM..SDX..TWLPG

 1
46265 - GUIDE, PARKING BRAKE RELEASE ROD
46265-30040

GS130,131,JZS13#,LS130,131,MS13#,UZS131..ATM

 1
46265 - GUIDE, PARKING BRAKE RELEASE ROD
46265-30040

GS130,131,JZS13#,LS130,131,MS13#,UZS131..ATM

 1
46266A - CUSHION, RELEASE ROD GUIDE INTERMEDIATE
46266-30010

GS130,131,JZS13#,LS130,131,MS13#,UZS131..ATM

 1
46283 - PROTECTOR, PARKING BRAKE SIGNAL SWITCH
46283-30020

LS136..STD;GS13#,JZS13#,LS130,131,MS13#,UZS131,YS130..4FC,4H,4HC

 1
46311A - SPRING(FOR PARKING BRAKE PAWL)
90506-07007

GS130,131,LS130,MS13#..ATM

 1
90508-08106

YS130..4H,4HC;GS130,136,LS130,136,MS130..4H

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-30430

YS130..4H,4HC;GS130,136,LS130,136,MS130..4H

 1
46410-30460

GS130,JZS130,LS130,MS130..ATM

 1
46410D - PIN(FOR PARKING BRAKE FRONT CABLE)
90249-10012

GS130,131,JZS13#,LS130,131,MS13#,UZS131..ATM

 1
Common parts
90109-05004
90119-08126
90159-60070
90170-05002
90179-08146
90201-05010
90463-12570
90467-09074
90468-08001
94110-51000
94511-01000
96150-01000
