MS130-AESFP (1987)
Toyota Crown
Production
Sep 1987
-
Aug 1989
Engine
MP
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8709- )

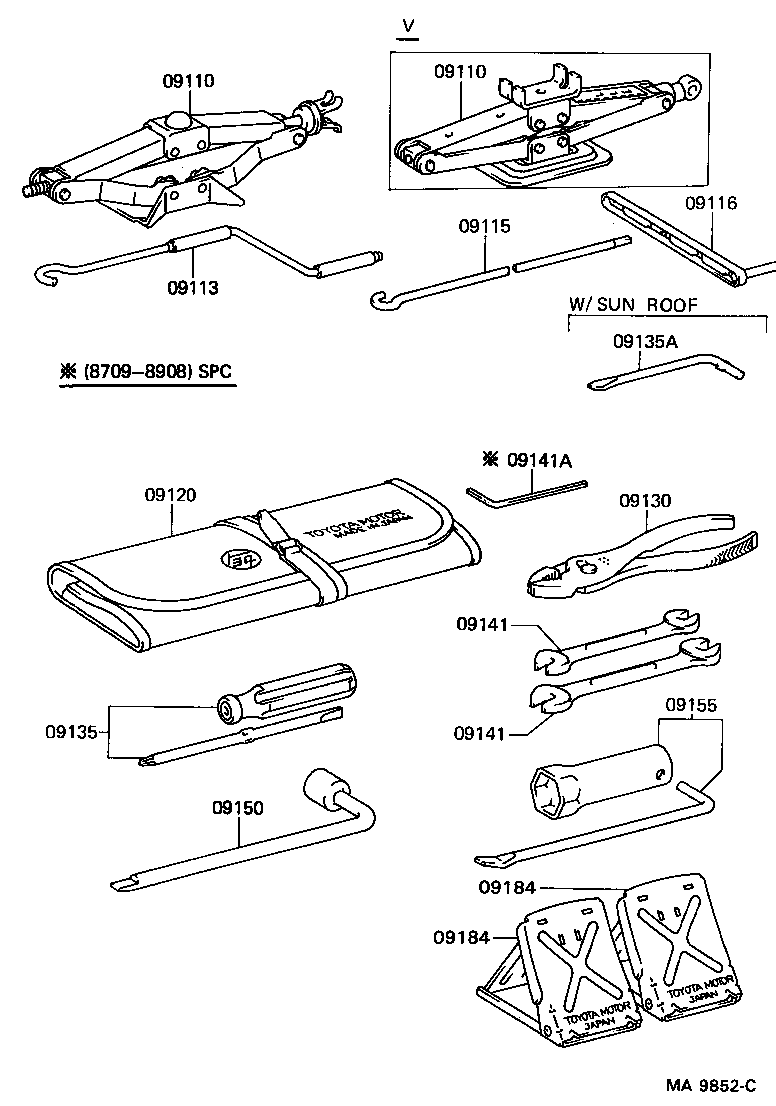

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09110 - JACK ASSY | ||||
| 09111-30080 |
GS130,131,LS130,MS13#,YS130 |
1 | ||
| 09110 - JACK ASSY | ||||
| 09111-30080 |
GS130,131,LS130,MS13#,YS130 |
1 | ||
| 09113 - HANDLE, JACK | ||||
| 09113-30020 |
GS130,131,LS130,MS13#,YS130..HT,SED |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-10030 |
GS130,131,LS130,MS13#,YS130 |
1 | ||
| 09130 - PLIERS | ||||
| 99913-11500 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 99915-10700 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-10810 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 8 X 10 |
1 | ||
| 99914-11214 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12 X 14 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-10810 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 8 X 10 |
1 | ||
| 99914-11214 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12 X 14 |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-40010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 09155 - WRENCH, SPARK PLUG | ||||
| 09155-41010 |
GS13#,MS130,YS130..EFI,LPG |
1 | ||
| 09184 - STOPPER, WHEEL | ||||
| 09184-00010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 09184 - STOPPER, WHEEL | ||||
| 09184-00010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
