MS130-AESDP (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine MP
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )ATM..DSL,EFI,LPEFI,LPG,TWLPG

Click highlighted areas on diagram

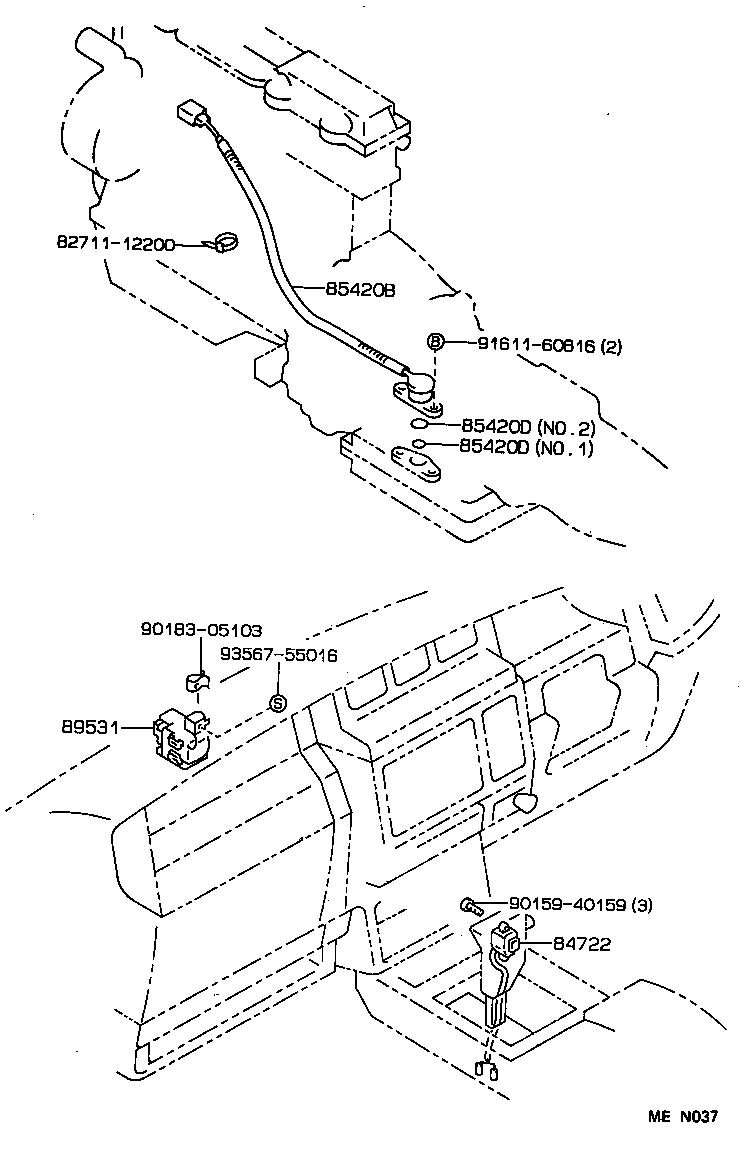

OVER DRIVE

diagram 8271112200 84722 85420B 85420D 85420D 89531 9015940159 9018305103 9161160816 9356755016
Part # Description Qty Price
85420B - SOLENOID ASSY, TRANSMISSION
85420-22090

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,LPG,TDE)

 1
85420-30130

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,LPG,TDE)

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-23001

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE)

NO.2

 1
90301-11001

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE)

NO.1

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-23001

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE)

NO.2

 1
90301-11001

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE)

NO.1

 1
89531 - RELAY, TRANSMISSION CONTROL
89531-30050

GS131..4HC..EFI;GS130,LS136,MS130,YS130..(SED,V,WG)..ATM..(DSL,EFI,LPEFI,LPG,TWLPG)

 1
Common parts
82711-12200
90159-40159
90183-05103
91611-60816
93567-55016
