MS130-AESDP (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine MP
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )SED

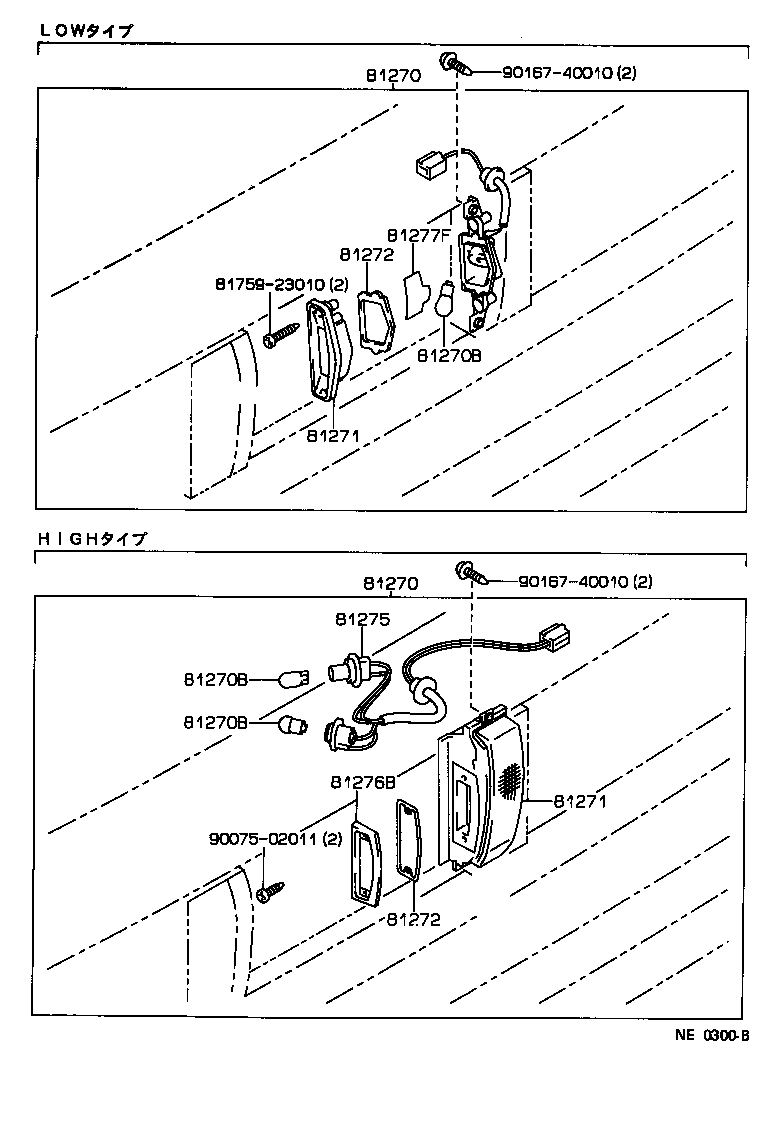

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81270B 81271 81271 81272 81272 81275 81276B 81277F 8175923010 9007502011 9016740010 9016740010
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-30150

GS130,LS130,MS130,YS130..SED..(DLX,SDX,STD)

右側

 1
81690-30050

GS130,LS130,MS130,YS130..SED..(DLX,SDX,STD)

左側

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-30150

GS130,LS130,MS130,YS130..SED..(DLX,SDX,STD)

右側

 1
81690-30050

GS130,LS130,MS130,YS130..SED..(DLX,SDX,STD)

左側

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12012

GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..(HT,SED)..NOB

12V 7.5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12012

GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..(HT,SED)..NOB

12V 7.5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12012

GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..(HT,SED)..NOB

12V 7.5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-16151

GS130,LS130,MS130,YS130..SED..(DLX,SDX,STD)

 2
81271 - LENS, LICENSE PLATE LAMP
81271-16151

GS130,LS130,MS130,YS130..SED..(DLX,SDX,STD)

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-20210

LS130..HT..SALEX;GS131,LS131..HT..NOB;GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SDX,SPE,SSL,STD)

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-20210

LS130..HT..SALEX;GS131,LS131..HT..NOB;GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SDX,SPE,SSL,STD)

 2
81277F - SHADE, LICENSE PLATE LAMP
81277-20210

LS130..HT..SALEX;GS131,LS131..HT..NOB;GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SDX,SPE,SSL,STD)

 2
Common parts
81759-23010
90075-02011
90167-40010
