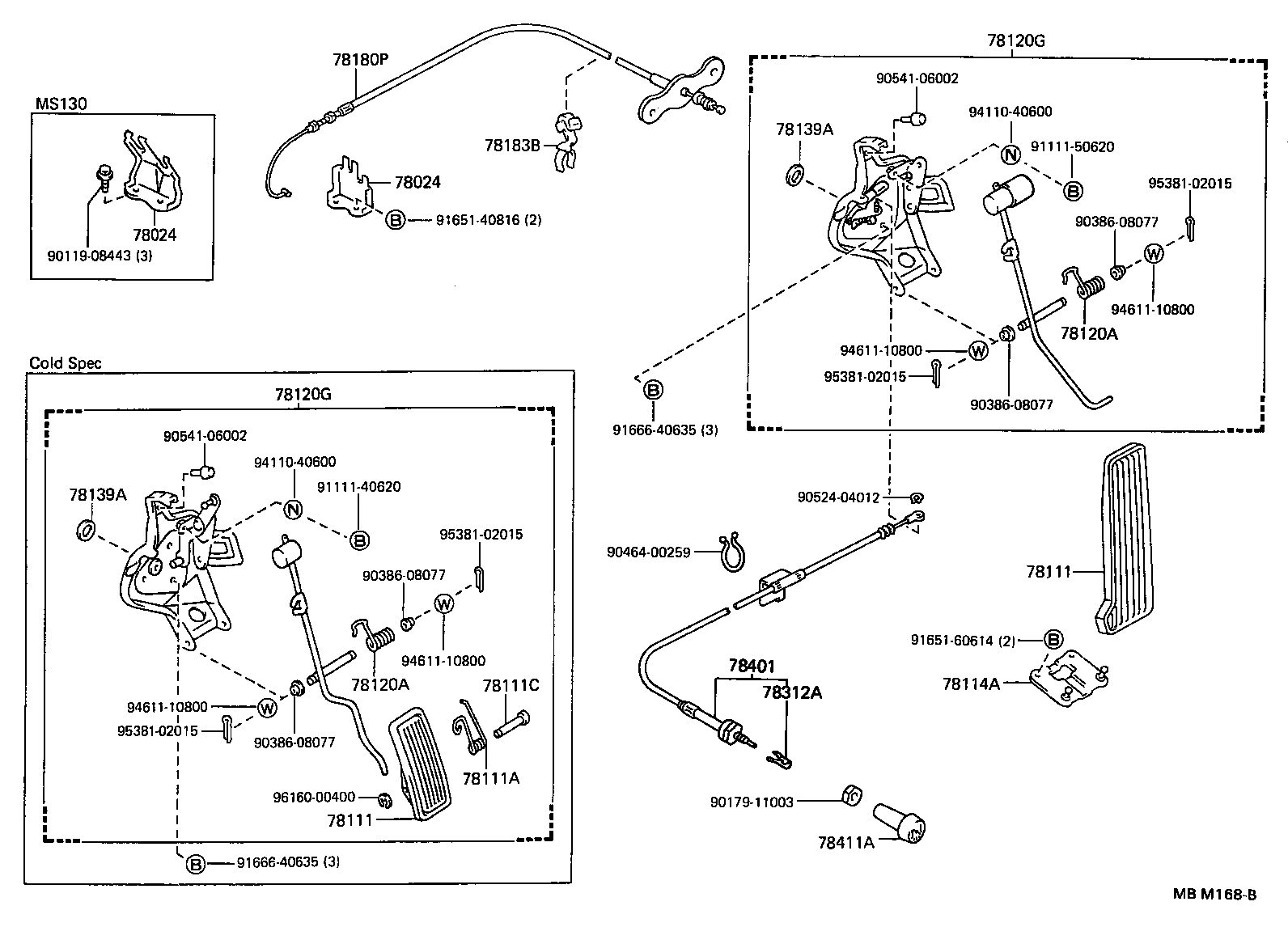

MS130-AESDP (1987)
Toyota Crown
(8709-8908)MS130,YS130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-30010 |
MS130 |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-30010 |
MS130 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30080 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111-30080 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18071 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05043 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78114A - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 78114-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD) | ||||
| 90508-18066 |
LS13#;GS130,131,MS13#..ATM |
1 | ||
| 90508-23101 |
LS13#;GS130,131,MS13#..ATM ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 90508-23026 |
LS13#;GS130,131,MS13#..ATM ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 90508-23101 |
YS130;MS130..4H |
2 | ||
| 78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD) | ||||
| 90508-18066 |
LS13#;GS130,131,MS13#..ATM |
1 | ||
| 90508-23101 |
LS13#;GS130,131,MS13#..ATM ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 90508-23026 |
LS13#;GS130,131,MS13#..ATM ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 90508-23101 |
YS130;MS130..4H |
2 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-30590 |
MS130..4H |
1 | ||
| 78120-30620 |
MS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78120-30580 |
MS130..ATM |
1 | ||
| 78120-30621 |
MS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78120-30591 |
MS130..4H |
1 | ||
| 78120-30581 |
MS130..ATM |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-30590 |
MS130..4H |
1 | ||
| 78120-30620 |
MS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78120-30580 |
MS130..ATM |
1 | ||
| 78120-30621 |
MS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78120-30591 |
MS130..4H |
1 | ||
| 78120-30581 |
MS130..ATM |
1 | ||
| 78139A - SEAL, ACCELERATOR PEDAL ROD BRACKET, NO.2 | ||||
| 78139-30060 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 78139A - SEAL, ACCELERATOR PEDAL ROD BRACKET, NO.2 | ||||
| 78139-30060 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-30770 |
MS130 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-30090 |
GS130,131,LS13#,MS13#,YS130..DSL,LPG,SPC,TD,TDE,TWC |
1 | ||
| 78183-30091 |
GS130,131,LS13#,MS13#,YS130..DSL,HTWC,LPG,SPC,TD,TDE,TWC |
1 | ||
| 78312A - CLIP, CHOKE CONTROL | ||||
| 78312-12010 |
GS130,MS130,YS130..LPEFI,LPG,TWLPG |
1 | ||
| 78401 - CABLE SUB-ASSY, THROTTLE CONTROL | ||||
| 78401-30100 |
GS130,MS130,YS130..LPEFI,LPG,TWLPG |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-30031 |
GS130,MS130,YS130..LPEFI,LPG,TWLPG |
1 | ||
| Common parts | ||||
| 90119-08443 | ||||
| 90179-11003 | ||||
| 90386-08077 | ||||
| 90464-00259 | ||||
| 90524-04012 | ||||
| 90541-06002 | ||||
| 91111-40620 | ||||
| 91111-50620 | ||||
| 91651-40816 | ||||
| 91651-60614 | ||||
| 91666-40635 | ||||
| 94110-40600 | ||||
| 94611-10800 | ||||
| 95381-02015 | ||||
| 96160-00400 | ||||
