MS130-AESDP (1987)
Toyota Crown
(8709- )GS13#,MS130,YS130..DLX,SAL,SALEX,SDX,SPE,SSL,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-30560 |
YS130..4HC;GS136,MS130;YS130..4H..DLX;GS130..WG..SALEX..EFI;GS130..(DLX,SDX,SPE)..(EFI,TWLPG) |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
GS136;GS130,131,LS13#,MS130,YS130..DSL,EFI,LPEFI,LPG,TD,TDE,TWLPG |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30640 |
GS136;YS130..4HC;YS130..4H..DLX;GS130,131,MS130..(DLX,SAL,SALEX,SDX,SPE,SSL)..(EFI,LPG,TWLPG) |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
GS136;GS130,131,LS13#,MS130,YS130..DSL,EFI,LPEFI,LPG,TD,TDE,TWLPG |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
GS136;GS130,131,LS13#,MS130,YS130..DSL,EFI,LPEFI,LPG,TD,TDE,TWLPG |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-12630 |
GS136;GS130,131,LS13#,MS130,YS130..DSL,EFI,LPEFI,LPG,TD,TDE,TWLPG |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-32030 |
GS136;LS130..DLX,SALEX,SDX,SPE,SSL;GS130,131,LS131,136,MS130,YS130..DSL,EFI,LPEFI,LPG,TD,TDE,TWLPG |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
YS130..4HC;GS136,MS130;YS130..4H..DLX;GS130..WG..SALEX;GS130..DLX,ROY,SDX,SPE |
1 | ||
| 90480-24439 |
GS136,MS130;YS130..4H..DLX;GS130..DLX,ROY,SDX,SPE;GS131,YS130..ATM..(DLX,SSL,STD)..(LPG,SPC);GS130,MS135,137..(HT,WG)..(ROY,ROYG,SALEX)..(EFI,TWC) |
1 | ||
| 90480-24439 |
YS130..4HC;YS130..4H..DLX;GS136,MS135,137;GS130..WG..SALEX;GS130..STD..HTWC;GS131,MS130..LPG,SPC;GS130..DLX,ROY,SDX,SPE |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14050 |
YS130..4HC;GS136,MS130;YS130..4H..DLX;GS130..WG..SALEX;GS130..DLX,ROY,SDX,SPE |
1 | ||
| 44730-14050 |
GS136,MS130;YS130..4H..DLX;GS130..DLX,ROY,SDX,SPE;GS131,YS130..ATM..(DLX,SSL,STD)..(LPG,SPC);GS130,MS135,137..(HT,WG)..(ROY,ROYG,SALEX)..(EFI,TWC) |
1 | ||
| 44730-14050 |
YS130..4HC;YS130..4H..DLX;GS136,MS135,137;GS130..WG..SALEX;GS130..STD..HTWC;GS131,MS130..LPG,SPC;GS130..DLX,ROY,SDX,SPE |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-30120 |
GS136;GS130,131,MS130,YS130..EFI,LPEFI,LPG,TWLPG |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| Common parts | ||||
| 90179-08041 | ||||
(8709- )GS13#,MS130,YS130..DLX,SAL,SALEX,SDX,SPE,SSL,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-30560 |
YS130..4HC;GS136,MS130;YS130..4H..DLX;GS130..WG..SALEX..EFI;GS130..(DLX,SDX,SPE)..(EFI,TWLPG) |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30640 |
GS136;YS130..4HC;YS130..4H..DLX;GS130,131,MS130..(DLX,SAL,SALEX,SDX,SPE,SSL)..(EFI,LPG,TWLPG) |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
YS130..4HC;GS136,MS130;YS130..4H..DLX;GS130..WG..SALEX;GS130..DLX,ROY,SDX,SPE |
1 | ||
| 90480-24439 |
GS136,MS130;YS130..4H..DLX;GS130..DLX,ROY,SDX,SPE;GS131,YS130..ATM..(DLX,SSL,STD)..(LPG,SPC);GS130,MS135,137..(HT,WG)..(ROY,ROYG,SALEX)..(EFI,TWC) |
1 | ||
| 90480-24439 |
YS130..4HC;YS130..4H..DLX;GS136,MS135,137;GS130..WG..SALEX;GS130..STD..HTWC;GS131,MS130..LPG,SPC;GS130..DLX,ROY,SDX,SPE |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14050 |
YS130..4HC;GS136,MS130;YS130..4H..DLX;GS130..WG..SALEX;GS130..DLX,ROY,SDX,SPE |
1 | ||
| 44730-14050 |
GS136,MS130;YS130..4H..DLX;GS130..DLX,ROY,SDX,SPE;GS131,YS130..ATM..(DLX,SSL,STD)..(LPG,SPC);GS130,MS135,137..(HT,WG)..(ROY,ROYG,SALEX)..(EFI,TWC) |
1 | ||
| 44730-14050 |
YS130..4HC;YS130..4H..DLX;GS136,MS135,137;GS130..WG..SALEX;GS130..STD..HTWC;GS131,MS130..LPG,SPC;GS130..DLX,ROY,SDX,SPE |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-30120 |
GS136;GS130,131,MS130,YS130..EFI,LPEFI,LPG,TWLPG |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| Common parts | ||||
| 90179-08041 | ||||

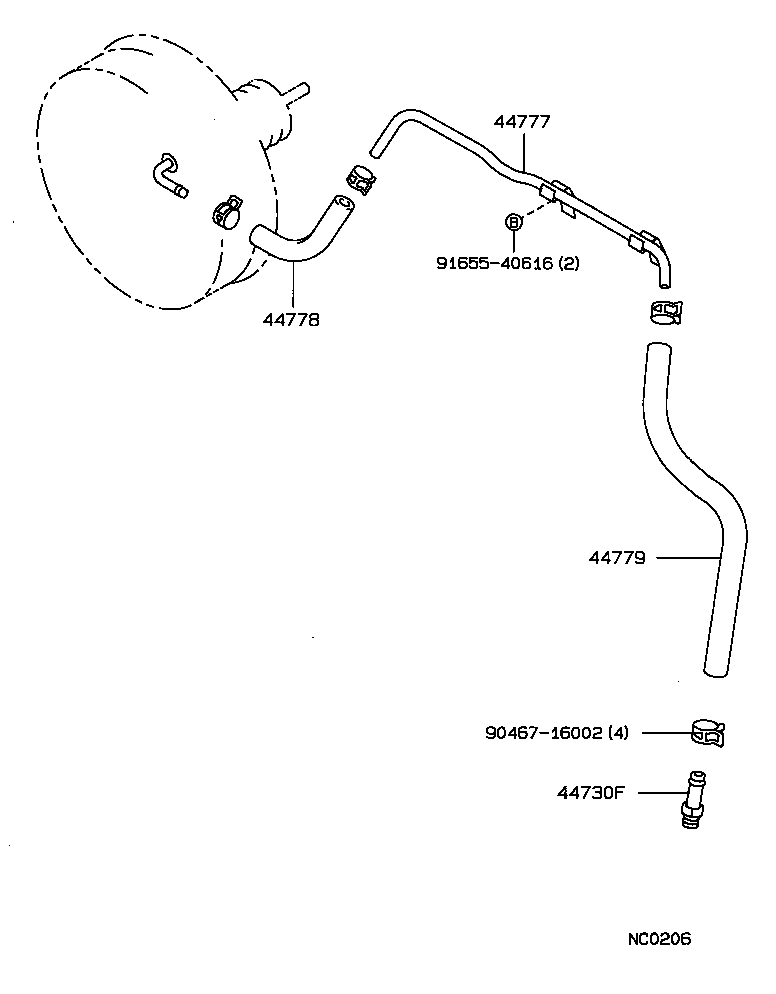

(8709-8908)MS130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
GS131..SSL..SPC;GS13#,JZS13#,MS130..EFI,HTWC,LPG,TWC,TWLPG |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-30110 |
GS131,MS130..(DLX,SDX,SSL)..(LPG,SPC) |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-30120 |
GS136,MS130,YS130;GS130..ATM..TWLPG;GS130,131..MTM..(EFI,TWLPG) |
1 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44779-30200 |
MS130 |
1 | ||
| Common parts | ||||
| 90467-16002 | ||||
| 91655-40616 | ||||
