MS130-AESDP (1987)
Toyota Crown
Production
Sep 1987
-
Aug 1989
Engine
MP
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8709-8908)MP

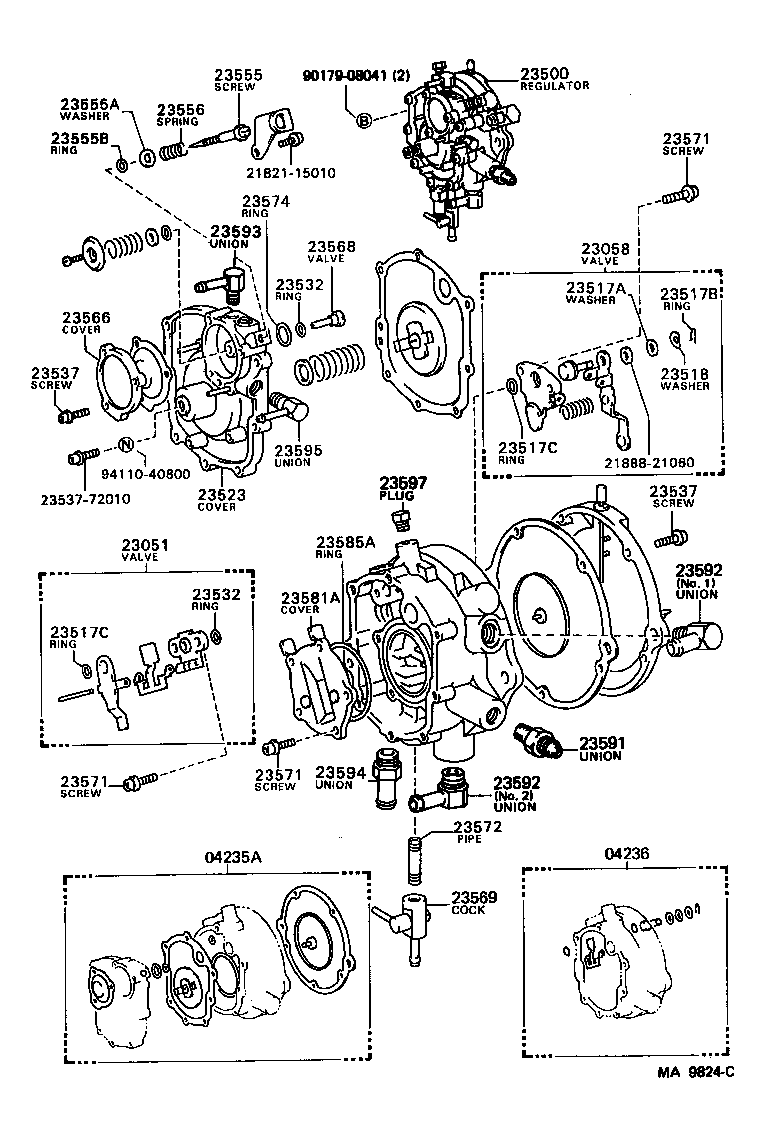

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04235A - DIAPHRAGM KIT, LPG REGULATOR, W/O VALVE | ||||
| 04235-72010 |
MP..MS130 |
1 | ||
| 04236 - VALVE KIT, LPG REGULATOR | ||||
| 04236-72010 |
MP..MS130 |
1 | ||
| 23051 - VALVE SUB-ASSY, 1ST | ||||
| 23051-72010 |
MP..MS130 |
1 | ||
| 23058 - VALVE SUB-ASSY, 2ND | ||||
| 23058-41070 |
MP..MS130 |
1 | ||
| 23500 - REGULATOR ASSY, LPG(CNG) | ||||
| 23500-41080 |
MP..MS130 |
1 | ||
| 23517A - WASHER(FOR ELASTIC FACE VALVE SET) | ||||
| 21535-10010 |
MP..MS130 |
1 | ||
| 23517B - RING, SNAP(FOR ELASTIC FACE VALVE SET) | ||||
| 21792-69210 |
MP..MS130 |
1 | ||
| 23517C - GASKET(FOR ELASTIC FACE VALVE) | ||||
| 23532-44020 |
MP..MS130 |
2 | ||
| 23517C - GASKET(FOR ELASTIC FACE VALVE) | ||||
| 23532-44020 |
MP..MS130 |
2 | ||
| 23518 - WASHER, WAVE(FOR ELASTIC FACE VALVE SET) | ||||
| 23518-40010 |
MP..MS130 |
1 | ||
| 23523 - COVER, 1ST REGULATOR | ||||
| 23523-72010 |
MP..MS130 |
1 | ||
| 23532 - RING, O, NO.2(FOR BULB) | ||||
| 23532-40010 |
MP..MS130 |
2 | ||
| 23532 - RING, O, NO.2(FOR BULB) | ||||
| 23532-40010 |
MP..MS130 |
2 | ||
| 23537 - SCREW(FOR 2ND REGULATOR COVER SET) | ||||
| 21821-31140 |
MP..MS130 |
16 | ||
| 23537 - SCREW(FOR 2ND REGULATOR COVER SET) | ||||
| 21821-31140 |
MP..MS130 |
16 | ||
| 23555 - SCREW, IDLE ADJUST | ||||
| 23555-44041 |
MP..MS130 |
1 | ||
| 23555A - WASHER, IDLE ADJUST SCREW | ||||
| 21885-26040 |
MP..MS130 |
1 | ||
| 23555B - RING, O(FOR IDLE ADJUST SCREW) | ||||
| 23532-40010 |
MP..MS130 |
1 | ||
| 23556 - SPRING, IDLE ADJUST SCREW | ||||
| 21723-21030 |
MP..MS130 |
1 | ||
| 23566 - COVER(FOR VACUUM LOCK DIAPHRAGM) | ||||
| 23566-72010 |
MP..MS130 |
1 | ||
| 23568 - VALVE(FOR VACUUM LOCK DIAPHRAGM) | ||||
| 23568-72010 |
MP..MS130 |
1 | ||
| 23569 - COCK, DRAIN | ||||
| 23569-40011 |
MP..MS130 |
1 | ||
| 23571 - SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET) | ||||
| 23571-72010 |
MP..MS130 |
9 | ||
| 23571 - SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET) | ||||
| 23571-72010 |
MP..MS130 |
9 | ||
| 23571 - SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET) | ||||
| 23571-72010 |
MP..MS130 |
9 | ||
| 23572 - PIPE, DRAIN | ||||
| 23572-41030 |
MP..MS130 |
1 | ||
| 23574 - RING, O, NO.1(FOR BULB) | ||||
| 23574-72010 |
MP..MS130 |
1 | ||
| 23581A - COVER, UPPER PREHEATER | ||||
| 23581-72010 |
MP..MS130 |
1 | ||
| 23585A - RING, O(FOR PREHEATER) | ||||
| 23585-72010 |
MP..MS130 |
1 | ||
| 23591 - UNION, NO.1, FUEL | ||||
| 90404-14064 |
MP..MS130 |
1 | ||
| 23592 - UNION, NO.2, FUEL HOSE | ||||
| 23592-72010 |
MP..MS130 NO.2 |
1 | ||
| 23592-44050 |
MP..MS130 NO.1 |
1 | ||
| 23592 - UNION, NO.2, FUEL HOSE | ||||
| 23592-72010 |
MP..MS130 NO.2 |
1 | ||
| 23592-44050 |
MP..MS130 NO.1 |
1 | ||
| 23593 - UNION, NO.3 | ||||
| 23593-72010 |
MP..MS130 |
1 | ||
| 23594 - UNION, NO.4, WATER HOSE | ||||
| 23594-72010 |
MP..MS130 |
1 | ||
| 23595 - UNION, NO.5 | ||||
| 23591-41070 |
MP..MS130 |
1 | ||
| 23597 - PLUG, LPG REGULATOR BODY | ||||
| 90345-51006 |
MP..MS130 |
1 | ||
| Common parts | ||||
| 21821-15010 | ||||
| 21888-21060 | ||||
| 23537-72010 | ||||
| 90179-08041 | ||||
| 94110-40800 | ||||
