MS130-AESDP (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine MP
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)MP

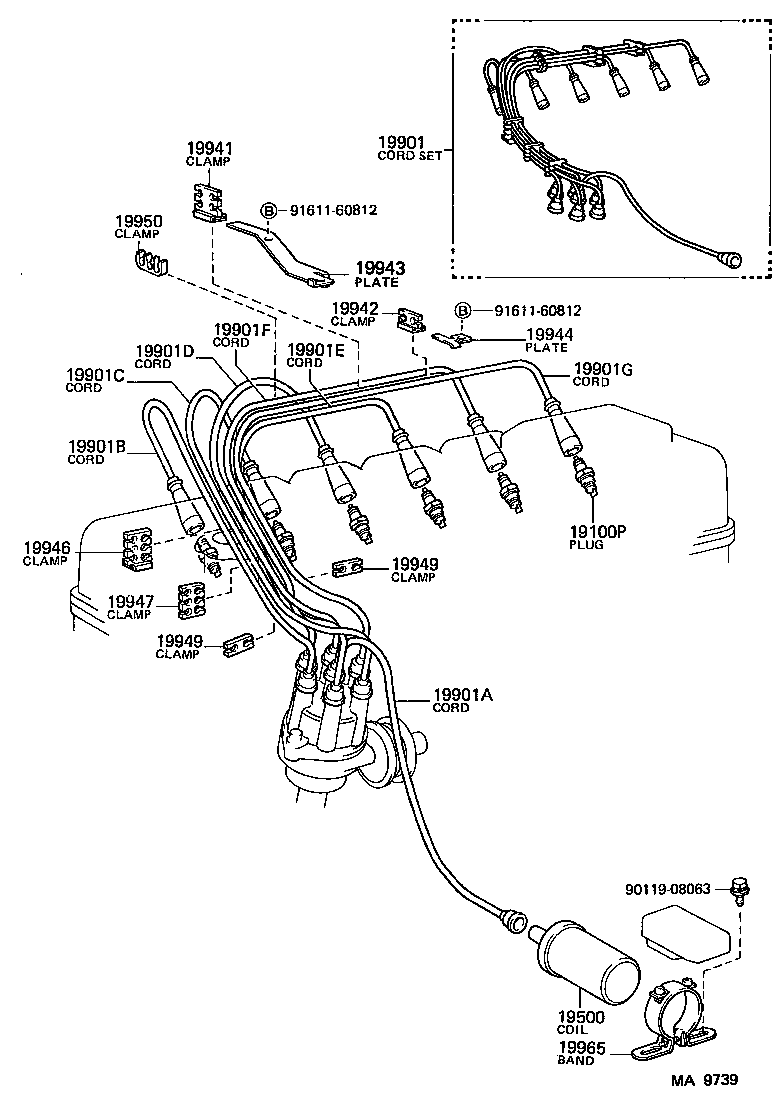

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19942 19943 19944 19946 19947 19949 19949 19950 19965 9011908063 9161160812 9161160812
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01084

MP..MS130

W20EXR−U

 6
90919-01098

MP..MS130

BPR6EY

 6
19500 - COIL ASSY, IGNITION
90919-02113

MP..MS130

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21338

MP..MS130

 1
19901A - CORD, COIL RESISTIVE
90919-13217

MP..MS130

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12180

MP..MS130

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12181

MP..MS130

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12182

MP..MS130

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12530

MP..MS130

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12531

MP..MS130

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12532

MP..MS130

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00068

MP..MS130

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00069

MP..MS130

 1
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-41030

MP..MS130

 1
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-45021

MP..MS130

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00323

MP..MS130

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00071

MP..MS130

 1
19949 - CLAMP, RESISTIVE CORD, NO.5
90464-00116

MP..MS130

 2
19949 - CLAMP, RESISTIVE CORD, NO.5
90464-00116

MP..MS130

 2
19950 - CLAMP, RESISTIVE CORD, NO.6
90464-00349

MP..MS130

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03094

MP..MS130

 1
Common parts
90119-08063
91611-60812
