MS130-AEPFP (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine MP
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

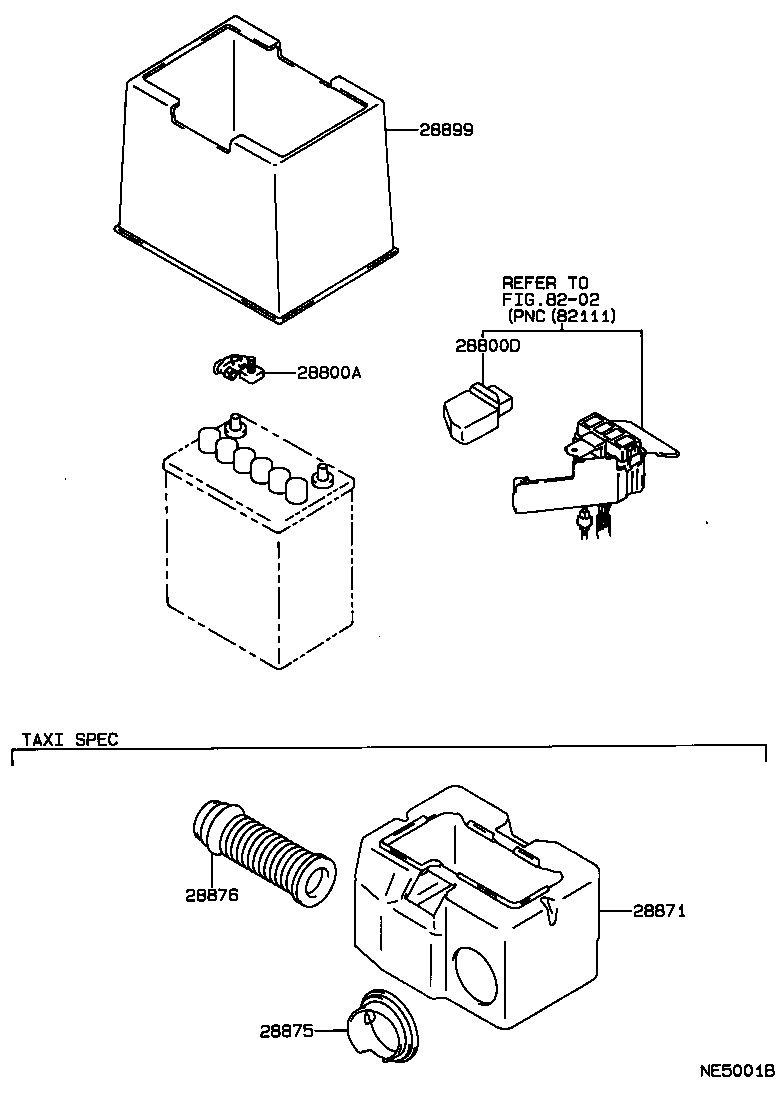

Click highlighted areas on diagram

diagram 28800A 28800D 28871 28875 28876 28899 8202
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05042

1GE,1GFE,1GG#,1JZGE,2L,2LT#,7MGE,MP,1UZFE,3YP#..GS130,131,JZS13#,LS13#,MS13#,UZS131,YS130

 1
28871 - INSULATOR, BATTERY, NO.1
28871-73010

1GGP,MP,3YP#..GS130,MS130,YS130

 1
28875 - DUCT, BATTERY INSULATOR, NO.1
28875-73010

1GGP,MP,3YP#..GS130,MS130,YS130

 1
28876 - DUCT, BATTERY INSULATOR, NO.2
28876-73010

1GGP,MP,3YP#..GS130,MS130,YS130

 1
Linked diagrams
8202
