MS130-AEPDP (1987)
Toyota Crown
(8709- )GS130,JZS130,LS130,MS130,YS130

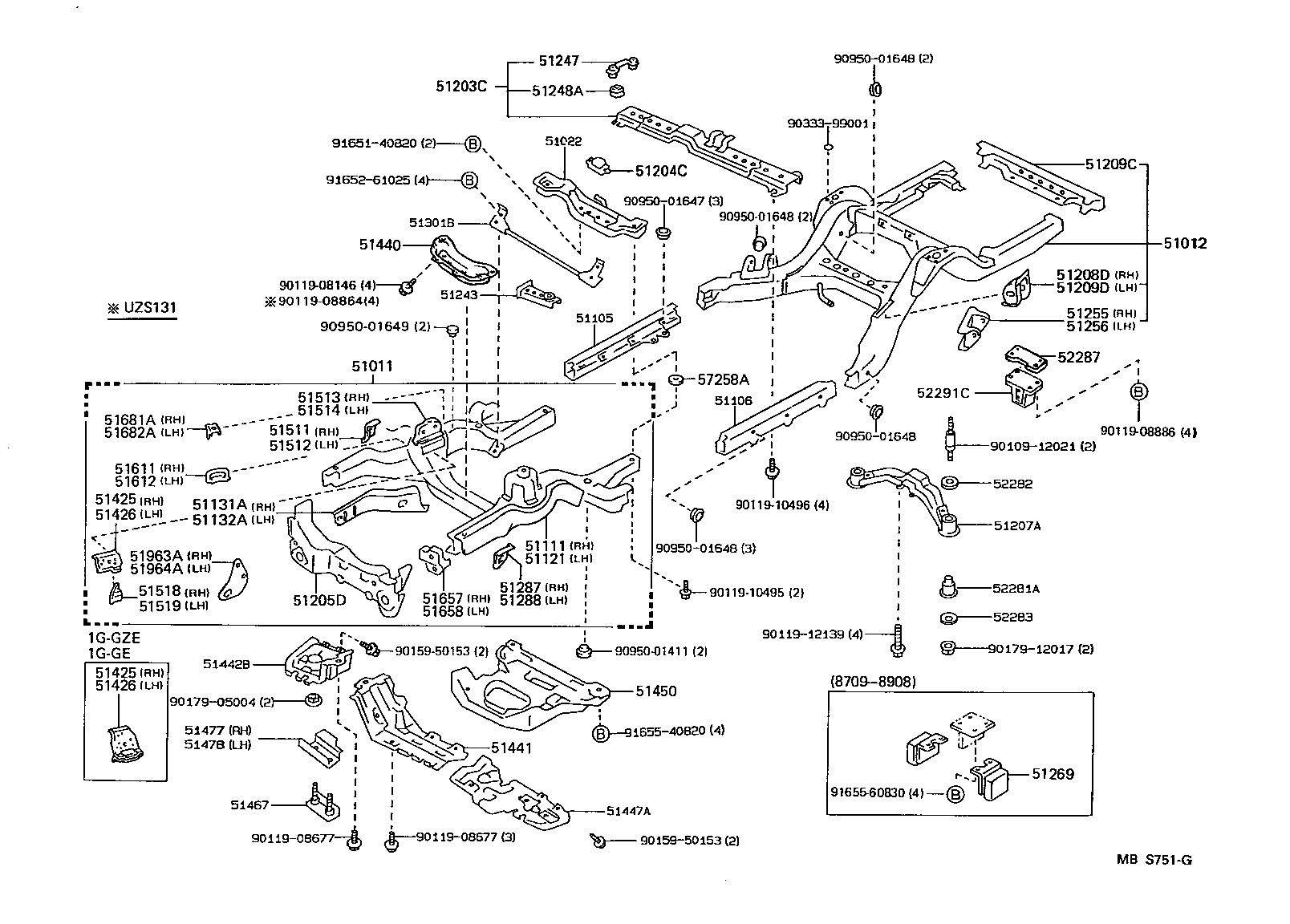

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51011 - RAIL SUB-ASSY, FRONT FRAME | ||||
| 51011-30420 |
GS130,136,JZS130,MS130..EFI,HTWC,LPG,TWC |
1 | ||
| 51012 - RAIL SUB-ASSY, REAR FRAME | ||||
| 51012-30330 |
GS130,LS130,MS130,YS130..HT,SED |
1 | ||
| 51022 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT | ||||
| 51022-30070 |
GS130,131,JZS13#,LS130,131,MS13#..ATM |
1 | ||
| 51105 - RAIL SUB-ASSY, CENTER FRAME, RH | ||||
| 51105-30060 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51106 - RAIL SUB-ASSY, CENTER FRAME, LH | ||||
| 51106-30060 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51111 - RAIL, FRONT FRAME, NO.1 RH | ||||
| 51111-30080 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51121 - RAIL, FRONT FRAME, NO.1 LH | ||||
| 51121-30080 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51131A - RAIL, FRONT FRAME, NO.5 RH | ||||
| 51131-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51132A - RAIL, FRONT FRAME, NO.5 LH | ||||
| 51132-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51203C - CROSSMEMBER SUB-ASSY, CENTER BEARING SUPPORT | ||||
| 51203-30090 |
YS130..4HC,5F;YS130..4H..DLX;GS130,136,JZS130,LS130,136,MS130 |
1 | ||
| 51205D - SUPPORT SUB-ASSY, STRUT BAR | ||||
| 51205-30080 |
GS13#,LS13#,MS130,135,YS130 |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-30100 |
GS130,131,LS130,MS13#,YS130..HT,SED |
1 | ||
| 51243 - MEMBER, ANTI SHAKE | ||||
| 51243-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 51287 - GUSSET, STRUT BAR BRACKET, LOWER RH | ||||
| 51287-30060 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51288 - GUSSET, STRUT BAR BRACKET, LOWER LH | ||||
| 51288-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51425 - BRACKET SUB-ASSY, ENGINE SUPPORT, FRONT RH | ||||
| 51425-30140 |
JZS131,MS135;GS130,131,MS130,137..(HT,SED)..(DLX,ROYG,SAL,SALEX,SDX,SPE,SSL,STD)..(EFI,HTWC,LPG,TWC) |
1 | ||
| 51426 - BRACKET SUB-ASSY, ENGINE SUPPORT, FRONT LH | ||||
| 51426-30140 |
JZS131,MS135;GS130,131,MS130,137..(HT,SED)..(DLX,ROYG,SAL,SALEX,SDX,SPE,SSL,STD)..(EFI,HTWC,LPG,TWC) |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-30090 |
GS136;GS130,LS130,136,MS130,YS130..DLX,STD |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-30090 |
GS136;GS130,LS130,136,MS130,YS130..DLX,STD |
1 | ||
| 51511 - GUSSET, UPPER CONTROL ARM SUPPORT, RH | ||||
| 51511-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51512 - GUSSET, UPPER CONTROL ARM SUPPORT, LH | ||||
| 51512-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51513 - SUPPORT, UPPER CONTROL ARM, RH | ||||
| 51513-30070 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51514 - SUPPORT, UPPER CONTROL ARM, LH | ||||
| 51514-30060 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51518 - BRACKET, LOWER ARM, RH | ||||
| 51518-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51519 - BRACKET, LOWER ARM, LH | ||||
| 51519-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51611 - STOPPER, FRONT SUSPENSION BOUND, RH | ||||
| 51611-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51612 - STOPPER, FRONT SUSPENSION BOUND, LH | ||||
| 51612-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51657 - BRACKET, FRONT BUMPER ARM, RH | ||||
| 51657-30010 |
GS13#,LS13#,MS13#,YS130 |
1 | ||
| 51658 - BRACKET, FRONT BUMPER ARM, LH | ||||
| 51658-30010 |
GS13#,LS13#,MS13#,YS130 |
1 | ||
| 51681A - BRACKET, FLEXIBLE HOSE | ||||
| 51681-30060 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51682A - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH | ||||
| 51682-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51963A - HOOK, TRANSPORT, FRONT RH | ||||
| 51963-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51964A - HOOK, TRANSPORT, FRONT LH | ||||
| 51964-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| Common parts | ||||
| 90119-08677 | ||||
| 90119-10495 | ||||
| 90159-50153 | ||||
| 90179-05004 | ||||
| 90950-01411 | ||||
| 90950-01647 | ||||
| 90950-01648 | ||||
| 90950-01649 | ||||
| 91651-40820 | ||||
| 91655-40820 | ||||
(8709- )GS131,JZS131,LS131,MS13#,UZS131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51011 - RAIL SUB-ASSY, FRONT FRAME | ||||
| 51011-30420 |
GS130,136,JZS130,MS130..EFI,HTWC,LPG,TWC |
1 | ||
| 51012 - RAIL SUB-ASSY, REAR FRAME | ||||
| 51012-30330 |
GS130,LS130,MS130,YS130..HT,SED |
1 | ||
| 51022 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT | ||||
| 51022-30070 |
GS130,131,JZS13#,LS130,131,MS13#..ATM |
1 | ||
| 51105 - RAIL SUB-ASSY, CENTER FRAME, RH | ||||
| 51105-30060 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51106 - RAIL SUB-ASSY, CENTER FRAME, LH | ||||
| 51106-30060 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51111 - RAIL, FRONT FRAME, NO.1 RH | ||||
| 51111-30080 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51121 - RAIL, FRONT FRAME, NO.1 LH | ||||
| 51121-30080 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51131A - RAIL, FRONT FRAME, NO.5 RH | ||||
| 51131-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51132A - RAIL, FRONT FRAME, NO.5 LH | ||||
| 51132-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51203C - CROSSMEMBER SUB-ASSY, CENTER BEARING SUPPORT | ||||
| 51203-30090 |
YS130..4HC,5F;YS130..4H..DLX;GS130,136,JZS130,LS130,136,MS130 |
1 | ||
| 51205D - SUPPORT SUB-ASSY, STRUT BAR | ||||
| 51205-30080 |
GS13#,LS13#,MS130,135,YS130 |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-30100 |
GS130,131,LS130,MS13#,YS130..HT,SED |
1 | ||
| 51243 - MEMBER, ANTI SHAKE | ||||
| 51243-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 51287 - GUSSET, STRUT BAR BRACKET, LOWER RH | ||||
| 51287-30060 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51288 - GUSSET, STRUT BAR BRACKET, LOWER LH | ||||
| 51288-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51425 - BRACKET SUB-ASSY, ENGINE SUPPORT, FRONT RH | ||||
| 51425-30140 |
JZS131,MS135;GS130,131,MS130,137..(HT,SED)..(DLX,ROYG,SAL,SALEX,SDX,SPE,SSL,STD)..(EFI,HTWC,LPG,TWC) |
1 | ||
| 51425 - BRACKET SUB-ASSY, ENGINE SUPPORT, FRONT RH | ||||
| 51425-30140 |
JZS131,MS135;GS130,131,MS130,137..(HT,SED)..(DLX,ROYG,SAL,SALEX,SDX,SPE,SSL,STD)..(EFI,HTWC,LPG,TWC) |
1 | ||
| 51426 - BRACKET SUB-ASSY, ENGINE SUPPORT, FRONT LH | ||||
| 51426-30140 |
JZS131,MS135;GS130,131,MS130,137..(HT,SED)..(DLX,ROYG,SAL,SALEX,SDX,SPE,SSL,STD)..(EFI,HTWC,LPG,TWC) |
1 | ||
| 51426 - BRACKET SUB-ASSY, ENGINE SUPPORT, FRONT LH | ||||
| 51426-30140 |
JZS131,MS135;GS130,131,MS130,137..(HT,SED)..(DLX,ROYG,SAL,SALEX,SDX,SPE,SSL,STD)..(EFI,HTWC,LPG,TWC) |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-30090 |
GS136;GS130,LS130,136,MS130,YS130..DLX,STD |
1 | ||
| 51511 - GUSSET, UPPER CONTROL ARM SUPPORT, RH | ||||
| 51511-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51512 - GUSSET, UPPER CONTROL ARM SUPPORT, LH | ||||
| 51512-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51513 - SUPPORT, UPPER CONTROL ARM, RH | ||||
| 51513-30070 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51514 - SUPPORT, UPPER CONTROL ARM, LH | ||||
| 51514-30060 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51518 - BRACKET, LOWER ARM, RH | ||||
| 51518-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51519 - BRACKET, LOWER ARM, LH | ||||
| 51519-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51611 - STOPPER, FRONT SUSPENSION BOUND, RH | ||||
| 51611-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51612 - STOPPER, FRONT SUSPENSION BOUND, LH | ||||
| 51612-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51657 - BRACKET, FRONT BUMPER ARM, RH | ||||
| 51657-30010 |
GS13#,LS13#,MS13#,YS130 |
1 | ||
| 51658 - BRACKET, FRONT BUMPER ARM, LH | ||||
| 51658-30010 |
GS13#,LS13#,MS13#,YS130 |
1 | ||
| 51681A - BRACKET, FLEXIBLE HOSE | ||||
| 51681-30060 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51682A - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH | ||||
| 51682-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51963A - HOOK, TRANSPORT, FRONT RH | ||||
| 51963-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 51964A - HOOK, TRANSPORT, FRONT LH | ||||
| 51964-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| Common parts | ||||
| 90109-12021 | ||||
| 90119-08146 | ||||
| 90119-08677 | ||||
| 90119-08864 | ||||
| 90119-08886 | ||||
| 90119-10495 | ||||
| 90119-10496 | ||||
| 90119-12139 | ||||
| 90159-50153 | ||||
| 90179-05004 | ||||
| 90179-12017 | ||||
| 90333-99001 | ||||
| 90950-01411 | ||||
| 90950-01647 | ||||
| 90950-01648 | ||||
| 90950-01649 | ||||
| 91651-40820 | ||||
| 91652-61025 | ||||
| 91655-40820 | ||||
| 91655-60830 | ||||
