Toyota Crown MS130 CONTROL SHAFT & CROSSSHAFT

Manufacturers Home
Toyota
JP
CROWN
MS130-AEJFP (1987)
3311 - CONTROL SHAFT & CROSSSHAFT

MS130-AEJFP (1987)

Toyota Crown

Production Sep 1987 - Aug 1989

Engine MP

Transmission 4H MTM

Displacement 2500cc

Power 168 HP (125 kW)

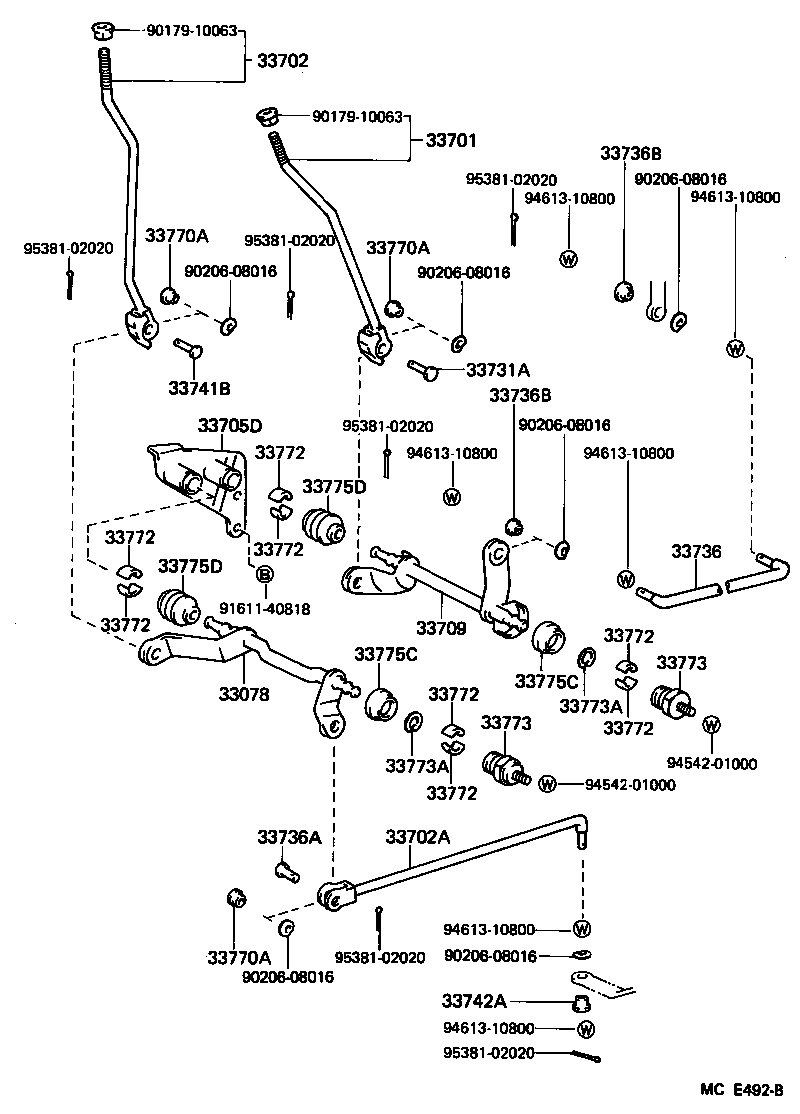

ILLUST NO. 2 OF 2(8709- )4H

Click highlighted areas on diagram

Part #	Description	Period	Qty
33078 - SHAFT SUB-ASSY, CROSS, NO.2(FOR COLUMN SHIFT)
33078-30050	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33701 - ROD SUB-ASSY, GEAR SELECTING, NO.1
33701-30041	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33702 - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)
33702-30101	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33702A - ROD SUB-ASSY, GEAR SHIFTING, NO.1
33702-30130	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33705D - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR COLUMN SHIFT)
33705-30110	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33709 - SHAFT SUB-ASSY, CROSS, NO.1 (FOR COLUMN SHIFT)
33709-30320	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33731A - PIN, W/HOLE (FOR COLUMN SHIFT GEAR SELECTING ROD)
90240-08120	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33736 - ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT)
33736-30060	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33736A - PIN, W/HOLE
90240-08120	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33736B - BUSH(FOR GEAR SELECTING ROD, NO.2)
90389-08008	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33736B - BUSH(FOR GEAR SELECTING ROD, NO.2)
90389-08008	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33741B - PIN, W/HOLE (FOR COLUMN SHIFTING ROD)
90240-08120	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33742A - BUSH(FOR SHIFTING ROD NO.2)
90389-08008	GS130,136,LS13#,MS130,YS130..4H	09/1987 - 08/1989	1
33770A - BUSH (FOR CROSS SHAFT)
90389-08008	GS130,136,LS13#,MS130,YS130..4H	09/1987 - 08/1989	3
33770A - BUSH (FOR CROSS SHAFT)
90389-08008	GS130,136,LS13#,MS130,YS130..4H	09/1987 - 08/1989	3
33770A - BUSH (FOR CROSS SHAFT)
90389-08008	GS130,136,LS13#,MS130,YS130..4H	09/1987 - 08/1989	3
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	8
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	8
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	8
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	8
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	8
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	8
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	8
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	8
33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT)
33773-30070	GS130,136,LS130,136,MS130,YS130..4H CROSS SHAFT NO.2	09/1987 - 10/1991	1
33773-20020	GS130,136,LS130,136,MS130,YS130..4H CROSS SHAFT NO.1	09/1987 - 10/1991	2
33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT)
33773-30070	GS130,136,LS130,136,MS130,YS130..4H CROSS SHAFT NO.2	09/1987 - 10/1991	1
33773-20020	GS130,136,LS130,136,MS130,YS130..4H CROSS SHAFT NO.1	09/1987 - 10/1991	2
33773A - RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP)
96151-01600	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	2
33773A - RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP)
96151-01600	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	2
33775C - COVER, CROSS SHAFT DUST, NO.1 (FOR COLUMN SHIFT)
33775-20040	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	2
33775C - COVER, CROSS SHAFT DUST, NO.1 (FOR COLUMN SHIFT)
33775-20040	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	2
33775D - COVER, CROSS SHAFT DUST, NO.2 (FOR COLUMN SHIFT)
33775-30020	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	2
33775D - COVER, CROSS SHAFT DUST, NO.2 (FOR COLUMN SHIFT)
33775-30020	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	2
Common parts
90179-10063
90206-08016
91611-40818
94542-01000
94613-10800
95381-02020

ILLUST NO. 1 OF 2(8709- )4H

Click highlighted areas on diagram

Part #	Description	Period	Qty
33053 - LEVER SUB-ASSY, CONTROL SELECT(FOR COLUMN SHIFT)
33053-30070	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33053A - BUSH(FOR CONTROL SELECT LEVER)
90386-13007	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	2
33053A - BUSH(FOR CONTROL SELECT LEVER)
90386-13007	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	2
33053B - WASHER, PLATE(FOR CONTROL SELECT LEVER)
90201-08065	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33057 - BRACKET SUB-ASSY, CONTROL SHAFT, LOWER(FOR COLUMN SHIFT
33057-30160	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33218 - BOLT, SHIFT LEVER LOCK
33218-35010	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33501-30470	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33501B - RING, O (FOR COLUMN SHIFT CONTROL SHAFT LOWER)
90301-34002	GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC	09/1987 - 10/1991	1
33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33504-30110	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER
33513-30110	GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC	09/1987 - 10/1991	1
33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
90501-14784	GS130,136,LS13#,MS130,YS130..4H	09/1987 - 08/1989	1
33515B - SEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT)
33515-30010	GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC	09/1987 - 10/1991	1
33517 - RETAINER, CONTROL SHAFT UPPER SPRING
33517-30010	GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC	09/1987 - 10/1991	1
33518 - BUSH, UPPER CONTROL SHAFT PIECE
33518-30060	GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC	09/1987 - 10/1991	1
33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
90523-06019	GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC	09/1987 - 10/1991	1
33519B - BOOT, CONTROL SHAFT DUST
33519-30030	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33522-30030	GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC	09/1987 - 10/1991	1
33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT)
90249-07003	GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC	09/1987 - 10/1991	1
33523E - RING, E (FOR SHIFT LEVER PIN)
96160-00500	GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC	09/1987 - 10/1991	1
33527C - LEVER, CONTROL SHIFT (FOR COLUMN SHIFT)
33527-30100	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
33541-30390	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33572-30030	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33578 - SEAT, CONTROL SHAFT LOWER BUSH, NO.1
33578-30020	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33579 - SEAT, CONTROL SHAFT LOWER BUSH, NO.2
33579-30020	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33586 - STOPPER, CONTROL SHIFT LEVER
33586-30040	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33587B - BUSH, LEVER SELECTING
33587-30050	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	1
33719 - PLATE, SHIFT CONTROL ROD
33719-30010	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	2
33719 - PLATE, SHIFT CONTROL ROD
33719-30010	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	2
33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723-30050	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	2
33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723-30050	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	2
33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT)
90389-08008	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	2
33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT)
90389-08008	GS130,136,LS130,136,MS130,YS130..4H	09/1987 - 10/1991	2
33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)
90206-08016	GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC	09/1987 - 10/1991	2
33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)
90206-08016	GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC	09/1987 - 10/1991	2
Common parts
90179-08011
90179-10041
90468-14004
90580-14002
91611-60814
91611-60825
93319-14008
94613-10800
95381-02020
