MS130-AEJFP (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine MP
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)MP

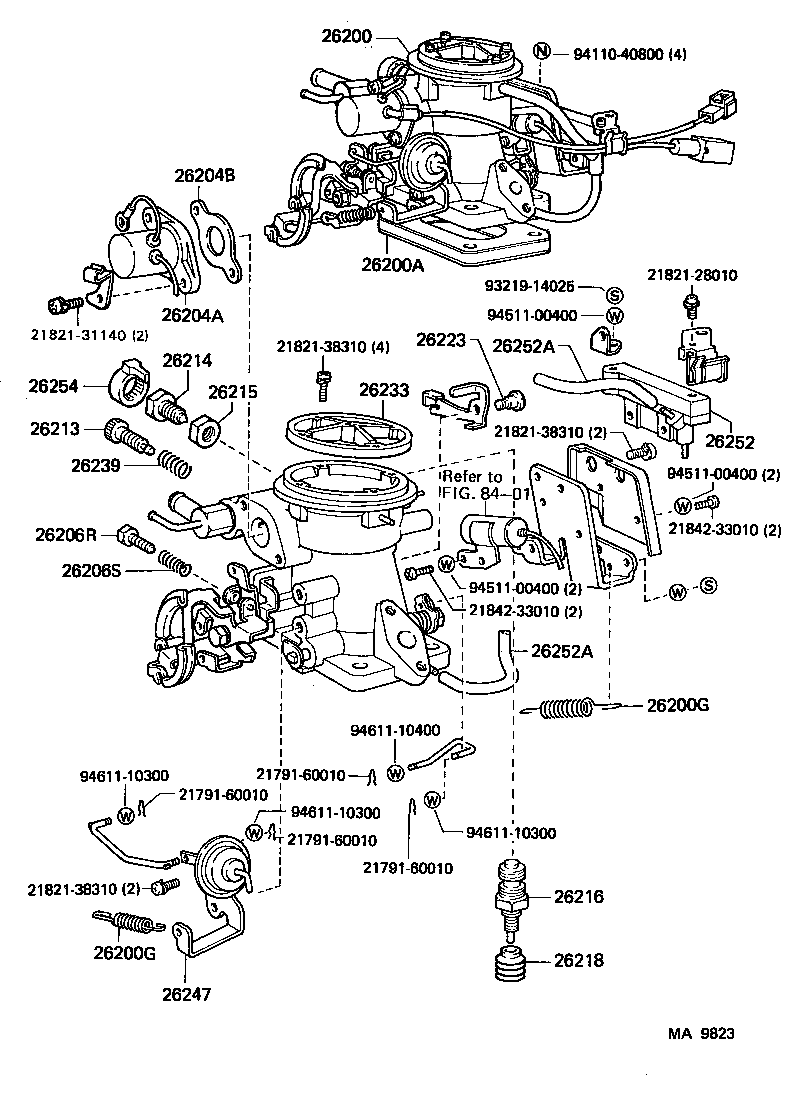

Click highlighted areas on diagram

diagram 2179160010 2179160010 2179160010 2179160010 2182128010 2182131140 2182138310 2182138310 2182138310 2184233010 2184233010 26200 26200A 26200G 26200G 26204A 26204B 26206R 26206S 26213 26214 26215 26216 26218 26223 26233 26239 26247 26252 26252A 26252A 26254 8401 9321914025 9411040800 9451100400 9451100400 9451100400 9461110300 9461110300 9461110300 9461110400
Part # Description Qty Price
26200 - CARBURETOR ASSY, LPG
26200-41090

MP..MS130

 1
26200A - INSULATOR, LPG CARBURETOR HEAT
21912-41060

MP..MS130

 1
26200G - SPRING, TENSION W/DAMPER
90507-11001

MP..MS130

 2
90506-09371

MP..MS130

 2
26200G - SPRING, TENSION W/DAMPER
90507-11001

MP..MS130

 2
90506-09371

MP..MS130

 2
26204A - VALVE, THROTTLE SOLENOID(FOR LPG)
26208-41050

MP..MS130

 1
26204B - GASKET, SOLENOID VALVE(FOR LPG)
26236-44020

MP..MS130

 1
26206R - SCREW, THROTTLE ADJUST(FOR LPG)
21842-24230

MP..MS130

 1
26206S - SPRING, IDLE ADJUST SCREW(FOR LPG)
21723-21030

MP..MS130

 1
26213 - SCREW, ADJUST
26214-44060

MP..MS130

 1
26214 - SCREW, POWER ADJUST
26214-72010

MP..MS130

 1
26215 - NUT, POWER ADJUST
26215-41010

MP..MS130

 1
26216 - VALVE, POWER
26216-44060

MP..MS130

 1
26218 - BOOT(FOR POWER VALVE)
26218-44061

MP..MS130

 1
26223 - SCREW, SET(FOR POWER VALVE CAM)
26223-31012

MP..MS130

 1
26233 - STAY, STUD
26233-41030

MP..MS130

 1
26239 - SPRING
26239-44060

MP..MS130

 1
26247 - DIAPHRAGM
26247-41050

MP..MS130

 1
26252 - VALVE, THERMOSTATIC
26252-41050

MP..MS130

 1
26252A - HOSE, CONNECTING
26237-44050

MP..MS130

 2
26252A - HOSE, CONNECTING
26237-44050

MP..MS130

 2
26254 - CAP, POWER SCREW LIMIT
26254-44060

MP..MS130

 1
Common parts
21791-60010
21821-28010
21821-31140
21821-38310
21842-33010
93219-14025
94110-40800
94511-00400
94611-10300
94611-10400
Linked diagrams
8401
