MS130-AEJDP (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine MP
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

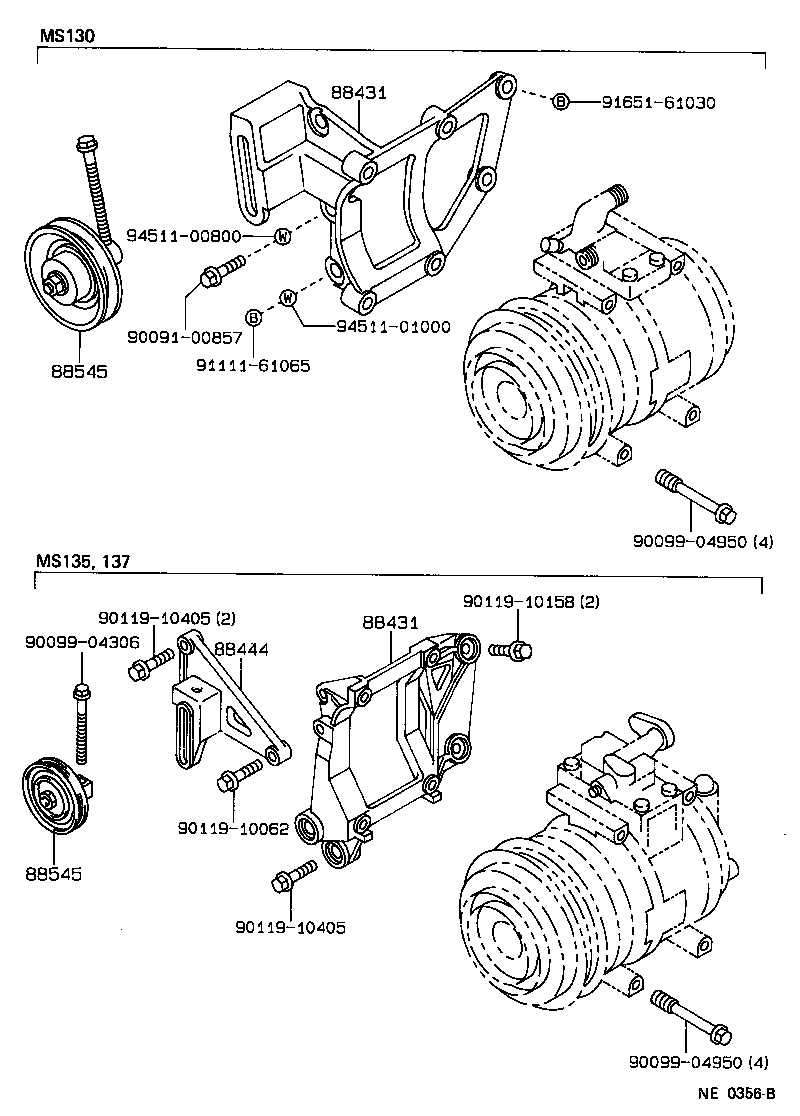

ILLUST NO. 1 OF 2(8709- )MS13#

Click highlighted areas on diagram

diagram 88431 88431 88444 88545 88545 9009100857 9009904306 9009904950 9009904950 9011910062 9011910158 9011910405 9011910405 9111161065 9165161030 9451100800 9451101000
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-24030

MS130

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-24030

MS130

 1
88545 - PULLEY ASSY, IDLE
88440-30250

MS130

 1
88545 - PULLEY ASSY, IDLE
88440-30250

MS130

 1
Common parts
90091-00857
90099-04306
90099-04950
90119-10062
90119-10158
90119-10405
91111-61065
91651-61030
94511-00800
94511-01000

ILLUST NO. 2 OF 2(8709- )

Click highlighted areas on diagram

diagram 88301 88301 88301A 88302 88302 88320 88330A 88330A 88375 88403 88403 88410 88410 8871822420 9009904349 9009907087 9009907094 9009907114 9009907114 9009907125 9411040800 9451100800
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-30490

MS130

 1
88410 - CLUTCH ASSY, MAGNET
88410-14090

MS130

 1
88410 - CLUTCH ASSY, MAGNET
88410-14090

MS130

 1
Common parts
88718-22420
90099-04349
90099-07087
90099-07094
90099-07114
90099-07125
94110-40800
94511-00800
