MS130-AEJDP (1987)
Toyota Crown
ILLUST NO. 1 OF 3(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30140 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-30110 |
LS130..DLX,STD;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,MS135,137..4H,4HC |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-43004 |
GS13#,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 下側 |
1 | ||
| 90363-18038 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC 上側 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-43004 |
GS13#,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 下側 |
1 | ||
| 90363-18038 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC 上側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC 厚さ=1.20 |
2 | ||
| 90520-17196 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC 厚さ=1.35−1.45 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC 厚さ=1.20 |
2 | ||
| 90520-17196 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC 厚さ=1.35−1.45 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
LS130..DLX,STD;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,MS135,137..4H,4HC |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-30090 |
LS130..DLX,STD;GS136,LS136,MS130,YS130;GS130,131,MS135..4H,4HC;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD) |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC |
1 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-30030 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 16.00−16.03 |
2 | ||
| 45224-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 15.97−16.00 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 16.00−16.03 |
2 | ||
| 45224-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 15.97−16.00 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30110 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) | ||||
| 90301-59005 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 90301-59001 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-10010 |
LS130..DLX,STD;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,MS135,137..4H,4HC |
1 | ||
| 45269-10010 |
LS130..DLX,STD;GS130..WG..5F..HTWC;GS130..5F..(DLX,STD);GS136,LS136,MS130,YS130;GS130,131,MS135,137..4H,4HC;GS130..WG..(4FC,5F)..SDX..EFI |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-30410 |
GS136;GS130,LS13#,MS130,YS130..DLX,STD |
1 | ||
| 45280-30410 |
GS136,LS136,YS130;LS130,MS130..DLX,STD;GS130..(4H,4HC,5F)..(DLX,STD) |
1 | ||
| 45289A - SUPPORT, STEERING COLUMN COVER | ||||
| 45289-30050 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-30170 |
LS130..DLX,STD;GS136,LS136,MS130,YS130;GS130,131,MS135..4H,4HC;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD) |
1 | ||
| Common parts | ||||
| 90119-08185 | ||||
| 90179-10053 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
ILLUST NO. 2 OF 2(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-30110 |
LS130..DLX,STD;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,MS135,137..4H,4HC |
1 | ||
| Common parts | ||||
| 90114-08013 | ||||
| 90114-08026 | ||||
| 90114-08028 | ||||
| 90119-08185 | ||||
| 90179-10053 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90560-13008 | ||||
| 90560-18007 | ||||
| 90561-15004 | ||||
| 91611-60840 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||
ILLUST NO. 2 OF 2(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-30110 |
LS130..DLX,STD;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,MS135,137..4H,4HC |
1 | ||
| Common parts | ||||
| 90114-08013 | ||||
| 90114-08026 | ||||
| 90114-08028 | ||||
| 90119-08185 | ||||
| 90179-10053 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90560-13008 | ||||
| 91611-60840 | ||||
| 91621-60612 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||
ILLUST NO. 3 OF 3(8709- )GS13#,JZS13#,LS13#,MS130,135,YS130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33621 - PLATE, CONTROL LEVER CAUTION | ||||
| 33621-30040 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-3091404 |
GS130,136,LS130,136,MS130,YS130..4H BLUE,TRIM8# |
1 | ||
| 45287-3091402 |
GS130,136,LS130,MS130,YS130..4H..(DLX,SDX) MAROON,TRIM3# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-3091404 |
GS130,136,LS130,136,MS130,YS130..4H BLUE,TRIM8# |
1 | ||
| 45287-3091402 |
GS130,136,LS130,MS130,YS130..4H..(DLX,SDX) MAROON,TRIM3# |
1 | ||
| 45288A - SPACER, COLUMN COVER | ||||
| 45288-30020 |
GS130..SDX..TWLPG;GS130,LS130..DLX,STD;GS136,LS136,MS130,YS130 |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 93315-14010 | ||||

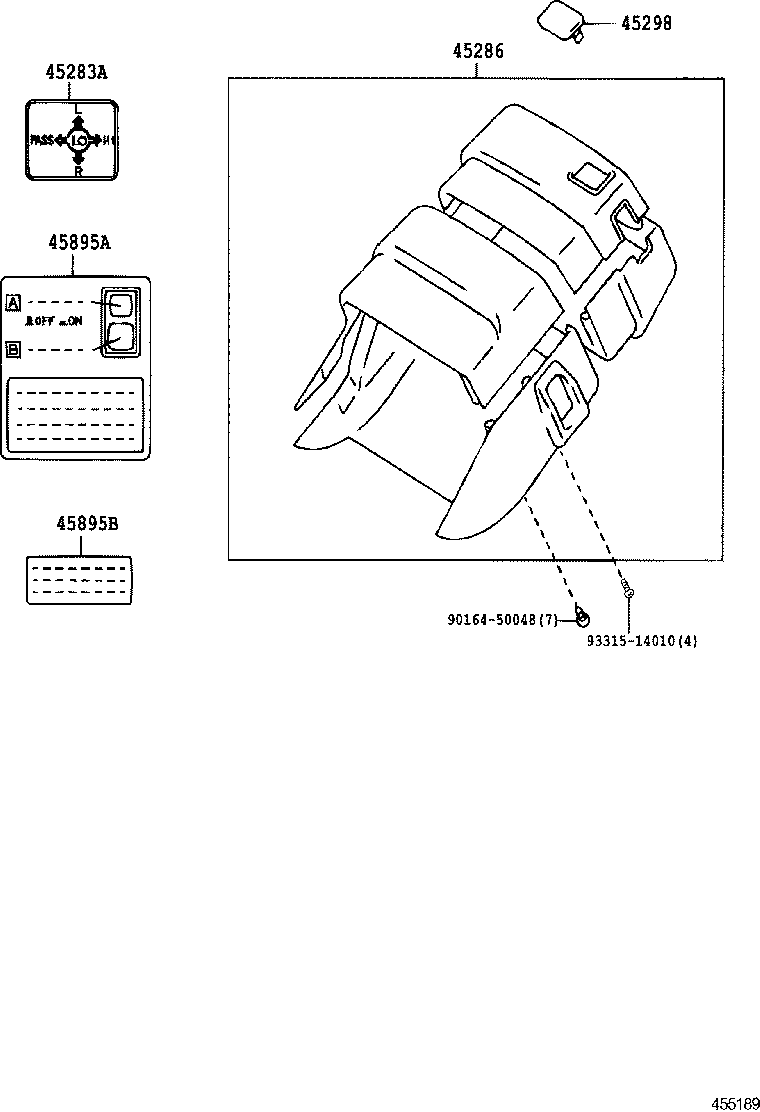

ILLUST NO. 3 OF 3(8709-8908)MS137 ; (8908- )GS131,JZS131,MS13#,UZS131
ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸﾃﾞﾝﾄﾞｳｼｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-3091404 |
GS130,136,LS130,136,MS130,YS130..4H BLUE,TRIM8# |
1 | ||
| 45287-3091402 |
GS130,136,LS130,MS130,YS130..4H..(DLX,SDX) MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 93315-14010 | ||||
ILLUST NO. 1 OF 3(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30140 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-43004 |
GS13#,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 下側 |
1 | ||
| 90363-18038 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC 上側 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-43004 |
GS13#,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 下側 |
1 | ||
| 90363-18038 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC 上側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC 厚さ=1.20 |
2 | ||
| 90520-17196 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC 厚さ=1.35−1.45 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
LS130..DLX,STD;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,MS135,137..4H,4HC |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
LS130..DLX,STD;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,MS135,137..4H,4HC |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-30090 |
LS130..DLX,STD;GS136,LS136,MS130,YS130;GS130,131,MS135..4H,4HC;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD) |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC |
1 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-30030 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 16.00−16.03 |
2 | ||
| 45224-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 15.97−16.00 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 16.00−16.03 |
2 | ||
| 45224-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 15.97−16.00 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30110 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) | ||||
| 90301-59005 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 90301-59001 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-30410 |
GS136;GS130,LS13#,MS130,YS130..DLX,STD |
1 | ||
| 45280-30410 |
GS136,LS136,YS130;LS130,MS130..DLX,STD;GS130..(4H,4HC,5F)..(DLX,STD) |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-30170 |
LS130..DLX,STD;GS136,LS136,MS130,YS130;GS130,131,MS135..4H,4HC;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD) |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 91611-60816 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
ILLUST NO. 1 OF 3(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30140 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-43004 |
GS13#,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 下側 |
1 | ||
| 90363-18038 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC 上側 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-43004 |
GS13#,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 下側 |
1 | ||
| 90363-18038 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC 上側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC 厚さ=1.20 |
2 | ||
| 90520-17196 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC 厚さ=1.35−1.45 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
LS130..DLX,STD;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,MS135,137..4H,4HC |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
LS130..DLX,STD;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,MS135,137..4H,4HC |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-30090 |
LS130..DLX,STD;GS136,LS136,MS130,YS130;GS130,131,MS135..4H,4HC;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD) |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC |
1 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-30030 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 16.00−16.03 |
2 | ||
| 45224-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 15.97−16.00 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 16.00−16.03 |
2 | ||
| 45224-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 15.97−16.00 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30110 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) | ||||
| 90301-59005 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 90301-59001 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-30410 |
GS136;GS130,LS13#,MS130,YS130..DLX,STD |
1 | ||
| 45280-30410 |
GS136,LS136,YS130;LS130,MS130..DLX,STD;GS130..(4H,4HC,5F)..(DLX,STD) |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-30170 |
LS130..DLX,STD;GS136,LS136,MS130,YS130;GS130,131,MS135..4H,4HC;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD) |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 90179-06007 | ||||
| 91611-60816 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
