MS125-SESQF (1984)

Toyota Crown

Production Aug 1984 - Aug 1987
Engine 6MGEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )6MGEU

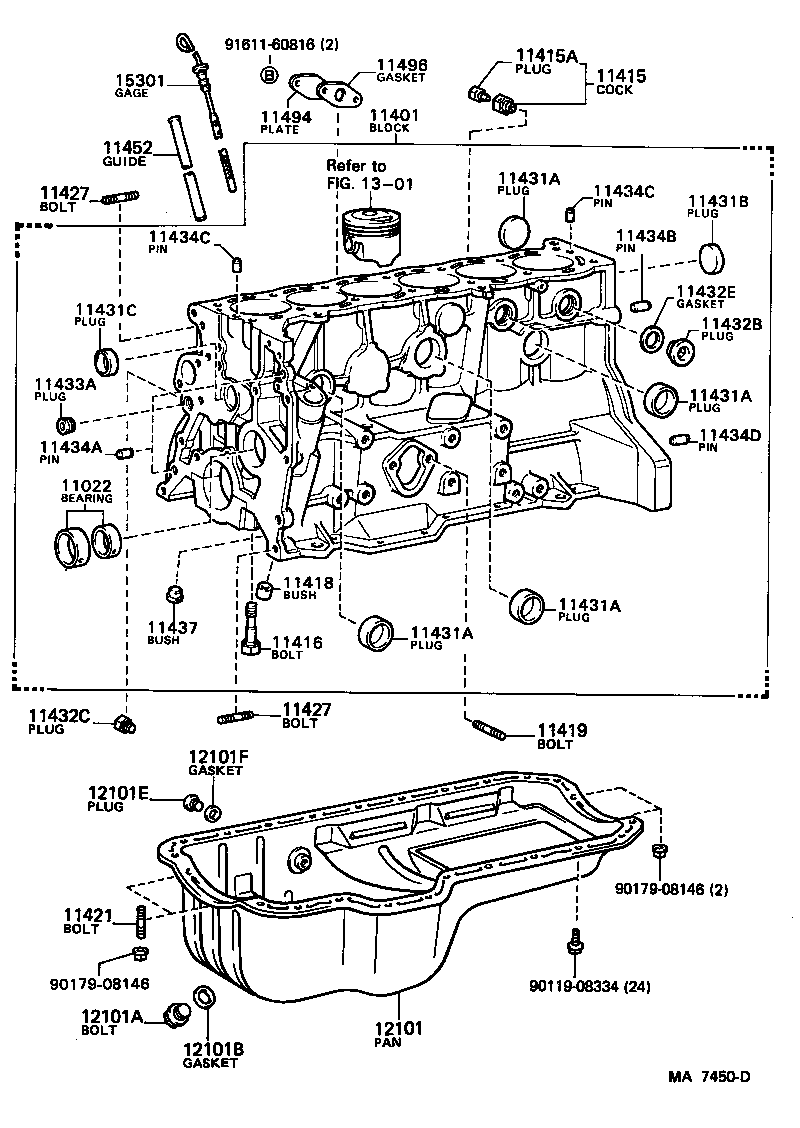

Click highlighted areas on diagram

diagram 11022 11401 11415 11415A 11416 11418 11419 11421 11427 11427 11431A 11431A 11431A 11431A 11431B 11431C 11432B 11432C 11432E 11433A 11434A 11434B 11434C 11434C 11434D 11437 11452 11494 11496 12101 12101A 12101B 12101E 12101F 1301 15301 9011908334 9017908146 9017908146 9161160816
Part # Description Qty Price
11022 - BEARING SET, PUMP DRIVE SHAFT
11022-41010

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-49445

6MGEU..MS125

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09070

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
96431-53828

6MGEU,MPU,MTEU..MS12#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09072

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
96432-23814

6MGEU,MPU,MTEU..MS12#

L=24

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02047

5MGEU,6MGEU,MPU,MTEU..MS12#

*12-1.25PX67-22

 14
11418 - BUSH, SOLID(FOR DISTRIBUTOR)
90999-70056

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
11421 - BOLT, STUD(FOR OIL PAN)
90116-08208

6MGEU,MPU,MTEU..MS12#

 2
11427 - BOLT, STUD(FOR TIMING CHAIN COVER SET)
90116-08147

5MGEU,6MGEU,MPU,MTEU..MS12#

L=68,S=12&24

 2
92122-60860

5MGEU,6MGEU..MS123,125

L=72,S=18&12

 1
11427 - BOLT, STUD(FOR TIMING CHAIN COVER SET)
90116-08147

5MGEU,6MGEU,MPU,MTEU..MS12#

L=68,S=12&24

 2
92122-60860

5MGEU,6MGEU..MS123,125

L=72,S=18&12

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-44000

5MGEU,6MGEU,MPU,MTEU..MS12#

OD=40

 7
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-44000

5MGEU,6MGEU,MPU,MTEU..MS12#

OD=40

 7
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-44000

5MGEU,6MGEU,MPU,MTEU..MS12#

OD=40

 7
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-44000

5MGEU,6MGEU,MPU,MTEU..MS12#

OD=40

 7
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96412-43500

5MGEU,6MGEU,MPU,MTEU..MS12#

OD=35

 1
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

5MGEU,6MGEU,MPU,MTEU..MS12#

OD=35

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-32070

5MGEU,6MGEU..MS123,125

 2
11432E - GASKET, W/HEAD TAPER SCREW PLUG
90430-32222

5MGEU,6MGEU..MS123,125

 2
11433A - PLUG, STRAIGHT, NO.1
90344-53008

6MGEU,MPU..MS12#

 2
90344-53015

5MGEU,6MGEU,MPU,MTEU..MS12#

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-10192

5MGEU,6MGEU,MPU,MTEU..MS12#

長さ=22,外径=10,L=22,OD=10

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10192

5MGEU,6MGEU,MPU,MTEU..MS12#

長さ=22,外径=10,L=22,OD=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-10192

5MGEU,6MGEU,MPU,MTEU..MS12#

長さ=22,外径=10,L=22,OD=10

 2
11437 - BUSH, OIL PUMP SHAFT GUIDE
11437-45010

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-41030

5MGEU,6MGEU,MTEU..MS12#

 1
11494 - PLATE, OIL HOLE COVER
11494-45010

5MGEU,6MGEU,MPU..MS12#

FR

 1
11496 - GASKET, OIL HOLE COVER PLATE
15318-45011

5MGEU,6MGEU,MPU..MS12#

FR

 1
12101 - PAN SUB-ASSY, OIL
12101-42020

6MGEU,MPU,MTEU..MS12#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

5MGEU,6MGEU,MPU,MTEU..MS12#

*18-1.5PX12-10

 1
90341-18089

6MGEU,MPU..MS12#

*18-1.5PX12-10

 1
90341-18089

6MGEU,MPU,MTEU..MS12#

*18-1.5PX12-10

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

6MGEU,MPU,MTEU..MS12#

ID=18

 1
90430-18244

6MGEU,MPU,MTEU..MS12#

ID=18

 1
90430-18244

5MGEU,6MGEU,MPU,MTEU..MS12#

ID=18

 1
90430-18244

6MGEU,MPU..MS12#

ID=18

 1
90430-18013

6MGEU,MPU..MS12#

ID=18

 1
12101E - PLUG, OIL PAN(FOR OIL COOLER)
90341-12004

6MGEU,MPU..MS12#

 1
90341-12012

6MGEU,MPU..MS12#

 1
12101F - GASKET(FOR OIL COOLER)
90430-12009

6MGEU,MPU..MS12#

 1
90430-12018

6MGEU,MPU..MS12#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-43020

6MGEU..MS125

 1
Common parts
90119-08334
90179-08146
91611-60816
Linked diagrams
1301
