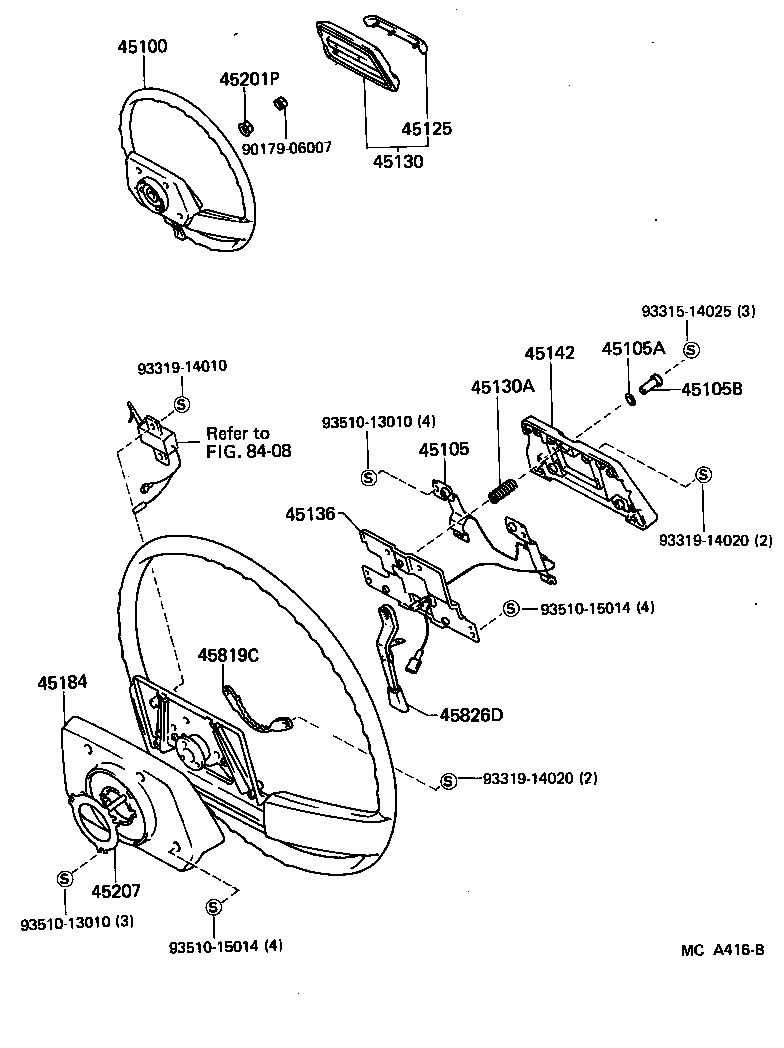

MS125-SEPQF (1984)
Toyota Crown
(8308- )4FC,5F..ROY ; (8405-8509)WG..4FC..SAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3027004 |
GS121,MS123,125..4FC,5F BLUE,BLUE,TRIM8# |
1 | ||
| 45100-3027002 |
GS121,MS123,125..4FC,5F DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45100-3027005 |
GS121,MS123,125..4FC,5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 45100-3028005 |
GS121,MS123,125..(4FC,5F)..ROY BEIGE,W/*AD,BEIGE,TRIM4# |
1 | ||
| 45100-3026004 |
MS125..4FC BLUE,W/*MS,G SPEC,BLUE,TRIM8# |
1 | ||
| 45100-3028004 |
GS121,MS123,125..(4FC,5F)..ROY BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45100-3028002 |
GS121,MS123,125..(4FC,5F)..ROY DEEP MAROON,W/*AD,RED/MAROON,TRIM3# |
1 | ||
| 45100-3026012 |
MS125..4FC MAROON,W/*MS,G SPEC,MAROON,TRIM3# |
1 | ||
| 45100-3028006 |
GS121,MS125..(4FC,5F)..ROY BROWN,W/*AD,SEPIA BROWN,TRIM4# |
1 | ||
| 45100-3026006 |
MS125..4FC BROWN,W/*MS,G SPEC,SEPIA BROWN,TRIM4# |
1 | ||
| 45100-3026014 |
MS125..4FC BLUE,W/*MS,G SPEC,BLUE,TRIM8# |
1 | ||
| 45100-3028012 |
GS121,MS125..(4FC,5F)..ROY MAROON,W/*AD,MAROON,TRIM3# |
1 | ||
| 45100-3028014 |
GS121,MS125..(4FC,5F)..ROY BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-30080 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL W/POWER STEERING |
1 | ||
| 45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90540-08006 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL |
3 | ||
| 45105B - SPACER(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90561-04006 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL |
3 | ||
| 45125 - MARK, STEERING WHEEL PAD | ||||
| 45125-3020002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45125-3021002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL) DEEP MAROON,W/*AD,RED/MAROON,TRIM3# |
1 | ||
| 45125-3021005 |
GS120,121,LS120,MS12#..ROY,SAL BEIGE,W/*AD,BEIGE,TRIM4# |
1 | ||
| 45125-3020004 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE BLUE,W/POWER STEERING,BLUE,TRIM8# |
1 | ||
| 45125-3021004 |
GS120,121,LS120,MS12#..ROY,SAL BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45125-3021002 |
GS120,121,LS120,MS125..ROY,SAL DEEP MAROON,W/*AD,RED/MAROON,TRIM3# |
1 | ||
| 45125-3020005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,W/POWER STEERING,BEIGE,TRIM4# |
1 | ||
| 45125-3021014 |
GS120,121,LS120,MS125..ROY,SAL BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45125-3021005 |
GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL) BEIGE,W/*AD,BEIGE,TRIM4# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-3021005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,W/POWER STEERING,BEIGE,TRIM4# |
1 | ||
| 45130-3021004 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE BLUE,W/POWER STEERING,BLUE,TRIM8# |
1 | ||
| 45130-3021002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45130-3022005 |
GS120,121,LS120,MS12#..ROY,SAL BEIGE,W/*AD,BEIGE,TRIM4# |
1 | ||
| 45130-3022002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL) DEEP MAROON,W/*AD,RED/MAROON,TRIM3# |
1 | ||
| 45130-3022012 |
GS120,121,LS120,MS125..ROY,SAL MAROON,W/*AD,MAROON,TRIM3# |
1 | ||
| 45130-3022004 |
GS120,121,LS120,MS12#..ROY,SAL BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45130-3022014 |
GS120,121,LS120,MS125..ROY,SAL BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45130-3022006 |
GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL) BROWN,W/*AD,SEPIA BROWN,TRIM4# |
1 | ||
| 45130A - SPRING, COMPRESSION(FOR HORN BUTTON) | ||||
| 90501-10040 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE |
3 | ||
| 45136 - PLATE, HORN BUTTON CONTACT | ||||
| 45136-30130 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 45142 - SEAT, HORN BUTTON CONTACT, NO.1 | ||||
| 45142-30060 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-3008004 |
GS121,MS123,125..(4FC,5F)..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 45184-3008005 |
GS121,MS123,125..(4FC,5F)..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 45184-3008002 |
GS121,MS123,125..(4FC,5F)..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45184-3009005 |
GS121,MS123,125..(4FC,5F)..ROY BEIGE,W/*AD,BEIGE,TRIM4# |
1 | ||
| 45184-3009004 |
GS121,MS123,125..(4FC,5F)..ROY BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45184-3009002 |
GS121,MS123,125..(4FC,5F)..ROY DEEP MAROON,W/*AD,RED/MAROON,TRIM3# |
1 | ||
| 45184-3007006 |
MS125..4FC BROWN,W/*MS,G SPEC,SEPIA BROWN,TRIM4# |
1 | ||
| 45184-3007004 |
MS125..4FC BLUE,W/*MS,G SPEC,BLUE,TRIM8# |
1 | ||
| 45184-3007012 |
MS125..4FC MAROON,W/*MS,G SPEC,MAROON,TRIM3# |
1 | ||
| 45184-3007014 |
MS125..4FC BLUE,W/*MS,G SPEC,BLUE,TRIM8# |
1 | ||
| 45184-3009014 |
GS121,MS125..(4FC,5F)..ROY BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45184-3009006 |
GS121,MS125..(4FC,5F)..ROY BROWN,W/*AD,SEPIA BROWN,TRIM4# |
1 | ||
| 45184-3009012 |
GS121,MS125..(4FC,5F)..ROY MAROON,W/*AD,MAROON,TRIM3# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-14014 |
GS12#,LS12#,MS123,125..(4FC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) W/TILT STEERING |
1 | ||
| 45207 - RING, HORN CONTACT | ||||
| 45176-14050 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE W/POWER STEERING |
1 | ||
| 45819C - RETAINER, TELESCOPIC LEVER | ||||
| 45819-30030 |
GS121,MS123,125..(4FC,5F)..ROY |
1 | ||
| 45826D - LEVER, STEERING TELESCOPIC | ||||
| 45826-30040 |
GS121,MS123,125..(4FC,5F)..ROY |
1 | ||
| Common parts | ||||
| 90179-06007 | ||||
| 93315-14025 | ||||
| 93319-14010 | ||||
| 93319-14020 | ||||
| 93510-13010 | ||||
| 93510-15014 | ||||
| Linked diagrams | ||||
| 8408 | ||||
