MS123-STSQF (1983)

Toyota Crown

Production Aug 1983 - Aug 1984
Engine 5MGEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

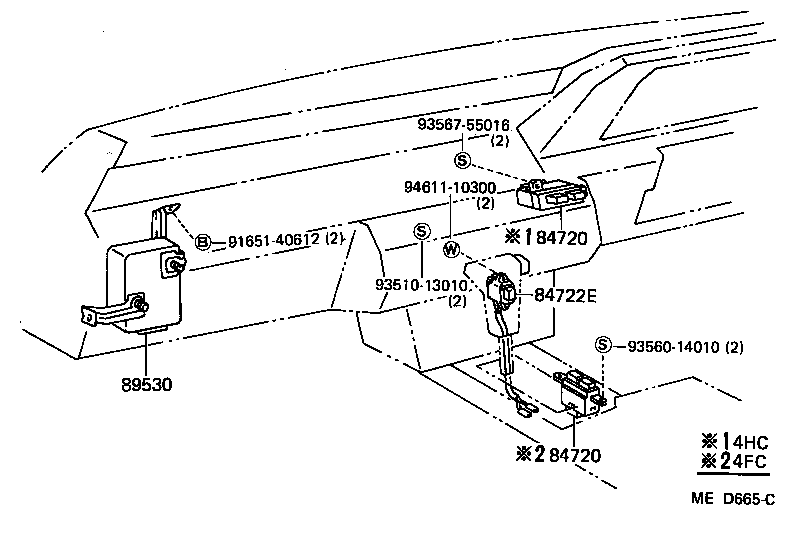

ILLUST NO. 1 OF 2(8308- )

Click highlighted areas on diagram

diagram 84720 84720 84722E 89530 9165140612 9351013010 9356014010 9356755016 9461110300
Part # Description Qty Price
84720 - SWITCH ASSY, PATTERN SELECT
84720-30070

GS121,MS123,125..4HC

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-30070

GS121,MS123,125..4HC

 1
Common parts
91651-40612
93510-13010
93560-14010
93567-55016
94611-10300

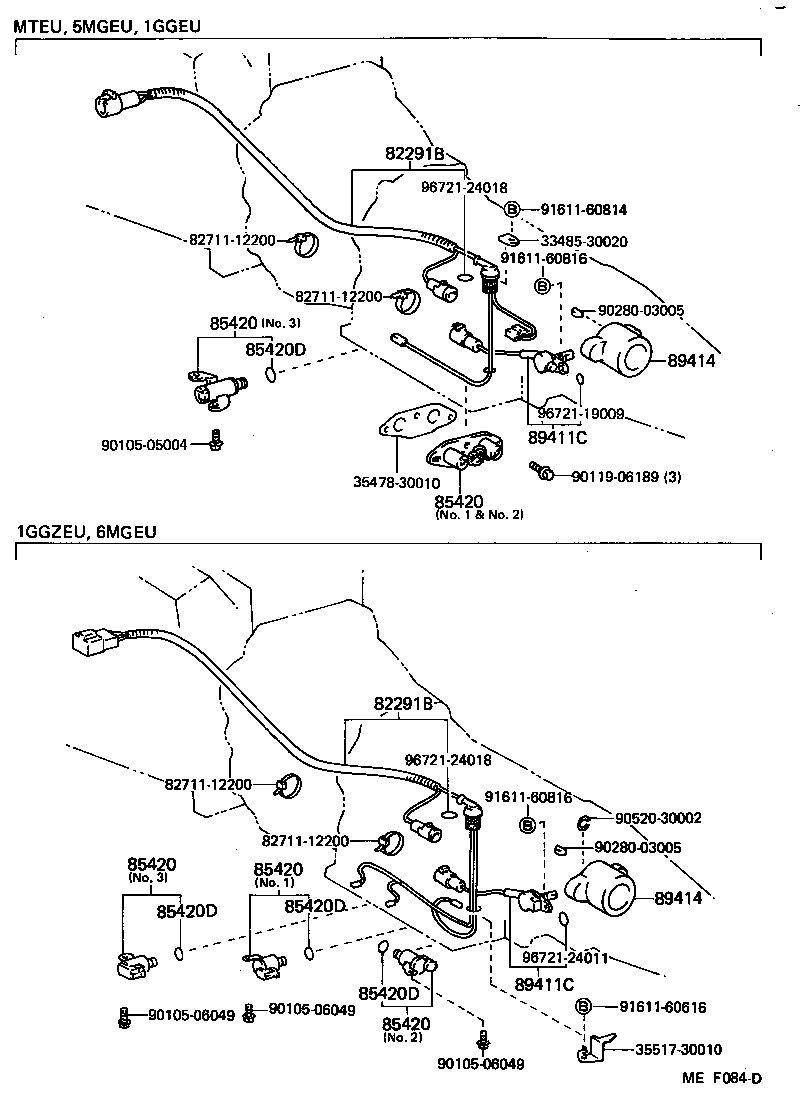

ILLUST NO. 2 OF 2(8308- )

Click highlighted areas on diagram

diagram 3348530020 3547830010 3551730010 82291B 82291B 8271112200 8271112200 8271112200 8271112200 85420 85420 85420 85420 85420 85420D 85420D 85420D 85420D 89411C 89411C 89414 89414 9010505004 9010506049 9010506049 9010506049 9011906189 9028003005 9028003005 9052030002 9161160616 9161160814 9161160816 9161160816 9672119009 9672124011 9672124018 9672124018
Part # Description Qty Price
82291B - WIRE, TO SOLENOID (FOR TRANSMISSION)
82291-30150

GS121,MS120,123..ATM..(TBO,TWC)

 1
82291B - WIRE, TO SOLENOID (FOR TRANSMISSION)
82291-30150

GS121,MS120,123..ATM..(TBO,TWC)

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-30070

GS121,MS120,123..ATM..(TBO,TWC)

NO.3

 1
85420-30050

GS121,MS120,123..ATM..(TBO,TWC)

NO.1 & NO.2

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-30070

GS121,MS120,123..ATM..(TBO,TWC)

NO.3

 1
85420-30050

GS121,MS120,123..ATM..(TBO,TWC)

NO.1 & NO.2

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-30070

GS121,MS120,123..ATM..(TBO,TWC)

NO.3

 1
85420-30050

GS121,MS120,123..ATM..(TBO,TWC)

NO.1 & NO.2

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-30070

GS121,MS120,123..ATM..(TBO,TWC)

NO.3

 1
85420-30050

GS121,MS120,123..ATM..(TBO,TWC)

NO.1 & NO.2

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-30070

GS121,MS120,123..ATM..(TBO,TWC)

NO.3

 1
85420-30050

GS121,MS120,123..ATM..(TBO,TWC)

NO.1 & NO.2

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

GS121,MS12#..ATM..(SPC,TBO,TWC)

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

GS121,MS12#..ATM..(SPC,TBO,TWC)

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

GS121,MS12#..ATM..(SPC,TBO,TWC)

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

GS121,MS12#..ATM..(SPC,TBO,TWC)

 3
89411C - SENSOR, SPEED
89411-30081

GS121,MS120,123..ATM..(TBO,TWC)

 1
89411C - SENSOR, SPEED
89411-30081

GS121,MS120,123..ATM..(TBO,TWC)

 1
89414 - ROTOR, SENSOR
89414-30010

GS121,MS120,123..ATM..(TBO,TWC)

 1
89414 - ROTOR, SENSOR
89414-30010

GS121,MS120,123..ATM..(TBO,TWC)

 1
Common parts
33485-30020
35478-30010
35517-30010
82711-12200
90105-05004
90105-06049
90119-06189
90280-03005
90520-30002
91611-60616
91611-60814
91611-60816
96721-19009
96721-24011
96721-24018
