MS123-STSQF (1983)
Toyota Crown

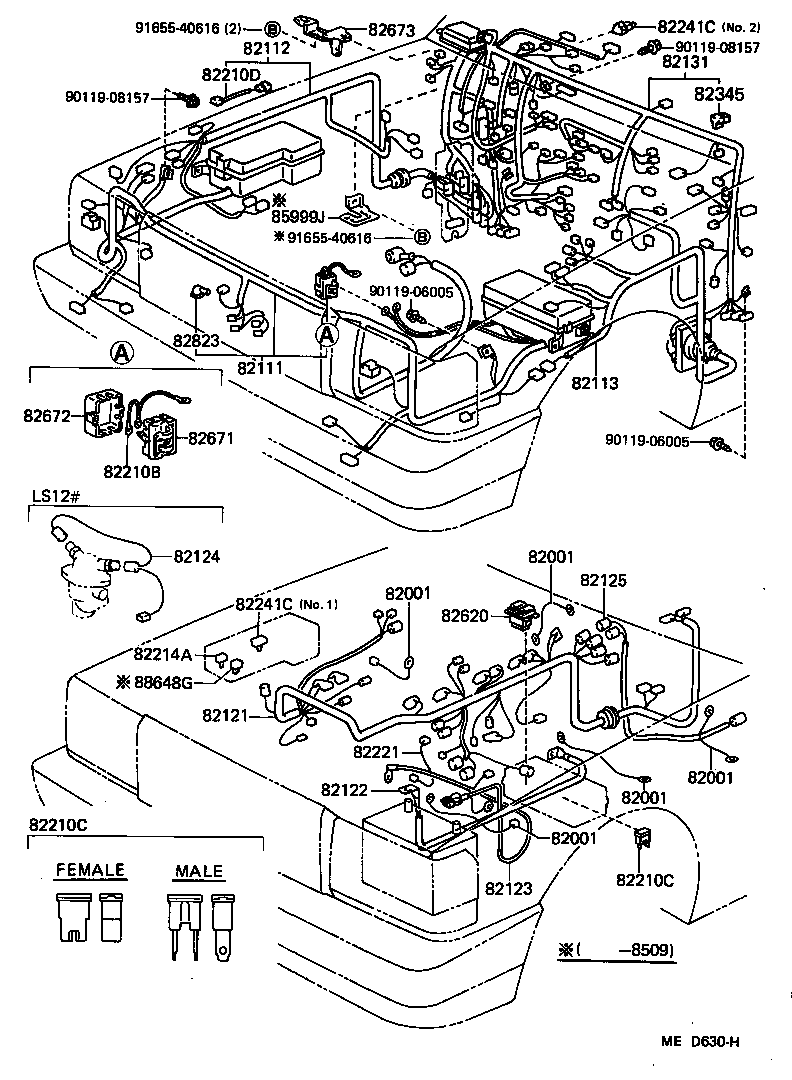

ILLUST NO. 1 OF 9(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07119 |
GS12#,MS12#,YS120 TRANSMITION--FRAME |
1 | ||
| 90980-07200 |
GS121,MS12#,YS120..LPG,SPC,TWC ENGINE--DASH PANEL |
1 | ||
| 90980-07219 |
GS12#,MS12#,YS120 CLUTCH HOUSING--BODY |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07119 |
GS12#,MS12#,YS120 TRANSMITION--FRAME |
1 | ||
| 90980-07200 |
GS121,MS12#,YS120..LPG,SPC,TWC ENGINE--DASH PANEL |
1 | ||
| 90980-07219 |
GS12#,MS12#,YS120 CLUTCH HOUSING--BODY |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07119 |
GS12#,MS12#,YS120 TRANSMITION--FRAME |
1 | ||
| 90980-07200 |
GS121,MS12#,YS120..LPG,SPC,TWC ENGINE--DASH PANEL |
1 | ||
| 90980-07219 |
GS12#,MS12#,YS120 CLUTCH HOUSING--BODY |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07119 |
GS12#,MS12#,YS120 TRANSMITION--FRAME |
1 | ||
| 90980-07200 |
GS121,MS12#,YS120..LPG,SPC,TWC ENGINE--DASH PANEL |
1 | ||
| 90980-07219 |
GS12#,MS12#,YS120 CLUTCH HOUSING--BODY |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07119 |
GS12#,MS12#,YS120 TRANSMITION--FRAME |
1 | ||
| 90980-07200 |
GS121,MS12#,YS120..LPG,SPC,TWC ENGINE--DASH PANEL |
1 | ||
| 90980-07219 |
GS12#,MS12#,YS120 CLUTCH HOUSING--BODY |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-30510 |
MS123 |
1 | ||
| 82111-30590 |
MS123 W/ESC OR *AD |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-30390 |
MS123 |
1 | ||
| 82112-30110 |
MS123 W/ESC |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-30020 |
MS123 W/*AL |
1 | ||
| 82113-30320 |
MS123 W/*MPAAC |
1 | ||
| 82113-30200 |
MS123 W/*AL & *MPAAC |
1 | ||
| 82113-30300 |
MS123 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-30240 |
MS123 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-30110 |
MS12#..LPG,TWC |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-30030 |
MS123,125 |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-30620 |
MS123..4HC;MS123..SED..4FC W/*MPAAC |
1 | ||
| 82131-30860 |
MS123..4HC;MS123..SED..4FC |
1 | ||
| 82131-30620 |
MS123..4HC W/*MPAAC |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
GS12#,LS12#,MS12#,YS120 80A,ｵｽ端子,黒,80A |
2 | ||
| 90982-08189 |
GS12#,LS12#,MS12#,YS120 40A,ﾒｽ端子,緑,40A |
2 | ||
| 90982-08188 |
GS12#,MS12#,YS120 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A..FEMALE |
1 | ||
| 90982-08223 |
GS12#,MS120,123,YS120 30A,ｵｽ端子,ﾋﾟﾝｸ,30A..MALE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
GS12#,LS12#,MS12#,YS120 80A,ｵｽ端子,黒,80A |
2 | ||
| 90982-08189 |
GS12#,LS12#,MS12#,YS120 40A,ﾒｽ端子,緑,40A |
2 | ||
| 90982-08188 |
GS12#,MS12#,YS120 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A..FEMALE |
1 | ||
| 90982-08223 |
GS12#,MS120,123,YS120 30A,ｵｽ端子,ﾋﾟﾝｸ,30A..MALE |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-30180 |
GS121,LS120,MS12#..(DLX,ROY,SAL,SDX,SPE)..(DSL,TBO,TD,TDE,TWC) NO.1(RELAY BLK),W/O HORN RELAY |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-30180 |
GS121,LS120,MS12#..(DLX,ROY,SAL,SDX,SPE)..(DSL,TBO,TD,TDE,TWC) NO.1(RELAY BLK),W/O HORN RELAY |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30070 |
GS120,121,LS120,MS12#,YS120 LH |
1 | ||
| 82671-30060 |
GS120,121,LS120,MS12#,YS120 RH |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-08157 | ||||
| 91655-40616 | ||||

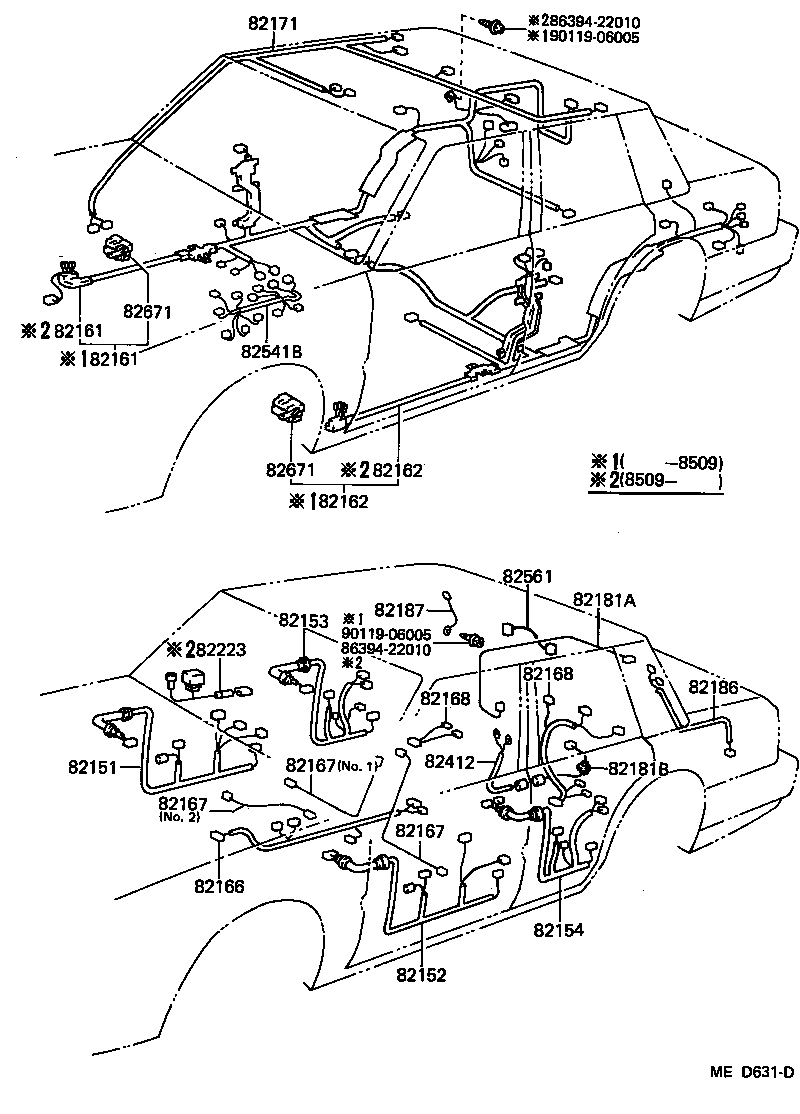

ILLUST NO. 2 OF 9(8308- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-30270 |
GS120,121,LS120,MS12#..HT..(ROY,SAL) W/ELECTRIC DOOR MIRROR |
1 | ||
| 82151-30220 |
GS120,121,LS120,MS12#..HT..(ROY,SAL) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-30190 |
GS120,121,LS120,MS12#..HT W/ELECTRIC DOOR MIRROR |
1 | ||
| 82152-30170 |
GS120,121,LS120,MS12#..HT |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-30200 |
GS121,MS123,125..HT..ROY |
1 | ||
| 82153-30210 |
GS121,MS123,125..HT..ROY W/RR POWER SEAT |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-30080 |
GS121,MS123,125..HT..ROY |
1 | ||
| 82154-30090 |
GS121,MS123,125..HT..ROY W/RR POWER SEAT |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-30580 |
GS121,MS123 |
1 | ||
| 82161-30581 |
GS121,MS123..ROY |
1 | ||
| 82161-30591 |
MS123 W/ESC |
1 | ||
| 82161-30590 |
MS123 W/ESC |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-30580 |
GS121,MS123 |
1 | ||
| 82161-30581 |
GS121,MS123..ROY |
1 | ||
| 82161-30591 |
MS123 W/ESC |
1 | ||
| 82161-30590 |
MS123 W/ESC |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-30070 |
MS123..HT G SPEC |
1 | ||
| 82162-30050 |
GS121,MS123..ROY |
1 | ||
| 82162-30060 |
GS121,MS123..ROY W/ESC,*AL OR FR MI-CON SEAT |
1 | ||
| 82162-30070 |
MS123 W/*MPAAC |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-30070 |
MS123..HT G SPEC |
1 | ||
| 82162-30050 |
GS121,MS123..ROY |
1 | ||
| 82162-30060 |
GS121,MS123..ROY W/ESC,*AL OR FR MI-CON SEAT |
1 | ||
| 82162-30070 |
MS123 W/*MPAAC |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30130 |
GS120,121,MS123,125..(HT,SED)..4HC..(ROY,SAL) FR-RH,NO.1,W/*PSE |
1 | ||
| 82167-30170 |
GS121,MS123,125..4HC FR-RH & LH,NO.2,W/*PSE |
2 | ||
| 82167-30100 |
MS123,125..4HC FR-LH,W/*PSE & *MPAAC |
1 | ||
| 82167-30090 |
GS120,121,MS123,125..(HT,SED)..4HC..(ROY,SAL) FR-LH,W/*PSE |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30130 |
GS120,121,MS123,125..(HT,SED)..4HC..(ROY,SAL) FR-RH,NO.1,W/*PSE |
1 | ||
| 82167-30170 |
GS121,MS123,125..4HC FR-RH & LH,NO.2,W/*PSE |
2 | ||
| 82167-30100 |
MS123,125..4HC FR-LH,W/*PSE & *MPAAC |
1 | ||
| 82167-30090 |
GS120,121,MS123,125..(HT,SED)..4HC..(ROY,SAL) FR-LH,W/*PSE |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30130 |
GS120,121,MS123,125..(HT,SED)..4HC..(ROY,SAL) FR-RH,NO.1,W/*PSE |
1 | ||
| 82167-30170 |
GS121,MS123,125..4HC FR-RH & LH,NO.2,W/*PSE |
2 | ||
| 82167-30100 |
MS123,125..4HC FR-LH,W/*PSE & *MPAAC |
1 | ||
| 82167-30090 |
GS120,121,MS123,125..(HT,SED)..4HC..(ROY,SAL) FR-LH,W/*PSE |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-30030 |
GS121,MS123,125..ROY RR-RH & LH |
2 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-30030 |
GS121,MS123,125..ROY RR-RH & LH |
2 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-30100 |
GS121,MS123,125..ROY W/MOON ROOF |
1 | ||
| 82171-30140 |
GS121,MS12#..HT..(ROY,SAL) W/*NC |
1 | ||
| 82171-30150 |
GS120,121,LS120,MS12#..HT |
1 | ||
| 82181A - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-30010 |
GS120,121,LS120,MS12#..(HT,SED)..(DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-30030 |
GS120,121,LS120,MS12#..HT |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30070 |
GS120,121,LS120,MS12#,YS120 LH |
1 | ||
| 82671-30060 |
GS120,121,LS120,MS12#,YS120 RH |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30070 |
GS120,121,LS120,MS12#,YS120 LH |
1 | ||
| 82671-30060 |
GS120,121,LS120,MS12#,YS120 RH |
1 | ||
| Common parts | ||||
| 86394-22010 | ||||
| 90119-06005 | ||||

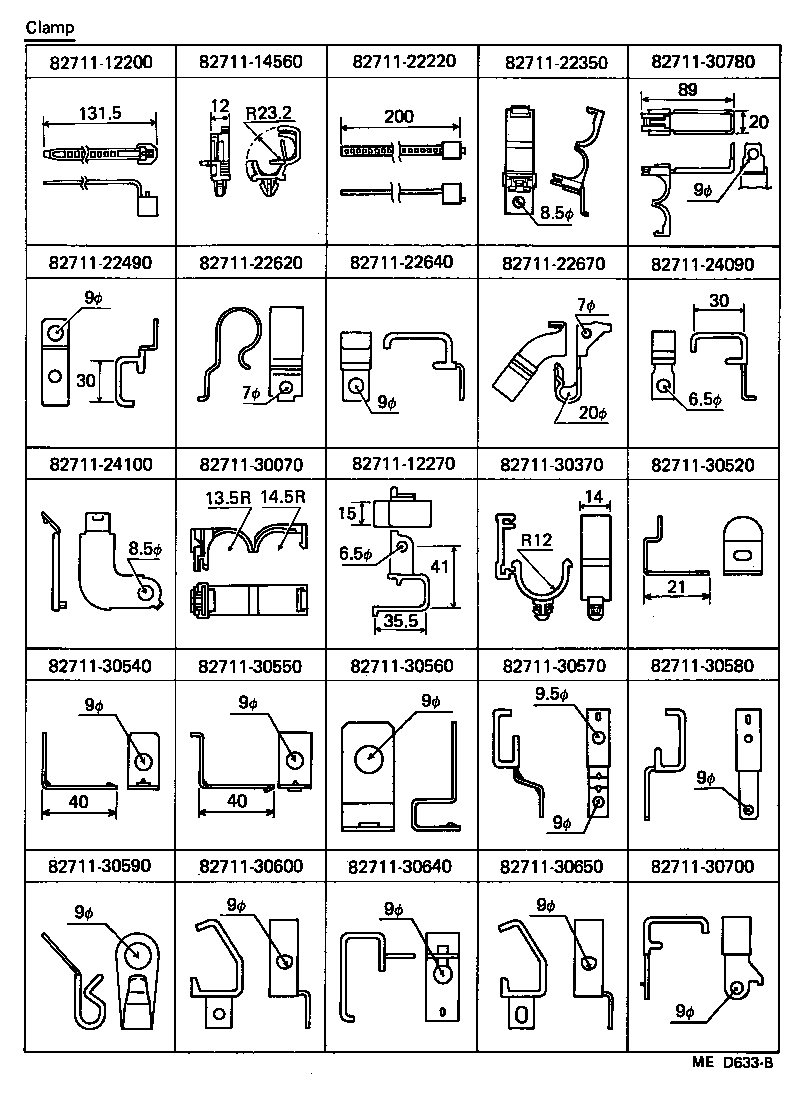

ILLUST NO. 5 OF 9(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12270 | ||||
| 82711-14560 | ||||
| 82711-22220 | ||||
| 82711-22350 | ||||
| 82711-22490 | ||||
| 82711-22620 | ||||
| 82711-22640 | ||||
| 82711-22670 | ||||
| 82711-24090 | ||||
| 82711-24100 | ||||
| 82711-30070 | ||||
| 82711-30370 | ||||
| 82711-30520 | ||||
| 82711-30540 | ||||
| 82711-30550 | ||||
| 82711-30560 | ||||
| 82711-30570 | ||||
| 82711-30580 | ||||
| 82711-30590 | ||||
| 82711-30600 | ||||
| 82711-30640 | ||||
| 82711-30650 | ||||
| 82711-30700 | ||||
| 82711-30780 | ||||

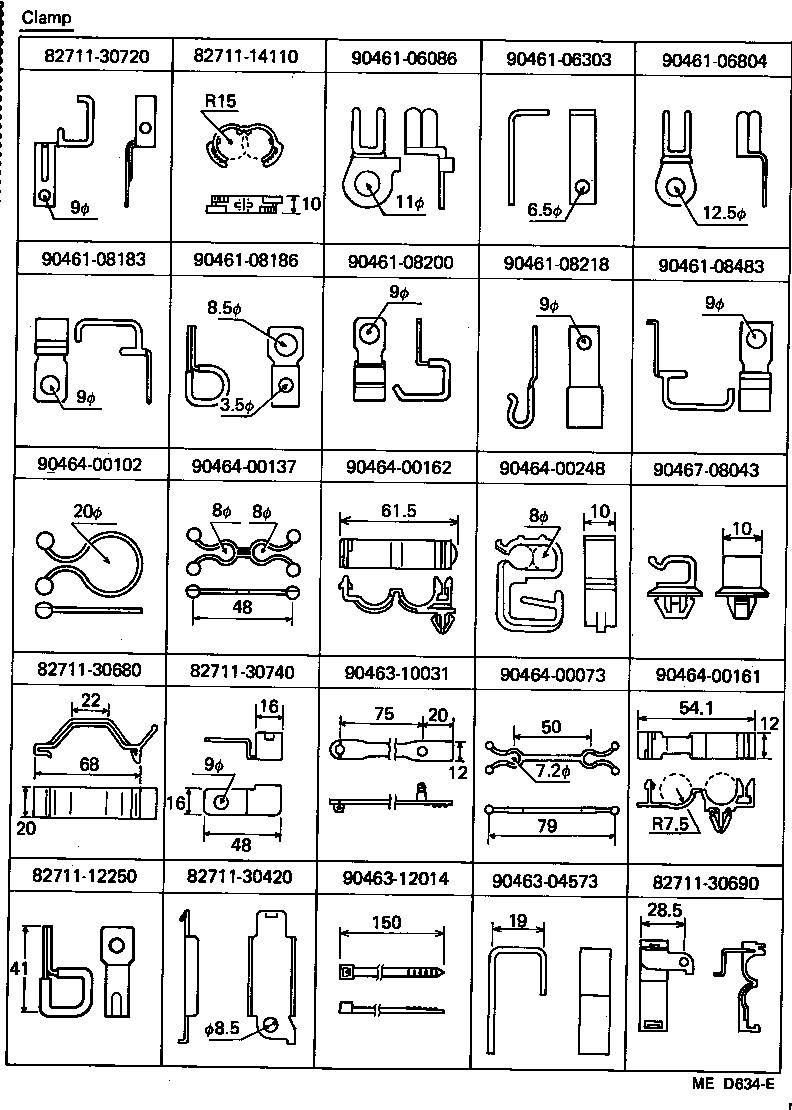

ILLUST NO. 6 OF 9(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12250 | ||||
| 82711-14110 | ||||
| 82711-30420 | ||||
| 82711-30680 | ||||
| 82711-30690 | ||||
| 82711-30720 | ||||
| 82711-30740 | ||||
| 90461-06086 | ||||
| 90461-06303 | ||||
| 90461-06804 | ||||
| 90461-08183 | ||||
| 90461-08186 | ||||
| 90461-08200 | ||||
| 90461-08218 | ||||
| 90461-08483 | ||||
| 90463-04573 | ||||
| 90463-10031 | ||||
| 90463-12014 | ||||
| 90464-00073 | ||||
| 90464-00102 | ||||
| 90464-00137 | ||||
| 90464-00161 | ||||
| 90464-00162 | ||||
| 90464-00248 | ||||
| 90467-08043 | ||||

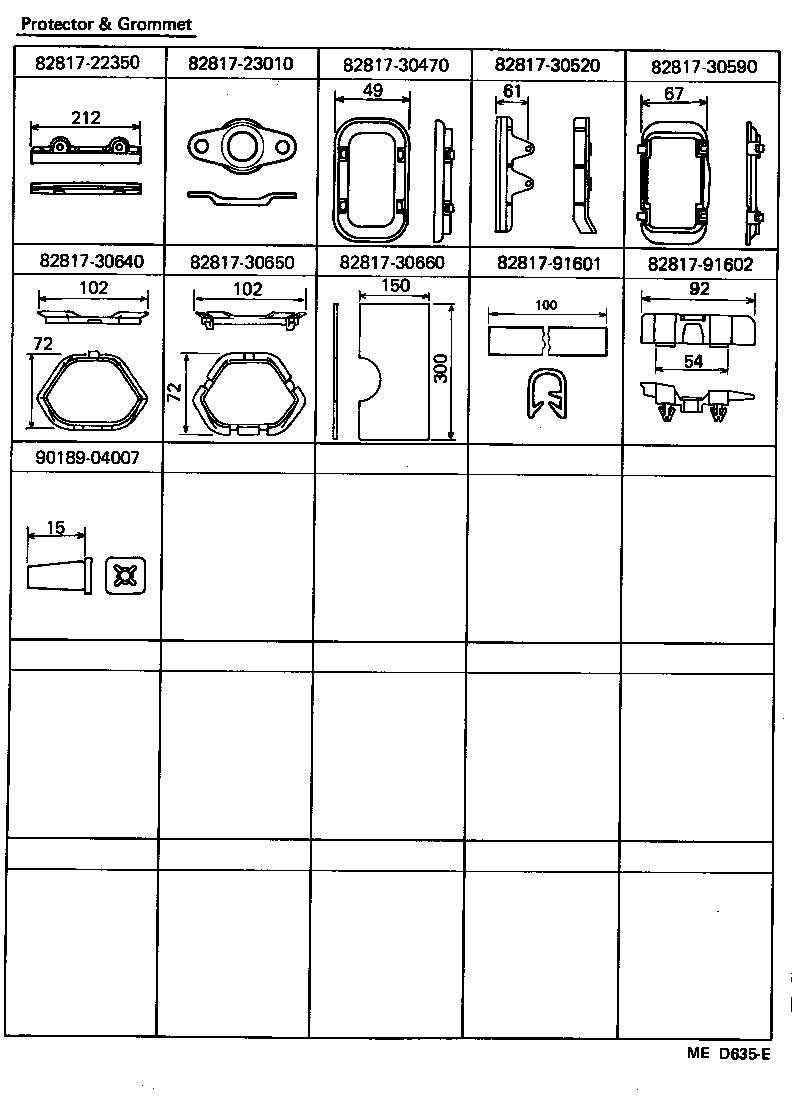

ILLUST NO. 8 OF 9(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82817-22350 | ||||
| 82817-23010 | ||||
| 82817-30470 | ||||
| 82817-30520 | ||||
| 82817-30590 | ||||
| 82817-30640 | ||||
| 82817-30650 | ||||
| 82817-30660 | ||||
| 82817-91601 | ||||
| 82817-91602 | ||||
| 90189-04007 | ||||

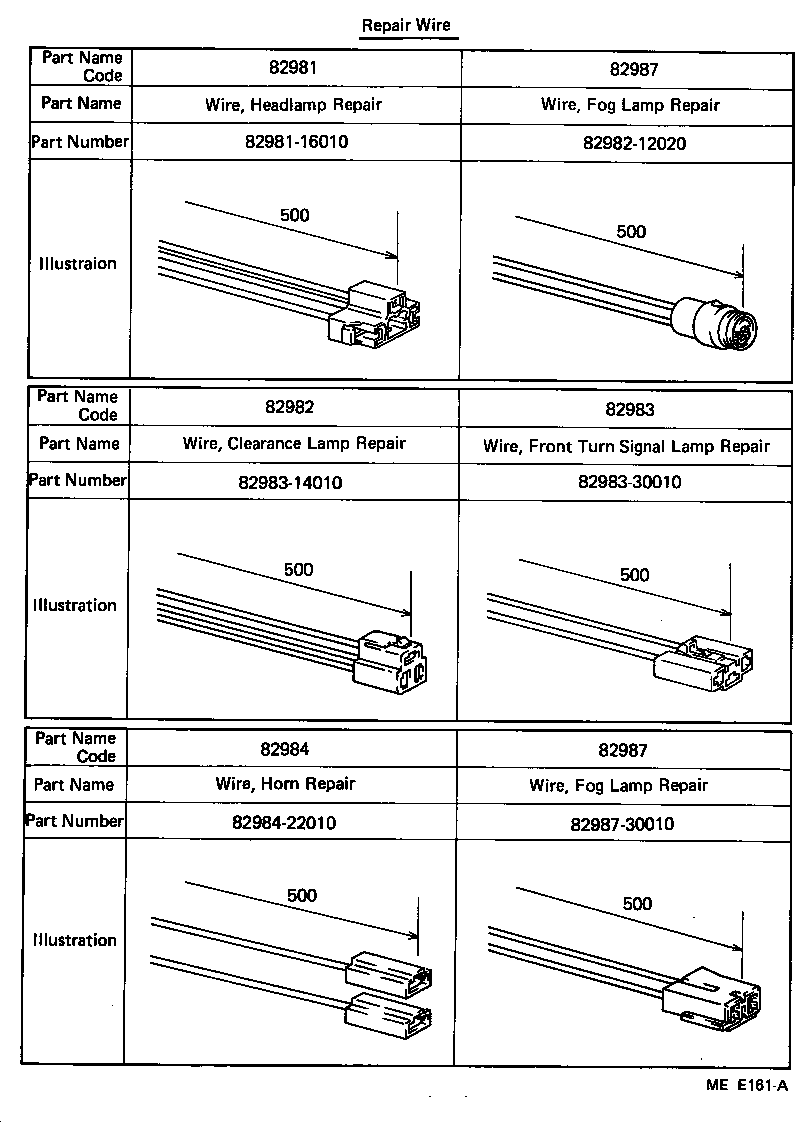

ILLUST NO. 3 OF 9(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-16010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82983-14010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-30010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-30010 |
MS123,125..HT |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-30010 |
MS123,125..HT |
1 | ||
| Common parts | ||||
| 82981-16010 | ||||
| 82982-12020 | ||||
| 82983-14010 | ||||
| 82983-30010 | ||||
| 82984-22010 | ||||
| 82987-30010 | ||||

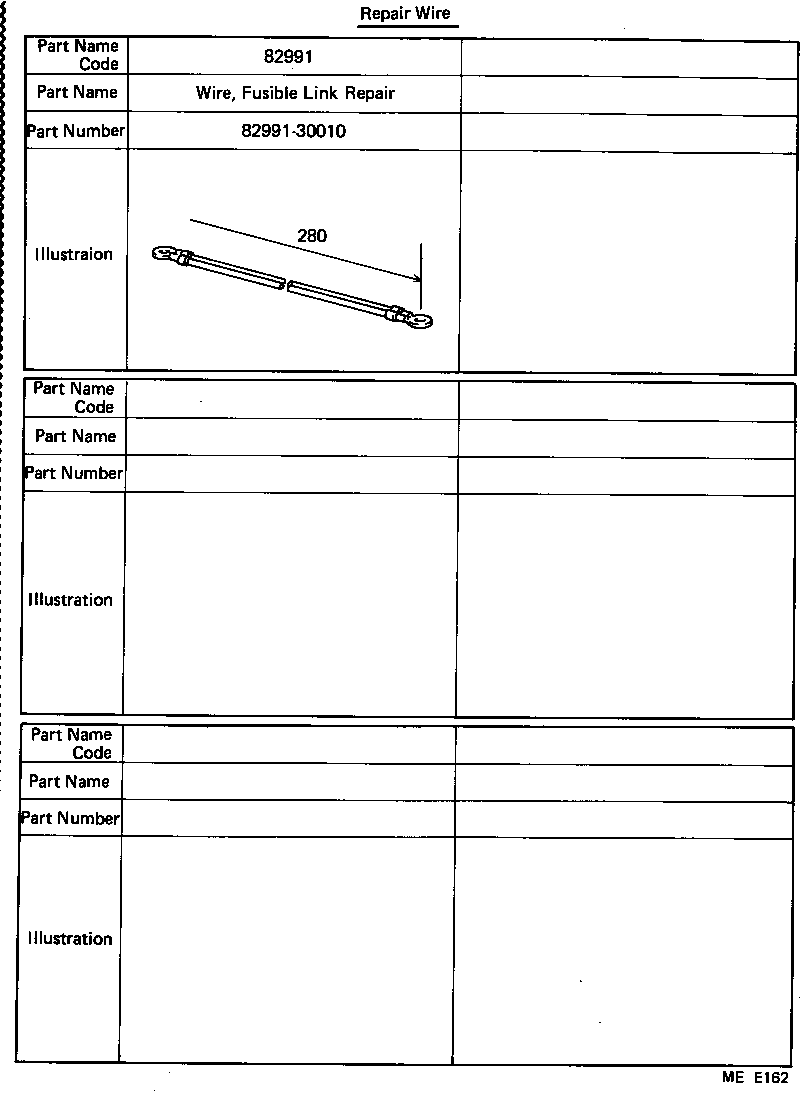

ILLUST NO. 4 OF 9(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-30010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| Common parts | ||||
| 82991-30010 | ||||
