MS123-STSQF (1983)
Toyota Crown

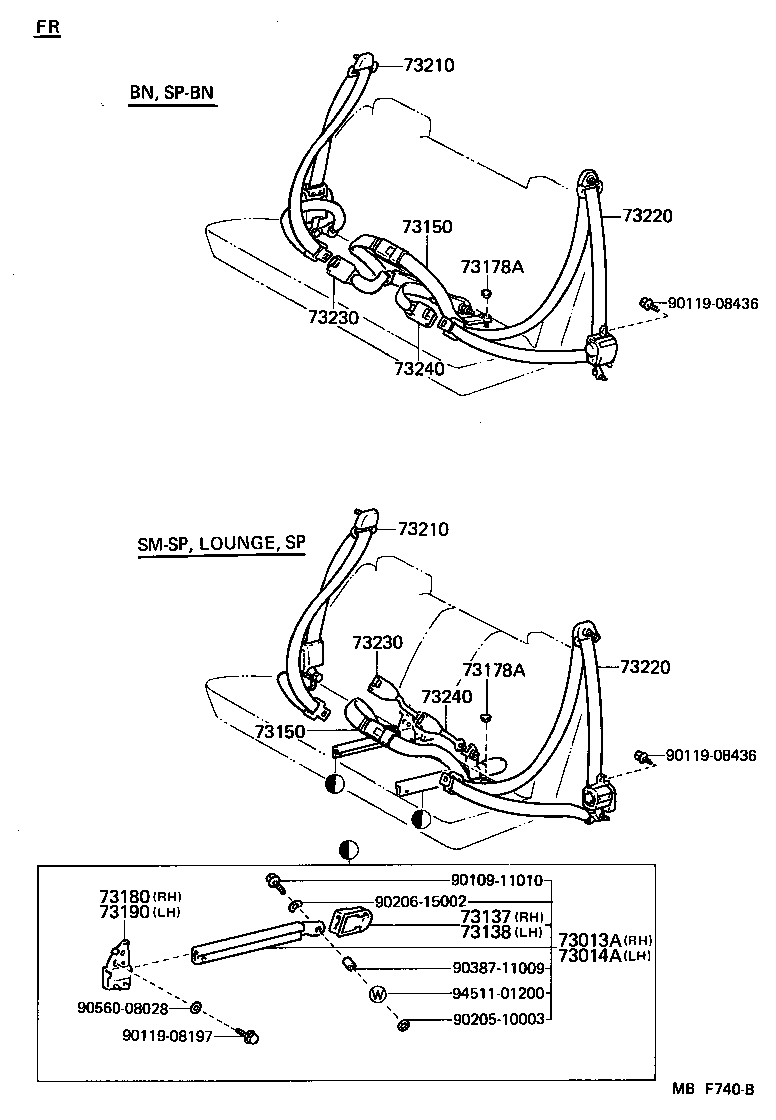

ILLUST NO. 1 OF 2(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73013A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH | ||||
| 73013-3001002 |
GS120,121,MS123,125..(HT,SED)..4HC..(ROY,SAL) LOUNGE,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73013-3001005 |
GS120,121,MS123,125..(HT,SED)..4HC..(ROY,SAL) LOUNGE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 73013-3001004 |
GS120,121,MS123,125..(HT,SED)..4HC..(ROY,SAL) LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 73014A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH | ||||
| 73014-3001004 |
GS120,121,MS123,125..(HT,SED)..4HC..(ROY,SAL) LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 73014-3001005 |
GS120,121,MS123,125..(HT,SED)..4HC..(ROY,SAL) LOUNGE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 73014-3001002 |
GS120,121,MS123,125..(HT,SED)..4HC..(ROY,SAL) LOUNGE,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73137 - CAP, FRONT SEAT BELT INNER ANCHOR, RH | ||||
| 73137-3002005 |
GS120,121,LS120,MS12#..ROY,SAL,SPE BEIGE,BEIGE,TRIM4# |
1 | ||
| 73137-3002002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73137-3002004 |
GS120,121,LS120,MS12#..ROY,SAL,SPE,SSL BLUE,BLUE,TRIM8# |
1 | ||
| 73138 - CAP, FRONT SEAT BELT INNER ANCHOR, LH | ||||
| 73138-3002002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73138-3002005 |
GS120,121,LS120,MS12#..ROY,SAL,SPE BEIGE,BEIGE,TRIM4# |
1 | ||
| 73138-3002004 |
GS120,121,LS120,MS12#..ROY,SAL,SPE,SSL BLUE,BLUE,TRIM8# |
1 | ||
| 73180 - BRACKET ASSY, SEAT BELT INNER ANCHOR, RH | ||||
| 73011-30030 |
GS120,121,MS12#..(4H,4HC)..(ROY,SAL,SDX) |
1 | ||
| 73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH | ||||
| 73012-30030 |
GS120,121,MS12#..(4H,4HC)..(ROY,SAL,SDX) |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-3035002 |
GS121,MS123,125..HT..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73210-3035004 |
GS121,MS123,125..HT..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 73210-3035005 |
GS121,MS123,125..HT..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-3035002 |
GS121,MS123,125..HT..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73210-3035004 |
GS121,MS123,125..HT..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 73210-3035005 |
GS121,MS123,125..HT..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-3013005 |
GS121,MS123,125..HT..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 73220-3013004 |
GS121,MS123,125..HT..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 73220-3013002 |
GS121,MS123,125..HT..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-3013005 |
GS121,MS123,125..HT..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 73220-3013004 |
GS121,MS123,125..HT..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 73220-3013002 |
GS121,MS123,125..HT..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-3035004 |
GS121,MS123,125..HT..4HC BLUE,BLUE,TRIM8# |
1 | ||
| 73230-3035002 |
GS121,MS123,125..HT..4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73230-3035005 |
GS121,MS123,125..HT..4HC BEIGE,BEIGE,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-3035004 |
GS121,MS123,125..HT..4HC BLUE,BLUE,TRIM8# |
1 | ||
| 73230-3035002 |
GS121,MS123,125..HT..4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73230-3035005 |
GS121,MS123,125..HT..4HC BEIGE,BEIGE,TRIM4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-3026004 |
GS121,MS123,125..HT..4HC BLUE,BLUE,TRIM8# |
1 | ||
| 73230-3026002 |
GS121,MS123,125..HT..4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73230-3026005 |
GS121,MS123,125..HT..4HC BEIGE,BEIGE,TRIM4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-3026004 |
GS121,MS123,125..HT..4HC BLUE,BLUE,TRIM8# |
1 | ||
| 73230-3026002 |
GS121,MS123,125..HT..4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73230-3026005 |
GS121,MS123,125..HT..4HC BEIGE,BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90109-11010 | ||||
| 90119-08197 | ||||
| 90119-08436 | ||||
| 90205-10003 | ||||
| 90206-15002 | ||||
| 90387-11009 | ||||
| 90560-08028 | ||||
| 94511-01200 | ||||

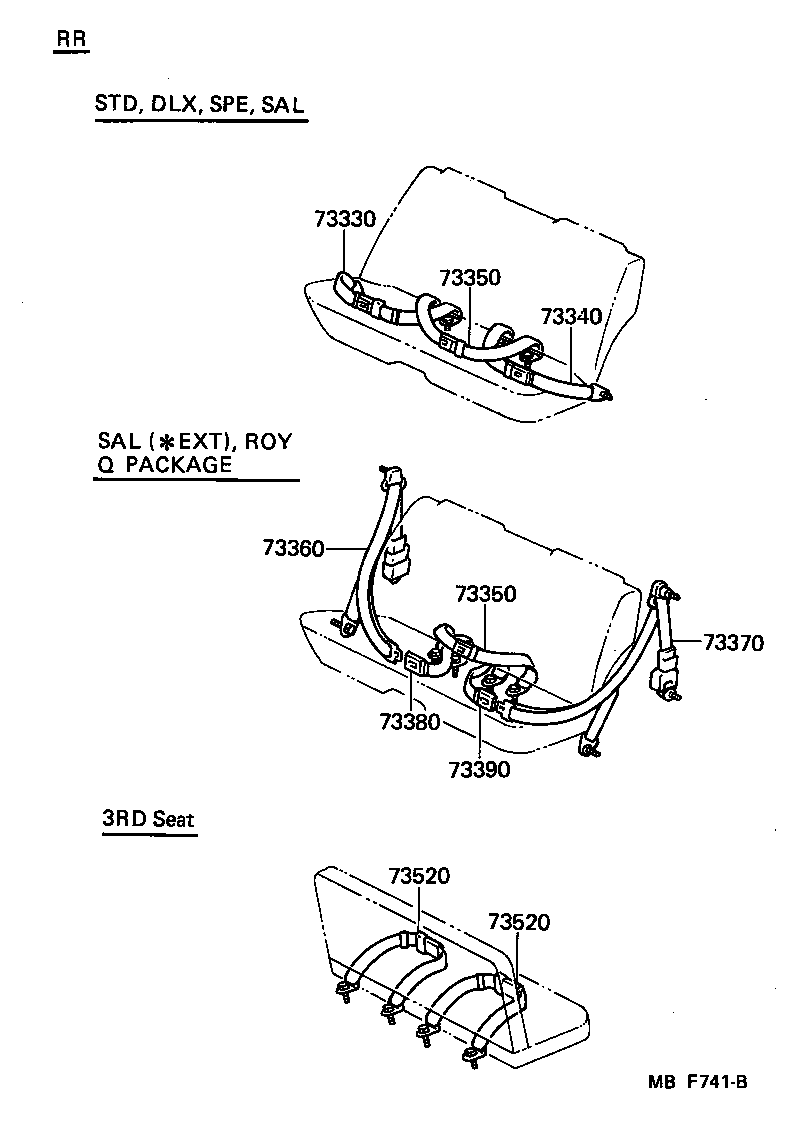

ILLUST NO. 2 OF 2(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-3004005 |
GS121,MS123,125..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 73360-3004002 |
GS121,MS123,125..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73360-3004004 |
GS121,MS123,125..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-3003002 |
GS121,MS123,125..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73370-3003005 |
GS121,MS123,125..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 73370-3003004 |
GS121,MS123,125..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-3005002 |
GS121,MS123,125..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73380-3005005 |
GS121,MS123,125..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 73380-3005004 |
GS121,MS123,125..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73380-3005002 |
GS121,MS123,125..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73380-3005005 |
GS121,MS123,125..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 73380-3005004 |
GS121,MS123,125..ROY BLUE,BLUE,TRIM8# |
1 | ||
