MS123-STPQF (1983)
Toyota Crown

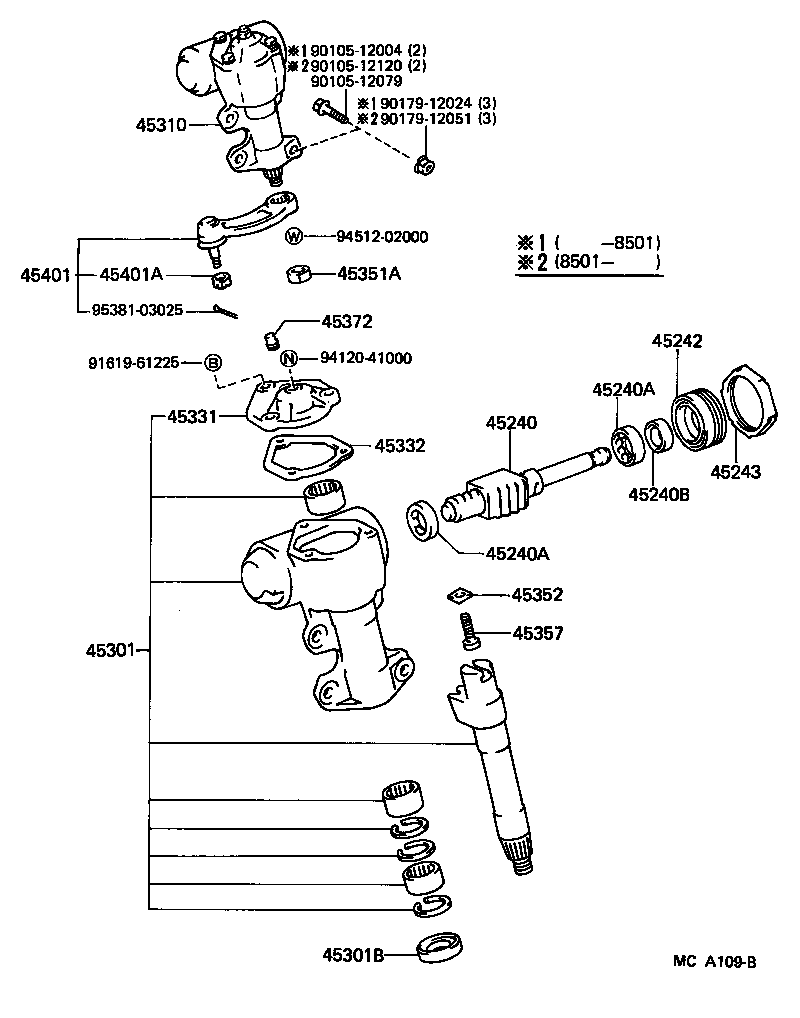

ILLUST NO. 2 OF 3(8308- )GS120..WG..MTM ; (8308- )GS126,LS126,YS120 ; (8308- )GS120,LS120,M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-12004 | ||||
| 90105-12079 | ||||
| 90105-12120 | ||||
| 90179-12024 | ||||
| 90179-12051 | ||||
| 91619-61225 | ||||
| 94120-41000 | ||||
| 94512-02000 | ||||
| 95381-03025 | ||||

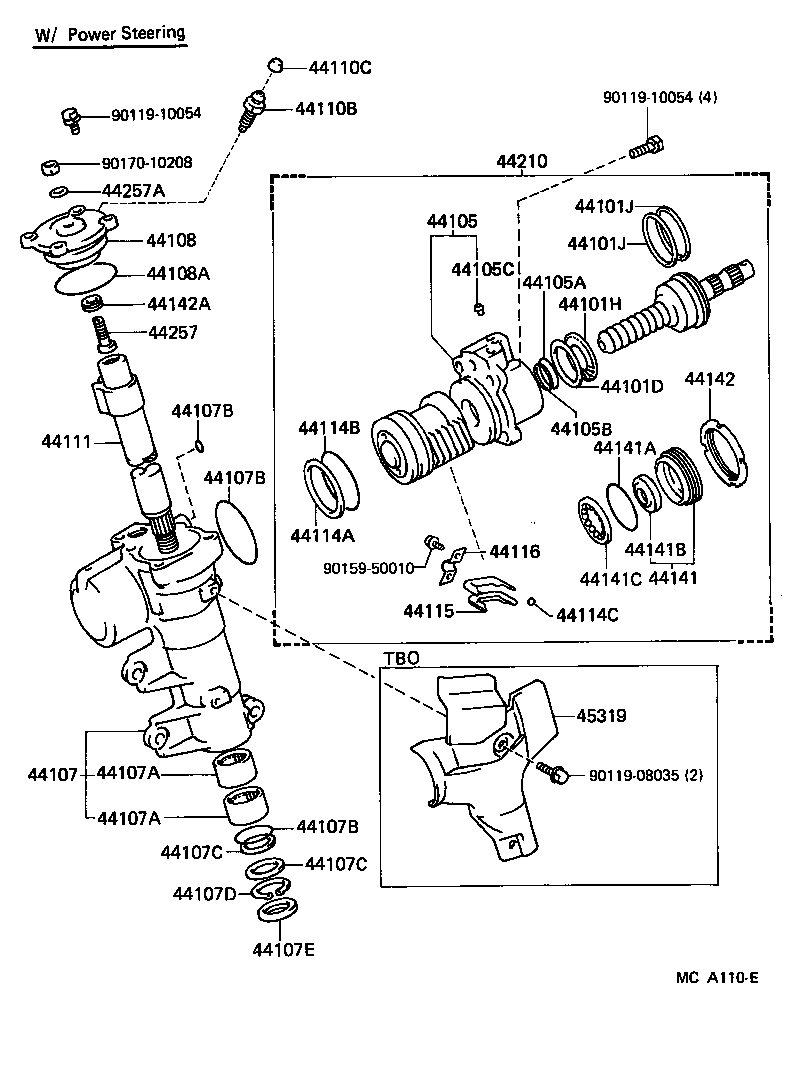

ILLUST NO. 3 OF 3(8308- )LS120,YS120 ; (8308- )GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101D - WASHER, PLATE(FOR STEERING WORM) | ||||
| 90201-30003 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) | ||||
| 90374-30003 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-48001 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
2 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-48001 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
2 | ||
| 44105 - HOUSING SUB-ASSY, VALVE | ||||
| 44105-30060 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-32002 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44105B - RING(FOR VALVE HOUSING) | ||||
| 90562-30002 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06006 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-30130 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL) PROGRESSIBLE TYPE |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL 内径=33.7,外径=40.7,OD=40.7,T=3.5 |
1 | ||
| 90301-65145 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL 内径=65.0,外径=70.0,OD=70,T=2.5 |
1 | ||
| 96711-19010 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL 外径=13.6,内径=9.8,OD=13,T=1.9 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL 内径=33.7,外径=40.7,OD=40.7,T=3.5 |
1 | ||
| 90301-65145 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL 内径=65.0,外径=70.0,OD=70,T=2.5 |
1 | ||
| 96711-19010 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL 外径=13.6,内径=9.8,OD=13,T=1.9 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL 内径=33.7,外径=40.7,OD=40.7,T=3.5 |
1 | ||
| 90301-65145 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL 内径=65.0,外径=70.0,OD=70,T=2.5 |
1 | ||
| 96711-19010 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL 外径=13.6,内径=9.8,OD=13,T=1.9 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32002 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL 内径=32,外径=40,OD=40,T=3 |
1 | ||
| 90562-31002 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4,OD=34.1,T=4 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32002 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL 内径=32,外径=40,OD=40,T=3 |
1 | ||
| 90562-31002 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL 内径=31.7,外径=34.1,厚さ=4,OD=34.1,T=4 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-44002 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32002 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-30030 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-61001 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-30060 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-67001 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-63001 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44114C - BALL(FOR POWER PISTON NUT) | ||||
| 90360-06021 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
44 | ||
| 44115 - GUIDE, BALL | ||||
| 44115-30030 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
2 | ||
| 44116 - CLAMP, BALL GUIDE | ||||
| 44116-30030 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22004 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-30110 |
LS120,MS12#..(HT,SED)..(ROY,SAL) |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-22010 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| Common parts | ||||
| 90119-08035 | ||||
| 90119-10054 | ||||
| 90159-50010 | ||||
| 90170-10208 | ||||

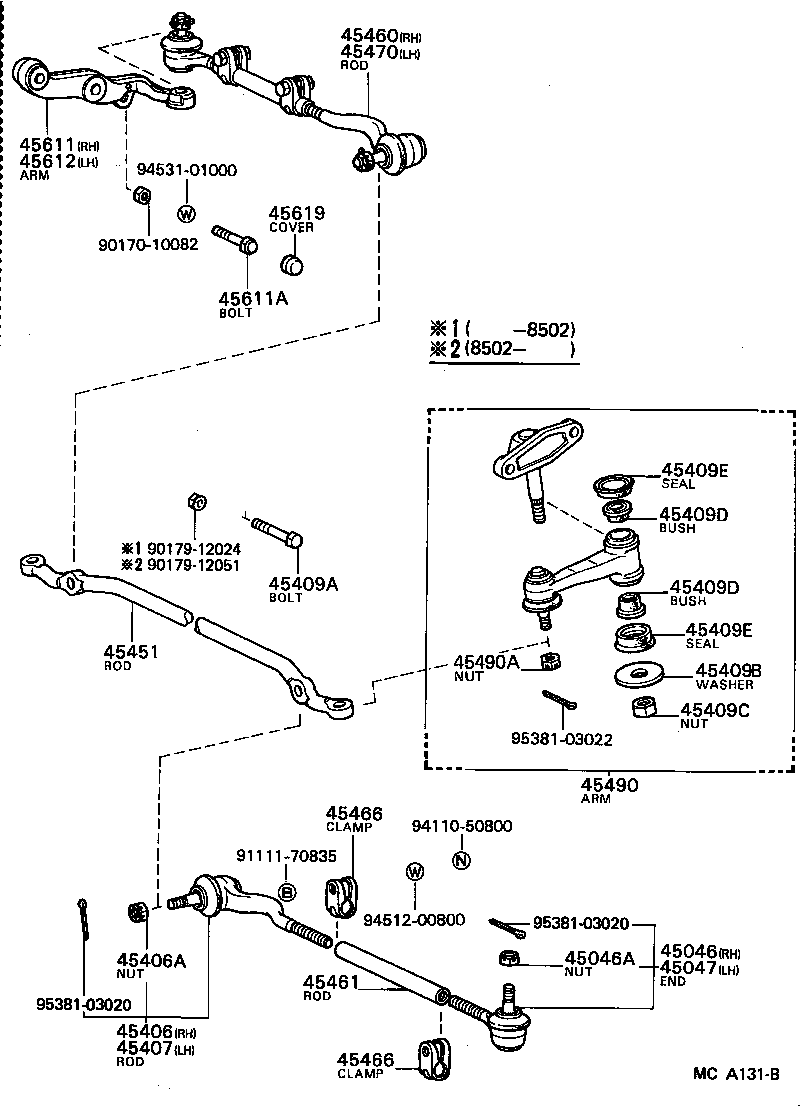

ILLUST NO. 1 OF 3(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39155 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-39155 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-39105 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-12028 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-39105 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING) | ||||
| 90105-12003 |
GS12#,LS12#,MS12#,YS120 L=91.5 |
1 | ||
| 90105-12004 |
GS12#,LS12#,MS12#,YS120 L=101 |
1 | ||
| 45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH) | ||||
| 90201-14519 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45409C - NUT(FOR IDLER ARM SUPPORT) | ||||
| 94184-61400 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 45451 - ROD, STEERING RELAY | ||||
| 45451-30180 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL W/POWER STEERING |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39195 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35010 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
GS12#,LS12#,MS12#,YS120 |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
GS12#,LS12#,MS12#,YS120 |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-39195 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-39205 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL W/POWER STEERING |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-30110 |
LS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL W/POWER STRG |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10002 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-30110 |
LS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL W/POWER STRG |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 90179-12024 | ||||
| 90179-12051 | ||||
| 91111-70835 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94531-01000 | ||||
| 95381-03020 | ||||
| 95381-03022 | ||||

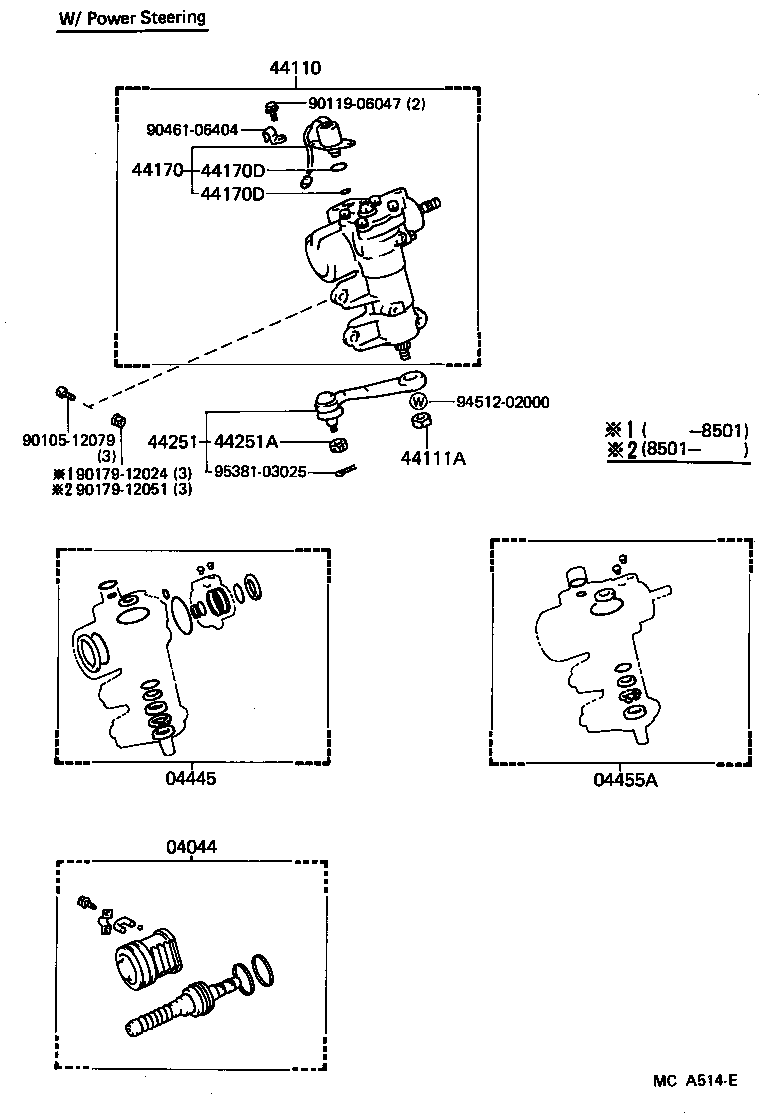

ILLUST NO. 2 OF 3(8308- )LS120,YS120 ; (8308- )GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04044 - WARM KIT, POWER STEERING | ||||
| 04044-30100 |
LS120,MS12#..(HT,SED)..(ROY,SAL) |
1 | ||
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-30080 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-30010 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-30170 |
LS120,MS12#..(HT,SED)..(ROY,SAL) PROGRESSIBLE TYPE |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44170 - VALVE ASSY, SOLENOID(FOR POWER STEERING) | ||||
| 44170-30030 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL) |
1 | ||
| 44170D - RING, O(FOR POWER STEERING SOLENOID VALVE) | ||||
| 96711-19021 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL) SOLENOID VALVE SIDE |
1 | ||
| 90301-06179 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL) GEAR HOUSING SIDE |
1 | ||
| 44170D - RING, O(FOR POWER STEERING SOLENOID VALVE) | ||||
| 96711-19021 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL) SOLENOID VALVE SIDE |
1 | ||
| 90301-06179 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL) GEAR HOUSING SIDE |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45401-39235 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| Common parts | ||||
| 90105-12079 | ||||
| 90119-06047 | ||||
| 90179-12024 | ||||
| 90179-12051 | ||||
| 90461-06404 | ||||
| 94512-02000 | ||||
| 95381-03025 | ||||
