MS123-STPQF (1983)

Toyota Crown

Production Aug 1983 - Aug 1984
Engine 5MGEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408)5MGEU,MPU,MTEU

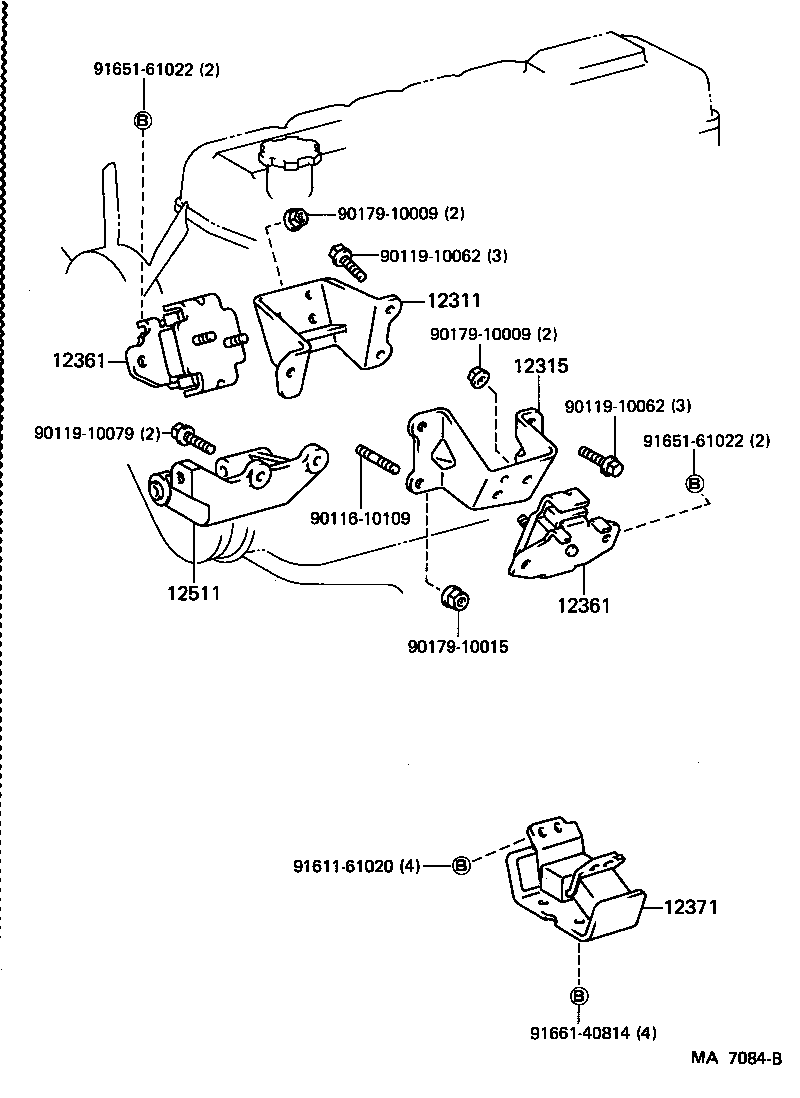

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12511 9011610109 9011910062 9011910062 9011910079 9017910009 9017910009 9017910015 9161161020 9165161022 9165161022 9166140814
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-41070

5MGEU,MPU,MTEU..MS12#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-41080

5MGEU,MPU,MTEU..MS12#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-41100

5MGEU,MPU,MTEU..MS12#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-41100

5MGEU,MPU,MTEU..MS12#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-41070

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-43010

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
Common parts
90116-10109
90119-10062
90119-10079
90179-10009
90179-10015
91611-61020
91651-61022
91661-40814
