MS123-STPQF (1983)

Toyota Crown

Production Aug 1983 - Aug 1984
Engine 5MGEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408)5MGEU

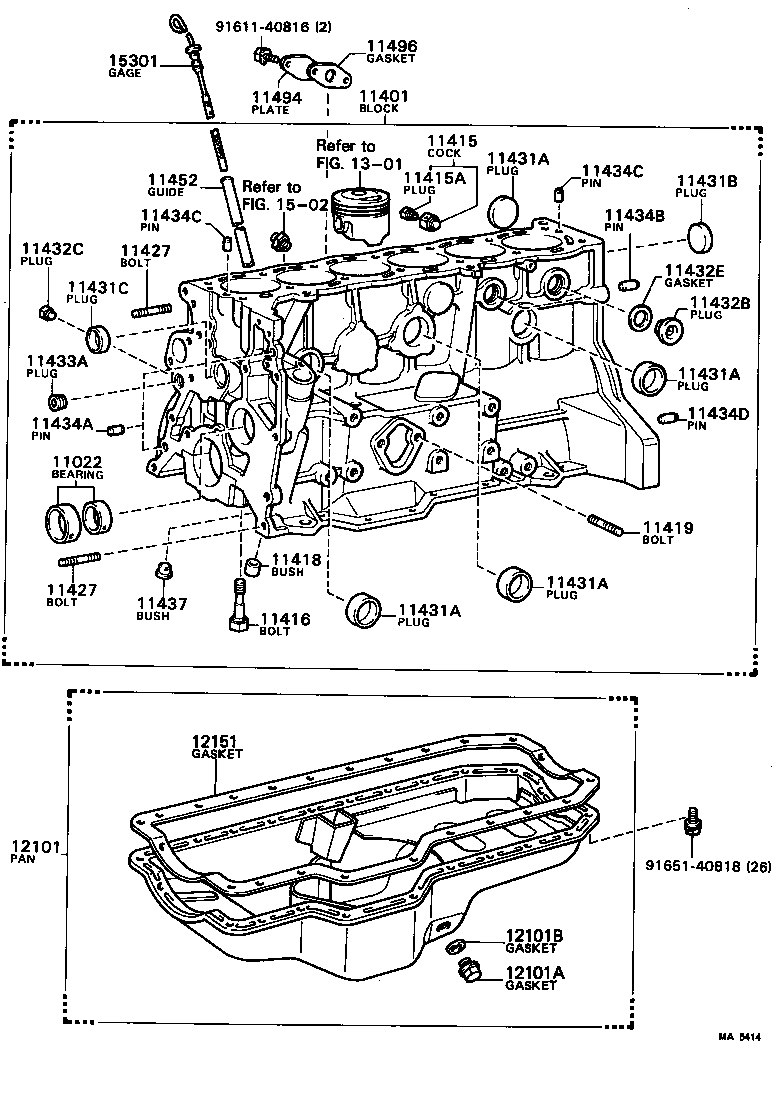

Click highlighted areas on diagram

diagram 11022 11401 11415 11415A 11416 11418 11419 11427 11427 11431A 11431A 11431A 11431A 11431B 11431C 11432B 11432C 11432E 11433A 11434A 11434B 11434C 11434C 11434D 11437 11452 11494 11496 12101 12101A 12101B 12151 1301 1502 15301 9161140816 9165140818
Part # Description Qty Price
11022 - BEARING SET, PUMP DRIVE SHAFT
11022-41010

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-49325

5MGEU..MS123

 1
11401-49425

5MGEU..MS123

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09070

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09072

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02047

5MGEU,6MGEU,MPU,MTEU..MS12#

*12-1.25PX67-22

 14
11418 - BUSH, SOLID(FOR DISTRIBUTOR)
90999-70056

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
11419 - BOLT, STUD(FOR FUEL PUMP)
90116-08185

5MGEU,MPU,MTEU..MS12#

L=39,S=25&9

 2
11427 - BOLT, STUD(FOR TIMING CHAIN COVER SET)
90116-08147

5MGEU,6MGEU,MPU,MTEU..MS12#

L=68,S=12&24

 2
92122-60860

5MGEU,6MGEU..MS123,125

L=72,S=18&12

 1
11427 - BOLT, STUD(FOR TIMING CHAIN COVER SET)
90116-08147

5MGEU,6MGEU,MPU,MTEU..MS12#

L=68,S=12&24

 2
92122-60860

5MGEU,6MGEU..MS123,125

L=72,S=18&12

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-44000

5MGEU,6MGEU,MPU,MTEU..MS12#

OD=40

 7
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-44000

5MGEU,6MGEU,MPU,MTEU..MS12#

OD=40

 7
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-44000

5MGEU,6MGEU,MPU,MTEU..MS12#

OD=40

 7
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-44000

5MGEU,6MGEU,MPU,MTEU..MS12#

OD=40

 7
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96412-43500

5MGEU,6MGEU,MPU,MTEU..MS12#

OD=35

 1
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

5MGEU,6MGEU,MPU,MTEU..MS12#

OD=35

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-32070

5MGEU,6MGEU..MS123,125

 2
11432C - PLUG, W/HEAD TAPER SCREW, NO.3
90345-51025

5MGEU,MPU,MTEU..MS12#

 2
11432E - GASKET, W/HEAD TAPER SCREW PLUG
90430-32222

5MGEU,6MGEU..MS123,125

 2
11433A - PLUG, STRAIGHT, NO.1
90344-53015

5MGEU,6MGEU,MPU,MTEU..MS12#

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-10192

5MGEU,6MGEU,MPU,MTEU..MS12#

長さ=22,外径=10,L=22,OD=10

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10192

5MGEU,6MGEU,MPU,MTEU..MS12#

長さ=22,外径=10,L=22,OD=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08112

5MGEU,MPU,MTEU..MS12#

長さ=16,外径=8,L=16,OD=8

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08112

5MGEU,MPU,MTEU..MS12#

長さ=16,外径=8,L=16,OD=8

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-10192

5MGEU,6MGEU,MPU,MTEU..MS12#

長さ=22,外径=10,L=22,OD=10

 2
11437 - BUSH, OIL PUMP SHAFT GUIDE
11437-45010

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-41030

5MGEU,6MGEU,MTEU..MS12#

 1
11494 - PLATE, OIL HOLE COVER
11494-45010

5MGEU,6MGEU,MPU..MS12#

FR

 1
11496 - GASKET, OIL HOLE COVER PLATE
15318-45011

5MGEU,6MGEU,MPU..MS12#

FR

 1
12101 - PAN SUB-ASSY, OIL
12101-49265

5MGEU,MPU..MS12#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

5MGEU,6MGEU,MPU,MTEU..MS12#

*18-1.5PX12-10

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

5MGEU,6MGEU,MPU,MTEU..MS12#

ID=18

 1
12151 - GASKET, OIL PAN
12151-41010

5MGEU,MPU,MTEU..MS12#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-43010

5MGEU..MS123

 1
Common parts
91611-40816
91651-40818
Linked diagrams
1301
1502
