MS123-SESQF (1983)
Toyota Crown
ILLUST NO. 2 OF 2(8308- )GS121,MS123,125
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-30360 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 87108 - DIAPHRAGM SUB-ASSY, HEATER DOOR CONTROL | ||||
| 87108-30390 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 87108A - DIAPHRAGM SUB-ASSY, VENTILATOR DOOR CONTROL | ||||
| 87108-30380 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 87108B - DIAPHRAGM SUB-ASSY, BI-LEVEL DOOR CONTROL | ||||
| 87108-30400 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-30420 |
MS123,125 W/*MPAAC |
1 | ||
| 87150-30440 |
GS121,MS123,125..ROY W/*AAC |
1 | ||
| 87151A - HOSE, VACUUM, A | ||||
| 90447-04005 |
GS121,MS123,125 W/*AAC |
1 | ||
| 90447-04003 |
MS123 W/*MPAAC |
2 | ||
| 87151B - HOSE, VACUUM, B | ||||
| 90445-06032 |
MS123 W/*MPAAC |
2 | ||
| 90447-04011 |
GS121,MS123,125 W/*AAC |
1 | ||
| 87151C - HOSE, VACUUM, C | ||||
| 90447-04014 |
GS121,MS123,125 W/*AAC |
1 | ||
| 90445-06052 |
MS123,125 W/*MPAAC |
2 | ||
| 87151D - HOSE, VACUUM, D | ||||
| 90447-04011 |
MS123,125 W/*MPAAC |
1 | ||
| 90447-04018 |
GS121,MS123,125 W/*AAC |
1 | ||
| 87151E - HOSE, VACUUM, E | ||||
| 90447-04020 |
GS121,MS123,125 W/*AAC |
1 | ||
| 90447-04014 |
MS123,125 W/*MPAAC |
1 | ||
| 87151F - HOSE, VACUUM, F | ||||
| 90447-04023 |
GS121,MS123,125 W/*AAC |
1 | ||
| 90447-04018 |
MS123,125 W/*MPAAC |
1 | ||
| 87211E - DUCT, AIR | ||||
| 87211-30140 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 87660 - SERVO ASSY, AIR CONDITIONER | ||||
| 88660-30340 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 88660-30360 |
MS123,125 W/*MPAAC |
1 | ||
| 88897R - ASPIRATOR | ||||
| 88897-30640 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| Common parts | ||||
| 90179-06069 | ||||
| 90480-30017 | ||||

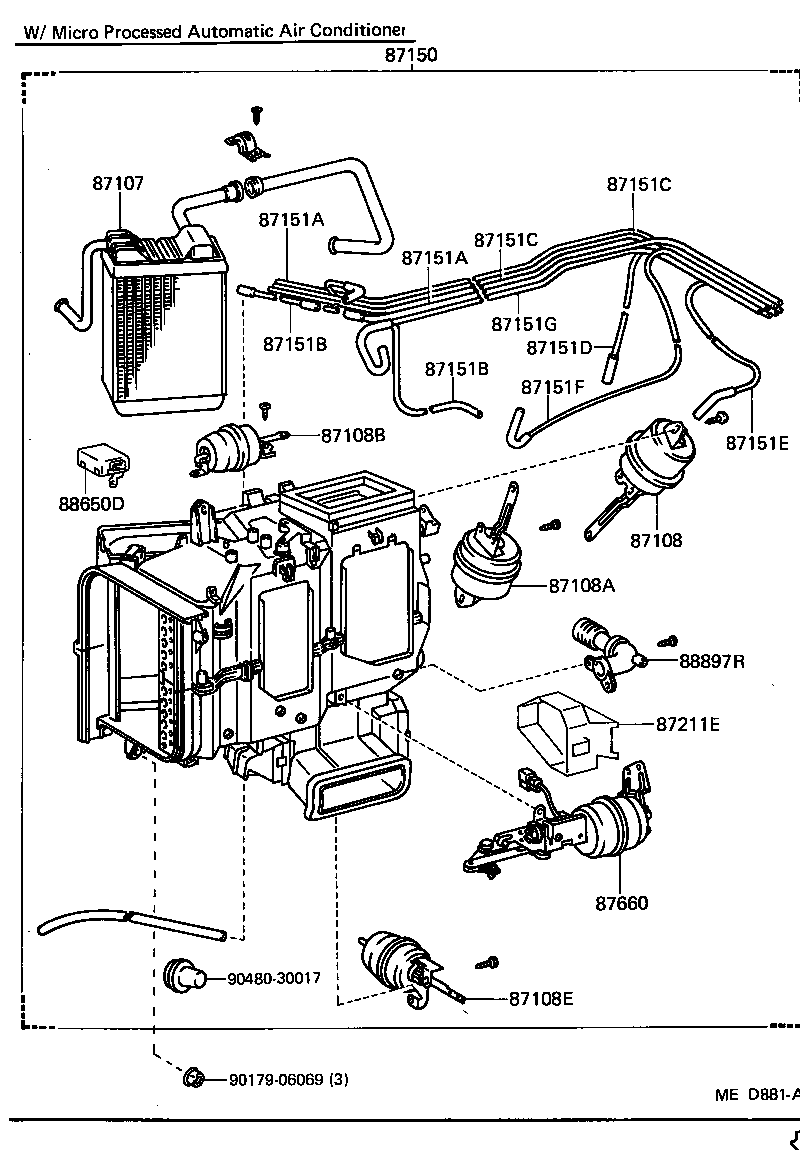

ILLUST NO. 2 OF 2(8308- )MS123,125 ; (8408- )GS121
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-30360 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 87108 - DIAPHRAGM SUB-ASSY, HEATER DOOR CONTROL | ||||
| 87108-30390 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 87108A - DIAPHRAGM SUB-ASSY, VENTILATOR DOOR CONTROL | ||||
| 87108-30380 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 87108B - DIAPHRAGM SUB-ASSY, BI-LEVEL DOOR CONTROL | ||||
| 87108-30400 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 87108E - DIAPHRAGM SUB-ASSY, AIR DOOR CONTROL | ||||
| 87108-30450 |
MS123,125 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-30420 |
MS123,125 W/*MPAAC |
1 | ||
| 87150-30440 |
GS121,MS123,125..ROY W/*AAC |
1 | ||
| 87151A - HOSE, VACUUM, A | ||||
| 90447-04005 |
GS121,MS123,125 W/*AAC |
1 | ||
| 90447-04003 |
MS123 W/*MPAAC |
2 | ||
| 87151A - HOSE, VACUUM, A | ||||
| 90447-04005 |
GS121,MS123,125 W/*AAC |
1 | ||
| 90447-04003 |
MS123 W/*MPAAC |
2 | ||
| 87151B - HOSE, VACUUM, B | ||||
| 90445-06032 |
MS123 W/*MPAAC |
2 | ||
| 90447-04011 |
GS121,MS123,125 W/*AAC |
1 | ||
| 87151B - HOSE, VACUUM, B | ||||
| 90445-06032 |
MS123 W/*MPAAC |
2 | ||
| 90447-04011 |
GS121,MS123,125 W/*AAC |
1 | ||
| 87151C - HOSE, VACUUM, C | ||||
| 90447-04014 |
GS121,MS123,125 W/*AAC |
1 | ||
| 90445-06052 |
MS123,125 W/*MPAAC |
2 | ||
| 87151C - HOSE, VACUUM, C | ||||
| 90447-04014 |
GS121,MS123,125 W/*AAC |
1 | ||
| 90445-06052 |
MS123,125 W/*MPAAC |
2 | ||
| 87151D - HOSE, VACUUM, D | ||||
| 90447-04011 |
MS123,125 W/*MPAAC |
1 | ||
| 90447-04018 |
GS121,MS123,125 W/*AAC |
1 | ||
| 87151E - HOSE, VACUUM, E | ||||
| 90447-04020 |
GS121,MS123,125 W/*AAC |
1 | ||
| 90447-04014 |
MS123,125 W/*MPAAC |
1 | ||
| 87151F - HOSE, VACUUM, F | ||||
| 90447-04023 |
GS121,MS123,125 W/*AAC |
1 | ||
| 90447-04018 |
MS123,125 W/*MPAAC |
1 | ||
| 87151G - HOSE, VACUUM, G | ||||
| 90447-04023 |
MS123,125 W/*MPAAC |
1 | ||
| 87211E - DUCT, AIR | ||||
| 87211-30140 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 87660 - SERVO ASSY, AIR CONDITIONER | ||||
| 88660-30340 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 88660-30360 |
MS123,125 W/*MPAAC |
1 | ||
| 88650D - AMPLIFIER ASSY | ||||
| 88650-30480 |
MS123,125 W/*MPAAC |
1 | ||
| 88897R - ASPIRATOR | ||||
| 88897-30640 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| Common parts | ||||
| 90179-06069 | ||||
| 90480-30017 | ||||

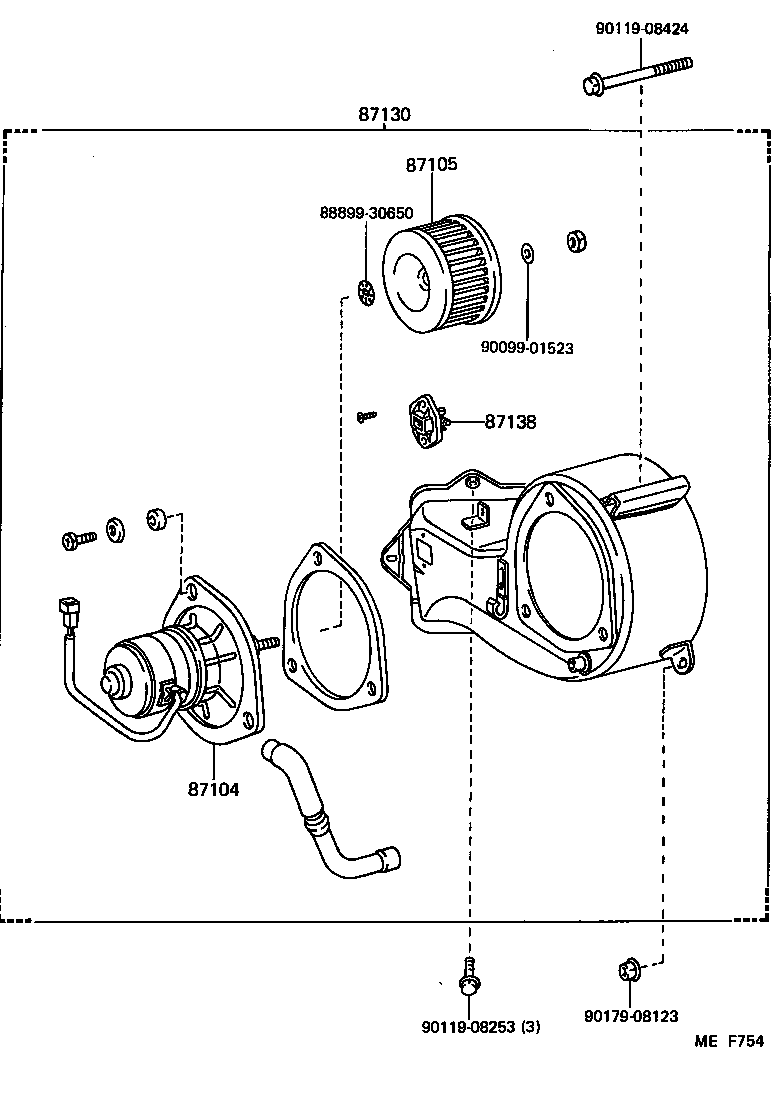

ILLUST NO. 1 OF 2(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-30360 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87134-30010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-30350 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-30300 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| Common parts | ||||
| 88899-30650 | ||||
| 90099-01523 | ||||
| 90119-08253 | ||||
| 90119-08424 | ||||
| 90179-08123 | ||||
