MS123-SESQF (1983)
Toyota Crown

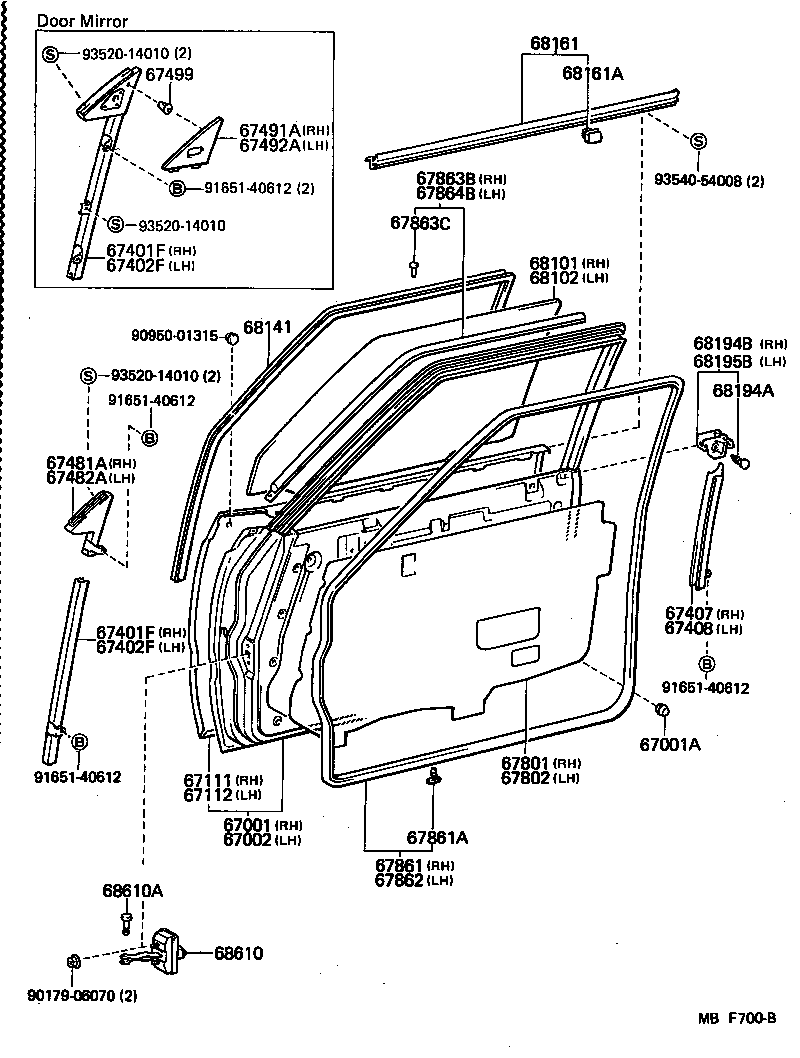

ILLUST NO. 1 OF 2(8308- )SED,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-30360 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09121 |
GS12#,LS12#,MS12#,YS120 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-30440 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-30240 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-30300 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-30140 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-30140 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-30140 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-30140 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-30070 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-30070 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-30040 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67482-30030 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH | ||||
| 67831-30250 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL,SDX) COLD SPEC |
1 | ||
| 67831-30220 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL,SDX) |
1 | ||
| 67802 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH | ||||
| 67832-30120 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL,SDX) COLD SPEC |
1 | ||
| 67832-30090 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL,SDX) |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-30140 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
44 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-30140 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-30060 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) |
1 | ||
| 67863C - CLIP(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67868-30040 |
GS12#,LS12#,MS12#,YS120..SED,V,WG RR,W/DOUBLE WEATHERSTRIP |
2 | ||
| 67869-30020 |
GS12#,LS12#,MS12#,YS120..SED,V,WG FR,W/DOUBLE WEATHERSTRIP |
2 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-30060 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-30300 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(DLX,ROY,SAL,SDX) *TT,T=4.0 |
1 | ||
| 68111-30350 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) BRONZE,*TT,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-30230 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(DLX,ROY,SAL,SDX) *TT,T=4.0 |
1 | ||
| 68112-30280 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) BRONZE,*TT,T=4.0 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-30110 |
GS120,121,LS120,MS12#,YS120..SED,WG PLANT.A21-A26 |
2 | ||
| 68141-30130 |
GS12#,LS12#,MS12#,YS120..SED,V,WG PLANT.M21-M22 |
2 | ||
| 68194A - CLIP(FOR FRONT DOOR BELT SEAL) | ||||
| 67869-12010 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
2 | ||
| 68194B - SEAL, FRONT DOOR BELT, REAR RH | ||||
| 68194-30020 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 68195B - SEAL, FRONT DOOR BELT, REAR LH | ||||
| 68195-30030 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-30020 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-30010 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90950-01315 | ||||
| 91651-40612 | ||||
| 93520-14010 | ||||
| 93540-54008 | ||||

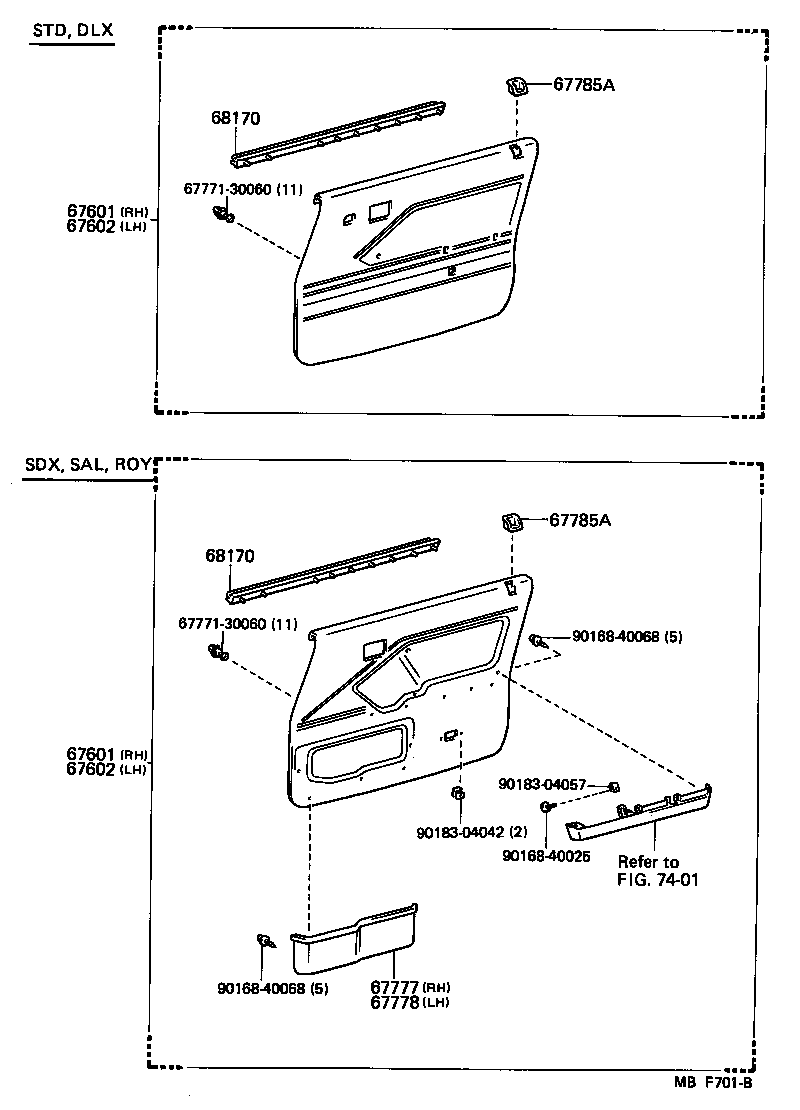

ILLUST NO. 2 OF 2(8308- )SED,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-3086005 |
GS121,MS123,125..SED BEIGE,BEIGE,TRIM4# |
1 | ||
| 67650-3086002 |
GS121,MS123,125..SED DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-3086004 |
GS121,MS123,125..SED BLUE,BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-3086005 |
GS121,MS123,125..SED BEIGE,BEIGE,TRIM4# |
1 | ||
| 67650-3086002 |
GS121,MS123,125..SED DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-3086004 |
GS121,MS123,125..SED BLUE,BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3A45002 |
GS121,MS123,125..SED DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-3A45004 |
GS121,MS123,125..SED BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3A45005 |
GS121,MS123,125..SED BEIGE,BEIGE,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3A45002 |
GS121,MS123,125..SED DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-3A45004 |
GS121,MS123,125..SED BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3A45005 |
GS121,MS123,125..SED BEIGE,BEIGE,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-3004002 |
GS121,MS123,125..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67770-3004004 |
GS121,MS123,125..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 67770-3004005 |
GS121,MS123,125..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-3001004 |
GS121,MS123,125..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 67780-3001005 |
GS121,MS123,125..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 67780-3001002 |
GS121,MS123,125..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 67785-3005002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 67785-3005004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
2 | ||
| 67785-3005005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM4# |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 67785-3005002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 67785-3005004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
2 | ||
| 67785-3005005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM4# |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-30110 |
GS12#,LS12#,MS12#,YS120..SED,V,WG LH |
1 | ||
| 68170-30160 |
GS12#,LS12#,MS12#,YS120..SED,V,WG RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-30110 |
GS12#,LS12#,MS12#,YS120..SED,V,WG LH |
1 | ||
| 68170-30160 |
GS12#,LS12#,MS12#,YS120..SED,V,WG RH |
1 | ||
| Common parts | ||||
| 67771-30060 | ||||
| 90168-40025 | ||||
| 90168-40068 | ||||
| 90183-04042 | ||||
| 90183-04057 | ||||
| Linked diagrams | ||||
| 7401 | ||||
