MS123-SESQF (1983)
Toyota Crown

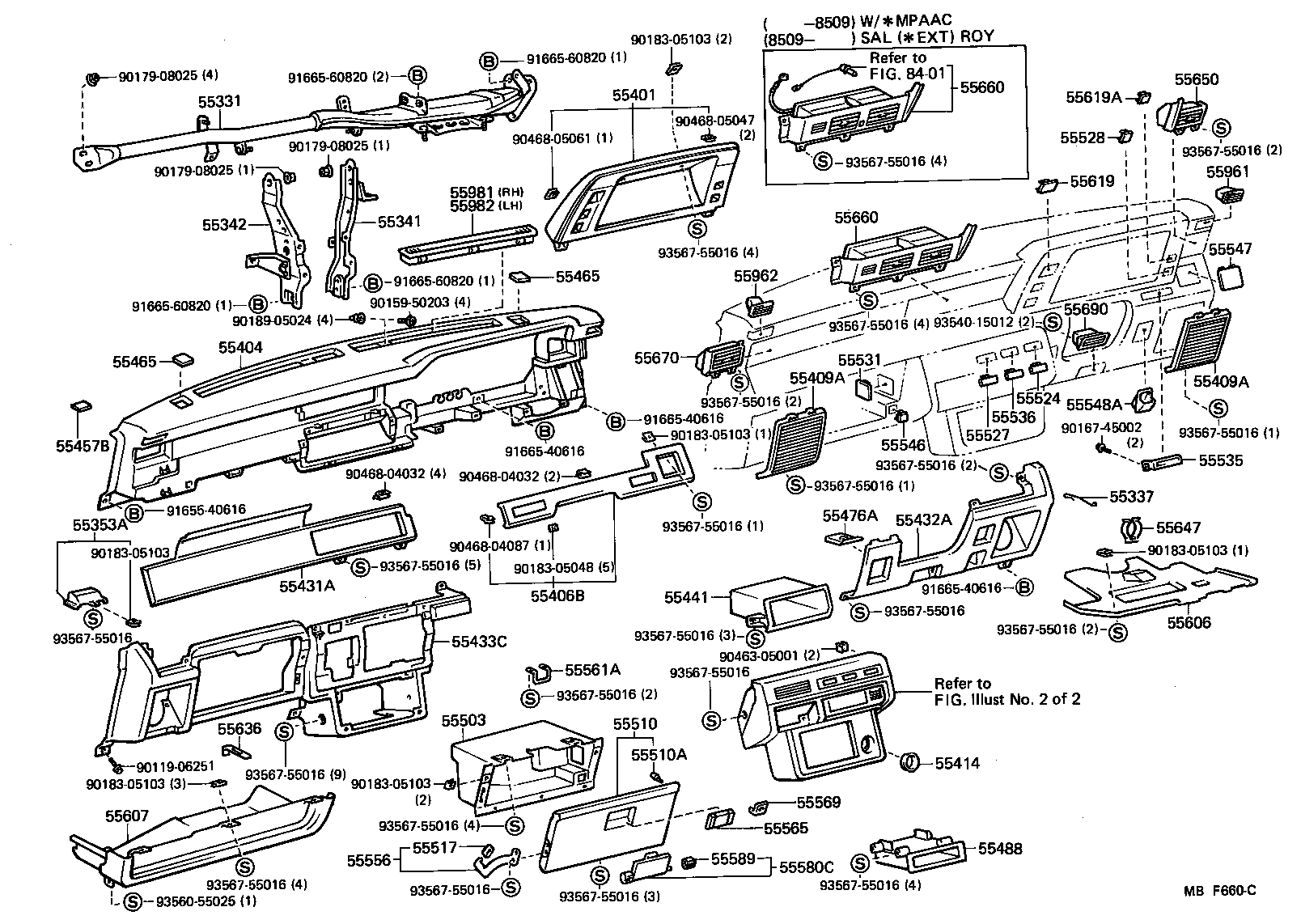

ILLUST NO. 1 OF 2(8308- )MS123,125..4HC ; (8308- )GS120,121..HT..4HC ; (8308- )MS123,125..S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-30020 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55330-30020 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55337 - REINFORCEMENT, INSTRUMENT PANEL SUB | ||||
| 55337-30030 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55337-30030 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55306-30110 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 55306-30110 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-30040 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55307-30040 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55353A - BRACKET, SPEAKER MOUNTING, NO.1 | ||||
| 55353-30020 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55353-30020 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-30570 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55404-30570 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-3029005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55401-3029005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55401-3029002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55401-3029002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55401-3029004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55401-3029004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-3009005 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55406-3009005 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55406-3009004 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55406-3009004 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55406-3009002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55406-3009002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55408-3003002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55408-3003002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55408-3003005 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55408-3003005 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55409-3001002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55409-3001002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55409-3001005 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55409-3001005 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55409-3001004 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55409-3001004 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55408-3003004 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55408-3003004 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55408-3003002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55408-3003002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55408-3003005 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55408-3003005 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55409-3001002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55409-3001002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55409-3001005 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55409-3001005 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55409-3001004 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55409-3001004 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55408-3003004 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55408-3003004 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-14050 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 55477-14050 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55044-3015005 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55044-3015005 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55044-3015002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55044-3015002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55044-3015004 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55044-3015004 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-3015005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55432-3015005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55432-3015002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55432-3015002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55432-3015004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55432-3015004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55433-3006004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55433-3006004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55433-3006002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55433-3006002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55433-3006005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55433-3006005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-30140 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 55441-30140 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 55457B - SPACER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55457-30040 |
GS12#,LS120,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
2 | ||
| 55457-30040 |
GS12#,LS120,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
2 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-30050 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55506-30050 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-3020005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55550-3020005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55550-3020002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55550-3020002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55550-3020004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55550-3020004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
2 | ||
| 90541-03015 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
2 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-14010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 55517-14010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 55528 - COVER, AUTO DRIVE OPENING | ||||
| 55537-30060 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55537-30060 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55536 - COVER, REAR WINDOW WIPER SWITCH HOLE | ||||
| 55527-3001002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55527-3001002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55527-3001005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55527-3001005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55527-3001004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55527-3001004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-3006002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55548-3006002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55548-3006004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55548-3006004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55548-3006005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55548-3006005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-30040 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 55556-30040 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-16020 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 55561-16020 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 55580C - MIRROR ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55580-30020 |
GS120,121,LS120,MS12#..ROY,SAL,SPE |
1 | ||
| 55580-30020 |
GS120,121,LS120,MS12#..ROY,SAL,SPE |
1 | ||
| 55589 - HOLDER, GLOVE COMPARTMENT MIRROR | ||||
| 55588-30020 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
2 | ||
| 55588-30020 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-30070 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 55606-30070 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-3004002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55607-3004002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55607-3004004 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE,SSL) BLUE,BLUE,TRIM8# |
1 | ||
| 55607-3004004 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE,SSL) BLUE,BLUE,TRIM8# |
1 | ||
| 55607-3004005 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55607-3004005 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55636 - BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1 | ||||
| 55636-24010 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 55636-24010 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 55647 - CLAMP, INSTRUMENT PANEL UNDER COVER | ||||
| 55647-22010 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 55647-22010 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-30110 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55650-30110 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-30100 |
MS123..SED W/*MPAAC |
1 | ||
| 55660-30100 |
MS123..SED W/*MPAAC |
1 | ||
| 55660-30130 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55660-30130 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-30100 |
MS123..SED W/*MPAAC |
1 | ||
| 55660-30100 |
MS123..SED W/*MPAAC |
1 | ||
| 55660-30130 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55660-30130 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-30050 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55670-30050 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55690 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 55690-1402005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55690-1402005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55690-1402004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55690-1402004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55690-1402012 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55690-1402012 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-3004002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55961-3004002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55961-3004005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55961-3004005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55961-3004004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55961-3004004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-3002005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55962-3002005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55962-3002002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55962-3002002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55962-3002004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55962-3002004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-3001002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55981-3001002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55981-3001005 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55981-3001005 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55981-3001004 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE,SSL) BLUE,BLUE,TRIM8# |
1 | ||
| 55981-3001004 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE,SSL) BLUE,BLUE,TRIM8# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-3001005 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55982-3001005 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55982-3001002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55982-3001002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55982-3001004 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE,SSL) BLUE,BLUE,TRIM8# |
1 | ||
| 55982-3001004 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE,SSL) BLUE,BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-06251 | ||||
| 90159-50203 | ||||
| 90167-45002 | ||||
| 90179-08025 | ||||
| 90183-05048 | ||||
| 90183-05103 | ||||
| 90189-05024 | ||||
| 90463-05001 | ||||
| 90468-04032 | ||||
| 90468-04087 | ||||
| 90468-05047 | ||||
| 90468-05061 | ||||
| 91655-40616 | ||||
| 91665-40616 | ||||
| 91665-60820 | ||||
| 93540-15012 | ||||
| 93560-55025 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

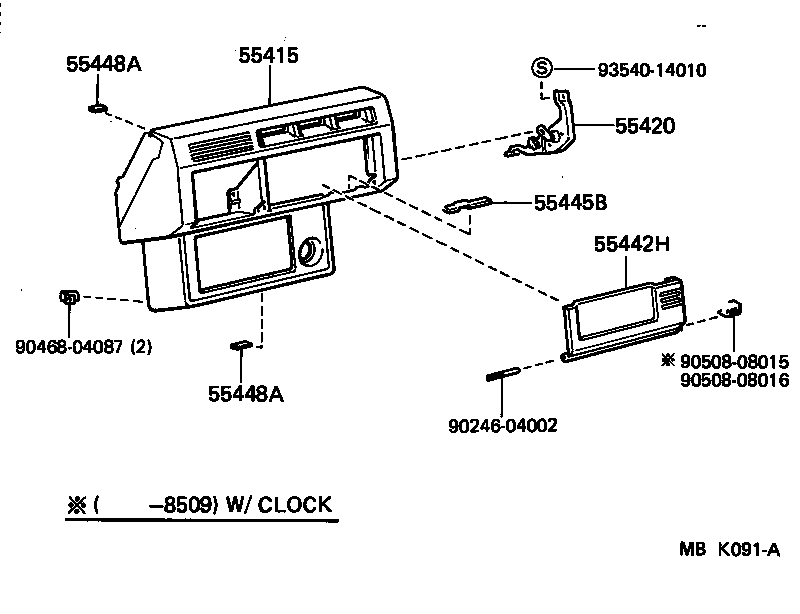

ILLUST NO. 2 OF 2(8308- )MS123,125..4HC ; (8308- )GS120,121..HT..4HC ; (8308- )MS123,125..S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-3020005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55412-3020005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55412-3020012 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 55412-3020012 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 55412-3020004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55412-3020004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55420 - STOPPER ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55420-30100 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55420-30100 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-3012005 |
GS121,MS12#..ROY,SAL W/NAVICOM,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55442-3012005 |
GS121,MS12#..ROY,SAL W/NAVICOM,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55442-3012004 |
GS121,MS12#..ROY,SAL W/NAVICOM,BLUE,BLUE,TRIM8# |
1 | ||
| 55442-3012004 |
GS121,MS12#..ROY,SAL W/NAVICOM,BLUE,BLUE,TRIM8# |
1 | ||
| 55442-3012002 |
GS121,MS12#..ROY,SAL W/NAVICOM,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 55442-3012002 |
GS121,MS12#..ROY,SAL W/NAVICOM,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-3012005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55445-3012005 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55445-3012002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 55445-3012002 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 55445-3012004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55445-3012004 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-30070 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
8 | ||
| 55448-30070 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
8 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-30070 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
8 | ||
| 55448-30070 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) |
8 | ||
| Common parts | ||||
| 90246-04002 | ||||
| 90468-04087 | ||||
| 90508-08015 | ||||
| 90508-08016 | ||||
| 93540-14010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
