MS123-SESQF (1983)
Toyota Crown

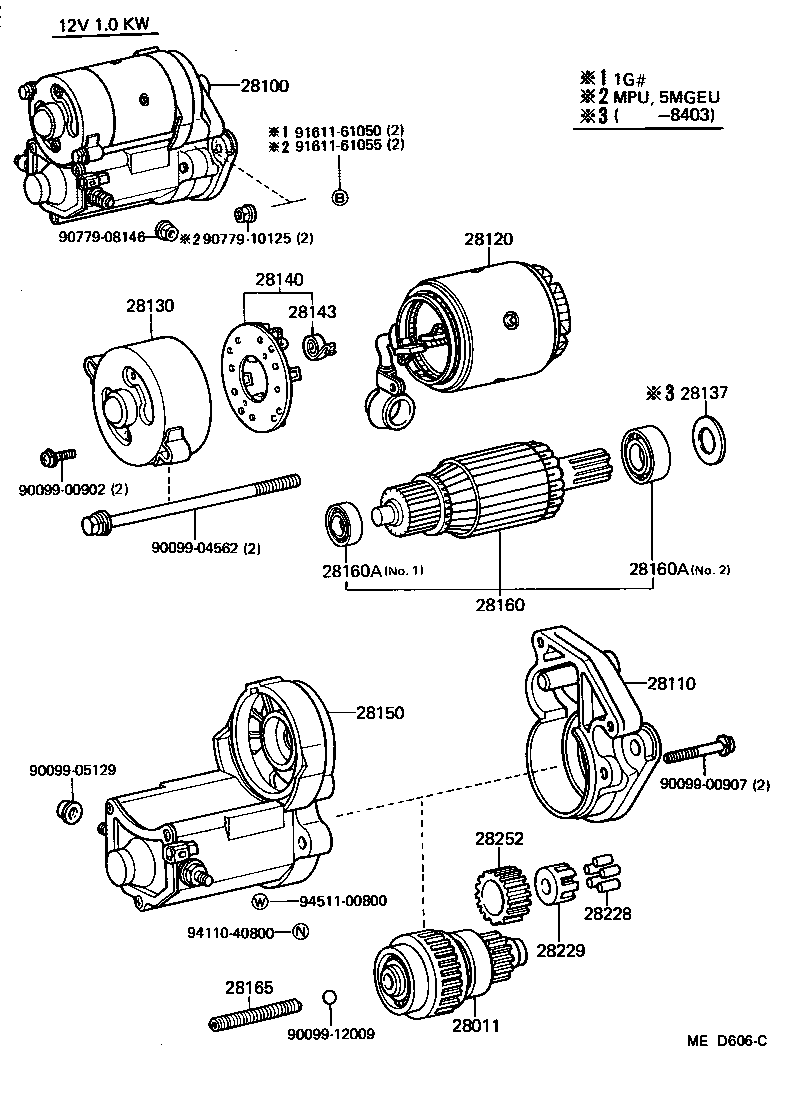

(8308- )1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,MTEU,3YPU..GS12#,MS12#,YS120 12V 1.0KW,1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-45050 |
5MGEU,6MGEU,MPU,MTEU..MS12# 12V 1.4KW,12V 1.4KW COLD SPEC |
1 | ||
| 28100-41060 |
5MGEU,6MGEU,MPU..MS12# 12V 1.0KW,12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-41060 |
5MGEU,6MGEU,MPU..MS12# 12V 1.0KW |
1 | ||
| 28110-45050 |
5MGEU,6MGEU,MPU,MTEU..MS12# 12V 1.4KW COLD SPEC |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
5MGEU,6MGEU,MPU,3YPU..MS12#,YS120 12V 1.0KW |
1 | ||
| 28120-15090 |
5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120 12V 1.4KW COLD SPEC |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-15090 |
5MGEU,6MGEU,MPU,MTEU..MS12# 12V 1.4KW COLD SPEC |
1 | ||
| 28130-15020 |
5MGEU,6MGEU,MPU..MS12# 12V 1.0KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02323 |
1G#,5MGEU,MPU,3YPU..GS12#,MS12#,YS120 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15090 |
5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120 12V 1.4KW COLD SPEC |
1 | ||
| 28140-26070 |
1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,3YPU..GS12#,MS12#,YS120 12V 1.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,MTEU,3YPU..GS12#,MS12#,YS120 12V 1.0KW,1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-41060 |
5MGEU,6MGEU,MPU..MS12# 12V 1.0KW |
1 | ||
| 28150-45050 |
5MGEU,6MGEU,MPU,MTEU..MS12# 12V 1.4KW COLD SPEC |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26070 |
1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,3YPU..GS12#,MS12#,YS120 12V 1.0KW |
1 | ||
| 28160-15090 |
5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120 12V 1.4KW COLD SPEC |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,3YPU..GS12#,MS12#,YS120 12V 1.0KW,NO.1 |
1 | ||
| 90099-10113 |
1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,3YPU..GS12#,MS12#,YS120 12V 1.0KW,NO.2 |
1 | ||
| 90099-10144 |
5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120 12V 1.4KW,NO.1,COLD SPEC |
1 | ||
| 90099-10143 |
5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120 12V 1.4KW,NO.2,COLD SPEC |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,3YPU..GS12#,MS12#,YS120 12V 1.0KW,NO.1 |
1 | ||
| 90099-10113 |
1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,3YPU..GS12#,MS12#,YS120 12V 1.0KW,NO.2 |
1 | ||
| 90099-10144 |
5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120 12V 1.4KW,NO.1,COLD SPEC |
1 | ||
| 90099-10143 |
5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120 12V 1.4KW,NO.2,COLD SPEC |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2L..LS12#..MTM;1GEU,1GG#,1GEJ,2LT,5MGEU,MPU,MTEU,3YPU..GS12#,LS120,MS120,123,YS120 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2L..LS12#..MTM;1GEU,1GG#,1GEJ,2LT,5MGEU,MPU,MTEU,3YPU..GS12#,LS120,MS120,123,YS120 12V 1.0KW,1.4KW,2.0KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
2L..LS12#..MTM;1GEU,1GG#,1GEJ,2LT,5MGEU,MPU,MTEU,3YPU..GS12#,LS120,MS120,123,YS120 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,MTEU,3YPU..GS12#,MS12#,YS120 12V 1.0KW,1.4KW |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90779-08146 | ||||
| 90779-10125 | ||||
| 91611-61050 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

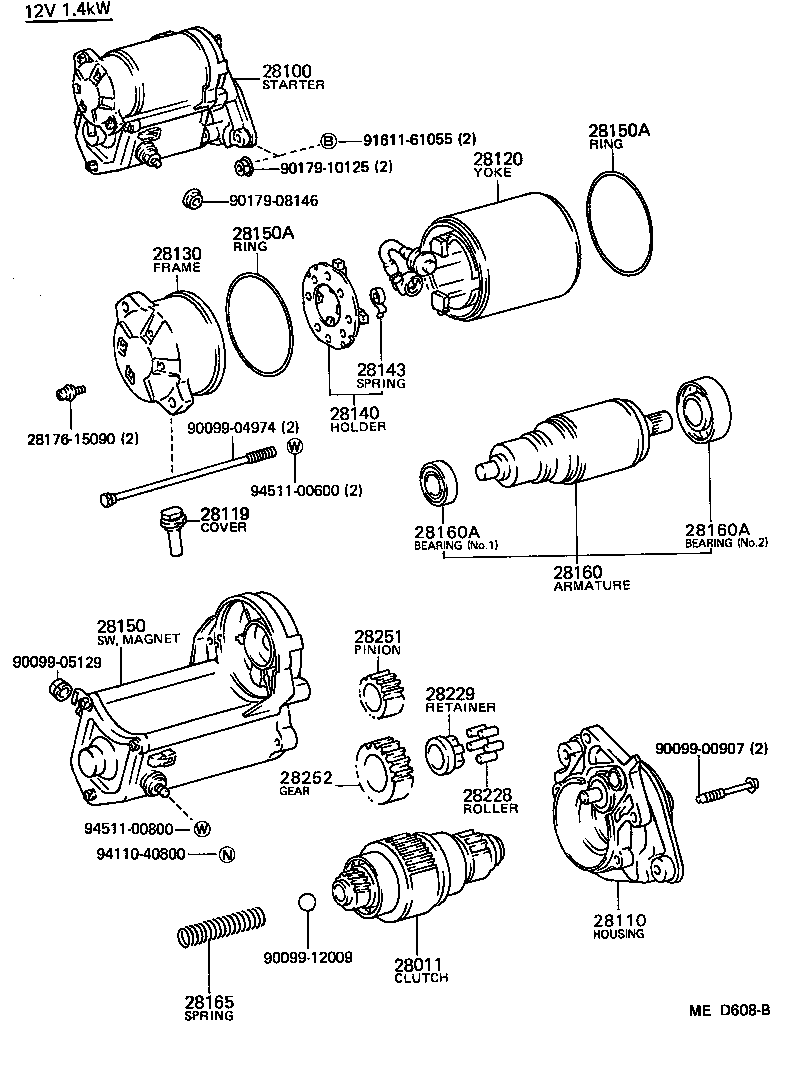

(8308- )5MGEU,6MGEU,MPU,MTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,MTEU,3YPU..GS12#,MS12#,YS120 12V 1.0KW,1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-45050 |
5MGEU,6MGEU,MPU,MTEU..MS12# 12V 1.4KW,12V 1.4KW COLD SPEC |
1 | ||
| 28100-41060 |
5MGEU,6MGEU,MPU..MS12# 12V 1.0KW,12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-41060 |
5MGEU,6MGEU,MPU..MS12# 12V 1.0KW |
1 | ||
| 28110-45050 |
5MGEU,6MGEU,MPU,MTEU..MS12# 12V 1.4KW COLD SPEC |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-15090 |
5MGEU,6MGEU,MPU,MTEU..MS12# 12V 1.4KW COLD SPEC |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
5MGEU,6MGEU,MPU,3YPU..MS12#,YS120 12V 1.0KW |
1 | ||
| 28120-15090 |
5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120 12V 1.4KW COLD SPEC |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-15090 |
5MGEU,6MGEU,MPU,MTEU..MS12# 12V 1.4KW COLD SPEC |
1 | ||
| 28130-15020 |
5MGEU,6MGEU,MPU..MS12# 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15090 |
5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120 12V 1.4KW COLD SPEC |
1 | ||
| 28140-26070 |
1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,3YPU..GS12#,MS12#,YS120 12V 1.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,MTEU,3YPU..GS12#,MS12#,YS120 12V 1.0KW,1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-41060 |
5MGEU,6MGEU,MPU..MS12# 12V 1.0KW |
1 | ||
| 28150-45050 |
5MGEU,6MGEU,MPU,MTEU..MS12# 12V 1.4KW COLD SPEC |
1 | ||
| 28150A - PACKING(FOR STARTER MAGNET SWITCH) | ||||
| 90099-14064 |
5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120 12V 1.4KW COLD SPEC |
2 | ||
| 28150A - PACKING(FOR STARTER MAGNET SWITCH) | ||||
| 90099-14064 |
5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120 12V 1.4KW COLD SPEC |
2 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26070 |
1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,3YPU..GS12#,MS12#,YS120 12V 1.0KW |
1 | ||
| 28160-15090 |
5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120 12V 1.4KW COLD SPEC |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,3YPU..GS12#,MS12#,YS120 12V 1.0KW,NO.1 |
1 | ||
| 90099-10113 |
1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,3YPU..GS12#,MS12#,YS120 12V 1.0KW,NO.2 |
1 | ||
| 90099-10144 |
5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120 12V 1.4KW,NO.1,COLD SPEC |
1 | ||
| 90099-10143 |
5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120 12V 1.4KW,NO.2,COLD SPEC |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,3YPU..GS12#,MS12#,YS120 12V 1.0KW,NO.1 |
1 | ||
| 90099-10113 |
1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,3YPU..GS12#,MS12#,YS120 12V 1.0KW,NO.2 |
1 | ||
| 90099-10144 |
5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120 12V 1.4KW,NO.1,COLD SPEC |
1 | ||
| 90099-10143 |
5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120 12V 1.4KW,NO.2,COLD SPEC |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2L..LS12#..MTM;1GEU,1GG#,1GEJ,2LT,5MGEU,MPU,MTEU,3YPU..GS12#,LS120,MS120,123,YS120 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2L..LS12#..MTM;1GEU,1GG#,1GEJ,2LT,5MGEU,MPU,MTEU,3YPU..GS12#,LS120,MS120,123,YS120 12V 1.0KW,1.4KW,2.0KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
2L..LS12#..MTM;1GEU,1GG#,1GEJ,2LT,5MGEU,MPU,MTEU,3YPU..GS12#,LS120,MS120,123,YS120 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-15090 |
5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120 12V 1.4KW COLD SPEC |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,MTEU,3YPU..GS12#,MS12#,YS120 12V 1.0KW,1.4KW |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 90179-10125 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
