MS123-SESQF (1983)

Toyota Crown

Production Aug 1983 - Aug 1984
Engine 5MGEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )5MGEU,6MGEU

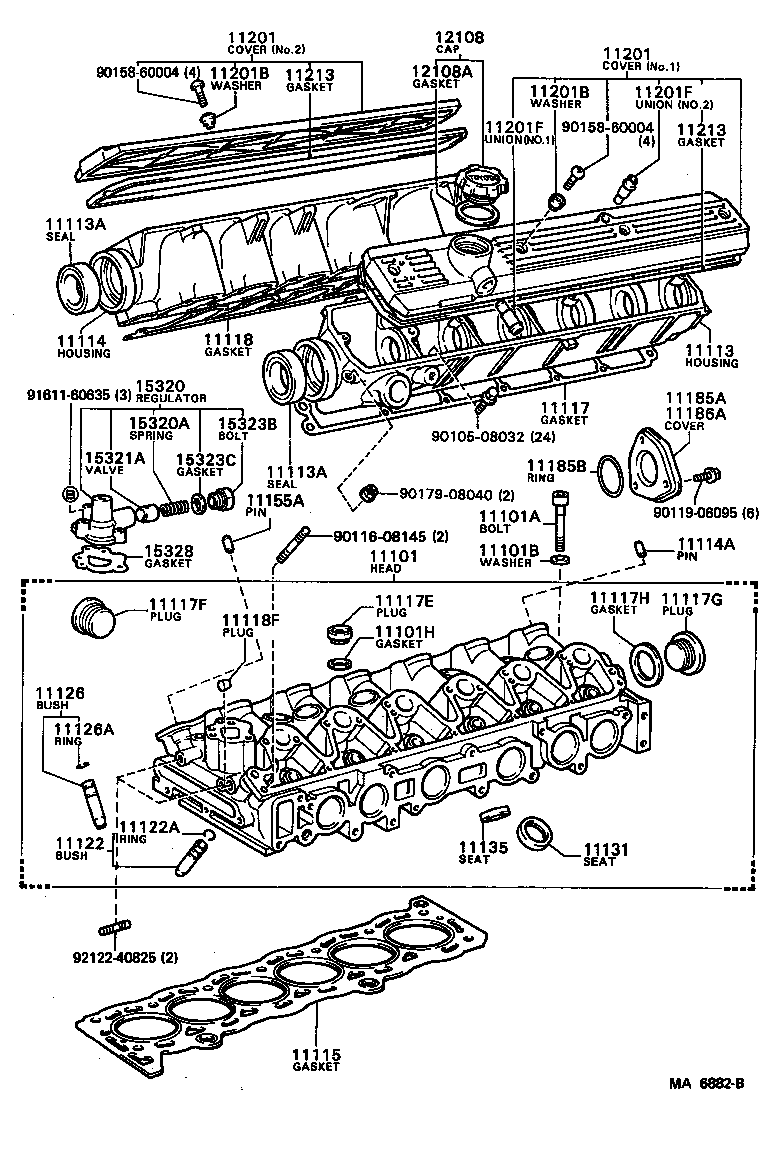

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101H 11113 11113A 11113A 11114 11114A 11115 11117 11117E 11117F 11117G 11117H 11118 11118F 11122 11122A 11126 11126A 11131 11135 11155A 11185A 11185B 11186A 11201 11201 11201B 11201B 11201F 11201F 11213 11213 12108 12108A 15320 15320A 15321A 15323B 15323C 15328 9010508032 9011608145 9011906095 9015860004 9015860004 9017908040 9161160635 9212240825
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-43040

5MGEU,6MGEU..MS123,125

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90110-12001

5MGEU,6MGEU..MS123,125

*12-1.25PX96-22

 14
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12027

5MGEU,6MGEU..MS123,125

 14
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-20004

5MGEU,6MGEU..MS123,125

 3
11113 - HOUSING, CAMSHAFT, NO.1
11113-43010

5MGEU,6MGEU..MS123,125

 1
11113A - SEAL, OIL(FOR CAMSHAFT HOUSING)
90311-38013

5MGEU,6MGEU..MS123,125

 2
11113A - SEAL, OIL(FOR CAMSHAFT HOUSING)
90311-38013

5MGEU,6MGEU..MS123,125

 2
11114 - HOUSING, CAMSHAFT, NO.2
11114-43010

5MGEU,6MGEU..MS123,125

 1
11114A - PIN, STRAIGHT
90250-08054

5MGEU,6MGEU..MS123,125

長さ=23,外径=8

 2
11115 - GASKET, CYLINDER HEAD
11115-43030

5MGEU,6MGEU..MS123,125

 1
11117 - GASKET, CAMSHAFT HOUSING, NO.1
11117-43010

5MGEU,6MGEU..MS123,125

 1
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-20002

5MGEU,6MGEU..MS123,125

 3
11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2
90341-32031

5MGEU,6MGEU..MS123,125

 3
11117G - PLUG, W/HEAD STRAIGHT SCREW, NO.3
90341-36001

5MGEU,6MGEU..MS123,125

 1
11117H - GASKET(FOR WATER HOLE)
90430-36001

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
11118 - GASKET, CAMSHAFT HOUSING, NO.2
11118-43010

5MGEU,6MGEU..MS123,125

 1
11118F - PLUG, TAPER, NO.1
90072-33614

5MGEU,6MGEU..MS123,125

 3
11122 - BUSH, INTAKE VALVE GUIDE
11122-43010

5MGEU,6MGEU..MS123,125

STD,STD

 6
11123-43010

5MGEU,6MGEU..MS123,125

O/S 0.05,O/S 0.05

 6
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

5MGEU,6MGEU,MPU,MTEU..MS12#

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11123-43010

5MGEU,6MGEU..MS123,125

O/S 0.05,O/S 0.05

 6
11122-43010

5MGEU,6MGEU..MS123,125

STD,STD

 6
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

5MGEU,6MGEU,MPU,MTEU..MS12#

 6
11131 - SEAT, INTAKE VALVE
11131-43020

5MGEU,6MGEU..MS123,125

STD,STD

 6
11132-43020

5MGEU,6MGEU..MS123,125

O/S 0.03,O/S 0.03

 6
11135 - SEAT, EXHAUST VALVE
11135-43010

5MGEU,6MGEU..MS123,125

STD,STD

 6
11136-43010

5MGEU,6MGEU..MS123,125

O/S 0.03,O/S 0.03

 6
11155A - PIN, RING W/HEAD
90253-10003

5MGEU,6MGEU..MS123,125

 2
11185A - COVER, CAMSHAFT REAR HOUSING, NO.1
11185-43010

5MGEU,6MGEU..MS123,125

 1
11185B - RING, O
90301-56001

5MGEU,6MGEU..MS123,125

 2
11186A - COVER, CAMSHAFT REAR HOUSING, NO.2
11185-43010

5MGEU,6MGEU..MS123,125

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11212-49015

5MGEU,6MGEU..MS123,125

NO.2

 1
11201-49195

5MGEU,6MGEU..MS123,125

NO.1

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11212-49015

5MGEU,6MGEU..MS123,125

NO.2

 1
11201-49195

5MGEU,6MGEU..MS123,125

NO.1

 1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-06003

5MGEU,6MGEU..MS123,125

 8
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-06003

5MGEU,6MGEU..MS123,125

 8
11201F - UNION(FOR POSITIVE CRANKCASE VENTILATION)
90406-14002

5MGEU,6MGEU..MS123,125

NO.2

 1
17361-41010

5MGEU,6MGEU..MS123,125

NO.1

 1
11201F - UNION(FOR POSITIVE CRANKCASE VENTILATION)
90406-14002

5MGEU,6MGEU..MS123,125

NO.2

 1
17361-41010

5MGEU,6MGEU..MS123,125

NO.1

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-43020

5MGEU,6MGEU..MS123,125

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-43020

5MGEU,6MGEU..MS123,125

 2
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
15320 - REGULATOR ASSY, OIL PRESSURE
15320-43020

5MGEU,6MGEU..MS123,125

 1
15320A - SPRING, OIL PRESSURE REGULATOR VALVE
90029-60004

5MGEU,6MGEU..MS123,125

 1
15321A - VALVE, OIL PRESSURE REGULATOR
15131-38030

5MGEU,6MGEU..MS123,125

 1
15323B - BOLT, OIL PRESSURE REGULATOR
15133-20010

5MGEU,6MGEU..MS123,125

 1
15323C - GASKET, OIL PRESSURE REGULATOR BOLT
15134-20010

5MGEU,6MGEU..MS123,125

 1
15328 - GASKET, OIL PRESSURE REGULATOR
15328-43010

5MGEU,6MGEU..MS123,125

 1
Common parts
90105-08032
90116-08145
90119-06095
90158-60004
90179-08040
91611-60635
92122-40825
