MS123-SEPQF (1983)
Toyota Crown
ILLUST NO. 1 OF 2(8308- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61031 - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH | ||||
| 61031-30020 |
GS121,MS123,125..SED W/MOON ROOF |
1 | ||
| 61031-30040 |
GS120,121,LS120,MS12#,YS120..HT,SED |
1 | ||
| 61032 - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH | ||||
| 61628-30030 |
GS120,121,LS120,MS12#,YS120..HT,SED |
1 | ||
| 61045 - REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, RH | ||||
| 61045-30030 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 61046 - REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, LH | ||||
| 61046-30030 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-30110 |
GS12#,LS12#,MS123,125..(SED,V,WG)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX) |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-30110 |
GS12#,LS12#,MS123,125..(SED,V,WG)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX) |
1 | ||
| 61121A - PANEL, COWL SIDE, OUTER UPPER RH | ||||
| 61125-30030 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 61122A - PANEL, COWL SIDE, OUTER UPPER LH | ||||
| 61126-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 61168 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-30060 |
GS12#,LS12#,MS123,125..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-30120 |
GS120,121,LS120,MS12#,YS120..SED |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-30120 |
GS120,121,LS120,MS12#,YS120..SED |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-30130 |
GS121,MS123,125..SED W/MOON ROOF |
1 | ||
| 61231-30150 |
GS120,121,LS120,MS12#,YS120..SED..(DLX,ROY,SAL,SDX) |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-30130 |
GS121,MS123,125..SED W/MOON ROOF |
1 | ||
| 61232-30160 |
GS120,121,LS120,MS12#,YS120..SED..(DLX,ROY,SAL,SDX) |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-30090 |
GS120,121,LS120,MS12#,YS120..SED |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-30090 |
GS120,121,LS120,MS12#,YS120..SED |
1 | ||
| 61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1 | ||||
| 61281-30020 |
GS121,MS123,125..SED |
2 | ||
| 61283 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH | ||||
| 61283-30020 |
GS121,MS123,125..SED |
1 | ||
| 61284 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH | ||||
| 61284-30020 |
GS121,MS123,125..SED |
1 | ||
| 61301B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61301-30070 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 61302B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61302-30090 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 61341 - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61345-30060 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 61342 - PILLAR, CENTER BODY, INNER LOWER LH | ||||
| 61346-30060 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 61343 - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-30090 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-30080 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 61344 - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-30080 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-30080 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-30230 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-30230 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-30050 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-30050 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 61428 - GUSSET, ROCKER OUTER PANEL | ||||
| 61428-30040 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 61428 - GUSSET, ROCKER OUTER PANEL | ||||
| 61428-30040 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-30910 |
GS120,121,LS120,MS12#,YS120..SED |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-30910 |
GS120,121,LS120,MS12#,YS120..SED |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-30070 |
GS120,121,LS120,MS12#,YS120..SED |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-30060 |
GS120,121,LS120,MS12#,YS120..SED |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-30090 |
GS120,121,LS120,MS12#,YS120..HT,SED |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-30090 |
GS120,121,LS120,MS12#,YS120..HT,SED |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61603-30911 |
GS121,MS123,125 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61604-30911 |
GS121,MS123,125 W/*AL |
1 | ||
| 61604-30910 |
GS121,MS123,125 |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-30020 |
GS120,121,LS120,MS12#,YS120..SED |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61698-30020 |
GS120,121,LS120,MS12#,YS120..SED |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61703-30903 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) Q PACKAGE W/RR SLIDE SEAT |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61704-30903 |
GS120,121,LS120,MS12#..SED..(ROY,SAL) W/RR SLIDE SEAT |
1 | ||
| 61792 - COVER, ROOF SIDE INNER SERVICE HOLE | ||||
| 61791-30030 |
GS120,121,LS120,MS12#,YS120..SED RH |
1 | ||
| 61792-30030 |
GS120,121,LS120,MS12#,YS120..SED LH |
1 | ||
| 61795B - EXTENSION, QUARTER WHEEL HOUSE, RH | ||||
| 61797-30030 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 61796B - EXTENSION, QUARTER WHEEL HOUSE, LH | ||||
| 61798-30030 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 61815B - COVER, ROOF SIDE, INNER UPPER RH | ||||
| 61815-30040 |
GS120,121,LS120,MS12#,YS120..SED |
1 | ||
| 61816B - COVER, ROOF SIDE, INNER UPPER LH | ||||
| 61816-30040 |
GS120,121,LS120,MS12#,YS120..SED |
1 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-30070 |
GS120,121,LS120,MS12#,YS120..HT,SED |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-30060 |
GS120,121,LS120,MS12#,YS120..HT,SED |
1 | ||
| 64226 - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64226-22010 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL) W/SLIDE SEAT |
2 | ||
| Common parts | ||||
| 90333-30004 | ||||
| 90463-08053 | ||||
| 90950-01027 | ||||
| 90950-01061 | ||||
| 90950-01126 | ||||
| 90950-01273 | ||||
| 90950-01327 | ||||
| 91665-40816 | ||||
| 93382-16012 | ||||
| 93540-14012 | ||||
| 94180-40800 | ||||
| Linked diagrams | ||||
| 7601 | ||||

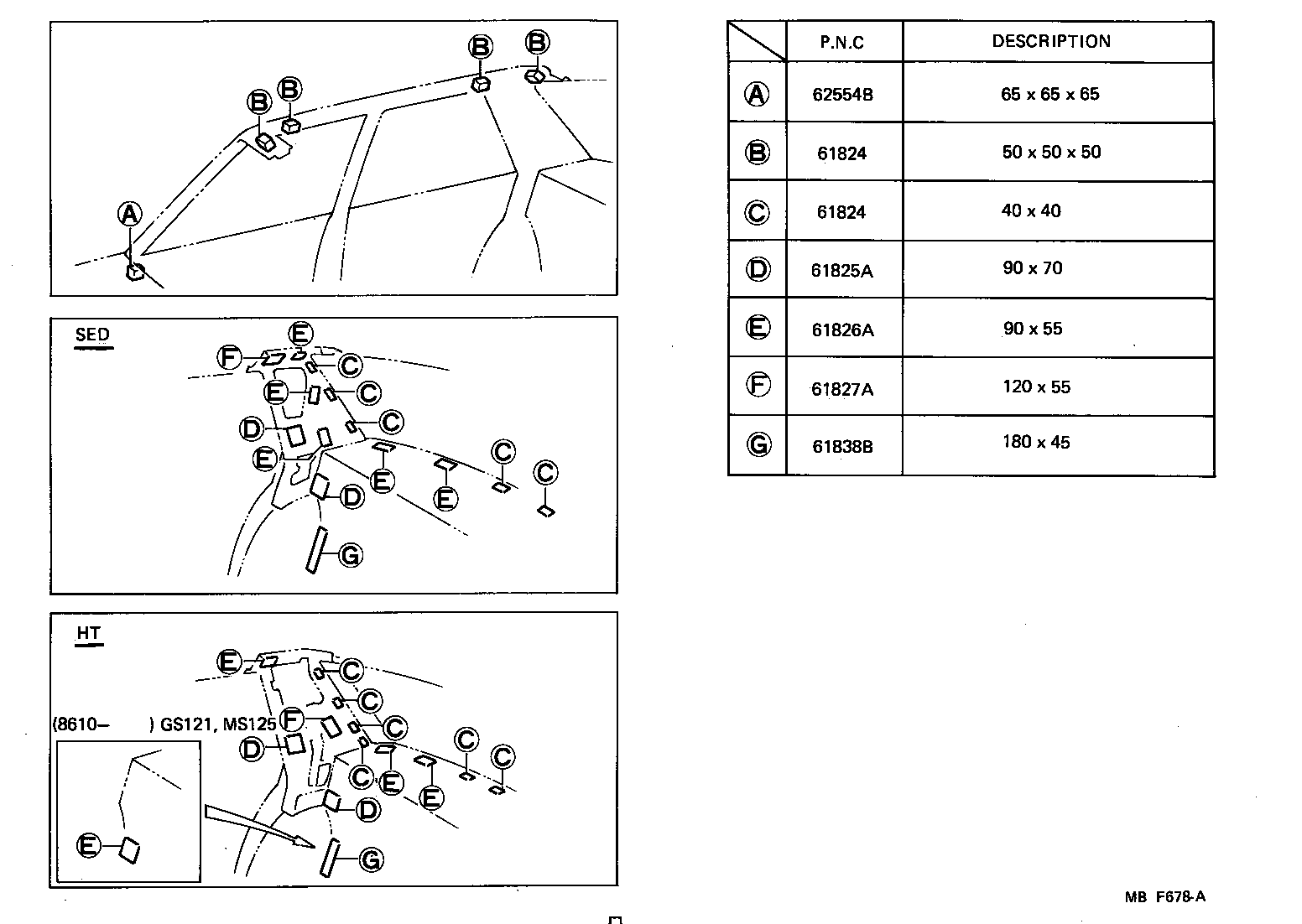

ILLUST NO. 2 OF 2(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-30010 |
GS120,121,LS120,MS12#,YS120..SED 40X40X2 |
10 | ||
| 61824-12010 |
GS120,121,LS120,MS12#,YS120..HT,SED 50X50X50 |
8 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-30010 |
GS120,121,LS120,MS12#,YS120..SED 40X40X2 |
10 | ||
| 61824-12010 |
GS120,121,LS120,MS12#,YS120..HT,SED 50X50X50 |
8 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-30020 |
GS120,121,LS120,MS12#,YS120..HT,SED 90X70 |
4 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-30030 |
GS120,121,LS120,MS12#,YS120..SED 90X55 |
10 | ||
| 61827A - PLATE, NOISE CONTROL, NO.4 | ||||
| 61827-30030 |
GS120,121,LS120,MS12#,YS120..HT,SED 120X55 |
2 | ||
| 61838B - PLATE, NOISE CONTROL, NO.5 | ||||
| 61838-30010 |
GS120,121,LS120,MS12#,YS120..HT,SED 180X45 |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
GS12#,LS12#,MS12#,YS120 65X65X65 |
2 | ||
