MS120-STPZT (1983)

Toyota Crown

Production Aug 1983 - Sep 1985
Engine MTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )MPU,MTEU

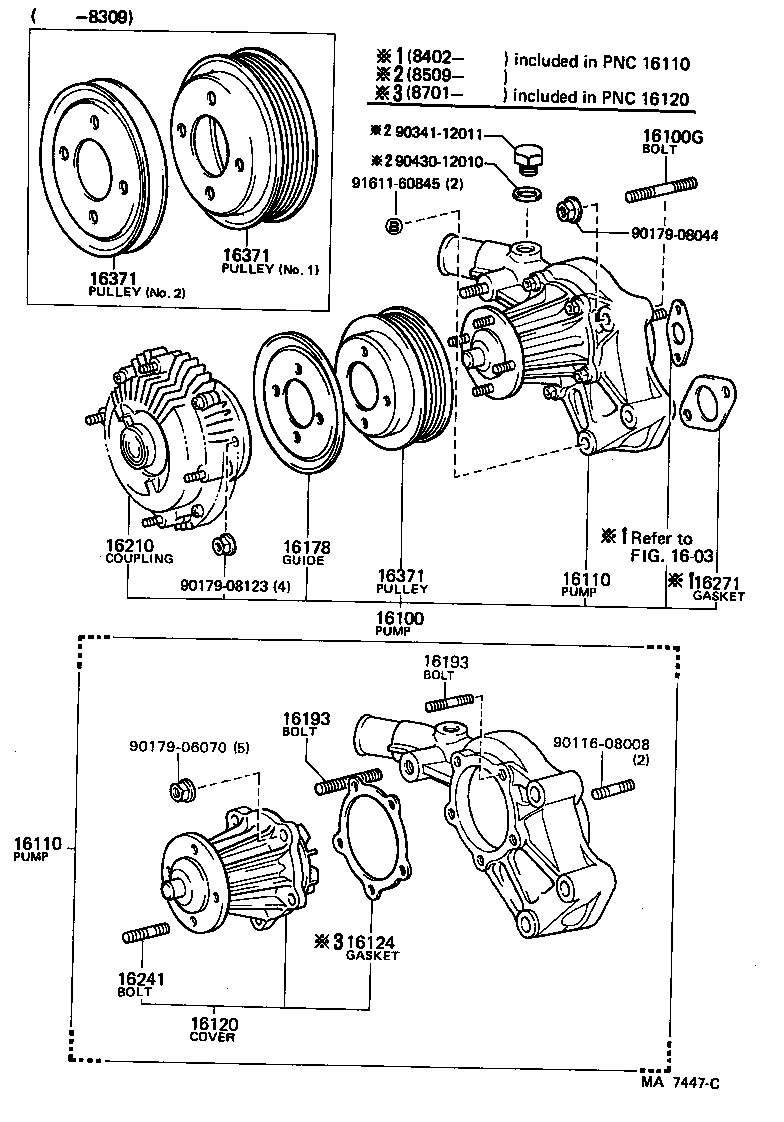

Click highlighted areas on diagram

diagram 1603 16100 16100G 16110 16110 16120 16124 16178 16193 16193 16210 16241 16271 16371 16371 16371 9011608008 9017906070 9017908044 9017908123 9034112011 9043012010 9161160845
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-49725

MTEU..MS120

 1
16100G - BOLT, STUD(FOR WATER PUMP SET)
90116-08111

MPU,MTEU..MS120

L=57,S=13&13

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-49065

MTEU..MS120

 1
16110-41250

MTEU..MS120

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-49065

MTEU..MS120

 1
16110-41250

MTEU..MS120

 1
16120 - COVER ASSY, WATER PUMP
16120-45110

MPU,MTEU..MS120

 1
16124 - GASKET, WATER PUMP COVER
16129-33030

MPU,MTEU..MS120

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-41031

MPU,MTEU..MS120

L=42,S=16&20

 1
16193-45100

MPU,MTEU..MS120

 5
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-41031

MPU,MTEU..MS120

L=42,S=16&20

 1
16193-45100

MPU,MTEU..MS120

 5
16210 - COUPLING ASSY, FLUID
16210-45110

MTEU..MS120

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16198-43040

5MGEU,6MGEU,MPU,MTEU..MS12#

 4
16271 - GASKET, WATER PUMP
16271-41011

MPU,MTEU..MS120

 1
16371 - PULLEY, FAN
16173-43030

5MGEU,MPU,MTEU..MS12#

NO.1

 1
16174-43030

5MGEU,MPU,MTEU..MS12#

NO.2

 1
16371 - PULLEY, FAN
16173-43030

5MGEU,MPU,MTEU..MS12#

NO.1

 1
16174-43030

5MGEU,MPU,MTEU..MS12#

NO.2

 1
16371 - PULLEY, FAN
16173-43030

5MGEU,MPU,MTEU..MS12#

NO.1

 1
16174-43030

5MGEU,MPU,MTEU..MS12#

NO.2

 1
Common parts
90116-08008
90179-06070
90179-08044
90179-08123
90341-12011
90430-12010
91611-60845
Linked diagrams
1603
