MS120-STPGT (1983)
Toyota Crown
(8308- )WG..SDX ; (8308- )LS120..DLX,STD ;(8308- )GS120..4HC..SDX ; (8308
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-30080 |
MS120..TBO |
1 | ||
| 45082-30080 |
MS120..TBO |
1 | ||
| 45136C - CABLE, BOND(FOR HORN EARTH) | ||||
| 90980-07169 |
MS120..TBO |
1 | ||
| 90980-07169 |
MS120..TBO |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-30060 |
MS120..TBO |
1 | ||
| 45210-30060 |
MS120..TBO |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-43004 |
GS12#,LS12#,MS12#,YS120 LWR |
1 | ||
| 90369-43004 |
GS12#,LS12#,MS12#,YS120 LWR |
1 | ||
| 90363-28001 |
MS120..TBO CTR |
1 | ||
| 90363-28001 |
MS120..TBO CTR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-43004 |
GS12#,LS12#,MS12#,YS120 LWR |
1 | ||
| 90369-43004 |
GS12#,LS12#,MS12#,YS120 LWR |
1 | ||
| 90363-28001 |
MS120..TBO CTR |
1 | ||
| 90363-28001 |
MS120..TBO CTR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-23034 |
MS120..TBO 厚さ=1.5 |
1 | ||
| 90520-23034 |
MS120..TBO 厚さ=1.5 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-23034 |
MS120..TBO 厚さ=1.5 |
1 | ||
| 90520-23034 |
MS120..TBO 厚さ=1.5 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
MS120..TBO UPR |
1 | ||
| 90501-45011 |
MS120..TBO UPR |
1 | ||
| 90501-29388 |
GS12#,LS12#,MS12#,YS120 LWR |
1 | ||
| 90501-29388 |
GS12#,LS12#,MS12#,YS120 LWR |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45220-30040 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-30140 |
MS120..TBO |
1 | ||
| 45870-30140 |
MS120..TBO |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30040 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 45214-30040 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 90250-10059 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 90521-52003 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 90301-23054 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-30030 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45222-30030 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
GS12#,LS12#,MS12#,YS120 16.00−16.03,L=16.00-16.03 |
2 | ||
| 45225-30040 |
GS12#,LS12#,MS12#,YS120 16.00−16.03,L=16.00-16.03 |
2 | ||
| 45224-30040 |
GS12#,LS12#,MS12#,YS120 15.97−16.00,L=15.97-16.00 |
2 | ||
| 45224-30040 |
GS12#,LS12#,MS12#,YS120 15.97−16.00,L=15.97-16.00 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
GS12#,LS12#,MS12#,YS120 16.00−16.03,L=16.00-16.03 |
2 | ||
| 45225-30040 |
GS12#,LS12#,MS12#,YS120 16.00−16.03,L=16.00-16.03 |
2 | ||
| 45224-30040 |
GS12#,LS12#,MS12#,YS120 15.97−16.00,L=15.97-16.00 |
2 | ||
| 45224-30040 |
GS12#,LS12#,MS12#,YS120 15.97−16.00,L=15.97-16.00 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 45226-30020 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 45226-30020 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30100 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45230-30100 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08230 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 90101-08230 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-30100 |
GS12#,LS12#,MS12#,YS120..4FC,5F |
1 | ||
| 45025-30100 |
GS12#,LS12#,MS12#,YS120..4FC,5F |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-30090 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45254-30090 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45255-30040 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) | ||||
| 90301-60122 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 90301-60122 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-30370 |
MS120..TBO |
1 | ||
| 45280-30370 |
MS120..TBO |
1 | ||
| Common parts | ||||
| 90119-08185 | ||||
| 90179-10053 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
ILLUST NO. 1 OF 3(8308-8509)TBO ; (8308- )GS12#,LS12#..4FC,5F..DLX,SAL,SDX,SPE,SSL ; (8405-8509)G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-30060 |
MS120..TBO |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-43004 |
GS12#,LS12#,MS12#,YS120 LWR |
1 | ||
| 90363-28001 |
MS120..TBO CTR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-43004 |
GS12#,LS12#,MS12#,YS120 LWR |
1 | ||
| 90363-28001 |
MS120..TBO CTR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-23034 |
MS120..TBO 厚さ=1.5 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
MS120..TBO UPR |
1 | ||
| 90501-29388 |
GS12#,LS12#,MS12#,YS120 LWR |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
MS120..TBO UPR |
1 | ||
| 90501-29388 |
GS12#,LS12#,MS12#,YS120 LWR |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45220-30050 |
MS120..TBO |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-30140 |
MS120..TBO |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30040 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
MS120..TBO |
1 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-30030 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
GS12#,LS12#,MS12#,YS120 16.00−16.03,L=16.00-16.03 |
2 | ||
| 45224-30040 |
GS12#,LS12#,MS12#,YS120 15.97−16.00,L=15.97-16.00 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
GS12#,LS12#,MS12#,YS120 16.00−16.03,L=16.00-16.03 |
2 | ||
| 45224-30040 |
GS12#,LS12#,MS12#,YS120 15.97−16.00,L=15.97-16.00 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30100 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08230 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-30100 |
GS12#,LS12#,MS12#,YS120..4FC,5F |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-30090 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) | ||||
| 90301-60122 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-30370 |
MS120..TBO |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
MS120..TBO |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 91611-40816 | ||||
| 91656-40822 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(8308-8509)TBO ; (8308- )GS12#,LS12#,MS123,125..4FC,5F..DLX,ROY,SAL,SDX,SPE,SSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-29005 |
MS120..TBO |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02043 |
MS120..TBO 長さ=130,L=130 |
2 | ||
| 90945-02070 |
MS120..TBO 長さ=133,L=133 |
2 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-30080 |
MS120..TBO |
1 | ||
| 45136C - CABLE, BOND(FOR HORN EARTH) | ||||
| 90980-07169 |
MS120..TBO |
1 | ||
| 45804D - LEVER SUB-ASSY, STEERING TILT(FOR TILT UP CONTROL) | ||||
| 45804-30020 |
MS120..TBO |
1 | ||
| 45809 - COVER SUB-ASSY, ADJUSTER MEMORY | ||||
| 45809-30040 |
MS120..TBO |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-30020 |
MS120..TBO 外径=18.003−18.010,D=18.003-18.010 |
1 | ||
| 45813-30010 |
MS120..TBO 外径=17.996−18.003,D=17.996-18.003 |
1 | ||
| 45813-30030 |
MS120..TBO 外径=18.010−18.017,D=18.010-18.017 |
1 | ||
| 45813-30050 |
MS120..TBO 外径=17.989−17.996,D=17.989-17.996 |
1 | ||
| 45813-30040 |
MS120..TBO 外径=18.017−18.024,D=18.017-18.024 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22020 |
MS120..TBO 外径=18.000−18.018,D=18.000-18.018 |
1 | ||
| 45814-22010 |
MS120..TBO 外径=17.982−18.000,D=17.982-18.000 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22080 |
MS120..TBO 厚さ=0.8,T=0.8 |
2 | ||
| 45815-22090 |
MS120..TBO 厚さ=1.4,T=1.4 |
2 | ||
| 45815-22070 |
MS120..TBO 厚さ=0.5,T=0.5 |
2 | ||
| 45815-22100 |
MS120..TBO 厚さ=1.8,T=1.8 |
2 | ||
| 45815-22060 |
MS120..TBO 厚さ=0.2,T=0.2 |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-30040 |
MS120..TBO |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08040 |
MS120..TBO |
1 | ||
| 45819B - CUSHION(FOR TILT LEVER RETAINER) | ||||
| 90540-08010 |
MS120..TBO |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-30030 |
MS120..TBO |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90506-13001 |
MS120..TBO LWR |
1 | ||
| 90507-10011 |
MS120..TBO UPR |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90506-13001 |
MS120..TBO LWR |
1 | ||
| 90507-10011 |
MS120..TBO UPR |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
MS120..TBO |
1 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45826-30050 |
MS120..TBO |
1 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
MS120..TBO |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
MS120..TBO |
1 | ||
| Common parts | ||||
| 90109-08104 | ||||
| 90114-08013 | ||||
| 90119-08185 | ||||
| 90179-10053 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 91611-60840 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||

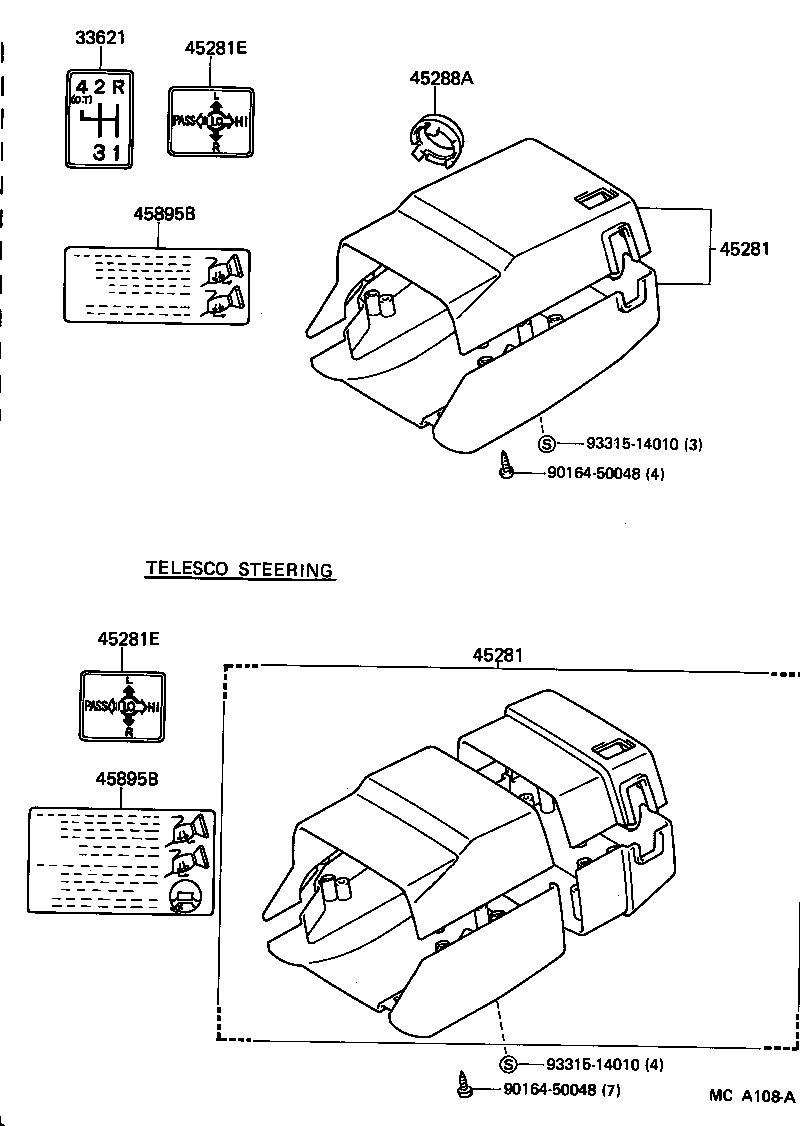

ILLUST NO. 3 OF 3(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-3090204 |
MS120..TBO BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3090202 |
MS120..TBO DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45287-3090205 |
MS120..TBO BEIGE,BEIGE,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-3090204 |
MS120..TBO BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3090202 |
MS120..TBO DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45287-3090205 |
MS120..TBO BEIGE,BEIGE,TRIM4# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 45895B - PLATE, TILT LEVER INSTRUCTION | ||||
| 45895-30010 |
MS120..TBO |
1 | ||
| 45895B - PLATE, TILT LEVER INSTRUCTION | ||||
| 45895-30010 |
MS120..TBO |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 93315-14010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
