MS120-STPGT (1983)

Toyota Crown

Production Aug 1983 - Sep 1985
Engine MTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )MPU,MTEU

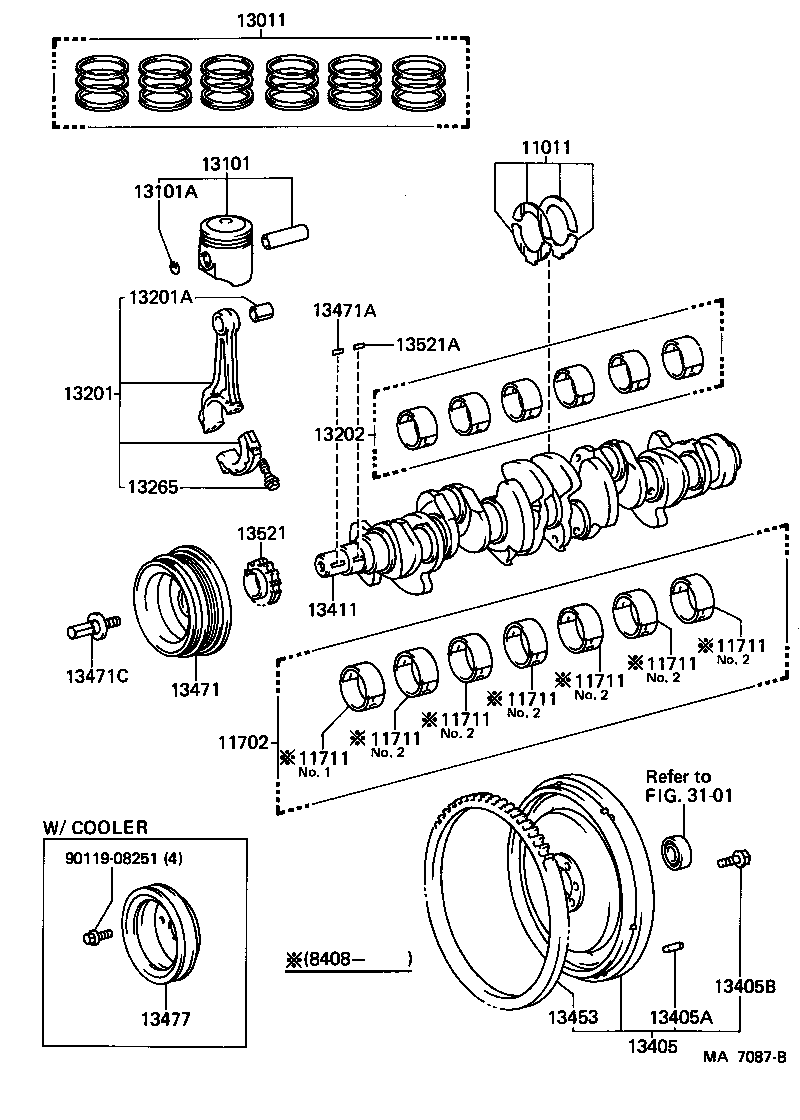

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 11711 11711 13011 13101 13101A 13201 13201A 13202 13265 13405 13405A 13405B 13411 13453 13471 13471A 13471C 13477 13521 13521A 3101 9011908251
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-43010

5MGEU,6MGEU,MPU,MTEU..MS12#

STD,STD

 1
11012-43010

5MGEU,6MGEU,MPU,MTEU..MS12#

O/S 0.125,O/S 0.125

 1
11013-43010

5MGEU,6MGEU,MPU,MTEU..MS12#

O/S 0.250,O/S 0.25

 1
11702 - BEARING SET, CRANKSHAFT
11704-45011

5MGEU,MPU,MTEU..MS12#

U/S 0.25,U/S 0.25

 1
11705-45011

5MGEU,MPU,MTEU..MS12#

U/S 0.50,U/S 0.50

 1
11703-45011

5MGEU,MPU,MTEU..MS12#

U/S 0.05,U/S 0.05

 1
11702-45011

5MGEU,MPU,MTEU..MS12#

STD,STD

 1
13011 - RING SET, PISTON
13014-41015

MPU,MTEU..MS120

O/S 0.75,O/S 0.75

 1
13011-41015

MPU,MTEU..MS120

STD,STD

 1
13015-41015

MPU,MTEU..MS120

O/S 1.00,O/S 1.00

 1
13013-41015

MPU,MTEU..MS120

O/S 0.50,O/S 0.50

 1
13101 - PISTON SUB-ASSY, W/PIN
13103-41060

MTEU..MS120

O/S 0.50

 6
13104-41060

MTEU..MS120

O/S 0.75

 6
13105-41060

MTEU..MS120

O/S 1.00

 6
13104-41061

MTEU..MS120

O/S 0.75

 6
13101-41061

MTEU..MS120

STD

 6
13101-41060

MTEU..MS120

STD

 6
13105-41061

MTEU..MS120

O/S 1.00

 6
13103-41061

MTEU..MS120

O/S 0.50

 6
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-25052

5MGEU,MPU,MTEU..MS12#

 12
13201 - ROD SUB-ASSY, CONNECTING
13201-41011

MPU,MTEU..MS120

 6
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73066

5MGEU,6MGEU,MPU,MTEU..MS12#

 6
13202 - BEARING SET, CONNECTING ROD
13203-45011

5MGEU,MPU,MTEU..MS12#

U/S 0.05,U/S 0.05

 1
13204-45011

5MGEU,MPU,MTEU..MS12#

U/S 0.25,U/S 0.25

 1
13202-45011

5MGEU,MPU,MTEU..MS12#

STD,STD

 1
13205-45011

5MGEU,MPU,MTEU..MS12#

U/S 0.50,U/S 0.50

 1
13265 - BOLT, CONNECTING ROD
90910-02044

MPU,MTEU..MS120

 12
13411 - CRANKSHAFT
13411-41015

MPU,MTEU..MS120

 1
13471 - PULLEY, CRANKSHAFT
13407-41030

MPU,MTEU..MS120

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05001

5MGEU,MPU,MTEU..MS12#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-16011

5MGEU,MPU,MTEU..MS120,123

 1
13477 - PULLEY, CRANKSHAFT, NO.2
88451-30330

MTEU..MS120

W/COOLER

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-41011

MPU,MTEU..MS120

N=20

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

5MGEU,MPU,MTEU..MS120,123

 1
Common parts
90119-08251
Linked diagrams
3101
