MS120-SESFP (1983)
Toyota Crown
(8308- )MS120..LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-30050 |
MS120..LPG |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-30020 |
MS120..LPG |
1 | ||
| 44302A - SEAL, OIL, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90310-21034 |
MS120..ATM..LPG |
1 | ||
| 90311-21002 |
MS120..4H |
1 | ||
| 90311-22010 |
MS120..LPG |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-69170 |
MS120..LPG |
2 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-69170 |
MS120..LPG |
2 | ||
| 44302J - BUSH(FOR VANE PUMP HOUSING) | ||||
| 90384-22110 |
MS120..LPG |
1 | ||
| 44303 - SHAFT SUB-ASSY, W/ROTOR | ||||
| 44303-22011 |
MS120..LPG NO MARK |
1 | ||
| 44303-22021 |
MS120..LPG MARK 2 |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-30022 |
MS120..LPG |
1 | ||
| 44304-30070 |
MS120..4H |
1 | ||
| 44304-30080 |
MS120..ATM..LPG |
1 | ||
| 44304A - BUSH, BIMETAL FORMED(FOR PUMP HOUSING REAR) | ||||
| 90384-22110 |
MS120..LPG |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-30020 |
MS120..LPG |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-30190 |
MS120..4H |
1 | ||
| 44320-30220 |
MS120..ATM..LPG |
1 | ||
| 44320-30190 |
MS120..LPG |
1 | ||
| 44320-30221 |
MS120..ATM..LPG |
1 | ||
| 44320-30250 |
MS120..4H |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-30030 |
MS120..LPG |
1 | ||
| 44311-30030 |
GS120,126,MS120..(DLX,SAL,SDX,SPE)..(EFI,LPG) |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90170-12011 |
LS120,YS120;GS120,126,LS126,MS12#..DLX,ROY,SAL,SDX,SPE |
1 | ||
| 90170-12011 |
LS126..DLX;LS120,MS12#,YS120 |
1 | ||
| 44325 - RING, FIXED(FOR VANE PUMP) | ||||
| 44325-30040 |
MS120..LPG ﾏｰｸ 2,MARK 2 |
1 | ||
| 44325-30030 |
MS120..LPG ﾏｰｸ 1,NO MARK |
1 | ||
| 44329 - BOLT, VANE PUMP FRONT HOUSING & REAR HOUSING SET | ||||
| 44329-30010 |
MS120..LPG L=76.5 |
5 | ||
| 44329-30020 |
MS120..LPG L=78.5 |
1 | ||
| 44329A - RING, O(FOR VANE PUMP HOUSING SET BOLT) | ||||
| 96711-19007 |
MS120..LPG |
6 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-30041 |
MS120..LPG MARK A |
1 | ||
| 44330-30061 |
MS120..LPG MARK C |
1 | ||
| 44330-30081 |
MS120..LPG MARK E |
1 | ||
| 44330-30051 |
MS120..LPG MARK B |
1 | ||
| 44330-30091 |
MS120..LPG MARK F |
1 | ||
| 44330-30071 |
MS120..LPG MARK D |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12447 |
MS120 |
1 | ||
| 90501-12103 |
LS120,MS120,YS120 |
1 | ||
| 90501-12447 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE |
1 | ||
| 90501-12447 |
LS120,MS12#,YS120 |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
LS120,YS120;GS120,126,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44308-30070 |
MS120..LPG |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
MS120..LPG 外径=17.0,内径=13.0 |
2 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
MS120..LPG 外径=17.0,内径=13.0 |
2 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-30020 |
MS120..LPG |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44341-30020 |
MS120..LPG |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12010 |
MS120 |
1 | ||
| 44343-12010 |
LS120,YS120;GS120,126,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
LS120,YS120;GS120,126,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44344 - SEAT, SPRING(FOR VANE PUMP) | ||||
| 44344-30010 |
MS120..LPG |
6 | ||
| 44345 - SLIPPER, VANE PUMP | ||||
| 44307-22010 |
MS120..LPG ﾏｰｸ無し,RING NO MARK |
1 | ||
| 44307-22020 |
MS120..LPG ﾏｰｸ無し,RING MARK 2 |
1 | ||
| 44345A - SPRING, COMPRESSION(FOR VANE PUMP SLIPPER) | ||||
| 90501-06445 |
MS120..LPG |
24 | ||
| 44362 - RESERVOIR, OIL(FOR VANE PUMP) | ||||
| 44306-30160 |
MS120..LPG |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 96711-19013 |
MS12#,YS120 |
1 | ||
| 96711-19013 |
YS120;GS120,126,MS12#..DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44372 - PLUG, POWER STEERING PUMP TIGHT | ||||
| 44372-22010 |
MS120..LPG |
1 | ||
| 44372A - RING, O(FOR POWER STEERING PUMP TIGHT PLUG) | ||||
| 90301-25135 |
MS120..LPG |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-30020 |
LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 44391-30020 |
GS121,LS120,MS12#,YS120 |
1 | ||
| 44391-30020 |
GS121,LS120,MS120 |
1 | ||
| Common parts | ||||
| 90201-12022 | ||||
| 91611-60610 | ||||
| 94511-01200 | ||||
| 94512-01000 | ||||

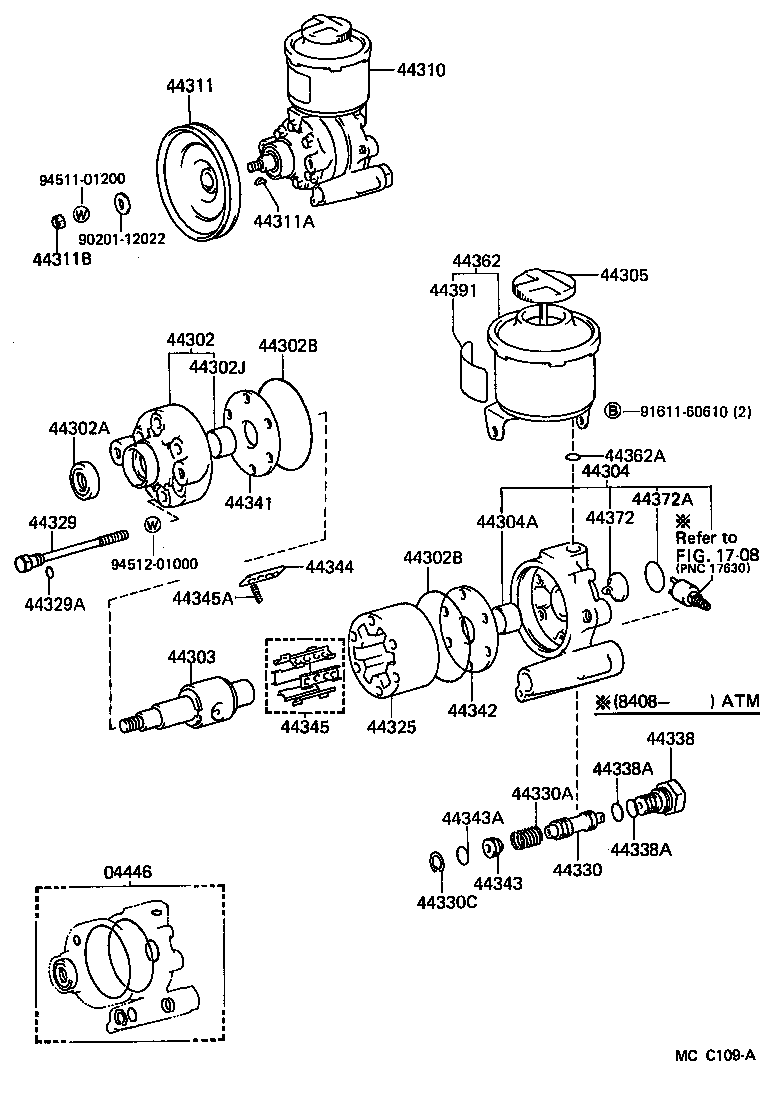

| Linked diagrams | ||||
| 1708 | ||||
