MS120-SESFP (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine MPU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )MPU

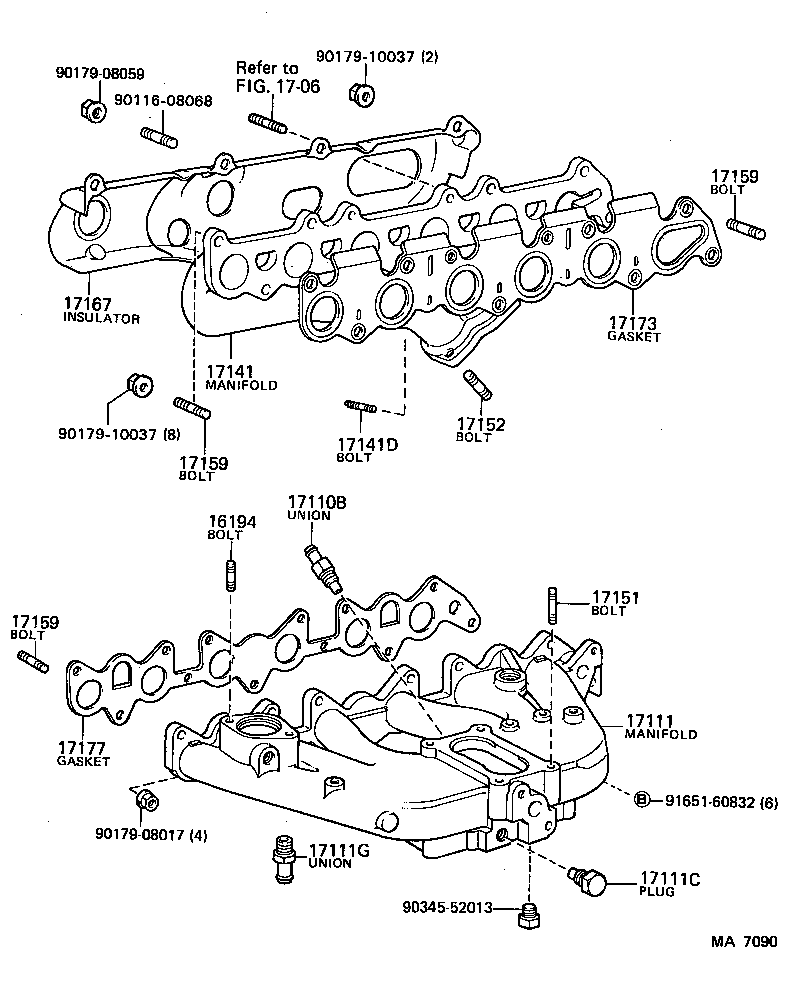

Click highlighted areas on diagram

diagram 16194 1706 17110B 17111 17111C 17111G 17141 17141D 17151 17152 17159 17159 17159 17167 17173 17177 9011608068 9017908017 9017908059 9017910037 9017910037 9034552013 9165160832
Part # Description Qty Price
16194 - BOLT, STUD(FOR WATER OUTLET SETTING)
90116-08025

MPU,MTEU..MS120

 2
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90404-52007

MPU..MS120

 1
17111 - MANIFOLD, INTAKE
17111-41160

MPU..MS120

 1
17111-41161

MPU..MS120

 1
17111C - PLUG, NO.3
90341-16094

MPU..MS120

 1
17111G - UNION(FOR INTAKE MANIFOLD WATER)
90404-53001

MPU..MS120

 1
17141 - MANIFOLD, EXHAUST
17141-41070

MPU..MS120

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08168

5MGEU,MPU,MTEU..MS12#

L=36,S=8&17

 2
90116-08128

6MGEU,MPU,MTEU..MS12#

L=28,S=8&17

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92112-40832

MPU..MS120

L=42,S=10&16

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

5MGEU,6MGEU,MPU,MTEU..MS12#

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08020

MPU,MTEU..MS120

INTAKE MANIFOLD

 4
90116-10025

MPU,MTEU..MS120

EXHAUST MANIFOLD,UPR

 7
90116-10024

MPU,MTEU..MS120

EXHAUST MANIFOLD,LWR

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08020

MPU,MTEU..MS120

INTAKE MANIFOLD

 4
90116-10025

MPU,MTEU..MS120

EXHAUST MANIFOLD,UPR

 7
90116-10024

MPU,MTEU..MS120

EXHAUST MANIFOLD,LWR

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08020

MPU,MTEU..MS120

INTAKE MANIFOLD

 4
90116-10025

MPU,MTEU..MS120

EXHAUST MANIFOLD,UPR

 7
90116-10024

MPU,MTEU..MS120

EXHAUST MANIFOLD,LWR

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17107-41010

MPU..MS120

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-45030

MPU..MS120

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-45022

MPU..MS120

 1
Common parts
90116-08068
90179-08017
90179-08059
90179-10037
90345-52013
91651-60832
Linked diagrams
1706
