MS120-SEPFP (1983)
Toyota Crown

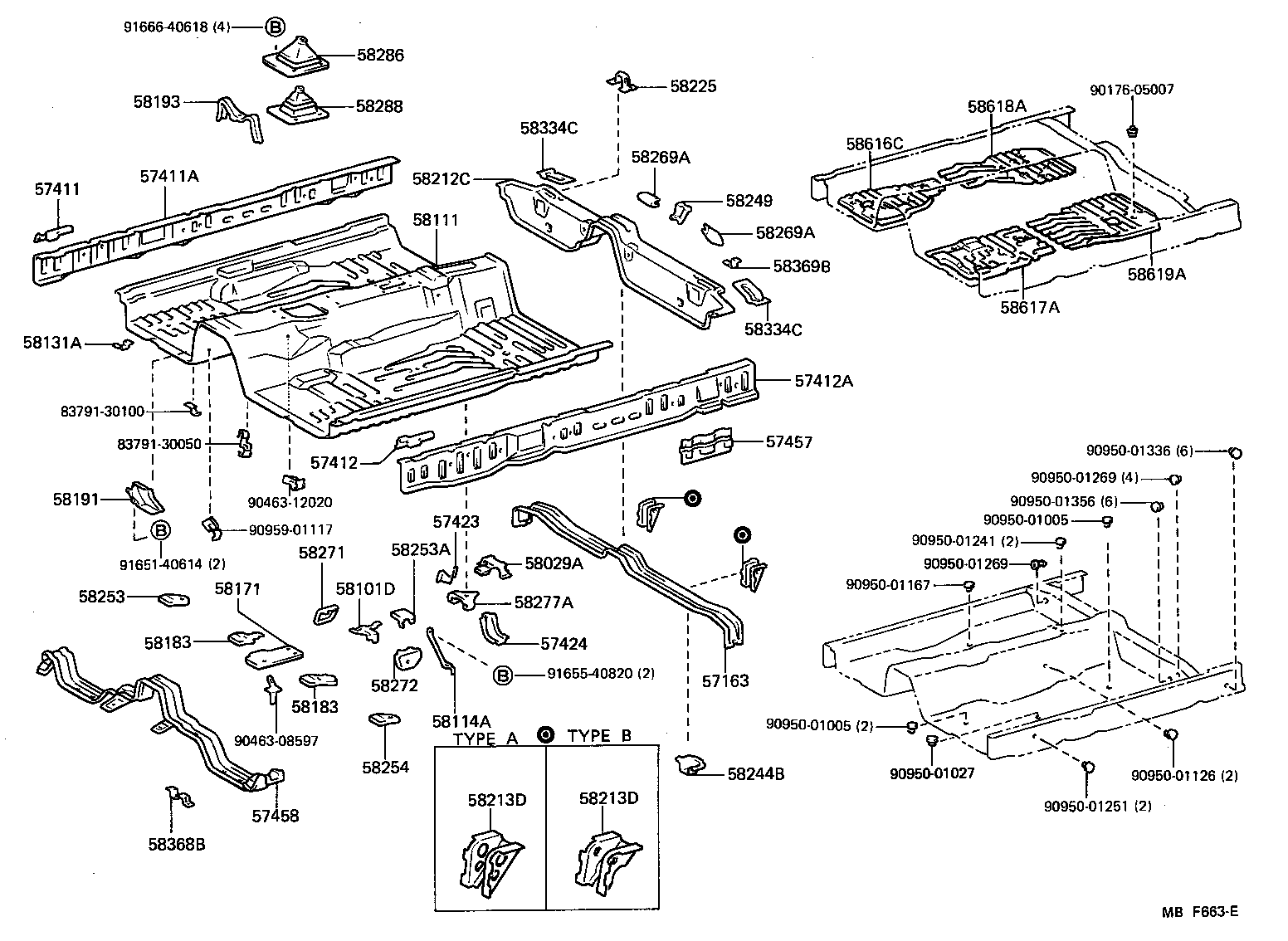

ILLUST NO. 1 OF 2(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57163 - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57459-30030 |
GS120,LS120,MS120,YS120..HT,SED |
1 | ||
| 57459-30030 |
GS120,121,LS120,MS12#,YS120..HT,SED |
1 | ||
| 57411 - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57421-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-30040 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 57412 - PLATE, FLOOR SIDE RAIL, LH | ||||
| 57422-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 57421-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-30040 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 57458 - MEMBER, FRONT FLOOR CROSS, NO.1 | ||||
| 57408-30070 |
GS12#,LS12#,MS12#,YS120..4FC,5F W/SP SEAT |
1 | ||
| 58029A - BRACKET SUB-ASSY, PARKING BRAKE WIRE CLAMP | ||||
| 58029-30020 |
GS120,126,LS12#,MS120,YS120..4FC,4HC,5F |
1 | ||
| 58101D - BRACKET, PARKING BRAKE CABLE GUIDE | ||||
| 58265-30020 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-30241 |
GS12#,LS12#,MS12#,YS120..4FC,5F |
1 | ||
| 58111-30240 |
GS12#,LS12#,MS12#,YS120..4FC,5F |
1 | ||
| 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-12020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-30040 |
GS120,126,LS12#,MS120,YS120..4FC,4H,4HC |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58183-30020 |
GS12#,LS12#,MS12#,YS120..4FC,5F RH,W/SP SEAT |
1 | ||
| 58184-30020 |
GS12#,LS12#,MS12#,YS120..4FC,5F LH,W/SP SEAT |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58183-30020 |
GS12#,LS12#,MS12#,YS120..4FC,5F RH,W/SP SEAT |
1 | ||
| 58184-30020 |
GS12#,LS12#,MS12#,YS120..4FC,5F LH,W/SP SEAT |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58212-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 58212-30021 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 58225 - HOLDER, REAR SEAT CUSHION | ||||
| 58225-30040 |
GS120,121,LS120,MS120,YS120..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) |
2 | ||
| 58253 - BRACKET, FRONT SEAT, OUTER REAR RH | ||||
| 57468-30030 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 58254 - BRACKET, FRONT SEAT, OUTER REAR LH | ||||
| 57469-30040 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 58269A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 | ||||
| 58269-30050 |
GS12#,LS12#,MS12#,YS120 LH |
1 | ||
| 58269A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 | ||||
| 58269-30050 |
GS12#,LS12#,MS12#,YS120 LH |
1 | ||
| 58271 - PLATE, BELT ANCHOR, FRONT | ||||
| 58271-30040 |
GS121..SPE,SSL;GS121..ATM..ROY;GS120,126,LS12#,MS12#,YS120 |
1 | ||
| 58271-30060 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 58272 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58272-30040 |
GS121..SPE,SSL;GS121..ATM..ROY;GS120,126,LS12#,MS12#,YS120 |
1 | ||
| 58272-30060 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 58277A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.4 | ||||
| 58269-30080 |
GS120,LS120,MS120..ATM |
1 | ||
| 58334C - REINFORCEMENT, NO.5 BODY MOUNTING | ||||
| 58334-30030 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 58334C - REINFORCEMENT, NO.5 BODY MOUNTING | ||||
| 58334-30030 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 58368B - BRACKET, FUEL TUBE, NO.2 | ||||
| 58368-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-30010 |
GS120,121,LS120,MS12#,YS120 PLANT.M21-M22 |
1 | ||
| 58369-30010 |
GS120,121,LS120,MS12#,YS120 |
1 | ||
| 58369-32010 |
GS120,121,LS120,MS12#,YS120 PLANT.A21-A26 |
1 | ||
| 58616C - PANEL, FRONT FLOOR SILENCER, NO.1 | ||||
| 58631-30020 |
GS120,121,LS120,MS12#,YS120 |
1 | ||
| 58617A - PANEL, FRONT FLOOR SILENCER, NO.2 | ||||
| 58632-30010 |
GS120,121,LS120,MS12#,YS120 |
1 | ||
| 58618A - PANEL, FRONT FLOOR SILENCER, NO.3 | ||||
| 58633-30020 |
GS120,121,LS120,MS12#,YS120 |
1 | ||
| 58619A - PANEL, FRONT FLOOR SILENCER, NO.4 | ||||
| 58634-30010 |
GS120,121,LS120,MS12#,YS120 |
1 | ||
| Common parts | ||||
| 83791-30050 | ||||
| 83791-30100 | ||||
| 90176-05007 | ||||
| 90463-08597 | ||||
| 90463-12020 | ||||
| 90950-01005 | ||||
| 90950-01027 | ||||
| 90950-01126 | ||||
| 90950-01167 | ||||
| 90950-01241 | ||||
| 90950-01251 | ||||
| 90950-01269 | ||||
| 90950-01336 | ||||
| 90950-01356 | ||||
| 90959-01117 | ||||
| 91651-40614 | ||||
| 91655-40820 | ||||
| 91666-40618 | ||||

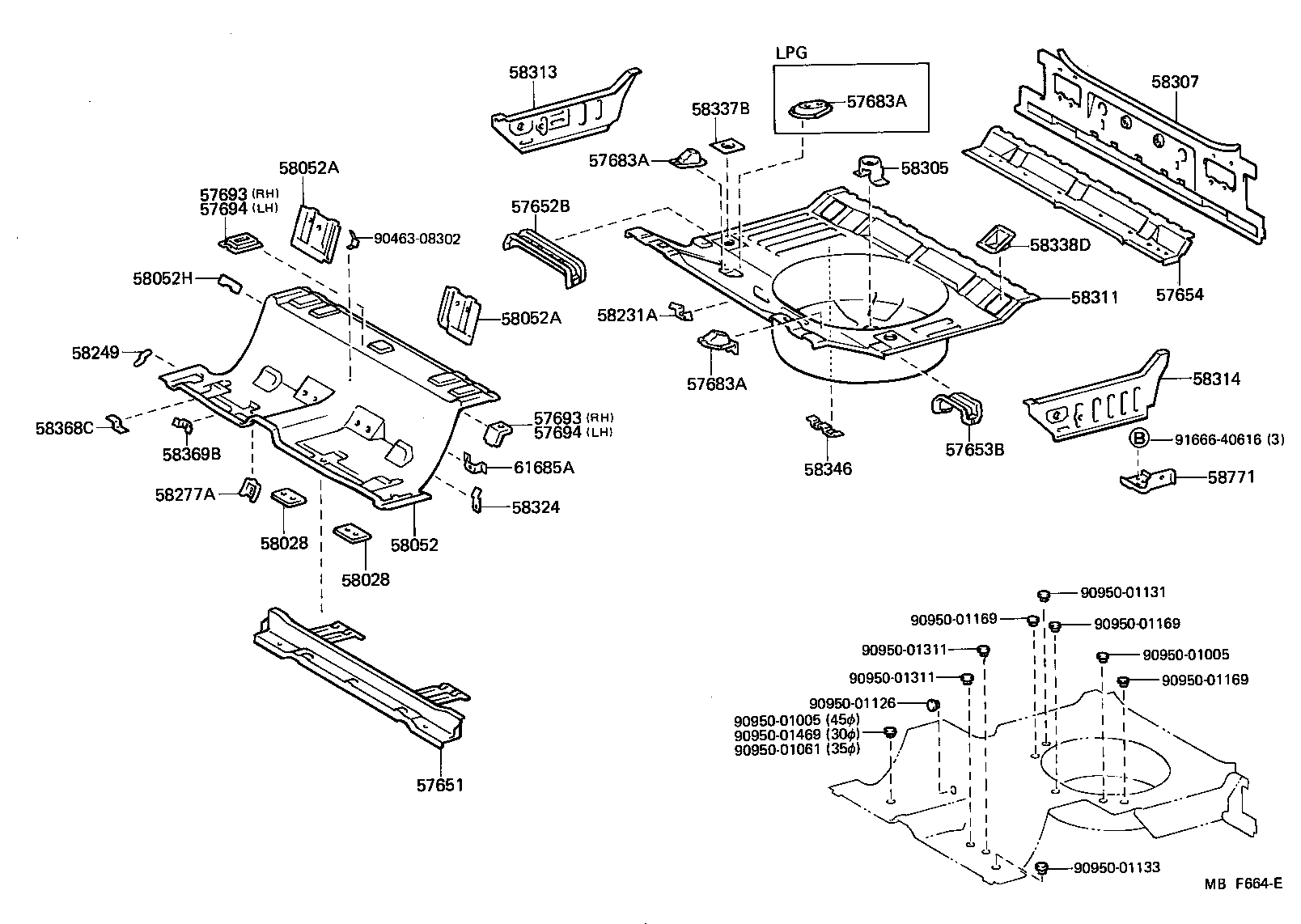

ILLUST NO. 2 OF 2(8308- )GS120,LS120,MS120,YS120..HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57651 - CROSSMEMBER, REAR FLOOR, FRONT | ||||
| 57407-30050 |
GS120,LS120,MS120,YS120..HT,SED |
1 | ||
| 57652B - MEMBER, REAR FLOOR CROSS, FRONT RH | ||||
| 57652-30050 |
GS120,LS120,MS120,YS120..HT,SED |
1 | ||
| 57653B - MEMBER, REAR FLOOR CROSS, FRONT LH | ||||
| 57653-30070 |
GS120,LS120,MS120,YS120..HT,SED |
1 | ||
| 57654 - MEMBER, REAR FLOOR CROSS, NO.4 | ||||
| 57654-30050 |
GS120,121,LS120,MS12#,YS120..HT,SED |
1 | ||
| 57683A - BRACKET, FUEL TANK MOUNTING, NO.1 | ||||
| 57063-30010 |
MS120,YS120..LPG RH |
1 | ||
| 57064-30010 |
MS120,YS120..LPG LH |
1 | ||
| 57683A - BRACKET, FUEL TANK MOUNTING, NO.1 | ||||
| 57063-30010 |
MS120,YS120..LPG RH |
1 | ||
| 57064-30010 |
MS120,YS120..LPG LH |
1 | ||
| 57683A - BRACKET, FUEL TANK MOUNTING, NO.1 | ||||
| 57063-30010 |
MS120,YS120..LPG RH |
1 | ||
| 57064-30010 |
MS120,YS120..LPG LH |
1 | ||
| 57693 - PLATE, FUEL TANK BRACKET, RH | ||||
| 57061-30010 |
MS120,YS120..LPG |
1 | ||
| 57693 - PLATE, FUEL TANK BRACKET, RH | ||||
| 57061-30010 |
MS120,YS120..LPG |
1 | ||
| 57694 - PLATE, FUEL TANK BRACKET, LH | ||||
| 57061-30010 |
MS120,YS120..LPG |
1 | ||
| 57694 - PLATE, FUEL TANK BRACKET, LH | ||||
| 57061-30010 |
MS120,YS120..LPG |
1 | ||
| 58028 - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, NO.2 | ||||
| 58028-30030 |
GS120,LS120,MS120,YS120 |
2 | ||
| 58028 - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, NO.2 | ||||
| 58028-30030 |
GS120,LS120,MS120,YS120 |
2 | ||
| 58052 - PAN SUB-ASSY, CENTER FLOOR | ||||
| 58211-30220 |
GS120,LS120,MS120,YS120 |
1 | ||
| 58211-30221 |
GS120,LS120,MS120,YS120 |
1 | ||
| 58052A - PLATE, REAR SEAT CUSHION SUPPORT | ||||
| 64225-30050 |
GS120,LS120,MS120,YS120..HT,SED RH |
1 | ||
| 64226-30020 |
GS120,LS120,MS120,YS120..HT,SED LH |
1 | ||
| 58052A - PLATE, REAR SEAT CUSHION SUPPORT | ||||
| 64225-30050 |
GS120,LS120,MS120,YS120..HT,SED RH |
1 | ||
| 64226-30020 |
GS120,LS120,MS120,YS120..HT,SED LH |
1 | ||
| 58052H - COVER, CENTER FLOOR HOLE | ||||
| 58285-30010 |
MS120,YS120..LPG |
1 | ||
| 58277A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.4 | ||||
| 58269-30080 |
GS120,LS120,MS120..ATM |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
GS120,121,LS120,MS12#,YS120..HT,SED |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-30430 |
GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD) |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-30190 |
MS120,YS120..LPG |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58305-30070 |
GS120,121,LS120,MS12#,YS120..HT,SED |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58306-30070 |
GS120,121,LS120,MS12#,YS120..HT,SED |
1 | ||
| 58324 - BRACKET, FLEXIBLE HOSE | ||||
| 47351-30140 |
GS120,LS120,MS120,YS120 |
1 | ||
| 47351-30190 |
GS120,LS120,MS120,YS120 |
1 | ||
| 58337B - REINFORCEMENT, NO.7 BODY MOUNTING | ||||
| 58337-30060 |
GS120,121,LS120,MS12#,YS120..HT,SED |
2 | ||
| 58338D - REINFORCEMENT, TAIL END BODY MOUNTING | ||||
| 58338-30030 |
GS120,121,LS120,MS12#,YS120..HT,SED |
2 | ||
| 58346 - BRACKET, REAR FLOOR HEAT INSULATOR | ||||
| 58345-30010 |
GS120,LS120,MS120,YS120..HT,SED |
1 | ||
| 58368C - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-30030 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-30010 |
GS120,121,LS120,MS12#,YS120 PLANT.M21-M22 |
1 | ||
| 58369-30010 |
GS120,121,LS120,MS12#,YS120 |
1 | ||
| 58369-32010 |
GS120,121,LS120,MS12#,YS120 PLANT.A21-A26 |
1 | ||
| 58771 - CLAMP, JACK, NO.1 | ||||
| 58795-30010 |
GS120,121,LS120,MS12#,YS120..HT,SED |
1 | ||
| 61685A - BRACKET, REAR SEAT BACK MOUNTING | ||||
| 61685-30020 |
GS120,LS120,MS120,YS120..(HT,SED)..(DLX,SAL,SDX,SPE,STD) |
1 | ||
| Common parts | ||||
| 90463-08302 | ||||
| 90950-01005 | ||||
| 90950-01061 | ||||
| 90950-01126 | ||||
| 90950-01131 | ||||
| 90950-01133 | ||||
| 90950-01169 | ||||
| 90950-01311 | ||||
| 90950-01469 | ||||
| 91666-40616 | ||||
