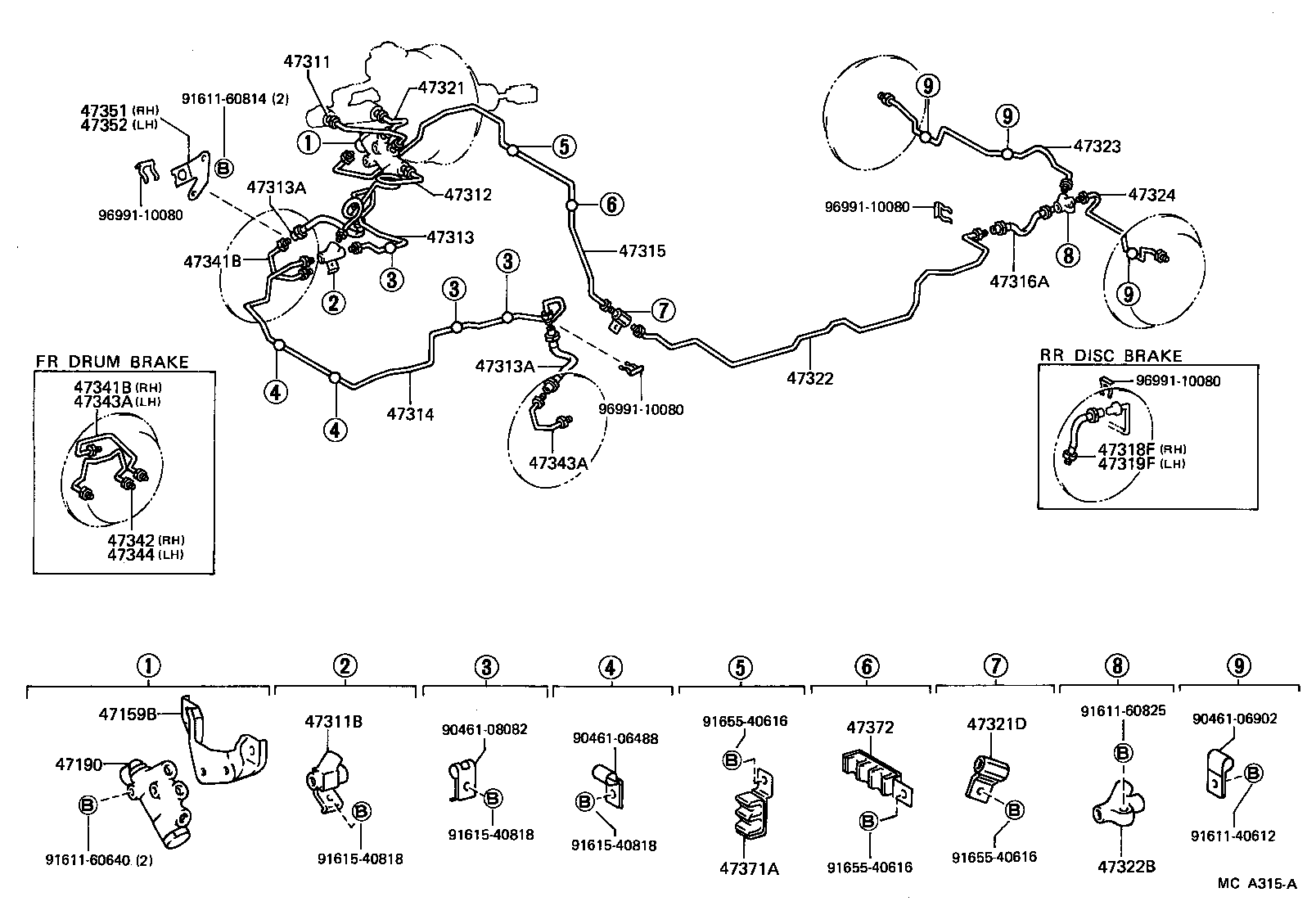

MS120-SEPFP (1983)
Toyota Crown
(8308- )DSL,EFI,LPG,TD,TDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47159B - BRACKET, PROPORTIONING & BY-PASS VALVE | ||||
| 47159-30150 |
GS12#,LS12#,MS12#,YS120..DSL,EFI,LPG,SPC,TD,TDE,TWC |
1 | ||
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-30170 |
MS120..LPG |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-30400 |
GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 47311-30400 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10014 |
GS12#,LS12#,MS12#,YS120..DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 90413-10014 |
GS120,126,LS12#,MS12#,YS120 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-30130 |
GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 47312-30130 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-30140 |
GS12#,LS12#,MS12#,YS120..DSL,EFI,LPG,SPC,TD,TDE,TWC |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02538 |
MS120,YS120 FR DRUM BRAKE |
2 | ||
| 90947-02361 |
GS12#,LS12#,MS12#,YS120 FR DISC BRAKE |
2 | ||
| 90947-02361 |
GS12#,LS12#,MS12# FR DISC BRAKE |
2 | ||
| 90947-02537 |
MS120,YS120 FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02538 |
MS120,YS120 FR DRUM BRAKE |
2 | ||
| 90947-02361 |
GS12#,LS12#,MS12#,YS120 FR DISC BRAKE |
2 | ||
| 90947-02361 |
GS12#,LS12#,MS12# FR DISC BRAKE |
2 | ||
| 90947-02537 |
MS120,YS120 FR DISC BRAKE |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-30150 |
GS12#,LS12#,MS12#,YS120..DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 47314-30150 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| 47314-30190 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-30260 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| 47315-30260 |
GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-32855 |
GS120,LS120,MS120,YS120 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-30120 |
GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 47321-30120 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10116 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-30070 |
GS120,LS120,MS120,YS120 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10156 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-30080 |
MS120,YS120..LPG |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-30040 |
MS120,YS120..LPG |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-30020 |
GS12#,LS12#,MS12#,YS120 FR DISC BRAKE |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-30020 |
GS12#,LS12#,MS12#,YS120 FR DISC BRAKE |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-30020 |
GS12#,LS12#,MS12#,YS120 FR DISC BRAKE |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-30020 |
GS12#,LS12#,MS12#,YS120 FR DISC BRAKE |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-30160 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-30080 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| Common parts | ||||
| 90461-06488 | ||||
| 90461-06902 | ||||
| 90461-08082 | ||||
| 91611-40612 | ||||
| 91611-60640 | ||||
| 91611-60814 | ||||
| 91611-60825 | ||||
| 91615-40818 | ||||
| 91655-40616 | ||||
| 96991-10080 | ||||
