MS120-SEPFP (1983)
Toyota Crown

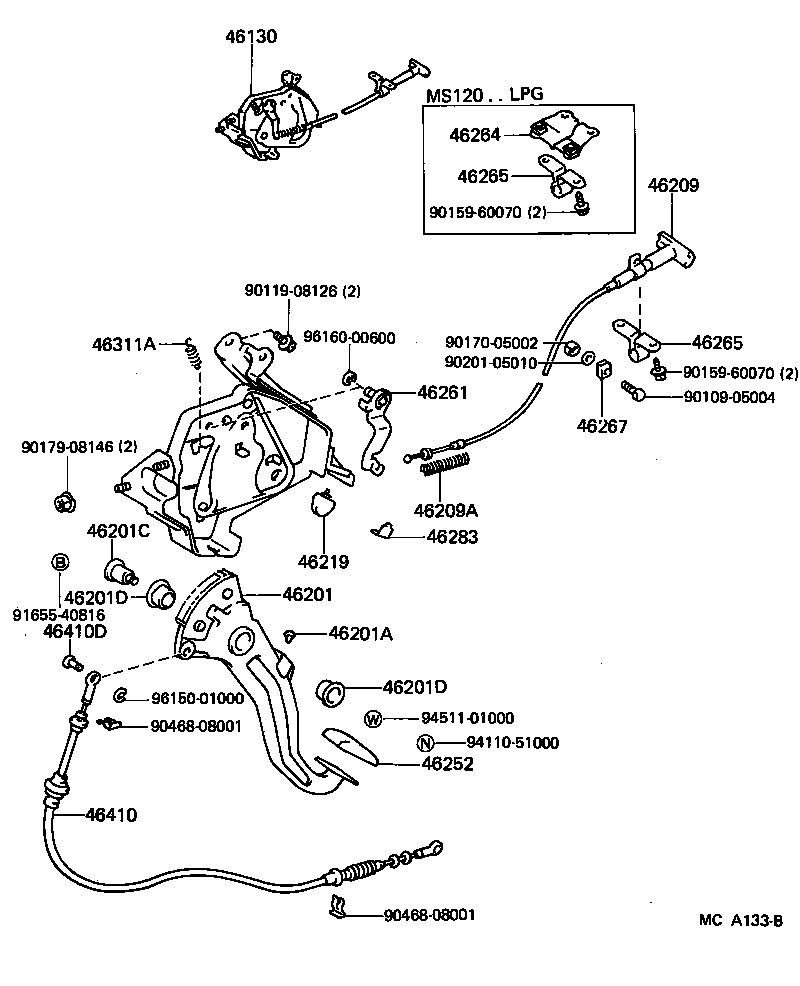

ILLUST NO. 1 OF 3(8308- )GS120,121,LS120,MS12#..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46130 - BRACKET ASSY, PARKING BRAKE PEDAL | ||||
| 46130-30030 |
GS120,121,LS120,MS12#..ATM |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46201-30070 |
GS120,121,LS120,MS12#..ATM |
1 | ||
| 46201A - CUSHION(FOR PARKING BRAKE PEDAL) | ||||
| 90541-01001 |
GS120,121,LS120,MS12#..ATM |
1 | ||
| 46201C - SHAFT, PEDAL | ||||
| 90109-10033 |
GS120,121,LS120,MS12#..ATM |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
GS120,121,LS120,MS12#..ATM |
2 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
GS120,121,LS120,MS12#..ATM |
2 | ||
| 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE | ||||
| 46209-30020 |
GS120,121,LS120,MS12#..ATM |
1 | ||
| 46209A - SPRING, COMPRESSION(FOR PARKING BRAKE RELEASE CABLE) | ||||
| 90501-08030 |
GS120,121,LS120,MS12#..ATM |
1 | ||
| 46219 - STOPPER, PARKING PEDAL | ||||
| 90541-07008 |
GS120,121,LS120,MS12#..ATM |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-20010 |
GS120,121,LS120,MS12#..ATM |
1 | ||
| 46261 - LEVER, PARKING BRAKE RELEASE INTERMEDIATE | ||||
| 46261-30020 |
GS120,121,LS120,MS12#..ATM |
1 | ||
| 46261-22010 |
GS120,121,LS120,MS12#..ATM |
1 | ||
| 46264 - ATTACHMENT, PARKING BRAKE RELEASE CABLE | ||||
| 46264-30010 |
MS120..ATM..LPG |
1 | ||
| 46265 - GUIDE, PARKING BRAKE RELEASE ROD | ||||
| 46265-30030 |
GS120,121,LS120,MS12#..ATM |
1 | ||
| 46265 - GUIDE, PARKING BRAKE RELEASE ROD | ||||
| 46265-30030 |
GS120,121,LS120,MS12#..ATM |
1 | ||
| 46267 - CUSHION, RELEASE ROD GUIDE INTERMEDIATE | ||||
| 46266-30010 |
GS120,121,LS120,MS12#..ATM |
1 | ||
| 46283 - PROTECTOR, PARKING BRAKE SIGNAL SWITCH | ||||
| 46283-30010 |
GS120,121,LS120,MS12#..ATM |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90506-07007 |
GS120,121,LS120,MS12#..ATM |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30370 |
GS120,LS120,MS120..ATM |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90249-10012 |
GS120,121,LS120,MS12#..ATM |
1 | ||
| Common parts | ||||
| 90109-05004 | ||||
| 90119-08126 | ||||
| 90159-60070 | ||||
| 90170-05002 | ||||
| 90179-08146 | ||||
| 90201-05010 | ||||
| 90468-08001 | ||||
| 91655-40816 | ||||
| 94110-51000 | ||||
| 94511-01000 | ||||
| 96150-01000 | ||||
| 96160-00600 | ||||

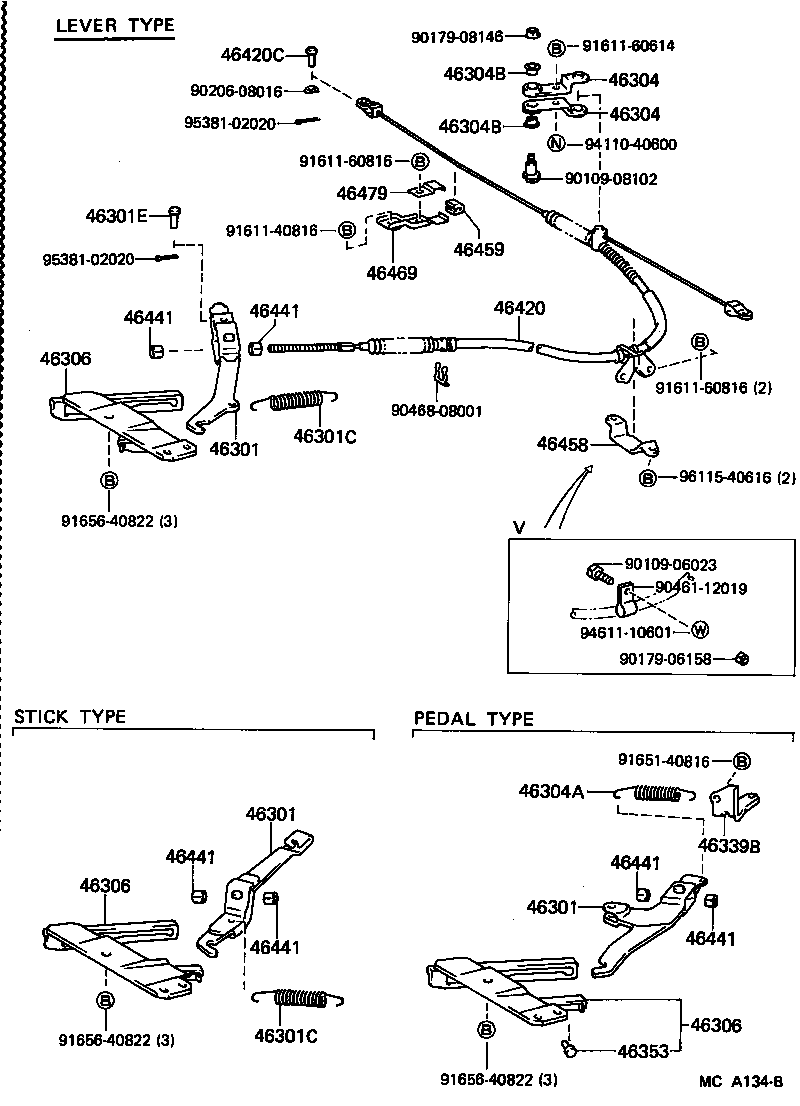

ILLUST NO. 2 OF 3(8308- )GS120,126,LS12#,MS120,YS120
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30180 |
GS120,LS120,MS120..ATM |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30180 |
GS120,LS120,MS120..ATM |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30180 |
GS120,LS120,MS120..ATM |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-08028 |
GS120,126,LS12#,MS120,YS120..4FC,4HC,5F |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-31010 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-31010 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46304A - SPRING, TENSION(FOR PARKING BRAKE EQUALIZER) | ||||
| 90507-20012 |
GS120,LS120,MS120..ATM |
1 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30060 |
GS120,LS120,MS120..ATM |
1 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30060 |
GS120,LS120,MS120..ATM |
1 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30060 |
GS120,LS120,MS120..ATM |
1 | ||
| 46339B - HANGER, INTERMEDIATE LEVER RETURN SPRING | ||||
| 46339-30010 |
GS120,LS120,MS120..ATM |
1 | ||
| 46353 - CUSHION, INTERMEDIATE LEVER | ||||
| 46353-30020 |
GS120,LS120,MS120..ATM |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-30280 |
MS120..ATM..LPG |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08028 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30050 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 46441-30050 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30050 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 46441-30050 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30050 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 46441-30050 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30050 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 46441-30050 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30050 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 46441-30050 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30050 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 46441-30050 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-30042 |
GS120,LS120,MS120,YS120 |
1 | ||
| 46459 - GUIDE, CABLE | ||||
| 46459-30010 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-31011 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| 46479 - LEVER, CABLE GUIDE SAPPORT, NO.2 | ||||
| 46479-30010 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| Common parts | ||||
| 90109-06023 | ||||
| 90109-08102 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90206-08016 | ||||
| 90461-12019 | ||||
| 90468-08001 | ||||
| 91611-40816 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 91651-40816 | ||||
| 91656-40822 | ||||
| 94110-40600 | ||||
| 94611-10601 | ||||
| 95381-02020 | ||||
| 96115-40616 | ||||
