MS120-SEPFP (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine MPU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )MPU

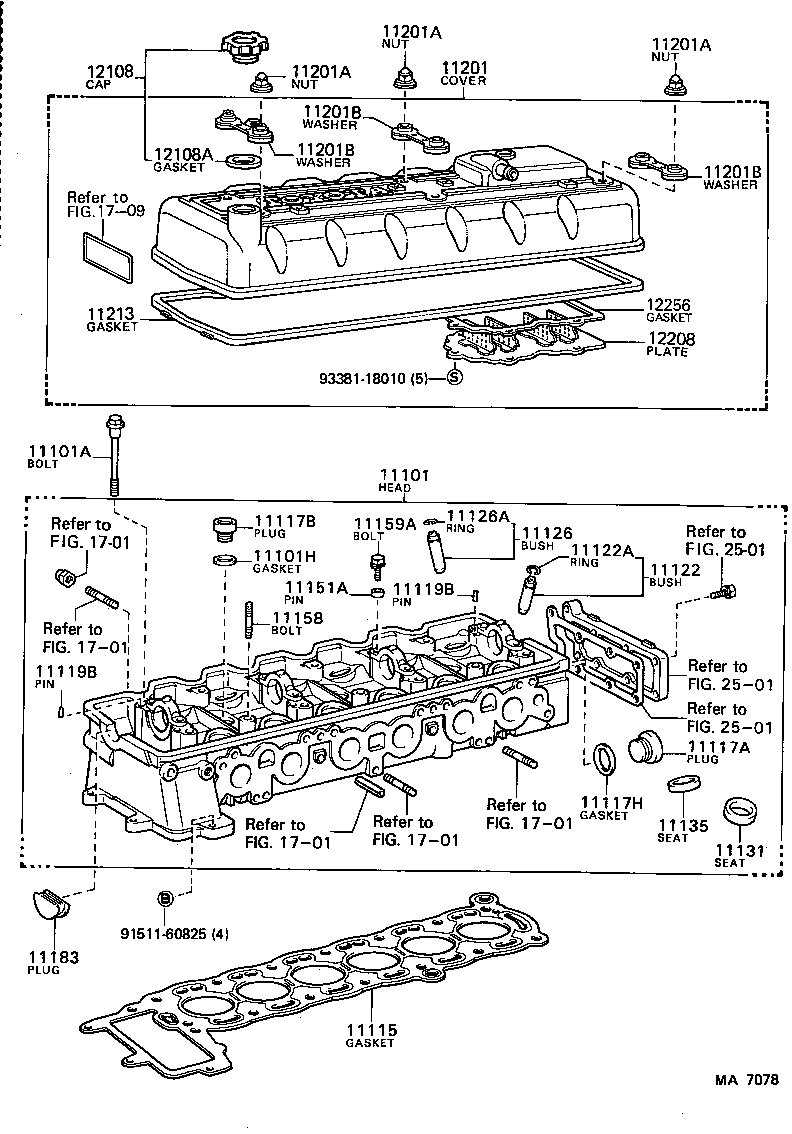

Click highlighted areas on diagram

diagram 11101 11101A 11101H 11115 11117A 11117B 11117H 11119B 11119B 11122 11122A 11126 11126A 11131 11135 11151A 11158 11159A 11183 11201 11201A 11201A 11201A 11201B 11201B 11201B 11213 12108 12108A 12208 12256 1701 1701 1701 1701 1701 1709 2501 2501 2501 9151160825 9338118010
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-49275

MPU..MS120

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02058

MPU,MTEU..MS120

*12-1.25PX166.5-21

 14
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-33133

MPU,MTEU..MS120

 3
11115 - GASKET, CYLINDER HEAD
11115-41040

MPU..MS120

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-36001

MPU,MTEU..MS120

 1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-32070

MPU,MTEU..MS120

 3
11117H - GASKET(FOR WATER HOLE)
90430-36001

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
11119B - PIN, STRAIGHT, NO.2
90253-08001

MPU,MTEU..MS120

長さ=18,外径=7.9,L=18,OD=7.9

 2
11119B - PIN, STRAIGHT, NO.2
90253-08001

MPU,MTEU..MS120

長さ=18,外径=7.9,L=18,OD=7.9

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-41020

MPU,MTEU..MS120

STD,STD

 6
11123-41020

MPU,MTEU..MS120

O/S 0.05,O/S 0.05

 6
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

5MGEU,6MGEU,MPU,MTEU..MS12#

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11126-41040

MPU,MTEU..MS120

STD,STD

 6
11127-41040

MPU,MTEU..MS120

O/S 0.05,O/S 0.05

 6
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

5MGEU,6MGEU,MPU,MTEU..MS12#

 6
11131 - SEAT, INTAKE VALVE
11132-43010

MPU,MTEU..MS120

O/S 0.03,O/S 0.03

 6
11131-43010

MPU,MTEU..MS120

STD,STD

 6
11135 - SEAT, EXHAUST VALVE
11136-41030

MPU..MS120

O/S 0.50,O/S 0.03

 6
11135-41030

MPU..MS120

STD,STD

 6
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

MPU,MTEU..MS120

長さ=8,外径=11

 8
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-08003

MPU..MS120

長さ=51,L=51,S=14&8.5

 6
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
91611-60825

MPU,MTEU..MS120

 8
11183 - PLUG, SEMICIRCULAR
11183-45020

MPU,MTEU..MS120

 2
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-49146

MPU..MS120

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08015

MPU,MTEU..MS120

 6
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08015

MPU,MTEU..MS120

 6
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08015

MPU,MTEU..MS120

 6
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09002

MPU,MTEU..MS120

CTR,RR

 2
90210-09009

MPU,MTEU..MS120

FR

 1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09002

MPU,MTEU..MS120

CTR,RR

 2
90210-09009

MPU,MTEU..MS120

FR

 1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09002

MPU,MTEU..MS120

CTR,RR

 2
90210-09009

MPU,MTEU..MS120

FR

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-41020

MPU,MTEU..MS120

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
12180-70010

6MGEU,MPU..MS12#

 1
12180-13030

6MGEU,MPU..MS12#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
12208 - PLATE SUB-ASSY, VENTILATION BAFFLE
12208-41010

MPU,MTEU..MS120

 1
12256 - GASKET, VENTILATION BAFFLE
12256-41021

MPU,MTEU..MS120

 1
Common parts
91511-60825
93381-18010
Linked diagrams
1701
1709
2501
