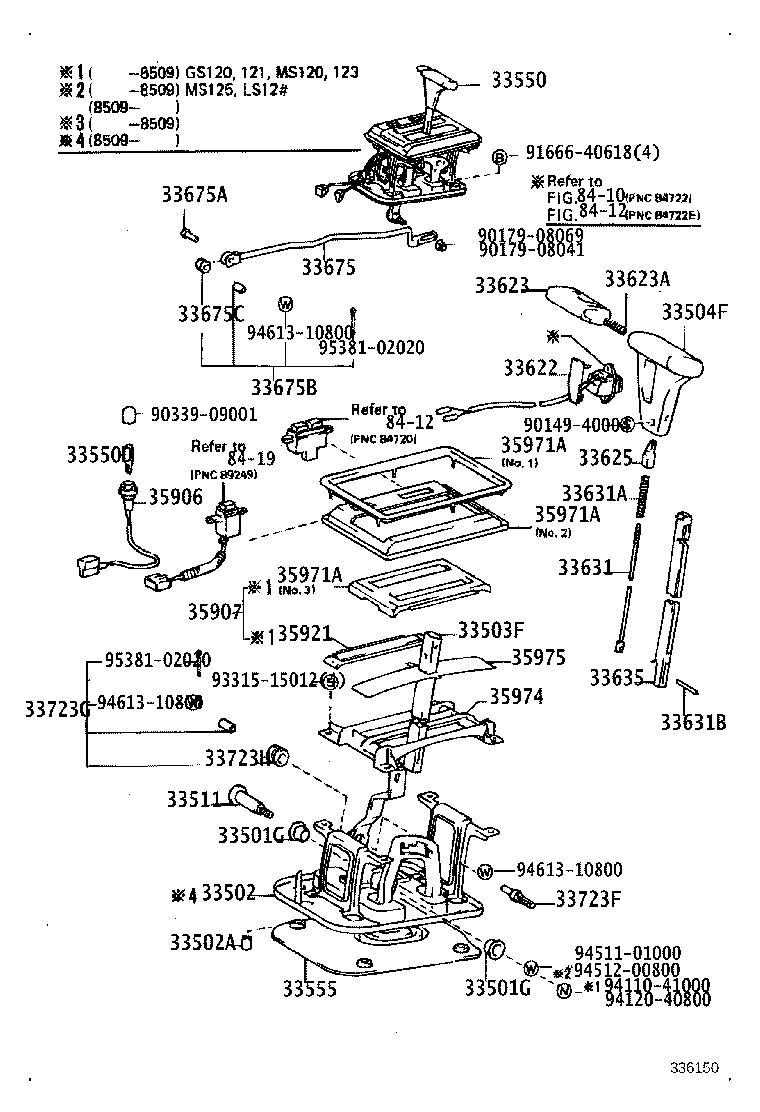

MS120-SEPDP (1983)
Toyota Crown
(8308- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
GS120,121,LS12#,MS12#..4FC |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
GS120,121,LS12#,MS12#..4FC |
2 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-30142 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
GS120,121,LS12#,MS12#..4FC 外径=8.8 |
4 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-30121 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 33503-30120 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-3013004 |
GS120,121,LS12#,MS12#..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33542-3013014 |
GS120,121,LS12#,MS12#..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-30340 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 33511-30341 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-3011004 |
GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE) BLUE,BLUE,TRIM8# |
1 | ||
| 33550-3011104 |
GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE) BLUE,BLUE,TRIM8# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-12034 |
GS120,121,LS12#,MS12#..4FC 12V 3.4W,12V 3.4W |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-30150 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-3004004 |
GS120,121,LS12#,MS12#..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33622-3004014 |
GS120,121,LS12#,MS12#..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-3005004 |
GS120,121,LS12#,MS12#..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623-3005014 |
GS120,121,LS12#,MS12#..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-32010 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-30060 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08017 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90256-04003 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 33635 - GUIDE, WIRE (FOR SHIFT LEVER) | ||||
| 33635-30020 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 33675 - ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT) | ||||
| 33702-30090 |
GS120,MS120,123..4FC |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 90240-08120 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90999-99017 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17177 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-30060 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-32010 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT) | ||||
| 35907-30231 |
GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE) |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-30290 |
GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE) |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-30130 |
GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE) NO.2 |
1 | ||
| 35971-3015004 |
GS120,121,LS12#,MS12#..4FC NO.1,BLUE,BLUE,TRIM8# |
1 | ||
| 35973-3002004 |
GS120,121,LS12#,MS12#..4FC NO.1,BLUE,BLUE,TRIM8# |
1 | ||
| 35971-30140 |
GS120,121,LS12#,MS12#..4FC NO.3 |
1 | ||
| 35973-30021 |
GS120,121,LS12#,MS12#..4FC NO.1 |
1 | ||
| 35971-30131 |
GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE) NO.2 |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-30130 |
GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE) NO.2 |
1 | ||
| 35971-3015004 |
GS120,121,LS12#,MS12#..4FC NO.1,BLUE,BLUE,TRIM8# |
1 | ||
| 35973-3002004 |
GS120,121,LS12#,MS12#..4FC NO.1,BLUE,BLUE,TRIM8# |
1 | ||
| 35971-30140 |
GS120,121,LS12#,MS12#..4FC NO.3 |
1 | ||
| 35973-30021 |
GS120,121,LS12#,MS12#..4FC NO.1 |
1 | ||
| 35971-30131 |
GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE) NO.2 |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-30130 |
GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE) NO.2 |
1 | ||
| 35971-3015004 |
GS120,121,LS12#,MS12#..4FC NO.1,BLUE,BLUE,TRIM8# |
1 | ||
| 35973-3002004 |
GS120,121,LS12#,MS12#..4FC NO.1,BLUE,BLUE,TRIM8# |
1 | ||
| 35971-30140 |
GS120,121,LS12#,MS12#..4FC NO.3 |
1 | ||
| 35973-30021 |
GS120,121,LS12#,MS12#..4FC NO.1 |
1 | ||
| 35971-30131 |
GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE) NO.2 |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-30050 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 35974-30051 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-30080 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| 35975-30081 |
GS120,121,LS12#,MS12#..4FC |
1 | ||
| Common parts | ||||
| 90149-40004 | ||||
| 90179-08041 | ||||
| 90179-08069 | ||||
| 90339-09001 | ||||
| 91666-40618 | ||||
| 93315-15012 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94511-01000 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
| Linked diagrams | ||||
| 8410 | ||||
| 8412 | ||||
| 8419 | ||||
