MS120-SEBFP (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine MPU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )HT,SED

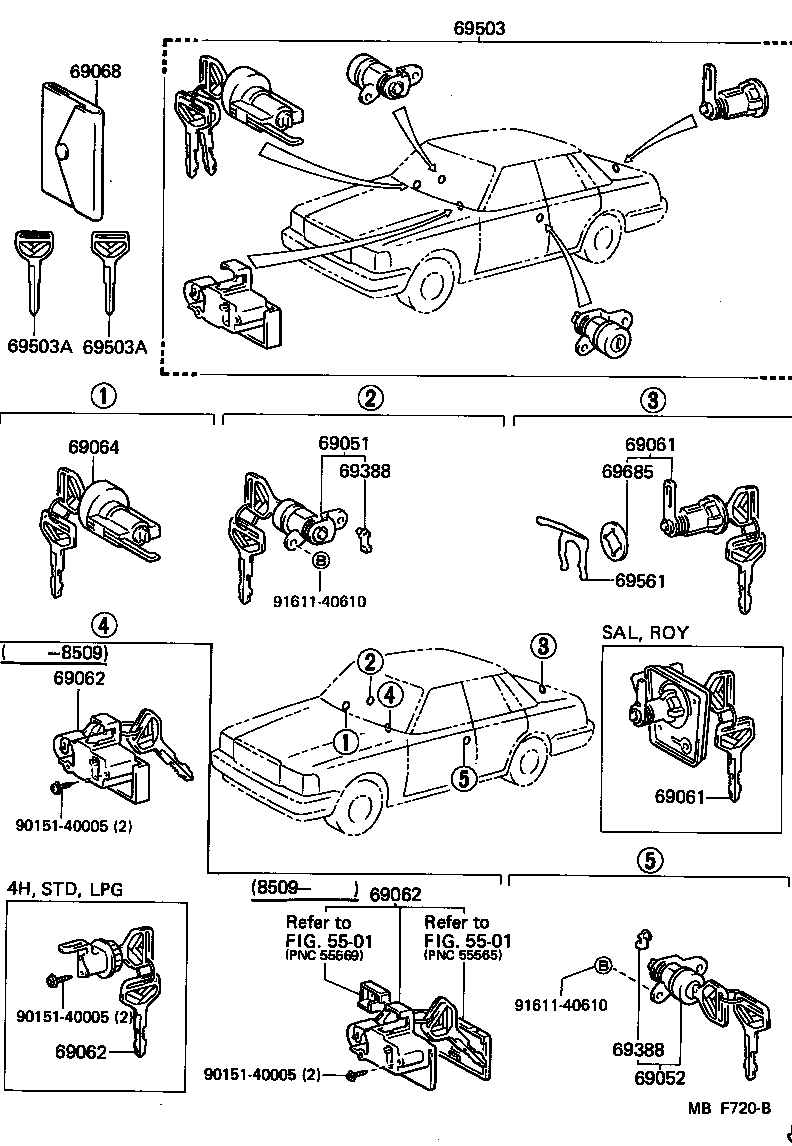

Click highlighted areas on diagram

diagram 5501 5501 69051 69052 69061 69061 69062 69062 69062 69064 69068 69388 69388 69503 69503A 69503A 69561 69685 9015140005 9015140005 9015140005 9161140610 9161140610
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-30140

GS12#,LS12#,MS12#,YS120

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-30130

GS12#,LS12#,MS12#,YS120

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-30080

GS120..4H;LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-30080

GS120..4H;LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-30050

LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-30050

LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-30050

LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-30040

GS12#,LS12#,MS12#,YS120

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

GS12#,LS12#,MS12#,YS120

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-30050

GS12#,LS12#,MS12#,YS120

LH

 1
69759-30040

GS12#,LS12#,MS12#,YS120

RH

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-30050

GS12#,LS12#,MS12#,YS120

LH

 1
69759-30040

GS12#,LS12#,MS12#,YS120

RH

 1
69503 - CYLINDER SET, LOCK
69005-30330

MS120,YS120..DLX,SDX;GS120,LS120..4H..DLX

 1
69503A - KEY, BLANK
90999-00100

GS120,121,LS120,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL

ｻﾌﾞｷｰ,SUB KEY

 1
90999-00099

GS12#,LS12#,MS12#,YS120

ﾏｽﾀｰｷｰ,MASTER KEY

 2
69503A - KEY, BLANK
90999-00100

GS120,121,LS120,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL

ｻﾌﾞｷｰ,SUB KEY

 1
90999-00099

GS12#,LS12#,MS12#,YS120

ﾏｽﾀｰｷｰ,MASTER KEY

 2
69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE
69561-30040

GS120,121,LS120,MS12#,YS120..SED

 1
69685 - PAD, LOCK CYLINDER
69563-32010

GS120,121,LS120,MS120,YS120..(HT,SED)..(DLX,SDX,SPE,STD)

 1
Common parts
90151-40005
91611-40610
Linked diagrams
5501
