MS120-SEBDP (1983)
Toyota Crown
ILLUST NO. 1 OF 2(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-14010 |
MS120..LPG |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
LS12#,MS120..DSL,LPG,TD,TDE |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-30140 |
MS120..LPG |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-14090 |
MS120..LPG |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 90099-01108 |
GS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG) T=0.5 |
1 | ||
| 90099-01350 |
GS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG) T=0.1 |
1 | ||
| 90099-01108 |
GS120,126,LS12#,MS120,YS120 T=0.5 |
1 | ||
| 90099-01350 |
GS120,126,LS12#,MS120,YS120 T=0.1 |
1 | ||
| 90099-01351 |
GS120,126,LS12#,MS120,YS120 T=0.2 |
1 | ||
| 90099-01351 |
GS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG) T=0.2 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 90099-01108 |
GS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG) T=0.5 |
1 | ||
| 90099-01350 |
GS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG) T=0.1 |
1 | ||
| 90099-01108 |
GS120,126,LS12#,MS120,YS120 T=0.5 |
1 | ||
| 90099-01350 |
GS120,126,LS12#,MS120,YS120 T=0.1 |
1 | ||
| 90099-01351 |
GS120,126,LS12#,MS120,YS120 T=0.2 |
1 | ||
| 90099-01351 |
GS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG) T=0.2 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 90099-01108 |
GS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG) T=0.5 |
1 | ||
| 90099-01350 |
GS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG) T=0.1 |
1 | ||
| 90099-01108 |
GS120,126,LS12#,MS120,YS120 T=0.5 |
1 | ||
| 90099-01350 |
GS120,126,LS12#,MS120,YS120 T=0.1 |
1 | ||
| 90099-01351 |
GS120,126,LS12#,MS120,YS120 T=0.2 |
1 | ||
| 90099-01351 |
GS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG) T=0.2 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
GS121,LS12#,MS120,123,YS120 |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07114 |
LS12#,MS12#,YS120..DSL,LPG,TD,TDE,TWC |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14030 |
LS12#,MS12#,YS120..DSL,LPG,TD,TDE,TWC |
1 | ||
| 88403-14030 |
GS121,LS12#,MS12#,YS120..DSL,LPG,TD,TDE,TWC |
1 | ||
| Common parts | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 90099-35012 | ||||
| 93319-15008 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

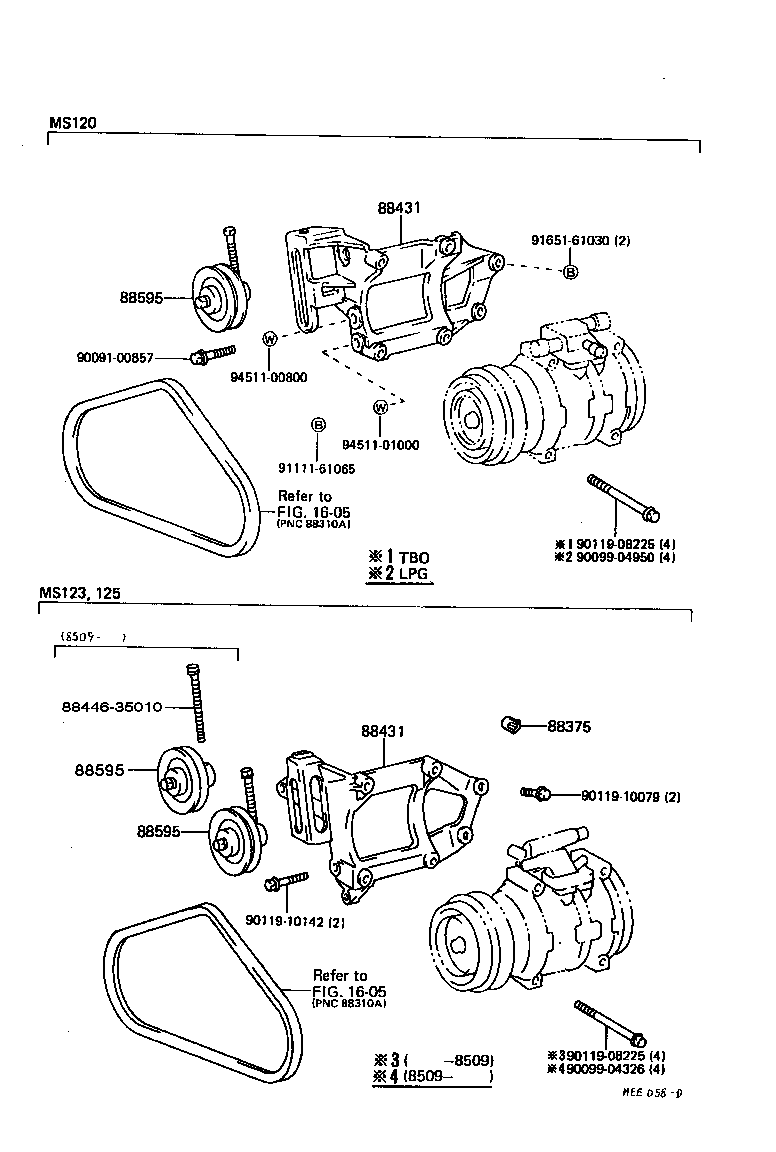

ILLUST NO. 2 OF 2(8308- )MS12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-24030 |
MS120..LPG |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-24030 |
MS120..LPG |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
MS120 |
1 | ||
| 88440-30250 |
MS12# |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
MS120 |
1 | ||
| 88440-30250 |
MS12# |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
MS120 |
1 | ||
| 88440-30250 |
MS12# |
1 | ||
| Common parts | ||||
| 88446-35010 | ||||
| 90091-00857 | ||||
| 90099-04326 | ||||
| 90099-04950 | ||||
| 90119-08225 | ||||
| 90119-10079 | ||||
| 90119-10142 | ||||
| 91111-61065 | ||||
| 91651-61030 | ||||
| 94511-00800 | ||||
| 94511-01000 | ||||
| Linked diagrams | ||||
| 1605 | ||||
