MS120-SEBDP (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine MPU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )MTM

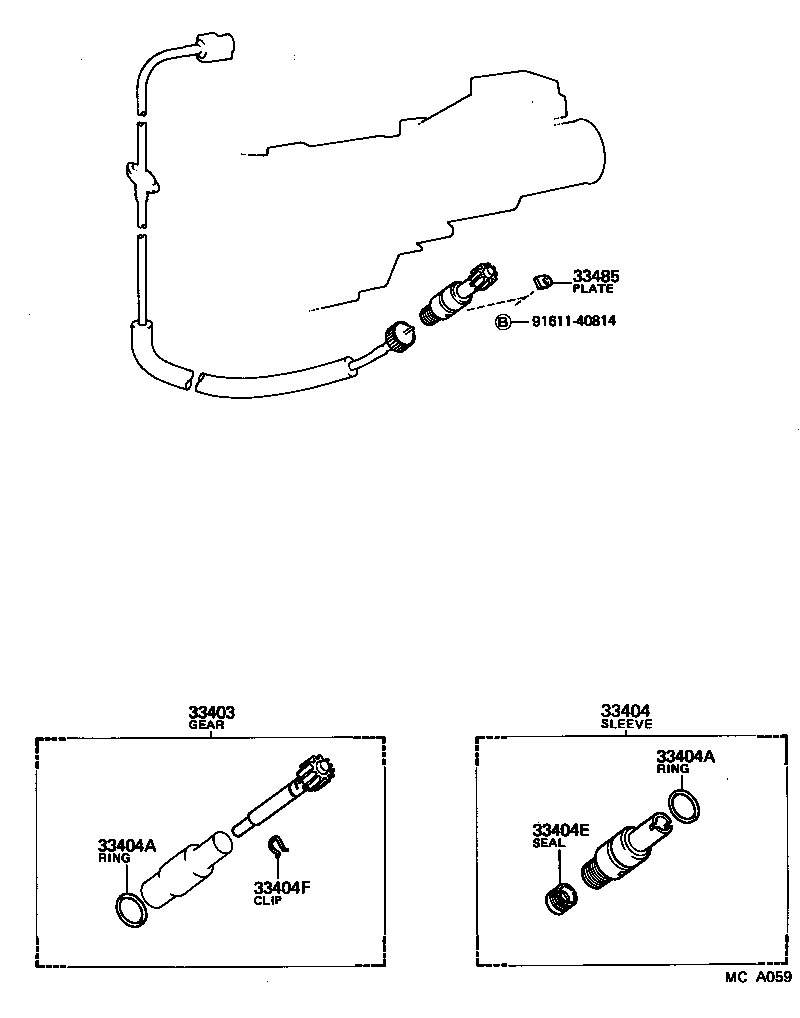

Click highlighted areas on diagram

diagram 33403 33404 33404A 33404A 33404E 33404F 33485 9161140814
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33482-39035

GS120,MS120..SED..4H

歯数=21,ﾏｰｸ 21:6

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-35010

GS120,126,LS12#,MS120,YS120..4H

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

GS120,126,LS12#,MS120,YS120..4H

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

GS120,126,LS12#,MS120,YS120..4H

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

GS12#,LS12#,MS120,YS120..MTM

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

GS12#,LS12#,MS120,YS120..MTM

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30020

GS12#,LS12#,MS120,YS120..MTM

 1
Common parts
91611-40814
